ABSTRACT The newly launched Fengyun-3D (FY-3D) satellite carried a wide-field auroral imager (WAI) that was developed by Changchun Institute of Optics, Fine Mechanics and Physics, Chinese

Academy of Sciences (CIOMP), which will provide a large field of view (FOV), high spatial resolution, and broadband ultraviolet images of the aurora and the ionosphere by imaging the N2 LBH

bands of emissions. The WAI consists of two identical cameras, each with an FOV of 68° in the along-track direction and 10° in the cross-track direction. The two cameras are tilted relative

to each other to cover a fan-shaped field of size 130° × 10°. Each camera consists of an unobstructed four-mirror anastigmatic optical system, a BaF2 filter, and a photon-counting imaging

detector. The spatial resolution of WAI is ~10 km at the nadir point at a reference height of 110 km above the Earth’s surface. The sensitivity is >0.01 counts s−1 Rayleigh−1 pixel−1

(140–180 nm) for both cameras, which is sufficient for mapping the boundaries and the fine structures of the auroral oval during storms/substorms. Based on the tests and calibrations that

were conducted prior to launch, the data processing algorithm includes photon signal decoding, geometric distortion correction, photometric correction, flat-field correction, line-of-sight

projection and correction, and normalization between the two cameras. Preliminarily processed images are compared with DMSP SSUSI images. The agreement between the images that were captured

by two instruments demonstrates that the WAI and the data processing algorithm operate normally and can provide high-quality scientific data for future studies on auroral dynamics. SIMILAR

CONTENT BEING VIEWED BY OTHERS SOLAR X-RAY AND EUV IMAGER ON BOARD THE FY-3E SATELLITE Article Open access 22 November 2022 CHARACTERIZATION OF THE DECAMETRE SKY AT SUBARCMINUTE RESOLUTION

Article 06 May 2024 IMAGING OF 3 BRIGHT TERRESTRIAL GAMMA-RAY FLASHES BY THE ATMOSPHERE-SPACE INTERACTIONS MONITOR AND THEIR PARENT THUNDERSTORMS Article Open access 23 March 2024

INTRODUCTION The wide-field auroral imager (WAI) is designed for studying the dynamics of auroras and potentially for forecasting auroral substorms by imaging the N2 Lyman–Birge–Hopfield

(LBH) auroral bands. The LBH aurora is generated by the collision with the molecular nitrogen of the energetic electron precipitating into the polar upper atmosphere along the Earth’s

magnetic field lines1,2. The intensity of the auroral LBH emissions depends on the flux and mean energy of the precipitated electrons and the mixed auroral boundary. Typically, the auroral

oval is located at magnetic latitudes between 65° and 75°, however, it expands to lower latitudes at nightside during storms and substorms. Imaging the auroral oval from space provides

spatial/temporal information of the precipitation particles that can be mapped back to different source regions in the magnetosphere to elucidate the energy transportation processes3,4.

Space-borne optical remote sensing of the aurora has been under development for more than 40 years. Many imagers and spectrographs that are sensitive in various spectral bands (e.g., X-ray,

extreme ultraviolet (EUV), far ultraviolet (FUV), and visible light) have been launched to study auroral phenomena. Among these, two categories of instruments have been commonly used. The

first category consists of multispectral imagers that operate in elliptical polar orbits, such as the scanning auroral imager (SAI) that is onboard the Dynamic Explorer 1 (DE-1) satellite5,

the wideband imaging camera (WIC) and spectrographic imager (SI) that are onboard the Imager for Magnetosphere-to-Auroral Global Exploration (IMAGE) spacecraft6,7,8, and the ultraviolet

imager that is onboard the Polar satellite9. The instruments typically operate in the FUV wavelength range and global auroral images with various emission features (typically at H 121.6 nm,

OI 130.4 nm, OI 135.6 nm, N2 LBH bands) have typically been obtained when the satellites were located in apogee regions that are more than 30,000 km from the Earth. In such scenarios, the

complete auroral oval can be observed at a spatial resolution of ~100 km and the images can only be used to investigate the large-scale structures of the aurora. The second category of

instruments, which operate in low-Earth orbits, can realize higher spatial resolution (~50 km) but with small spatial coverage and the complete auroral oval cannot be observed in a snapshot.

These instruments include the global ultraviolet imager (GUVI) that is onboard the Thermosphere Ionosphere Mesosphere Energy and Dynamics (TIMED) mission10 and the special sensor

ultraviolet spectrographic imager (SSUSI) that is onboard the Defense Meteorological Satellite Program (DMSP) satellites11. The two instruments are almost identical, except the altitude is

~630 km for GUVI and ~840 km for SSUSI. Both imagers measure the spectral radiance of the Earth’s FUV airglow and aurora in the spectral range from 120 to 180 nm using a cross-track scanning

spectrometer design. Once the spectral information of the airglow and auroral emissions are obtained, various environmental parameters can be derived, such as the column O/N2 ratio12, the

mixed auroral boundaries, the effective energy flux, the effective average energy, and the ionospheric conductivities3,4. A summary of the parameters of these typical imagers is presented in

Table 1. Benefiting from the observations by the above imagers (and possibly other imagers), many large-scale auroral structures were discovered in the past decades13,14,15,16,17, which led

to many discoveries of physical and chemical processes that occur in the magnetosphere but are not fully visible to any in-situ instruments. It is frequently stated that “the small auroral

oval is a projection of the vast magnetosphere–ionosphere system”. Therefore, the small structures of the auroral oval could be the results of large-scale processes in the magnetosphere.

With these concerns, we have developed a state-of-the-art spacecraft-based imager that features both high resolution and a wide field for monitoring the auroral dynamics from a low-Earth

orbit. In this paper, we will identify the requirements of WAI according to the scientific goals and the constraints that are associated with the FY-3 satellite platform. The design and

development of the WAI instrument, the laboratory tests and calibrations of WAI, the data processing algorithms, and the preliminary results will be presented in detail. RESULTS Figure 1

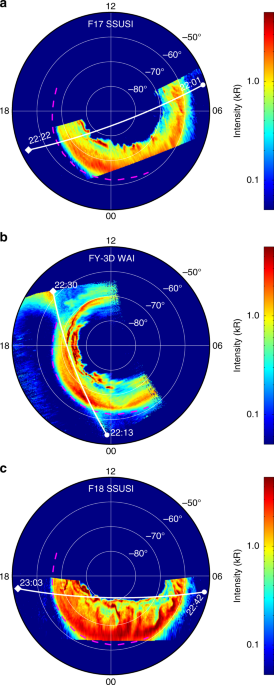

shows the auroral images that were captured from 22:01 UT to 23:03 UT on August 25, 2018 by WAI (in nadir mode) and SSUSI during the expansion phase of a geomagnetic storm. The DMSP F17

satellite passed the southern polar region from 22:01 UT to 22:22 UT, the FY-3D satellite passed the southern polar region from 22:13 UT to 22:30 UT, and the DMSP F18 satellite passed the

polar region from 22:42 UT to 23:03 UT. A threshold of 50 Rayleigh is applied to all three images to eliminate the background noises. According to Fig. 1, the auroral image that was captured

by WAI corresponds very well with those that were captured by F17 and F18; hence, the WAI instrument and the data processing algorithm perform well. From Fig. 1a–c, equatorward expansion

and intensification of the auroral oval are observed. Therefore, auroral imaging with both high temporal resolution and high spatial resolution is necessary. In addition, according to Fig.

1b, the spatial coverage of WAI is significantly larger than that of DMSP SSUSI; hence, we can investigate the auroral dynamics in a larger spatial scope and evaluate the

magnetosphere-ionosphere coupling in a wider region. Moreover, since the F17, FY-3D, and F18 satellites always pass the polar region successively with a temporal interval of ~20 min,

combination of the three satellites could provide more comprehensive temporal and spatial coverage in auroral researches in the future. The result in Fig. 1b is preliminary. The extended

structure in the upper-left corner in Fig. 1b is caused by the dayglow of the ionosphere. In the current version of the data processing algorithm, such noises are preserved. We will

investigate the application of a new background removal algorithm in the future to eliminate these noises. DISCUSSION In this paper, the development, calibration, and data processing

algorithms for the WAI onboard FY-3 satellite are described. This is the first optical remote sensor for space weather and space physics in China. The results of in-orbit tests demonstrate

that the performance of WAI satisfies the design requirements and the requirements of scientific investigations. The processed Level-1 disk images of the aurora and ionosphere will be

released by the NCSW-CMA according to its data policy. Another high-level product is under development. Auroral morphology is a powerful diagnostic tool for investigating energy dissipation

processes in the Earth’s magnetospheres. The basic driver of auroral explosions is the interaction of the solar wind with the Earth’s magnetosphere; however, the understanding of the

physical processes that lead to various types of auroras is incomplete. Auroral explosions can be global or local, depending on the global dynamics of the magnetospheric plasma

transportation and the flux and energy of the plasma. Therefore, an auroral imager with both a large field and high resolution is beneficial for investigating auroras both globally and

locally. When FY-3H is launched in the near future, two WAIs will be operating in a same orbit and the auroral activities in both hemispheres could be monitored simultaneously. We will be

able to investigate the auroral dynamics and solar wind–magnetosphere–ionosphere couplings, including their hemispheric differences, systematically. This will also substantially improve our

understanding of space weather and its accurate prediction. MATERIALS AND METHODS SCIENTIFIC OBJECTIVES As the official space weather operation agency, the National Center for Space Weather,

China Meteorological Administration (NCSW-CMA) is responsible for planning China’s space weather observation infrastructures. The concept of wide-field auroral imaging was initially

proposed by Chinese scientists in the KuaFu mission18, which was designed to explore the physical processes that are responsible for space weather as a complement to planned in situ and

ground-based programs and to make an essential contribution to the space weather applications. In 2012, the NCSW-CMA proposed carrying two WAIs on the polar-orbiting Fengyun-3 satellites,

namely, the FY-3D and FY-3H satellites, to simultaneously monitor the ionosphere and the auroral activity in both hemispheres. Both FY-3D and FY-3H will operate in a polar-orbiting

sun-synchronous orbit at an altitude of ~840 km with ~99° inclination and with orbital periods near 100 min. An orbital phase difference of 180° will be set for the two satellites to ensure

the simultaneous observations of auroral oval in both hemispheres with high spatial resolution and large spatial coverages. Such conjugated auroral imaging is highly important for

investigating the auroral breakup, the auroral polar boundary intensification, which is due to far magnetotail reconnection, and the cusp auroral, which is generated by the high-latitude

lobe reconnection under conditions of northward interplanetary magnetic field (IMF). Using conjugated imaging, we can also conduct research on the hemispheric symmetry and asymmetry

properties in the energy input to the geospace system (especially the ionosphere). By determining the conductivity difference at the foot points of the magnetic flux tubes in both

hemispheres, the effect of the conductivity in driving the substorm expansion phase and other dynamic processes can be derived. Global conjugated imaging can also facilitate the

determination of when the diffuse auroral and discrete auroral images become conjugated. WAI will also observe the LBH emissions in the dayside ionosphere in middle and low latitudes to

capture the large-scale structures and evolutions of the ionosphere and thermosphere. The airglow emissions are excited mostly by collisions of photoelectrons that are generated by solar

extreme ultraviolet radiation with the major gases in the upper atmosphere. The brightness of the LBH emissions can be used as a measure of the integrated solar flux12, which is a proxy for

the energy flux into the atmosphere in a variable region of the solar spectrum. The main scientific objectives for WAI are as follows: * (1) Image the LBH aurora in the spectral range from

140 to 180 nm to monitor and potentially forecast the auroral substorms. * (2) Identify the small-scale structures of the aurora in the FUV wavelength on the time scale of minutes to

investigate the physical and chemical processes in the source regions in the transition regions between the inner and outer magnetosphere. * (3) Image the LBH emission in the middle- and

low-latitude ionosphere to capture the large-scale structures and evolutions of the ionosphere and thermosphere. Based on these objectives and considering the orbital properties of the FY-3

satellite, the WAI system should have the following characteristics: * (1) A spectral response that is limited to the N2 LBH band. * (2) Optical system(s) with large FOV and high resolution.

* (3) High sensitivity to ensure a short exposure time. According to these requirements, the WAI instrument parameters are summarized in Table 2. The design will be analyzed in detail in

the following sections. OPTICAL AND MECHANICAL DESIGN The spatial resolution and FOV of WAI depend not only on the satellite orbit but also on the optical system design. The FY-3 satellites

operate in a near-circular orbit at a height of ~840 km. Suppose that the auroral images are projected on a reference sphere at a height of 110 km. The angle between the nadir and the

tangential line to the reference sphere is ~65° for an arbitrary point on the orbit, as illustrated in Fig. 2. Therefore, the maximum FOV needed for disk imaging is 130° in both the

along-track and cross-track directions. However, it is almost impossible to realize an instantaneous FOV of 130° × 130° for the reflective optical system since the transmissive optical

system cannot be used in the FUV range. A more suitable method for realizing such a large FOV is to assemble several small identical FOVs. Considering the convenience of optical system

alignment and the limitations on the weight and size of WAI that are imposed by the satellite platform, the design is as follows: The WAI consists of two identical cameras that are served by

common electronics. Each camera has a 68° × 10° FOV and the two cameras are tilted relative to each other by 65° to cover a fan-shaped instantaneous FOV of 130° × 10°, namely, 130° in the

cross-track direction and 10° in the along-track direction, as illustrated in Fig. 2. For such a large FOV, the optimal angular resolution of 0.8° can be realized. At a height of 840 km, the

corresponding spatial resolution on a reference sphere of 110 km in height is 10 km at the nadir. As the satellite moves, the fan sweeps along-track to form a 130° × 130° coverage area,

namely, the sweeping range is 120° along-track. This design can realize the largest spatial coverage at a height of ~840 km, except for special cases when sun avoidance occurs in the sunlit

polar region. An off-axial astigmatic optical system is designed for each camera, as illustrated in Fig. 3a, which consists of four mirrors (M1, M2, M3, and M4), a temperature control

filter, and a photon-counting imaging detector. The optical system has the following characteristics: (1) the “inverted telephoto”19 four-mirror optical system, in which the first mirror is

a convex mirror, realizes a large FOV of 68° × 10°; (2) the noncoaxial layout of the optical system improves the imaging quality and yields superior stray light suppression; (3) all the

mirrors are spherical and, thus, are easy to fabricate and align; and (4) the focal plane is flat, with no Pezval field curvature, namely, the sum of the curvatures of the four mirrors

equals zero. The optical system of each camera of the WAI has an FOV of 68° × 10°, an angular resolution of better than 0.8°, a focus of 18.5 mm and an entrance aperture area of 0.22 cm2.

Since the main scientific objective of WAI is to monitor the auroral activities, two main operation modes are designed: The first is the scanning mode, which is utilized at high latitudes if

the magnetic latitude of the satellite exceeds 60° in both hemispheres. The scanning mode includes forward scanning (along the fly direction) and backward scanning (opposite the fly

direction). The sweeping range in both directions is 120° with 60° at the nadir. To investigate the auroral dynamics on the time-scale of minutes, the sweeping period is designed to be less

than 2 min. The motor will drive the headers to sweep a range of 120° in ~107 s with an angular speed of 1.125°/s. Every sweep is divided into several frames, each of which is composed of

several exposures. According to the angular resolution, the rotating speed of the head, and the line speed of the satellite nadir, the accumulation time for each exposure is set to 0.34 s to

ensure that the equivalent pixel shift on the detector is less than half a pixel. The second mode is the nadir mode. The FOV points to the satellite nadir and remains still. The

accumulation time for each exposure is also 0.34 s. By default, each frame contains 6 exposures, which is equivalent to an accumulation time of 2.04 s for a fixed pixel of size 10 km by 10 

km on the reference sphere. In addition, the pointing accuracy and the pointing stability must be better than 0.16° (less than 1/5 pixel) and 0.16°/s, respectively, to ensure accurate pixel

projection and image merging in the scientific data processing algorithm. The pointing accuracy of the FY-3D satellite is better than 0.15° and the pointing stability is better than

0.009°/s, which is sufficient for the imaging of WAI. According to the requirements of science and optical design, the structure of WAI should be compact and lightweight. The two cameras are

accurately mounted together and can sweep a range of 120° in 2 min. The whole structure should be stable and long-lived in the space environment. The designed mechanical structure of the

WAI is illustrated in Fig. 3b, which is composed of two cameras that are symmetrically mounted on a single frame, a U-shaped frame that supports the frame, a precision stepper motor for

rotating the cameras, a base support and an additional support. To minimize the weight of the rotating parts, reduce the height of the center of mass and improve the structural stability,

the rotating parts only include the frame and two cameras and the center of mass of the rotating parts has been adjusted to coincide with the axis. The electronic cables from the two cameras

are laid through the inner hole of the shaft to minimize the damage that is caused by the rotation of the mechanism. The base support is used to elevate the cameras. It is ensured that the

stray light that is produced by the satellite body and other instruments cannot contaminate the optical system. The stepper motor rotates the cameras over a range of 120° at a speed of

1.125°/s to realize auroral imaging of a 130° × 130° area in two min. There are three prisms on the frame and the cameras for calibrating the directions of the axes. SPECTRA RESPONSE Figure

4 shows a typical auroral spectrum in the FUV range1,20. There are several auroral emission lines in the FUV range, e.g., H Ly-α at 121.6 nm, OI 130.4 nm, OI 135.6 nm, and the N2 LBH bands.

The dayglow spectrum lines in the middle- and low-latitude ranges are similar to those in Fig. 4; however, they differ in terms of the intensity distribution. Many instruments, especially

spectrographic imagers (e.g., GUVI and SSUSI), can simultaneously observe all these lines in the auroral region and the ionosphere. Only the photons in the response range of the instrument

can be recorded by the detectors. Due to the spatial and weight limits on the satellite, especially on FY-3D, WAI must be designed to be highly compact. There is insufficient space for

including a complex wavelength selection assembly (such as that in Polar UVI) in WAI. Therefore, WAI was designed to be a single-channel imager and only the LBH band (140–180 nm) was

selected for WAI on FY-3D. On the following FY-3H, the LBH band will be divided into two channels, namely, 140–160 nm (LBHS) and 160–180 nm (LBHL), to enable the electron flux and the mean

energy of the precipitating electrons to be obtained by inverting the relationship between the ratios of the emissions. To ensure accurate inversion of the observed emission intensity, the

most important indicator of an imager is the spectral response. The instrument must have a sufficiently high response in its passband and a sufficiently low out-of-band response. As shown in

Fig. 4, the auroral emissions at Ly-α, 130.4 nm and 135.6 nm are 1–2 orders of magnitude above the LBH emission and the intensity increases at least 2 orders of magnitude above 180 nm. Most

auroral imaging of the polar atmosphere will be conducted when the solar illumination is at a slant angle and the dayglow contribution is substantially reduced. For the typical spectrum in

Fig. 4, the out-of-band response of WAI should be 5% of the response in 140–180 nm. To satisfy this requirement, three designs should be considered. The first is a narrowband pass response

of the mirrors of the optical system. Multilayer coating technology can realize this. The shorter and longer cutoff wavelengths of the mirror coatings should be set at 140 and 180 nm,

respectively. The cutoff edge cannot be too sharp for maintaining a sufficiently high reflectivity in the passband. A quarter-wave 150 nm multilayer was superposed to a quarter-wave 170 nm

multilayer and this initial multilayer structure was further optimized via the constrained optimization function of the OptiLayer software. The average reflectance of the mirror is 48.6% and

the reflectance is lower than 15% at wavelengths that are shorter than 137 nm or longer than 187 nm. The second is a high-pass filter for further suppressing the responses that are shorter

than 140 nm. This filter should have very low transmission at wavelengths that are shorter than 140 nm and uniform and high transmission at wavelengths that exceed 140 nm. The barium

fluoride (BaF2) crystal is the optimal choice for this filter. At room temperature, the transmission of BaF2 is less than 1% at wavelengths that are shorter than ~134 nm and higher than 70%

at wavelengths that are longer than 140 nm. An important feature of the transmission property of BaF2 is the drift of the cutoff edge toward longer wavelengths at higher temperature.

Laboratory tests demonstrate that when the BaF2 filter is heated to a temperature that exceeds 70 °C, the transmission at wavelengths that are shorter than 136 nm will be less than 1%. The

third is a low-pass detector for further suppressing the responses at wavelengths that exceed 180 nm. In the FUV range, the microchannel plate (MCP) photon-counting imaging detector is

typically adopted. When the MCP is coated with cesium iodide (CsI) cathode on its light-sensitive surface, the quantum efficiency of the detector at wavelengths that exceed 180 nm will be

substantially reduced. The detector body consists of an MCP stack, a preamplifier and a coding readout anode with wedge, stripe and zigzag styles. A flat MCP stack is adopted to match the

flat focal plane of the optical system. The incoming photons strike the CsI photon cathode that has been deposited on the surface of the MCP, where they may eject photon-electrons, which are

multiplied under high-voltage and deposited on the coding readout anode. The charge of the photon-electrons is proportionately divided among the wedge, stripe and zigzag electrodes. Then,

the pulse signals are transferred to the electronic signals. Each of the three signals is amplified and converted to digital form prior to reaching the WAI position electronics. Each channel

consists of a charge-sensitive amplifier, a pulse shaper, a peak holding unit and an A/D convert circuit and the three channels share a common pulse pile-up rejection unit. In contrast to a

charge-coupled device (CCD) detector, which has fixed physical pixels, the MCP detector has only equivalent pixels or virtual pixels. The location of a photon on the detector is calculated

from the signals that are detected by the wedge, stripe and zigzag electrodes (see Supplementary Information for details). The virtual pixel size of the detector can be arbitrarily

subdivided or binned by changing the scale factors in the calculations to obtain images at the designed resolution, which depends on the resolution of the optical system. For WAI, the pixel

size has been set as 38.35 μm. By imaging the resolution chart directly without any optical system, the spatial resolution of the detector is measured to be ~77 μm, which corresponds to an

angular resolution of ~0.22° since the focal length is 18.5 mm. Therefore, the angular resolution of WAI depends on the optical system. SENSITIVITY The design of the WAI system sensitivity

requires comprehensive consideration of the following factors: (1) the intensity of the dayglow and auroral emissions, (2) the transmission of the whole system (including mirrors, filters,

and detectors), (3) the photon count rate of the detector, and (4) the data transmission rate of the satellite. According to the observations from DMSP/SSUSI and TIMED/GUVI, the intensity of

LBH auroral emissions varies from several hundred Rayleigh (1 Rayleigh = 106/4_π_ photon cm−2 s−1 sr−1) in nightside conditions to tens of thousands of Rayleigh in polar dayglow conditions.

The efficiency of WAI should cover this intensity range. For a 100-Rayleigh emission, the number of counts of a pixel should be at least two during each accumulation period of 2.04 s to

satisfy the Poisson statistics if we assume that the dark counts of the detector are negligible. The minimum sensitivity should be 0.01 counts s−1 Rayleigh−1 pixel−1 in 140–180 nm. For

strong LBH emissions, e.g., 20,000 Rayleigh, a detector pixel can record at least 200 counts in 1 s. During severe storms, all the pixels of a camera might be filled with strong intensity;

the maximum count rate for the detector should exceed 221,000 counts/s. As discussed in the previous section, the pixel size is 0.8° × 0.8°, which corresponds to a solid angle of _ω_ = 1.95 

× 10−4 sr. Supposed the input aperture is _A_ = 1 cm2 and the total response of the WAI system is _η_ = 1. The equivalent sensitivity is _S__e_ = _Aωη_ × 106/4_π_ = 15.5 photons s−1 

Rayleigh−1 for each square centimeter of the input aperture. The total transmission _η_ is always less than one and is wavelength (_λ_)-dependent. For the WAI system, _η_(_λ_) depends on the

reflectivity of the mirrors (_ρ_), the transmission of the filter (_τ_), and the quantum efficiency of the detector (_ε_), and _η_(_λ_) = _ρ_(_λ_) _τ_(_λ_) _ε_(_λ_). Therefore, the

effective aperture, which equals the integral of _Aη_(_λ_) in the range from 140 to 180 nm, should be at least 0.00065 cm2. The spectral response functions, namely, _ρ_(_λ_), _τ_(_λ_) and

_ε_(_λ_), are measured using the high-precision far-ultraviolet spectral calibration system that was developed at CIOMP. This system is mainly composed of an EUV-FUV monochromator (Model XCT

from McPherson, Inc.), a large vacuum chamber, a five-dimensional sample stage, a high-sensitivity photon-counting detector, and a high-stability vacuum FUV deuterium lamp. The spectral

range of this system is from 50 to 300 nm with a spectral resolution of 0.4 nm and an accuracy of 1.5%. We measure the spectrum of the input beam (input signals) and, subsequently, measure

the radiation that is reflected or transmitted by the element under test (the response signals). Finally, the functions _ρ_(_λ_), _τ_(_λ_), and _ε_(_λ_) can be obtained by dividing the

response signals by the input signals. Using the measured reflectivities of the four mirrors, the transmission of the filter (at 70 °C) and the quantum efficiency of the detector and setting

_A_ = 0.22 cm2 according to the optical design, we obtain the spectral sensitivity of the two cameras, as shown in Fig. 5a. Then, the sensitivities in the working band from 140 to 180 nm

can be obtained by integrating their spectral sensitivities along the band, which are approximately 0.0145 counts s−1 Rayleigh−1 pixel−1 for camera #1 and 0.0160 counts s−1 Rayleigh−1 

pixel−1 for camera #2. The uncertainties in the sensitivities are mainly due to the uncertainties in the calibration of the spectral responsivity of the optical elements. It is estimated

that the uncertainty of the sensitivity is approximately 7.5%. Moreover, if we multiply the final sensitivity curve by the emission spectrum in Fig. 4, we obtain the pixel responses of the

cameras to the auroral spectra in Fig. 5b. The out-of-band responses contribute less than 5% of the responses in 140–180 nm. The spectral response is sensitive to the operating temperatures

of WAI in orbit, such as the temperatures of the optical system and the filters. The designed operation temperature range is 15–45 °C in orbit and this is realized by the active thermal

control system of WAI. A closed-loop control strategy is applied to the thermal controls of both the optical system and the filters with an accuracy of better than 2.5 °C21. Taken the

spectral response at an ambient temperature of 25 °C and an operating temperature of 70 °C for the filters as a baseline, the change in the instrumental response as a function of the ambient

temperatures is measured under laboratory calibrations (see Table S2 in Supplementary Information). WAI SPATIAL RESOLUTION The focal length of the optical system of WAI is 18.5 mm; testing

its resolution by using a collimator with a resolution chart is not suitable. Instead, we have evaluated the spatial resolution of WAI by using a collimator with a pinhole. Meanwhile,

because the depth of focus of the optical system exceeds 2 mm, we have also evaluated the spatial resolution by imaging a four-pinhole target at a distance of 120 times the focal length. At

that distance, the imaging defocus was less than 0.15 mm; hence, the spot that was caused by defocus was much smaller than the pixel size and the test results could not be affected. The

pinhole images of the two cameras are shown in Fig. 6. The field width at half maximum of the pinhole images is approximately 0.34°, which is better than 0.8°. FOV TESTS The first step is to

determine the FOV of a single camera. The camera was fixed on a two-dimensional gimbal and captured images of a pinhole, which was located at a distance of approximately 120 times the focal

length from WAI. First, the pinhole was imaged at one edge of the 68° direction. Then, the pinhole was imaged at the other edge by rotating the gimbal. The rotation angle of the gimbal was

read and recorded and the exact FOV in the 68° direction was obtained. The FOV in the 10° direction was obtained via the same procedure. Then, the overlap angle between camera #1 and camera

#2 was measured as 5.87°. Based on the above data, the combined FOV of WAI was computed, which was 134.43°. Finally, the scanning range of WAI along the track was measured, which was

approximately 123.03°. Therefore, the actual total FOV of WAI is 134.43° × 133.24°. GEOMETRICAL CALIBRATION WAI uses photon-counting detectors, which exhibit obvious imaging nonlinearity on

its edge. The optical systems also have large geometric distortion due to their large FOV. These two factors cause high nonlinearity in WAI’s image plane; therefore, it is necessary to

correct the nonlinearities in the detectors and the optical systems. The first step is to correct the detector distortion and the second step is to correct the camera distortion that is

produced by the optical systems. The detector’s imaging nonlinearity was sampled by imaging an equally spaced pinhole array. Due to the detector’s imaging nonlinearity, the actual positions

of the pinholes in the images deviated from their ideal positions. The ideal positions of the pinholes in the images were already known based on the structure of the pinhole array. By

subtracting the ideal positions from the deviated positions of the pinholes, a look-up table was established. By querying the look-up table, the imaging distortion of the detector can be

corrected. After system integration was completed, WAI imaged the pinhole array to sample the residual imaging nonlinearity of the cameras that was produced by the optical system. The

distorted images were compared with the ideal images of the pinhole array to obtain a new look-up table, which was used to correct the residual distortion. The calibrated images are shown in

Fig. 7. Figure 7a, d shows the original images, which have nonlinearities that are produced by both the detector and the optical system. Figure 7b, e shows the images with the detector

nonlinearities corrected. Figure 7c, f shows the final images with all the geometrical nonlinearities corrected. After detector-level and system-level corrections, the geometrical

nonlinearity of WAI is less than 2%. FLAT FIELD The purpose of the flat field is to calibrate the nonuniformity in the intensity response among various positions of the image plane. This

nonuniformity could be caused by the vignetting of the optical system and the nonuniform reflectivity of the mirrors, the transmission of the filters and the quantum efficiency of the

detectors. Flat-field calibration is typically implemented by imaging a uniform target, which must cover the full aperture and the full FOV of the instrument. WAI operates in the FUV band

and there is no Lambertian extended uniform source in this wavelength that is sufficiently large to cover WAI’s full FOV. We constructed a target by using an FUV deuterium lamp to illuminate

an MgF2 diffuser. This target can be viewed as a Lambertian uniform target in approximately 20° FOV. Only the uniform region of the target was used during the calibration process. Both the

cameras and the diffuser were placed in a vacuum chamber. The cameras were rotated and imaged the uniform portion of the diffuser target at various parts of their FOVs. The cameras acquired

images with the same exposure time. Then, all the images were combined to form a full-FOV flat-field image. The results are shown in Fig. 8. The calibration error was mainly caused by the

instability of the light source, the uniformity of the illumination of the MgF2 diffuser, and the Lambertian error. The light source instability was better than 1%. The uniformity of the 20°

portion of the diffuser was better than 5% and its Lambertian error was less than 6%. The total error in the flat-field calibration was approximately 7.9%. DATA PROCESSING ALGORITHM The

data processing algorithm for WAI consists of the following steps: geometric correction, photometric correction, LOS projection and disk image generation. These steps will be briefly

introduced in this paper and the algorithm will be described in detail in the Supplementary Information. The first step is to calculate the location of an incident photon on the detector.

Then, the geometric distortions that are caused by the detector and the optical system are corrected. The photometric correction of the images involves three substeps: The first substep is

to correct the nonlinearity of the response of the detector, the second substep is to correct the differences in the response of the detector at various temperatures, and the final substep

is flat-field correction. Then, each photon that is recorded in each pixel must be traced back to its source in the auroral oval, namely, the pixels must be mapped onto a reference sphere

(e.g., 110 km). Finally, the images from the two cameras are merged to generate a complete disk image on the reference sphere. REFERENCES * Meier, R. R. Ultraviolet spectroscopy and remote

sensing of the upper atmosphere. _Space Sci. Rev._ 58, 1–185 (1991). Article  ADS  Google Scholar  * Dashkevich, Z. V., Sergienko, T. I. & Ivanov, V. E. The Lyman–Birge–Hopfield bands in

aurora. _Planet. Space Sci._ 41, 81–87 (1993). Article  ADS  Google Scholar  * Germany, G. A. et al. Use of FUV auroral emissions as diagnostic indicators. _J. Geophys. Res. Space Phys._

99, 383–388 (1994). Article  ADS  Google Scholar  * Germany, G. A. et al. Determination of ionospheric conductivities from FUV auroral emissions. _J. Geophys. Res. Space Phys._ 99,

23297–23305 (1994). Article  ADS  Google Scholar  * Frank, L. A. et al. Global auroral imaging instrumentation for the Dynamics Explorer mission. _Space Sci. Instrum._ 5, 369–393 (1981). ADS

  Google Scholar  * Mende, S. B. et al. Far ultraviolet imaging from the IMAGE spacecraft. 1. System design. _Space Sci. Rev._ 91, 243–270 (2000). Article  ADS  Google Scholar  * Mende, S.

B. et al. Far ultraviolet imaging from the IMAGE spacecraft. 2. Wideband FUV imaging. _Space Sci. Rev._ 91, 271–285 (2000). Article  ADS  Google Scholar  * Mende, S. B. et al. Far

ultraviolet imaging from the IMAGE spacecraft. 3. Spectral imaging of Lyman-α and OI 135.6 nm. _Space Sci. Rev._ 91, 287–318 (2000). Article  ADS  Google Scholar  * Torr, M. R. et al. A far

ultraviolet imager for the international solar-terrestrial physics mission. _Space Sci. Rev._ 71, 329–383 (1995). Article  ADS  Google Scholar  * Christensen, A. B. et al. Global ultraviolet

imager (GUVI) for the NASA thermosphere–ionosphere–mesosphere energetics and dynamics (TIMED) mission. _Proceedings of SPIE 2266, Optical Spectroscopic Techniques and Instrumentation for

Atmospheric and Space Research_ (SPIE, San Diego, CA, United States, 1994). * Paxton, L. J. et al. Special sensor ultraviolet spectrographic imager: an instrument description. _Proceedings

of the Instrumentation for Planetary and Terrestrial Atmospheric Remote Sensing_ (SPIE, San Diego, CA, United States, 1992). * Strickland, D. J., Evans, J. S. & Paxton, L. J. Satellite

remote sensing of thermospheric O/N2 and solar EUV: 1. Theory. _J. Geophys. Res. Space Phys._ 100, 12217–12226 (1995). Article  ADS  Google Scholar  * Johnstone, A. D. Pulsating aurora.

_Nature_ 274, 119–126 (1978). Article  ADS  Google Scholar  * Frank, L. A. et al. The theta aurora. _J. Geophys. Res. Space Phys._ 91, 3177–3224 (1986). Article  ADS  Google Scholar  *

Farrugia, C. J., Sandholt, P. E. & Burlaga, L. F. Auroral activity associated with Kelvin–Helmholtz instability at the inner edge of the low-latitude boundary layer. _J. Geophys. Res.

Space Phys._ 99, 19403–19411 (1994). Article  ADS  Google Scholar  * Laundal, K. M. & Østgaard, N. Asymmetric auroral intensities in the Earth’s northern and southern hemispheres.

_Nature_ 460, 491–493 (2009). Article  ADS  Google Scholar  * Han, D. S. et al. Throat aurora: the ionospheric signature of magnetosheath particles penetrating into the magnetosphere.

_Geophys. Res. Lett._ 43, 1819–1827 (2016). Article  ADS  Google Scholar  * Tu, C. Y. et al. Space weather explorer—the KuaFu mission. _Adv. Space Res._ 41, 190–209 (2008). Article  ADS

Google Scholar  * Laikin, M. _Lens Design_ 4th edn (CRC Press, Boca Raton, FL, 2007). * Christensen, A. B. et al. Initial observations with the Global Ultraviolet Imager (GUVI) in the NASA

TIMED satellite mission. _J. Geophys. Res. Space Phys._ 108, 1451 (2003). Article  ADS  Google Scholar  * Yang, H. B. et al. Thermal design and verification of transmission filter for wide

angle aurora imager. _Opt. Precis. Eng._ 22, 3019–3027 (2014). Article  Google Scholar  Download references ACKNOWLEDGEMENTS All the WAI raw data were processed and provided by the ground

application system at NSMC, CMA. This work was supported in part by the National Science Foundation of China (Grant Nos. 41774152 and 41674155). F.H. was supported by the Strategic Priority

Research Program of Chinese Academy of Sciences (Grant No. XDA17010201) and the Youth Innovation Promotion Association of the Chinese Academy of Sciences (2017258). AUTHOR INFORMATION Author

notes * These authors contributed equally: Xiao-Xin Zhang, Bo Chen, Fei He AUTHORS AND AFFILIATIONS * National Satellite Meteorological Center, China Meteorological Administration, Beijing,

China Xiao-Xin Zhang, Jia-Wei Li, Chao Yu, Zhong-Dong Yang, Peng Zhang & Jin-Song Wang * Key Laboratory of Space Weather, National Center for Space Weather, China Meteorological

Administration, Beijing, China Xiao-Xin Zhang, Jia-Wei Li & Chao Yu * Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences, Changchun, China Bo Chen,

Ke-Fei Song, Ling-Ping He, Shi-Jie Liu, Quan-Feng Guo, Xiao-Dong Wang, Hong-Ji Zhang, Hai-Feng Wang, Zhen-Wei Han, Liang Sun, Pei-Jie Zhang, Shuang Dai, Guang-Xing Ding, Li-Heng Chen,

Zhong-Su Wang, Guang-Wei Shi & Xin Zhang * State Key Laboratory of Applied Optics, Chinese Academy of Sciences, Changchun, China Bo Chen, Ke-Fei Song, Ling-Ping He & Shi-Jie Liu *

Key Laboratory of Earth and Planetary Physics, Institute of Geology and Geophysics, Chinese Academy of Sciences, Beijing, China Fei He * Institutions of Earth Science, Chinese Academy of

Sciences, Beijing, China Fei He Authors * Xiao-Xin Zhang View author publications You can also search for this author inPubMed Google Scholar * Bo Chen View author publications You can also

search for this author inPubMed Google Scholar * Fei He View author publications You can also search for this author inPubMed Google Scholar * Ke-Fei Song View author publications You can

also search for this author inPubMed Google Scholar * Ling-Ping He View author publications You can also search for this author inPubMed Google Scholar * Shi-Jie Liu View author publications

You can also search for this author inPubMed Google Scholar * Quan-Feng Guo View author publications You can also search for this author inPubMed Google Scholar * Jia-Wei Li View author

publications You can also search for this author inPubMed Google Scholar * Xiao-Dong Wang View author publications You can also search for this author inPubMed Google Scholar * Hong-Ji Zhang

View author publications You can also search for this author inPubMed Google Scholar * Hai-Feng Wang View author publications You can also search for this author inPubMed Google Scholar *

Zhen-Wei Han View author publications You can also search for this author inPubMed Google Scholar * Liang Sun View author publications You can also search for this author inPubMed Google

Scholar * Pei-Jie Zhang View author publications You can also search for this author inPubMed Google Scholar * Shuang Dai View author publications You can also search for this author

inPubMed Google Scholar * Guang-Xing Ding View author publications You can also search for this author inPubMed Google Scholar * Li-Heng Chen View author publications You can also search for

this author inPubMed Google Scholar * Zhong-Su Wang View author publications You can also search for this author inPubMed Google Scholar * Guang-Wei Shi View author publications You can

also search for this author inPubMed Google Scholar * Xin Zhang View author publications You can also search for this author inPubMed Google Scholar * Chao Yu View author publications You

can also search for this author inPubMed Google Scholar * Zhong-Dong Yang View author publications You can also search for this author inPubMed Google Scholar * Peng Zhang View author

publications You can also search for this author inPubMed Google Scholar * Jin-Song Wang View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS

X.-X.Z. was the principle investigator of WAI and proposed the scientific targets and requirements of WAI. B.C. proposed the design of the WAI instrument and was in charge of the instrument

development. F.H., K.-F.S., L.-P.H., S.-J.L., Q.-F.G., X.-D.W., H.-J.Z., H.-F.W., Z.-W.H., L.S., P.-J.Z., S.D., G.-X.D., L.-H.C., Z.-S.W., G.-W.S., X.Z., J.-W.L., and C.Y. performed the

development, the calibrations, the implementation of the data processing algorithm, and the observation. J.-W.L, Z.-D.Y, P.Z., and J.-S.W. participated in the determination of the scientific

targets. X.-X.Z., B.C., and F.H. wrote the manuscript. All authors discussed the results and reviewed the manuscript. CORRESPONDING AUTHORS Correspondence to Xiao-Xin Zhang or Bo Chen.

ETHICS DECLARATIONS CONFLICT OF INTEREST The authors declare that they have no conflict of interest. SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION-WAI DATA PROCESSING ALGORITHM RIGHTS

AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in

any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The

images or other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in a credit line to the material. If material is not

included in the article’s Creative Commons license and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly

from the copyright holder. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Zhang, XX., Chen,

B., He, F. _et al._ Wide-field auroral imager onboard the Fengyun satellite. _Light Sci Appl_ 8, 47 (2019). https://doi.org/10.1038/s41377-019-0157-7 Download citation * Received: 08 January

2019 * Revised: 18 April 2019 * Accepted: 29 April 2019 * Published: 22 May 2019 * DOI: https://doi.org/10.1038/s41377-019-0157-7 SHARE THIS ARTICLE Anyone you share the following link with

will be able to read this content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt

content-sharing initiative
