ABSTRACT The heat shock protein 90 (Hsp90) is a molecular chaperone that employs the free energy of ATP hydrolysis to control the folding and activation of several client proteins in the

eukaryotic cell. To elucidate how the local ATPase reaction in the active site couples to the global conformational dynamics of Hsp90, we integrate here large-scale molecular simulations

with biophysical experiments. We show that the conformational switching of conserved ion pairs between the N-terminal domain, harbouring the active site, and the middle domain strongly

modulates the catalytic barrier of the ATP-hydrolysis reaction by electrostatic forces. Our combined findings provide a mechanistic model for the coupling between catalysis and protein

dynamics in Hsp90, and show how long-range coupling effects can modulate enzymatic activity. SIMILAR CONTENT BEING VIEWED BY OTHERS THE DYNAMIC TRIAGE INTERPLAY OF HSP90 WITH ITS CHAPERONE

CYCLE AND CLIENT BINDING Article Open access 11 December 2024 EVOLUTION OF THE CONFORMATIONAL DYNAMICS OF THE MOLECULAR CHAPERONE HSP90 Article Open access 04 October 2024 STRUCTURAL BASIS

FOR THE DYNAMIC CHAPERONING OF DISORDERED CLIENTS BY HSP90 Article 18 June 2024 INTRODUCTION The heat shock protein 90 (Hsp90) is an ATP-dependent molecular chaperone that controls protein

maturation and folding, in addition to central regulatory functions of the eukaryotic cell1,2,3. Stringent clients of Hsp90 include 60% of the human kinome and the chaperone is therefore of

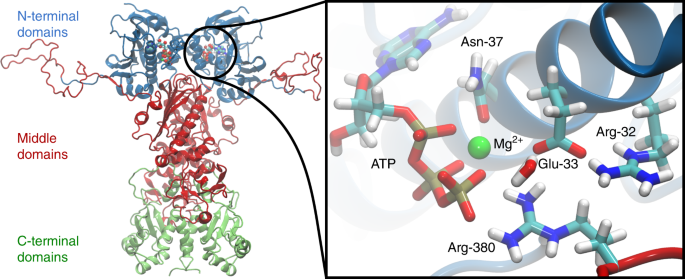

significant biomedical interest. This 90 kDa, highly conserved, homodimeric enzyme comprises an N-terminal domain (NTD), a middle domain (M-domain), and a C-terminal domain (CTD) (Fig. 1)4.

During its chaperone cycle, Hsp90 undergoes large-scale conformational changes from an open inactive state to a closed active state, which induce association of the M-domains and NTDs5,6.

The closing exposes important client-binding regions, as shown in recent cryo-EM structures of Hsp90 in complex with co-chaperones and clients7,8. The ATP-binding site of Hsp90 is located in

the NTD, and it is completed by residues from the M-domain, including an arginine (Arg-380 in yeast Hsp90) that forms contacts with the γ-phosphate of ATP9. ATP-binding triggers large

conformational changes in the global Hsp90 structure, stabilizing the compact closed conformation of the enzyme9. The thermodynamic driving force for this global conformational change

originates from the tightly coupled slow ATPase reaction on _~_0.1–1 min−1 timescales10. Elnatan et al.11 further showed that ATP hydrolysis in the two protomers is sequential and

deterministic in the mitochondrial Hsp90, TRAP1, with different hydrolysis rates for each protomer. After the first hydrolysis step, the Hsp90 dimer was suggested to undergo a flip into a

closed asymmetric state, followed by a second hydrolysis event. Site-directed mutagenesis experiments identified several residues involved in the ATPase reaction: Glu-33 of the yeast Hsp90

is important for the ATP-hydrolysis reaction, as the E33A variant is able to bind ATP, but not to hydrolyse it10,12,13. Moreover, the R380A variant has a substantially lowered ATPase

activity in comparison with the wild-type (WT) enzyme4,13 and N37A prevents Hsp90 from binding ATP due to loss of the catalytically important Mg2+ ion (Fig. 1)12. Furthermore, as for many

other ATPases14,15,16, a water molecule is required for the ATP-hydrolysis reaction9. However, despite enormous efforts to study Hsp90 by structural, biochemical, biophysical, and

computational approaches in the last decades17,18,19,20,21,22, the specific functions as well as the overall catalytic mechanism and its coupling to the conformational state of Hsp90 still

remain unclear. To probe the energetics, dynamics, and molecular mechanism of the ATP-hydrolysis reaction and its coupling to the conformational changes in Hsp90, we integrate here

multi-scale computational simulations with biophysical experiments. We probe the coupling between the conformational dynamics of Hsp90 and its catalytic mechanism using hybrid

quantum/classical (QM/MM) free-energy calculations in combination with large-scale atomistic molecular dynamics (MD) simulations. Our mechanistic models are further probed by site-directed

mutagenesis experiments in combination with Förster-resonance energy transfer and nuclear magnetic resonance (NMR) spectroscopy, as well as by small-angle X-ray scattering (SAXS)

measurements. RESULTS CATALYTIC MECHANISM OF ATP HYDROLYSIS IN HSP90 To study the bond-formation/bond-breaking energetics during catalysis within the active site of Hsp90, we created hybrid

QM/MM models, where the electronic structure of the chemically reacting system is computed on-the-fly, based on quantum mechanical density functional theory (DFT), and polarized by a

classical force field model of the remaining protein framework. These QM/MM calculations were used to predict a free-energy surface for the ATP-hydrolysis reaction, by dynamically sampling

conformational changes within the protein during the chemical transformation (Supplementary Fig. 1). Our QM/MM free-energy calculations suggest that the ATP-hydrolysis reaction is initiated

by proton transfer between a water molecule, coordinating the ATP γ-phosphate, and Glu-33 (Fig. 2a, b). This water molecule is not present in the resolved X-ray structures of Hsp909, but it

originates from the bulk water by spontaneously coordinating between the γ-phosphate and Glu-33 during the atomistic MD simulations. After the water deprotonation reaction, the transient OH−

species immediately attacks the γ-phosphate, resulting in the cleavage of the β/γ-phosphate bond. The computed reaction free-energy profiles predict that the proton transfer and phosphate

cleavage processes take place semi-concertedly rather than by associative or dissociative reaction steps (Fig. 2c)23. The calculations also suggest that the transition state comprises a

penta-coordinated γ-phosphate, with elongated axial bonds, resembling the transition states found in other ATPases (Fig. 2a)24,25,26. Interestingly, despite the chemically feasible reaction

intermediates, the QM/MM calculations performed on a model of Hsp90 extracted from the experimental X-ray structure, suggest that the free-energy barrier for the hydrolysis reaction is

>30 kcal mol−1 (Fig. 2a black trace, Supplementary Fig. 2, and Supplementary Table 1), which implies that the reaction rate is kinetically inaccessible (see Methods). Similar reaction

energetics are obtained using different DFT approximations in the quantum chemical calculations, suggesting that the results are robust (Supplementary Table 2). Endergonic free-energy

profiles have also been obtained in other QM/MM studies on phosphate cleavage processes27,28, whereas entropic effects are likely to stabilize the product state upon Pi dissociation up to

ca. 17 kcal mol−1 (Supplementary Table 3), which could be transduced into driving conformational changes in Hsp90. Moreover, the free-energy profile does not show a clear minimum for the

product state, indicating that the crystal structure may not represent a hydrolytically fully active state. To elucidate the molecular basis for this high barrier, we decomposed the

energetic contributions of individual residues by switching off their interactions with the active site region during the calculations (Fig. 3a and Supplementary Fig. 3). These calculations

suggest that the high reaction barrier associated with the proton transfer reaction originates from the low proton affinity of Glu-33, which in turn, results from the stabilizing interaction

with the nearby Arg-32, favouring the deprotonated form of the glutamate. Calculations based on DFT models show that the reaction barrier has a coulombic 1/distance–dependence on the

Arg-32/Glu-33 sidechain distance, suggesting that the reaction is electrostatically tuned (Fig. 3b and Supplementary Fig. 4). The analysis further shows that the Mg2+ ion pulls away electron

density from the γ-phosphate, lowering the reaction barrier, whereas Arg-380 stabilizes the OH− group attacking the γ-phosphate, as well as the resulting phosphate (HPO42−) product (Fig.

3a, negative curvature for the R380 profile at _R_ < −2.5 Å and _R_ > 1 Å). Arg-380 could thus be central for stabilizing the transient hydroxide species, but is not directly involved

in the water deprotonation reaction. These findings are consistent with the kinetically slow but viable R380A mutant29. PROTEIN CONFORMATIONAL CHANGES MODULATE CATALYTIC ACTIVITY To probe

the conformational dynamics linked with the catalytic steps, we performed atomistic MD simulations for 250 ns of both the full-length Hsp90 dimer and a monomeric NM-domain model, as well as

1 μs MD simulations for models comprising only the NTD in different ligand states (Supplementary Figs. 5 and 6). Interestingly, we observe that Arg-32 undergoes a conformational change in

the full-length Hsp90. In these simulations, Arg-32 flips away from Glu-33 and forms transient contacts with a network of charged/polar residues in the M-domain on 50–100 ns timescales (Fig.

 3c and Supplementary Fig. 7). Opening of the Arg-32/Glu-33 ion pair increases the p_K_a value of Glu-33 by ca. 10 p_K_a units, indicating a strong influence of Arg-32 on the p_K_a of Glu-33

(Supplementary Fig. 8). Although we do not expect to achieve exhaustive sampling of these transient states, the electrostatic models, nevertheless, also support that the proton affinity of

Glu-33 strongly increases upon the ion-pair dissociation, consistently with the QM/MM results (Fig. 2a). In stark contrast to simulations of the full-length Hsp90, the Arg-32/Glu-33 ion pair

remains closed during the MD simulations of our monomeric NM-domain model, built from a high-resolution NTD-dimerized crystal structure (see Methods), suggesting that the dimerization and

global conformational state of Hsp90 affects the ion-pair dynamics. However, in simulations of the monomeric NTD, we find that replacing ADP by ATP triggers opening of the Arg-32/Glu-33 ion

pair, mimicking the conformational dynamics of this region observed in the full-length Hsp90 (Fig. 4a). Analysis of the Arg-32/Glu-33 sidechain distance in a selection of Hsp90 crystal

structures shows that this ion pair is closed in most of the structures, except in an ATP-bound structure of the NTD, supporting the results from our MD simulations (Supplementary Table 4).

In simulations of the full-length Hsp90, we observe ion-pair opening only in one of the two Hsp90 protomers (Fig. 3c), but a systematic exploration of the phase space would be required to

determine whether the domains truly operate asymmetrically11. However, to probe the reproducibility of our simulations, we performed 100 ns duplicate MD simulations for the NM-domain and the

NTD models. These simulations support similar ion-pair dynamics as observed in the original simulations (Supplementary Fig. 9). To probe how the ATP-hydrolysis reaction is affected by

opening of the Arg-32/Glu-33 ion pair, we re-calculated the reaction energetics for this conformation. Although the ATP-hydrolysis reaction still takes place by a semi-concerted proton

transfer and phosphate cleavage process in these models (Supplementary Fig. 10), the free-energy barrier is reduced to ca. 25 kcal mol−1 (Fig. 2a), consistent with electrostatic tuning of

Glu-33. According to transition state theory, this barrier corresponds to a reaction rate in the hours timescales (see Methods). Moreover, substitution of the arginine by an alanine, R32A,

mimicking a fully shielded and extended open ion-pair conformation, shows a free-energy barrier of ca. 18 kcal mol−1 (Fig. 2a), corresponding to a reaction rate in the seconds timescales

according to transition state theory (_k_ = 1.3 s−1, see Methods), and is thus comparable to experimentally observed turnover rates of Hsp90 in the ~0.1–1 min−1 timescales10. MD simulations

of the full-length R32A suggest that the substitution leads to re-arrangement of ion pairs within the N–M interface (Supplementary Fig. 11). The R32A variant shows indeed more ion pairs

between the two M-domains in comparison with the WT Hsp90, whereas less ion pairs and a weaker interaction energy is observed between the two NTDs of R32A in the MD simulations

(Supplementary Fig. 12). Our findings thus suggest that the conformational changes associated with the contact between the NTD and M-domain strongly modulate the ATP-hydrolysis energetics

(see below). PROBING THE CONFORMATIONAL STATE OF ARG-32 To gain insight into the conformational changes of Arg-32 in the NTD of Hsp90, we employed NMR spectroscopy in combination with MD

simulations in different nucleotide-bound states. Based on the observation that replacing ADP by ATP may trigger opening of the Arg-32/Glu-33 ion pair (Fig. 4a), we measured 1H-15N

heteronuclear single quantum coherence (HSQC) spectra of the NTD of yeast Hsp90 in the apo_-_form and bound to ADP and ATP. The Nε–Hε proton provides a good reporter for the sidechain of

Arg-32, which appears in the apo-NTD as a single intense NMR signal, as expected for a sidechain with restricted mobility (Fig. 4b, bottom left panel). The presence of a Nuclear Overhauser

effect (NOE) cross-peak between Arg-32 Hε and Glu-33 Hβ confirms the spatial proximity of the two sidechains in the apo-form (Fig. 4c), consistent with our MD simulations of the NTD in the

apo state (Fig. 4a). Structural rigidity of the Arg-32 sidechain is supported by {1H}-15N steady-state heteronuclear NOE experiments, which are sensitive to fast (ns–ps) dynamics30. However,

a relatively high value of 0.58 ± 0.04 indicates that the Arg-32 sidechain is not flexible, consistent with its interaction with Glu-33. Interestingly, we find that nucleotide exchange

induces significant chemical shift perturbations (CSPs) near the Arg-32 region (Fig. 4b, d) and in the ATP-lid, which is partially similar to previous results by Zhang et al.31 for human

Hsp90, although the yeast protein studied here has several features that significantly differ from the human isoform. For example, in contrast to yeast Hsp90 (Fig. 4b, c), the neighbouring

residues around the Arg-46 (Arg-32) region could not be assigned in the human Hsp9031, possibly due to signal broadening originating from dynamics on the micro- to millisecond timescales.

CSP around the Arg-32 residue could reflect a higher population of an open ion-pair conformation in the ATP-bound NTD, as predicted by the MD simulations (Fig. 4a). This notion is further

supported by the sidechain heteronuclear NOE values, which decrease from 0.58 ± 0.09 for the ADP-bound NTD, to 0.48 ± 0.09 for the ATP-bound NTD. In addition, the increased line-width of the

Hε signal observed in the ADP- and ATP-bound states (Fig. 4b) is consistent with dynamics at μs–ms timescales. Breaking the ion pair in the apo state of the NTD-R32A variant causes

significant shifts not only in the environment of the mutation point but also at the C-terminal helix α4 and in the ATP lid, emphasizing its role on the structure and conformation of the NTD

(Supplementary Fig. 13). EFFECTS OF THE R32A MUTATION ON HSP90 CONFORMATION AND FUNCTION To probe further how the computationally identified R32A substitution influences the global

conformational structure and dynamics of Hsp90, we employed a FRET system with the NTDs labelled by fluorescent donor and acceptor dyes that induce resonance energy transfer upon closing of

the Hsp90 dimer6. Although our current MD simulations and NMR data capture short- to medium-range conformational changes in the protein structure, FRET and SAXS provide powerful techniques

to capture global effects linked with the R32A substitution, providing complementary data about the Hsp90 structure and function. Our FRET experiments on the full-length Hsp90 show that the

R32A substitution strongly inhibits the closing of the dimer (Fig. 4e). Interestingly, the non-hydrolysable ATP-analogue, adenylyl-imidodiphosphate (AMP-PNP), and the slowly hydrolysable

ATPγS, induce a similar closing behaviour in the WT Hsp90, whereas the R32A variant forms only a partially closed FRET dimer with ATPγS. At the same time, re-opening of the R32A dimer takes

place faster as compared with the WT Hsp90 (Fig. 4e). Although R32A-Hsp90 does not close to the same extent as the WT Hsp90 dimer, exponential fitting of the FRET data gives a higher closure

rate for R32A-Hsp90 as compared with the WT (Fig. 4f). A possible explanation for this observation is that the partially closed R32A-Hsp90 dimer is formed faster than the fully closed WT

Hsp90 dimer. This hypothesis is supported by a ca. 10-fold faster re-opening of the R32A-Hsp90 dimer relative to the WT Hsp90 dimer (Fig. 4e, f). The ratio of the apparent rates

(Supplementary Table 5) is consistent with a lower population of the closed conformation in R32A and thus indirectly supports a similar or even lowered intrinsic ATP-hydrolysis barrier in

the R32A variant relative to WT Hsp90. In chase experiments (Fig. 5a), where we used unlabelled yeast Hsp90 (Hsp82) to disrupt the preformed FRET dimer6, the WT Hsp90 shows no subunit

exchange from its closed compact conformation in the presence of AMP-PNP, in line with previous observations6,13. In stark contrast, the R32A variant has a significant subunit exchange,

consistent with the perturbed closing equilibrium of the mutant. These findings suggest that the closed R32A dimer is not stabilized as strongly as the closed dimer of WT Hsp90. The

perturbed closing also affects the co-chaperone binding of Sba1, which is important for the fine-tuning of the chaperone cycle and stabilizes the closed conformation (Supplementary Fig.

14)32. To this end, Sba1 shows a lower binding affinity for the R32A variant as compared with the WT Hsp90. To obtain further structural information of the R32A variant, we performed in-line

size-exclusion chromatography coupled to SAXS experiments. The analysis of the scattering profiles with the Guinier approximation and the pair-wise distance distribution functions

(_P_(_r_)) shows that the apo-form of both the WT and R32A variant of the full-length Hsp90, populate an ensemble of a fully open conformation with a radius of gyration (_R_g) of ca. 62–66 Å

(Fig. 5b, Supplementary Fig. 15, and Supplementary Tables 6 and 7). Nucleotide binding to the WT enzyme induces an overall decrease in the _R_g to 59.4 Å and 57.6 Å for the ADP- and

ATP-bound states, respectively, leading to a more compact conformation, consistent with previous observations33. However, in stark contrast to the WT enzyme, ligand binding triggers no

significant structural changes in the R32A variant, suggesting that the coupling between the NTD and M-domain is drastically perturbed, thus affecting the overall conformational state of the

Hsp90 dimer. The involvement of Arg-32 in the closing process is particularly pronounced upon binding of the non-hydrolysable AMP-PNP, which induces a compact Hsp90 conformation in the WT

enzyme (_R_g = 53.1 Å), reducing the inter-atomic distance distribution, but leaves the global conformation of R32A largely unaffected (_R_g = 62.3 Å; Fig. 5b and Supplementary Tables 6 and

7). These observations support the notion that the free energy from the nucleotide binding site is not effectively transduced into the conformational state in the R32A variant. To probe the

influence of the R32A substitution in vivo, we used a plasmid shuffling approach to introduce the Hsp90 variant as the sole source of Hsp90 in the yeast _Saccharomyces cerevisiae_, where

Hsp90 is essential for cell survival. Interestingly, the shuffling experiments show that the R32A strain is not viable (Supplementary Fig. 16), possibly due to the impaired closing dynamics,

which is crucial for the maturation and regulation of client proteins, suggesting that the R32A variant cannot fulfil its tasks in the cell. A possible explanation for this observation is

that R32A does not adopt the fully closed conformation, which is necessary for the activation of client proteins7,9. As our calculations predict a lower catalytic barrier for the

ATP-hydrolysis in R32A-Hsp90, we tested the interaction of R32A-Hsp90 with ATP. The R32A variant binds ATP to a similar extent as the WT Hsp90 (Supplementary Fig. 17) and is able to

hydrolyse ATP, consistent with its lowered catalytic barrier (Fig. 2a), but remarkably, the ADP-release kinetics in the R32A variant (0.55 ± 0.05 min−1) is practically identical to that of

the WT Hsp90 (0.50 ± 0.05 min−1) (Fig. 4g). The NM-fragment of R32A-Hsp90 does not, however, show ATPase activity, which is also lacking from the NM construct of the WT protein

(Supplementary Fig. 18). Moreover, the coupling between the NTD and the M-domain in the full-length Hsp90 is indirectly supported by our experiments using the E381Q variant, which show an

increased closing rate and ATPase activity relative to the WT enzyme (Supplementary Fig. 19). We speculate that the E381Q substitution could, however, also affect the conformation of R380,

which has been linked to formation of the “closed 2” state13,29. Interestingly, despite the perturbed closing dynamics, we observe that the R32A variant shows similar ADP-release kinetics as

the WT Hsp90. To find an explanation for the seemingly contradicting experimental results, we constructed a simplified kinetic model of the Hsp90 cycle (Supplementary Fig. 20 and

Supplementary Table 8). Although the intrinsic ATPase rate is expected to increase as a result of the R32A substitution, our kinetic models suggest that the overall ADP-release rate could

remain unchanged if the population of the closed conformation is reduced at the same time, as also suggested by our FRET data (Fig. 4e, f). The kinetic models suggest that even a 100-fold

rate increase in the catalytic step, would require only a two- to threefold reduction in formation of the fully closed conformation to account for the observed ADP-release data. In other

words, although the intrinsic ATPase reaction is strongly modulated by the conformational state of Hsp90, the less efficient population of the closed conformation could account for the

unchanged ADP-release rate. The R32A variant is, however, likely to undergo a more complex reaction cycle than that modelled here, but elementary rates for the transitions remain unknown.

Nevertheless, taken together, our combined findings suggest that the Arg-32 site has drastic effects on both the local and global conformational dynamics of Hsp90, which in turn is directly

coupled to the reaction barrier for the ATP-hydrolysis process. DISCUSSION We have shown here that the catalysis leading to the hydrolysis of a phospho-anhydride bond within the active site

of Hsp90 is modulated by both local and global conformational changes in the protein. Based on molecular simulations, we identified that Arg-32 within the active site functions as a key

coupling element that mediates the communication across the different domains of Hsp90. The ATPase reaction barrier is electrostatically tuned by conformational transitions in Arg-32 and,

due to microscopic reversibility, perturbation of the catalytic machinery also results in an impaired global closing behaviour that is central for the chaperone cycle. Our data indicate that

the conformational switching takes place via a conserved network of ion pairs between the N- and M-domains of the enzyme involving, e.g., E381 (Supplementary Figs. 7 and 19), with

mechanistic similarities to, e.g., respiratory complex I, a mitochondrial redox-driven proton pump where quinone reduction triggers proton pumping, up to 200 Å from the active site, by

conformational changes in a network of conserved ion pairs34,35,36,37. It is puzzling that although the R32A variant is not viable in vivo and unable to properly form a closed compact state,

the enzyme still hydrolyses ATP with an unchanged ADP-release rate. The catalytic reaction is not considered rate-limiting for the WT Hsp90 machinery, but is normally limited by the closing

kinetics6,38. However, our calculations showed that the ATPase reaction has a significant barrier also in the WT Hsp90, especially prior to conformational changes within Arg-32 that are

captured by both our MD simulations and NMR experiments. In contrast to the WT enzyme, our R32A variant has a significantly perturbed closing equilibrium, but it is still able to hydrolyse

ATP with an overall unchanged cycle turnover. These findings indicate that Arg-32 functions as a switching point, the perturbation of which decouples the catalysis from global conformational

changes. To this end, our kinetic models support that the ADP-release rate could indeed remain unchanged if the closing kinetics is perturbed at the same time (Supplementary Fig. 20), as

also supported by our FRET experiments (Fig. 4e, f). The R32A variant could, however, also run another, fully decoupled cycle in parallel to the regular Hsp90 cycle, where the ATP-hydrolysis

reaction is independent of the formation of a closed compact state (Fig. 6). Binding of the co-chaperone Sba1 to R32A supports that the closed conformation is populated at least to some

extent in the mutant (Supplementary Fig. 14) and kinetic competition between these cycles is thus consistent with the non-viable, but catalytically active R32A variant. This suggests that

R32A-Hsp90 could hydrolyse ATP in the (partly) open state, suggesting that this variant might also have an increased ATPase activity in an NM-fragment. We were, however, unable to detect ATP

catalysis in the NM-fragment in either the WT or R32A variant (Supplementary Fig. 18), suggesting that the NM construct might sample different conformations than the full-length Hsp90

dimer, as dimerization initiated at the CTD is most likely required for correctly organizing the active site. In conclusion, by using an integrated computational and experimental approach,

we showed here how the catalytic activity couples to conformational changes in the molecular chaperone Hsp90. We identified a central ion pair that switches between the domain harbouring the

active site and the M-domain of the enzyme, mediating long-range signals across the protein framework. Conformational changes in this ion pair favour the ATP-hydrolysis reaction by

electrostatic tuning. The computationally derived R32A variant was experimentally expressed and its properties were probed by NMR, SAXS, and FRET experiments. The R32A mutation impedes the

formation of a compact Hsp90 dimer conformation that, in turn, is a pre-requisite for the chaperone activity. Substitution of the identified site decouples catalysis from global

conformational changes, leading to a non-viable mutant that hydrolyses ATP without activating the chaperone cycle as indicated by our in vivo experiments. These results open up possibilities

to unravel the exact molecular principles on how the energy from the ATPase/closed state is transduced into the chaperone activity in Hsp90. Our combined data thus highlight new features of

the remarkable coupling between catalysis and biological activity in Hsp90. METHODS DFT AND QM/MM MODELS OF THE ACTIVE SITE IN HSP90 Monomeric QM and QM/MM models were constructed based on

the crystal structure of Hsp90 from _Danio rerio_ (PDB ID: 4IVG)39. The calculations were performed at the B3LYP-D3/CHARMM36 (QM/MM) and B3LYP-D3 (QM) level using def2-SVP/def2-TZVP (Mg)

basis sets40,41,42,43. The QM region comprised ATP, Mg2+, Arg-32, Glu-33, Asn-37, Ser-99, and Arg-380, as well as six water molecules, in addition to the backbone of residues 118–124 that

was included only in the QM models (see Supplementary Table 9 for residue numbering in different species). Link atoms were introduced between the Cβ and Cα atoms in the QM/MM models, whereas

terminal carbon atoms were kept fixed during structure optimization in the QM models. In the QM models, the protein surroundings were treated as a polarizable medium with a dielectric

constant of _ε_ = 444 and reaction pathways were optimized using a chain-of-state method45. Vibrational and entropic contributions were estimated at the B3LYP-D3/def2-SVP/def2-TZVP (Mg)/_ε_ 

= 4 level by calculating the Hessian numerically46. The catalytic tuning effect of Arg-32 was studied by scanning the distance between the Cζ of Arg-32 and Cδ of Glu-33 (see Supplementary

Fig. 4). Single-point calculations with def2-TZVP basis set were performed on the reactant, transition state, and product structures extracted from the reaction path optimizations. The QM/MM

system with ca. 17,000 atoms was cut out from the full protein, using a sphere with a 30 Å radius around the ATP site, and embedded in a water sphere with 150 mM NaCl. Reaction pathways

were optimized with the MM region fixed. Energy decomposition was carried out by removing individual residues from the QM/MM system during single-point calculations, without re-optimizing

the protein structure. Based on the reaction profiles, 27 ps restrained QM/MM MD simulations were performed with harmonic restraints on the commonly employed reaction coordinate describing

the relevant bond-formation and bond-breaking processes27,28, _R_ = _r_4 – _r_3 + _r_2 – _r_1 = [−2.9 Å, 2.6 Å] (see Fig. 2b), using force constants of 100 or 500 kcal mol−1 Å−2. All atoms

beyond 15 Å from the QM region were kept fixed in the umbrella sampling (US) simulations. The statistical overlap of the sampled reaction coordinate is shown in Supplementary Fig. 1.

Free-energy profiles were computed using the US/weighted histogram analysis method (WHAM) with a convergence criterion of 0.00001 kcal mol−147. Bootstrap error analysis was performed within

WHAM with ten Monte Carlo (MC) trial steps to estimate the statistical uncertainty of the free energy. Rate constants were calculated using the Eyring equation at _T_ = 310 K using a

standard pre-exponential factor, $$k = \kappa \frac{{k_BT}}{h}e^{ - \frac{{\Delta G \ast }}{{RT}}}$$ (1) where _κ_ is the reflection coefficient that was set equal to 1, Δ_G_* is the

free-energy barrier, _R_ is the gas constant, _k_B is Boltzmann’s constant, and _h_ is Planck’s constant. All DFT calculations were performed using TURBOMOLE48, which was coupled together

with CHARMM in the QM/MM models49,50. CLASSICAL MD SIMULATIONS OF HSP90 Classical MD simulations were performed on the full-length dimeric Hsp90 model and the R32A mutant constructed based

on the dimeric crystal structure of yeast Hsp90 (PDB ID: 2CG9)9. MD simulations were also carried out for the monomeric Hsp90 model with NM-domains constructed based on the X-ray structure

of the dimeric NM-fragment of Hsp90 from _D. rerio_ (PDB ID: 4IVG)39 and NTD models of yeast Hsp90 in the apo state and with ADP or ATP (PDB ID: 1AMW)51. The protein was embedded in a

water-ion environment with 100–150 mM NaCl. The complete simulation setups comprised ca. 72,300 atoms (NM-model), 77,300 atoms (NTD model), and 303,000 atoms (full-length dimer). The

constructs were simulated for 250–1000 ns at _T_ = 310 K, using a 2 fs timestep and keeping all covalently bound hydrogens fixed. We employed the CHARMM27/36 force field43,52 treating the

long-range electrostatics by the Particle Mesh Ewald approach. The MD simulations were performed using NAMD53 and Visual Molecular Dynamics (VMD)54 was used for visualization and analysis.

All Arg-32/Glu-33 distances shown in the paper are measured between the Cζ of Arg-32 and the Cδ of Glu-33. All simulations are summarized in Supplementary Table 10. CALCULATION OF P_K_ A

VALUES Poisson-Boltzmann (PB) continuum electrostatic calculations with MC sampling of 2_N_ protonation states of the full-length Hsp90 dimer were used for the calculation of p_K_a values.

The Adaptive Poisson-Boltzmann Solver (APBS) was used for the PB calculations55 and Karlsberg+ was employed for the MC sampling56,57. The protein was described with atomic partial charges,

embedded in an inhomogeneous dielectric continuum with a dielectric constant of _ε_ = 4. Bulk water was approximated by a homogeneous dielectric continuum with _ε_ = 80. The molecular

surface routine in APBS was used to calculate the boundary interface between the protein and the solvent, using a solvent probe radius of 1.4 Å and modelling an implicit ionic strength of

the solvent of 100 mM KCl. Protonation probabilities were calculated every ns along the 250 ns MD simulation of the full-length Hsp90 dimer. KINETIC MODELLING Kinetic models of a simplified

chaperone cycle of the WT and R32A variant were simulated using the stochastic Gillespie algorithm in Dizzy58. Kinetic parameters are given in Supplementary Table 8. PROTEIN PURIFICATION The

R32A, E381Q, and D61C (for FRET) single point mutations were introduced by site-directed mutagenesis according to the NEBase Changer protocol in pET28 vectors (Invitrogen, Karlsruhe,

Germany) containing the yeast Hsp90 (Hsp82) sequence. Hsp90-NM constructs (aa 1–529) were cloned using a pET28a-SUMO Vector containing an N‐terminal 6×His-SUMO-tag. For the NTD constructs

(aa 1–210), a pETM-11 vector was used. The plasmids were transformed into the _Escherichia coli_ strain BL21 (DE3) cod+ (Stratagene, La Jolla, USA). Full-length proteins (yeast Hsp90, sba1)

were expressed for 4 h at 37 °C, NM constructs were expressed at 25 °C overnight. Expression was induced with 1 mM Isopropyl β-d-1-thiogalactopyranoside. After collection, the cells were

re-suspended in Ni-NTA buffer A (50 mM NaH2PO4, 500 mM NaCl, 10 mM imidazole pH 7.5) supplemented with EDTA-free protease inhibitor [SERVA] and DNase1. Cells were lysed using a Cell

Disruption System (Constant Systems) at 1.8 kbar. After lysate clarification, the supernatant was loaded on a 5 mL HisTrap HP column (GE Healthcare) and washed with 10 CV Ni-NTA buffer A and

10 CV 5 % Ni-NTA buffer B (50 mM NaH2PO4, 500 mM NaCl, 300 mM imidazole pH 7.5). The bound proteins were eluted with 100 % Ni-NTA buffer B. Full-length proteins were pooled, diluted to 150 

mL with ResQ buffer A (40 mM HEPES, 20 mM KCl, 1 mM EDTA, 1 mM dithiothreitol (DTT) pH 7.5) and loaded onto a ResQ column. NM constructs were supplemented with His6-tagged SUMO-protease

after Ni-NTA and dialysed against 5 L Ni-NTA buffer A ON at 4 °C. The protein solution was again loaded on a 5 mL HisTrap HP column and the flowthrough was collected. As a final step,

proteins were loaded on a Superdex 16/60 75 pg SEC column (GE Healthcare) and eluted with SEC buffer (40 mM HEPES, 150 mM KCl, 5 mM MgCl2 pH 7.5). For the NMR samples (NTD constructs), cells

were grown in M9 minimal media supplemented with 15NH4Cl and 13C6-glucose (Aldrich, Germany), with protein expression and purification conducted following the procedure for the NM

constructs. Instead of SUMO-protease, TEV-protease was used. Buffers used were buffer A (50 mM Tris-HCl pH 8, 150 mM NaCl, 5 mM imidazole and 0.02 % NaN3), buffer B (50 mM Tris-HCl pH 8, 150

 mM NaCl, 500 mM imidazole and 0.02 % NaN3), and dialysis buffer (20 mM Tris-HCl pH 8, 300 mM NaCl, 2 mM DTT). For SEC, NMR buffer (see “NMR experiments”) was used. The primer sequences are

listed in Supplementary Table 11. ADP-RELEASE ASSAYS The ATPase activity was measured spectrophotometrically by following the ADP-release reaction using an enzymatic ATP regenerating

system59. Full-length (3 μM) yeast Hsp90 (Hsp82) and 10 μM of the NM constructs were used in 40 mM HEPES (pH 7.5), 150 mM KCl, 5 mM MgCl2. Measurements were performed in a Cary 100 UV-Vis

photometer (Varian, Inc.) at 30 °C. The reaction was initiated by the addition of 2 mM (full-length Hsp90) and 4 mM (Hsp90-NM) ATP. For the determination of _K_M-values (ATP-binding),

different concentrations of ATP from 0.1 mM to 5 mM were used. To subtract the background activity, 50 μM radicicol were added at the end of the measurement. The data were analysed by linear

regression using Origin 8.0. ADP-release kinetics were determined using the following equation, where _m_ is the slope, _ε_NADH is the extinction coefficient of NADH, and _c_Hsp90 is the

yeast Hsp90 (Hsp82) concentration: $$k_{\mathrm{{ADP - release}}} = \frac{{ - m}}{{({\upvarepsilon}_{{\mathrm{NADH}}} \cdot c_{{\mathrm{Hsp}}90})}}$$ (2) For the determination of _K_M-values

for ATP binding, the ADP-release kinetics were plotted against the respective ATP concentration. The data were fitted using the Michaelis–Menten equation: $$y = \frac{{V{\mathrm{{max}}}

\cdot x}}{{K_{\mathrm{{M}}} + x}}$$ (3) FRET EXPERIMENTS FRET experiments were conducted following the protocol of Hessling et al.6. Atto488 (donor) and Atto550 (acceptor) (ATTO-TEC GmbH)

labelled yeast Hsp90-D61C (200 nM) was used. Measurements were performed in 40 mM HEPES (pH 7.5), 150 mM KCl, 5 mM MgCl2, 2 mM DTT in a Fluoromax 4 fluorescence spectrophotometer (Horiba

Jobin Yvon) at 30 °C. Closing of Hsp90 was induced by addition of 2 mM AMP-PNP or 2 mM ATPγS. Chase experiments were performed with a tenfold excess (4 µM) of unlabelled WT yeast Hsp90

(Hsp82) to disrupt the FRET complex. Samples were incubated for 60 min at 30 °C prior to the addition of the unlabelled species. For determination of re-opening rates, closing was induced

with 2 mM ATPγS. After the equilibrium was reached, a tenfold excess (20 mM) of ATP was added, to induce re-opening of the Hsp82 dimer. The data were analysed with Origin 8.0 and fitted

using a mono-exponential equation: $$y = A_{1}^{(\frac{{ - x_{1}}}{{t_{1}}})} + y_{0}$$ (4) $$k_{\mathrm{{App}}} = \frac{1}{{t_{1}}}$$ (5) YEAST VIABILITY ASSAY OF HSP82 VARIANTS Plasmid

shuffling experiments were conducted following the protocol of Nathan et al.60, using the ∆PCLDα _S. cerevisiae_ strain from S. Lindquist’s laboratory deficient in genomic Hsp82 and Hsc82

containing a plasmid coding for WT Hsp82. The pKAT6 plasmid is constitutively expressed under the control of the glycerinaldehyde-3-phosphate dehydrogenase gene promotor (GPD promotor) and

carries a URA selection marker for the selection of cells that have lost the WT Hsp82 plasmid in the medium supplemented with 5-Fluoroorotic Acid (5-FOA) (Thermo Fisher Scientific). The

cells were transformed with either the empty vector p413 (negative control), the p413 vector, coding for the WT Hsp82 (positive control), and the p413 vector, coding for the Hsp82 R32A

variant. Hsp82 is essential for yeast survival and the loss of the pKAT6 plasmid, due to 5-FOA-induced selection, inhibits yeast growth. Transformation of p413 vectors containing Hsp82

variants might restore yeast growth, depending on the characteristics of the Hsp82 variants. FLUORESCENCE ANISOTROPY Fluorescence anisotropy experiments were used to probe the binding of

sba1 to WT yeast Hsp90 and the R32A variant. Measurements were conducted in a JASCO-8500 fluorescence spectrophotometer with polarisers (Jasco, Groß-Umstadt, Germany) at 30 °C in 40 mM HEPES

(pH 7.5), 150 mM KCl, 5 mM MgCl2, containing 2 mM AMP-PNP. Excitation and emission wavelengths were set to 490 and 530 nm, respectively, using 200 nM of Atto488-labelled sba1 and 500 nM

Hsp90. After pre-incubation of Hsp90 with labelled sba1, unlabelled sba1 was added in varying concentrations to compete out the preformed labelled sba1–Hsp90 complex. The _K_D-value was

determined by fitting the anisotropy signal, _r_, to the sba1 concentration, _c_sba1, $$r = F_P - (c_{{\mathrm{Hsp}}90} + c_{{\mathrm{sba}}1} + K_D) - \left( {\frac{{F_{\mathrm{P}} -

F_{{\mathrm{PL}}}}}{{2c_{{\mathrm{Hsp}}90}}}} \right)\sqrt {(c_{{\mathrm{Hsp}}90} + c_{{\mathrm{sba}}1} + K_D)^2 - 4c_{{\mathrm{Hsp}}90}c_{{\mathrm{sba}}1}}$$ (6) where _F_P is the

anisotropy of unbound labelled sba1, _F_PL is the anisotropy of the labelled sba1–Hsp90 complex, and _c_Hsp90 is the concentration of yeast Hsp90. SAXS EXPERIMENTS SAXS data were collected

at beamline BM29 at the European Synchrotron Radiation Facility (Grenoble, France). Fifty microlitres of sample in 25 mM Hepes pH 7.5, 150 mM KCl, 5 mM MgCl2, 1 mM TCEP, 0.02 % NaN3 was

injected to a Superdex 200 5/100 GL column (GE Healthcare) connected online to the SAXS capillary. One SAXS frame per second was recorded at a flow rate of 0.15 ml min−1. Nucleotide-bound

forms were prepared by adding the compounds at a final concentration of 2.5 mM followed by incubation at room temperature. Due to the fast _k_off of the nucleotides, the buffers employed in

the chromatographic runs contained 2.5 mM ADP, 2.5 mM ATP, and 1 mM AMP-PNP. SEC-SAXS chromatograms were analysed using the Chromixs software61. Briefly, >100 buffer frames with constant

average intensity were selected. Sample frames were selected from the chromatogram based on (1) chromatographic peak shape and (2) constant _R_g across the selected region. The subtracted

averaged scattering profiles were analysed using the Primus software package62 to extract the _R_g values and the _P_(_r_) distributions were obtained using the Gnom programme63. Theoretical

scattering profiles were computed from X-ray coordinates using Crysol64. NMR EXPERIMENTS NMR spectra were recorded using Bruker 500, 600, and 950 MHz spectrometer (Bruker, Billerica, USA)

at 25 °C, using an NMR buffer with 20 mM sodium phosphate, 100 mM NaCl, 5 mM MgCl2, 5% D2O, and 0.2% NaN3 pH 6.5, and a protein concentration between 500 and 600 μM. ADP was added at a final

concentration of 5 mM, whereas ATP was added at 2.5 mM together with an ATP regenerating system65. These saturating conditions were used to avoid interference of different nucleotide

affinities in the WT and mutant constructs. Chemical shift assignments were based on previous work for the Hsp90-NTD33,66 and were extended for the R32A mutant and the nucleotide-bound forms

using a combination of triple-resonance HNCA, HNCOCA, and HNCACB experiments using non-uniform sampling67. Spectra were processed using NMRPipe68 and analysed using the CCPnmr software69.

CSPs were calculated for backbone amide peaks of 2D 1H,15N-HSQC correlation experiments using the equation, $$\Delta \delta _{\mathrm{{N,H}}}\left( {\mathrm{{ppm}}} \right) = \sqrt {\Delta

\delta _{\mathrm{{H}}}^2 + \left( {\alpha \cdot \Delta \delta _{\mathrm{{N}}}} \right)^2}$$ (7) where _α_ is a scaling factor, calculated from the ratio between the 1H and 15N chemical shift

ranges (_α_ = 0.1689). To observe the arginine guanidine sidechain NMR signals in 1H-15N-HSQC spectra, the 15N carrier frequency was centred at 105 p.p.m. with a spectral width set to 70 

p.p.m. {1H}-15N steady-state heteronuclear NOE experiments were performed using modified sequences described by Farrow et al.30 by collecting two datasets, with and without 1H saturation,

respectively. Heteronuclear NOE values were obtained from the intensity ratio of R32 Hε–Nε peaks between the saturated and unsaturated spectra, and errors were estimated from spectral

baseplane noise root-mean-square deviation (RMSD) as described by Farrow et al.30. 15N-edited NOESY experiments were performed using standard sequences with a mixing time of 120 ms70. The

NMR assignments of the NTD of the R32A variant have been deposited in the BMRB under the accession number 27858. REPORTING SUMMARY Further information on research design is available in the

Nature Research Reporting Summary linked to this article. DATA AVAILABILITY The NMR assignments for the N-terminal domain of yeast Hsp90-R32A have been deposited in the BMRB under the

accession number 27858. The source data underlying Fig. 4e-g and Supplementary Figs. 14, 17, 18, and 19 are provided as a Source Data file. Other data are available from the corresponding

author upon reasonable request. REFERENCES * Nathan, D. F., Vos, M. H. & Lindquist, S. _In vivo_ functions of the _Saccharomyces cerevisiae_ Hsp90 chaperone. _Proc. Natl. Acad. Sci. USA_

94, 12949–12956 (1997). Article  ADS  PubMed  CAS  PubMed Central  Google Scholar  * Picard, D. Heat-shock protein 90, a chaperone for folding and regulation. _Cell. Mol. Life Sci._ 59,

1640–1648 (2002). Article  PubMed  CAS  Google Scholar  * McClellan, A. J. et al. Diverse cellular functions of the Hsp90 molecular chaperone uncovered using systems approaches. _Cell_ 131,

121–135 (2007). Article  PubMed  CAS  Google Scholar  * Meyer, P. et al. Structural and functional analysis of the middle segment of Hsp90: implications for ATP hydrolysis and client protein

and cochaperone interactions. _Mol. Cell_ 11, 647–658 (2003). Article  PubMed  CAS  Google Scholar  * Wegele, H., Muschler, P., Bunck, M., Reinstein, J. & Buchner, J. Dissection of the

contribution of individual domains to the ATPase mechanism of Hsp90. _J. Biol. Chem._ 278, 39303–39310 (2003). Article  PubMed  CAS  Google Scholar  * Hessling, M., Richter, K. &

Buchner, J. Dissection of the ATP-induced conformational cycle of the molecular chaperone Hsp90. _Nat. Struct. Mol. Biol._ 16, 287–293 (2009). Article  PubMed  CAS  Google Scholar  *

Southworth, D. R. & Agard, D. A. Client-loading conformation of the Hsp90 molecular chaperone revealed in the Cryo-EM structure of the human Hsp90:Hop complex. _Mol. Cell_ 42, 771–781

(2011). Article  PubMed  PubMed Central  CAS  Google Scholar  * Verba, K. A. et al. Atomic structure of Hsp90-Cdc37-Cdk4 reveals that Hsp90 traps and stabilizes an unfolded kinase. _Science_

352, 1542–1547 (2016). Article  ADS  PubMed  PubMed Central  CAS  Google Scholar  * Ali, M. M. U. et al. Crystal structure of an Hsp90-nucleotide-p23/Sba1 closed chaperone complex. _Nature_

440, 1013–1017 (2006). Article  ADS  PubMed  PubMed Central  CAS  Google Scholar  * Panaretou, B. et al. ATP binding and hydrolysis are essential to the function of the Hsp90 molecular

chaperone _in vivo_. _EMBO J._ 17, 4829–4836 (1998). Article  PubMed  PubMed Central  CAS  Google Scholar  * Elnatan, D. et al. Symmetry broken and rebroken during the ATP hydrolysis cycle

of the mitochondrial Hsp90 TRAP1. _eLife_ 6, e2525 (2017). Article  Google Scholar  * Grenert, J. P., Johnson, B. D. & Toft, D. O. The importance of ATP binding and hydrolysis by Hsp90

in formation and function of protein heterocomplexes. _J. Biol. Chem._ 274, 17525–17533 (1999). Article  PubMed  CAS  Google Scholar  * Zierer, B. K. et al. Importance of cycle timing for

the function of the molecular chaperone Hsp90. _Nat. Struct. Mol. Biol._ 23, 1020–1028 (2016). Article  PubMed  PubMed Central  CAS  Google Scholar  * Jackson, A. P. & Maxwell, A.

Identifying the catalytic residue of the ATPase reaction of DNA gyrase. _Proc. Natl. Acad. Sci. USA_ 90, 11232–11236 (1993). Article  ADS  PubMed  CAS  PubMed Central  Google Scholar  *

Okimoto, N. et al. Theoretical studies of the ATP hydrolysis mechanism of myosin. _Biophys. J._ 81, 2786–2794 (2001). Article  ADS  PubMed  PubMed Central  CAS  Google Scholar  * Hayashi, S.

et al. Molecular mechanism of ATP hydrolysis in F1-ATPase revealed by molecular simulations and single-molecule observations. _J. Am. Chem. Soc._ 134, 8447–8454 (2012). Article  PubMed  CAS

  Google Scholar  * Picard, D. et al. Reduced levels of hsp90 compromise steroid receptor action _in vivo_. _Nature_ 348, 166–168 (1990). Article  ADS  PubMed  CAS  Google Scholar  *

Colombo, G., Morra, G., Meli, M. & Verkhivker, G. Understanding ligand-based modulation of the Hsp90 molecular chaperone dynamics at atomic resolution. _Proc. Natl. Acad. Sci. USA_ 105,

7976–7981 (2008). Article  ADS  PubMed  PubMed Central  Google Scholar  * Cunningham, C. N., Krukenberg, K. A. & Agard, D. A. Intra- and intermonomer interactions are required to

synergistically facilitate ATP hydrolysis in Hsp90. _J. Biol. Chem._ 283, 21170–21178 (2008). Article  PubMed  PubMed Central  CAS  Google Scholar  * Mickler, M., Hessling, M., Ratzke, C.,

Buchner, J. & Hugel, T. The large conformational changes of Hsp90 are only weakly coupled to ATP hydrolysis. _Nat. Struct. Mol. Biol._ 16, 281–286 (2009). Article  PubMed  CAS  Google

Scholar  * Taipale, M. et al. Quantitative analysis of HSP90-client interactions reveals principles of substrate recognition. _Cell_ 150, 987–1001 (2012). Article  PubMed  PubMed Central

CAS  Google Scholar  * Mollapour, M. et al. Asymmetric Hsp90 N domain SUMOylation recruits Aha1 and ATP-competitive inhibitors. _Mol. Cell_ 53, 317–329 (2014). Article  PubMed  PubMed

Central  CAS  Google Scholar  * Kamerlin, S. C. L., Florián, J. & Warshel, A. Associative versus dissociative mechanisms of phosphate monoester hydrolysis: on the interpretation of

activation entropies. _ChemPhysChem_ 9, 1767–1773 (2008). Article  PubMed  CAS  Google Scholar  * Abrahams, J. P., Leslie, A. G. W., Lutter, R. & Walker, J. E. Structure at 2.8 Å

resolution of F1-ATPase from bovine heart mitochondria. _Nature_ 370, 621–628 (1994). Article  ADS  PubMed  CAS  Google Scholar  * Ban, C. & Yang, W. Crystal structure and ATPase

activity of MutL: implications for DNA repair and mutagenesis. _Cell_ 95, 541–552 (1998). Article  PubMed  CAS  Google Scholar  * Schmidt, H. & Carter, A. P. Structure and mechanism of

the dynein motor ATPase. _Biopolymers_ 105, 557–567 (2016). Article  PubMed  PubMed Central  CAS  Google Scholar  * Cheng, Y., Zhang, Y. & McCammon, J. A. How does the cAMP-dependent

protein kinase catalyze the phosphorylation reaction: an ab initio QM/MM study. _J. Am. Chem. Soc._ 127, 1553–1562 (2005). Article  PubMed  CAS  Google Scholar  * Lopata, A. et al. Mutations

decouple proton transfer from phosphate cleavage in the dUTPase catalytic reaction. _ACS Catal._ 5, 3225–3237 (2015). Article  CAS  Google Scholar  * Cunningham, C. N., Southworth, D. R.,

Krukenberg, K. A. & Agard, D. A. The conserved arginine 380 of Hsp90 is not a catalytic residue, but stabilizes the closed conformation required for ATP hydrolysis. _Protein Sci._ 21,

1162–1171 (2012). Article  PubMed  PubMed Central  CAS  Google Scholar  * Farrow, N. A. et al. Backbone dynamics of a free and a phosphopeptide-complexed Src homology 2 domain studied by 15N

NMR relaxation. _Biochemistry_ 33, 5984–6003 (1994). Article  PubMed  CAS  Google Scholar  * Zhang, H. et al. A dynamic view of ATP-coupled functioning cycle of Hsp90 N-terminal domain.

_Sci. Rep._ 5, 9542, 1–9 (2015). Google Scholar  * Schopf, F. H., Biebl, M. M. & Buchner, J. The HSP90 chaperone machinery. _Nat. Rev. Mol. Cell Biol._ 18, 345–360 (2017). Article

PubMed  CAS  Google Scholar  * Lorenz, O. R. et al. Modulation of the Hsp90 chaperone cycle by a stringent client protein. _Mol. Cell_ 53, 941–953 (2014). Article  PubMed  CAS  Google

Scholar  * Sharma, V. et al. Redox-induced activation of the proton pump in the respiratory complex I. _Proc. Natl. Acad. Sci. USA_ 112, 11571–11576 (2015). Article  ADS  PubMed  CAS  PubMed

Central  Google Scholar  * Di Luca, A., Gamiz-Hernandez, A. P. & Kaila, V. R. I. Symmetry-related proton transfer pathways in respiratory complex I. _Proc. Natl. Acad. Sci. USA_ 114,

E6314–E6321 (2017). * Warnau, J. et al. Redox-coupled quinone dynamics in the respiratory complex I. _Proc. Natl. Acad. Sci. USA_ 115, E8413–E8420 (2018). Article  PubMed  CAS  PubMed

Central  Google Scholar  * Kaila, V. R. I. Long-range proton-coupled electron transfer in biological energy conversion: towards mechanistic understanding of respiratory complex I. _J. R.

Soc. Interface_ 15, 20170916 (2018). Article  PubMed  PubMed Central  CAS  Google Scholar  * Richter, K. et al. Conserved conformational changes in the ATPase cycle of human Hsp90. _J. Biol.

Chem._ 283, 17757–17765 (2008). Article  PubMed  CAS  Google Scholar  * Lavery, L. A. et al. Structural asymmetry in the closed state of mitochondrial Hsp90 (TRAP1) supports a two-step ATP

hydrolysis mechanism. _Mol. Cell_ 53, 330–343 (2014). Article  PubMed  PubMed Central  CAS  Google Scholar  * Becke, A. D. Density-functional thermochemistry. III. The role of exact

exchange. _J. Chem. Phys._ 98, 5648–5652 (1993). Article  ADS  CAS  Google Scholar  * Lee, C., Yang, W. & Parr, R. G. Development of the Colle-Salvetti correlation-energy formula into a

functional of the electron density. _Phys. Rev. B_ 37, 785–789 (1988). Article  ADS  CAS  Google Scholar  * Grimme, S., Antony, J., Ehrlich, S. & Krieg, H. A consistent and accurate ab

initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. _J. Chem. Phys._ 132, 154104 (2010). Article  ADS  PubMed  CAS  Google Scholar  * Best,

R. B. et al. Optimization of the additive CHARMM all-atom protein force field targeting improved sampling of the backbone _φ_, _ψ_ and side-chain _χ_ 1 and _χ_ 2 dihedral angles. _J. Chem.

Theory Comput._ 8, 3257–3273 (2012). PubMed  PubMed Central  CAS  Google Scholar  * Klamt, A. & Schüürmann, G. COSMO: a new approach to dielectric screening in solvents with explicit

expressions for the screening energy and its gradient. _J. Chem. Soc. Perkin Trans._ 2, 799–805 (1993). Article  Google Scholar  * Plessow, P. Reaction path optimization without NEB springs

or interpolation algorithms. _J. Chem. Theory Comput._ 9, 1305–1310 (2013). Article  PubMed  CAS  Google Scholar  * Deglmann, P. & Furche, F. Efficient characterization of stationary

points on potential energy surfaces. _J. Chem. Phys._ 117, 9535–9538 (2002). Article  ADS  CAS  Google Scholar  * Kumar, S., Bouzida, D., Swendsen, R. H., Kollman, P. A. & Rosenberg, J.

M. The weighted histogram analysis method for free-energy calculations on biomolecules. I. The method. _J. Comput. Chem._ 13, 1011–1021 (1992). Article  CAS  Google Scholar  * Ahlrichs, R.,

Bär, M., Häser, M., Horn, H. & Kölmel, C. Electronic structure calculations on workstation computers: the program system Turbomole. _Chem. Phys. Lett._ 162, 165–169 (1989). Article  ADS

  CAS  Google Scholar  * Brooks, B. R. et al. CHARMM: the biomolecular simulation program. _J. Comput. Chem._ 30, 1545–1614 (2009). Article  PubMed  PubMed Central  CAS  Google Scholar  *

Riahi, S. & Rowley, C. N. The CHARMM-TURBOMOLE interface for efficient and accurate QM/MM molecular dynamics, free energies, and excited state properties. _J. Comput. Chem._ 35,

2076–2086 (2014). Article  PubMed  CAS  Google Scholar  * Prodromou, C. et al. Identification and structural characterization of the ATP/ADP-binding site in the Hsp90 molecular chaperone.

_Cell_ 90, 65–75 (1997). Article  PubMed  CAS  Google Scholar  * MacKerell, A. D. et al. All-atom empirical potential for molecular modeling and dynamics studies of proteins. _J. Phys. Chem.

B_ 102, 3586–3616 (1998). Article  PubMed  CAS  Google Scholar  * Phillips, J. C. et al. Scalable molecular dynamics with NAMD. _J. Comput. Chem._ 26, 1781–1802 (2005). Article  PubMed

PubMed Central  CAS  Google Scholar  * Humphrey, W., Dalke, A. & Schulten, K. VMD: visual molecular dynamics. _J. Mol. Graph._ 14, 33–38 (1996). Article  PubMed  CAS  Google Scholar  *

Baker, N. A., Sept, D., Joseph, S., Holst, M. J. & McCammon, J. A. Electrostatics of nanosystems: application to microtubules and the ribosome. _Proc. Natl. Acad. Sci. USA_ 98,

10037–10041 (2001). Article  ADS  PubMed  CAS  PubMed Central  Google Scholar  * Rabenstein, B. & Knapp, E.-W. Calculated pH-dependent population and protonation of

carbon-monoxy-myoglobin conformers. _Biophys. J._ 80, 1141–1150 (2001). Article  PubMed  PubMed Central  CAS  Google Scholar  * Kieseritzky, G. & Knapp, E.-W. Optimizing pKA computation

in proteins with pH adapted conformations. _Proteins_ 71, 1335–1348 (2008). Article  PubMed  CAS  Google Scholar  * Ramsey, S., Orrell, D. & Bolouri, H. Dizzy: stochastic simulation of

large-scale genetic regulatory networks. _J. Bioinform. Comput. Biol._ 3, 415–436 (2005). Article  PubMed  CAS  Google Scholar  * Tamura, J. K. & Gellert, M. Characterization of the ATP

binding site on _Escherichia coli_ DNA gyrase. Affinity labeling of Lys-103 and Lys-110 of the B subunit by pyridoxal 5’-diphospho-5’-adenosine. _J. Biol. Chem._ 265, 21342–21349 (1990).

PubMed  CAS  Google Scholar  * Nathan, D. F. & Lindquist, S. Mutational analysis of Hsp90 function: interactions with a steroid receptor and a protein kinase. _Mol. Cell. Biol._ 15,

3917–3925 (1995). Article  PubMed  PubMed Central  CAS  Google Scholar  * Panjkovich, A. & Svergun, D. I. CHROMIXS: automatic and interactive analysis of chromatography-coupled

small-angle X-ray scattering data. _Bioinformatics_ 34, 1944–1946 (2018). Article  PubMed  CAS  Google Scholar  * Konarev, P. V., Volkov, V. V., Sokolova, A. V., Koch, M. H. J. &

Svergun, D. I. _PRIMUS_: a Windows PC-based system for small-angle scattering data analysis. _J. Appl. Cryst._ 36, 1277–1282 (2003). Article  CAS  Google Scholar  * Svergun, D. I.

Determination of the regularization parameter in indirect-transform methods using perceptual criteria. _J. Appl. Cryst._ 25, 495–503 (1992). Article  CAS  Google Scholar  * Svergun, D.,

Barberato, C. & Koch, M. H. J. _CRYSOL_ – a program to evaluate X-ray solution scattering of biological macromolecules from atomic coordinates. _J. Appl. Cryst._ 28, 768–773 (1995).

Article  CAS  Google Scholar  * Karagöz, G. E. et al. N-terminal domain of human Hsp90 triggers binding to the cochaperone p23. _Proc. Natl. Acad. Sci. USA_ 108, 580–585 (2011). Article  ADS

  PubMed  Google Scholar  * Dehner, A. et al. NMR chemical shift perturbation study of the N-terminal domain of Hsp90 upon binding of ADP, AMP-PNP, geldanamycin, and radicicol. _ChemBioChem_

4, 870–877 (2003). Article  PubMed  CAS  Google Scholar  * Sattler, M., Schleucher, J. & Griesinger, C. Heteronuclear multidimensional NMR experiments for the structure determination of

proteins in solution employing pulsed field gradients. _Prog. Nucl. Magn. Reson. Spectrosc._ 34, 93–158 (1999). Article  CAS  Google Scholar  * Delaglio, F. et al. NMRPipe: a

multidimensional spectral processing system based on UNIX pipes. _J. Biomol. NMR_ 6, 277–293 (1995). Article  PubMed  CAS  Google Scholar  * Vranken, W. F. et al. The CCPN data model for NMR

spectroscopy: development of a software pipeline. _Proteins Struct. Funct. Bioinf._ 59, 687–696 (2005). Article  CAS  Google Scholar  * Ikura, M., Bax, A., Clore, G. M. & Gronenborn, A.

M. Detection of nuclear Overhauser effects between degenerate amide proton resonances by heteronuclear three-dimensional nuclear magnetic resonance spectroscopy. _J. Am. Chem. Soc._ 112,

9020–9022 (1990). Article  CAS  Google Scholar  Download references ACKNOWLEDGEMENTS This work was supported the German Research Foundation (SFB1035 projects B12 to V.R.I.K. and A03 and Z1

to M.S. and J.B.). Q.L. acknowledges the China Scholarship Council (CSC) for funding. We acknowledge the European Synchrotron Radiation Facility for access to radiation facilities and local

contact Gabriele Giachin for support. NMR measurements were performed at the Bavarian NMR Centre (BNMRZ) at TUM, Garching. We are thankful for the computing time provided by SuperMuc at the

Leibniz Rechenzentrum (pr84pa, pr53po, and pr83ro). Open access funding provided by Stockholm University. AUTHOR INFORMATION Author notes * These authors contributed equally: Sophie L.

Mader, Abraham Lopez, Jannis Lawatscheck. AUTHORS AND AFFILIATIONS * Center for Integrated Protein Science Munich at the Department of Chemistry, Technical University of Munich,

Lichtenbergstrasse 4, D85748, Garching, Germany Sophie L. Mader, Abraham Lopez, Jannis Lawatscheck, Qi Luo, Daniel A. Rutz, Ana P. Gamiz-Hernandez, Michael Sattler, Johannes Buchner &

Ville R. I. Kaila * Institute of Structural Biology, Helmholtz Zentrum München, Ingolstädter Landstrasse 1, Neuherberg, 85764, Germany Abraham Lopez & Michael Sattler * Soft Matter

Research Center and Department of Chemistry, Zhejiang University, Hangzhou, 310027, China Qi Luo * Department of Biochemistry and Biophysics, Stockholm University, SE-10691, Stockholm,

Sweden Ana P. Gamiz-Hernandez & Ville R. I. Kaila Authors * Sophie L. Mader View author publications You can also search for this author inPubMed Google Scholar * Abraham Lopez View

author publications You can also search for this author inPubMed Google Scholar * Jannis Lawatscheck View author publications You can also search for this author inPubMed Google Scholar * Qi

Luo View author publications You can also search for this author inPubMed Google Scholar * Daniel A. Rutz View author publications You can also search for this author inPubMed Google

Scholar * Ana P. Gamiz-Hernandez View author publications You can also search for this author inPubMed Google Scholar * Michael Sattler View author publications You can also search for this

author inPubMed Google Scholar * Johannes Buchner View author publications You can also search for this author inPubMed Google Scholar * Ville R. I. Kaila View author publications You can

also search for this author inPubMed Google Scholar CONTRIBUTIONS V.R.I.K. designed the project. S.L.M., Q.L., A.P.G.H., and V.R.I.K. performed the molecular simulations. J.L. and D.A.R.

performed the protein biochemistry, FRET, and fluorescence anisotropy experiments. A.L. performed NMR and SAXS experiments. S.L.M., A.L., J.L., Q.L., D.A.R., A.P.G.H., M.S., J.B., and

V.R.I.K. analysed data. V.R.I.K. wrote the manuscript with contributions from all authors. CORRESPONDING AUTHOR Correspondence to Ville R. I. Kaila. ETHICS DECLARATIONS COMPETING INTERESTS

The authors declare no competing interests. ADDITIONAL INFORMATION PEER REVIEW INFORMATION _Nature Communications_ thanks Timothy Street and the other, anonymous, reviewer(s) for their

contribution to the peer review of this work. PUBLISHER’S NOTE Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION REPORTING SUMMARY SOURCE DATA SOURCE DATA RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution

4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s)

and the source, provide a link to the Creative Commons license, and indicate if changes were made. The images or other third party material in this article are included in the article’s

Creative Commons license, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons license and your intended use is not

permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this license, visit

http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Mader, S.L., Lopez, A., Lawatscheck, J. _et al._ Conformational dynamics modulate

the catalytic activity of the molecular chaperone Hsp90. _Nat Commun_ 11, 1410 (2020). https://doi.org/10.1038/s41467-020-15050-0 Download citation * Received: 26 December 2018 * Accepted:

16 February 2020 * Published: 16 March 2020 * DOI: https://doi.org/10.1038/s41467-020-15050-0 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content:

Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
