ABSTRACT Nitric oxide (NO) has been implicated in a variety of physiological and pathological processes. Monitoring cellular levels of NO requires a sensor to feature adequate sensitivity,

transient recording ability and biocompatibility. Herein we report a single-atom catalysts (SACs)-based electrochemical sensor for the detection of NO in live cellular environment. The

system employs nickel single atoms anchored on N-doped hollow carbon spheres (Ni SACs/N-C) that act as an excellent catalyst for electrochemical oxidation of NO. Notably, Ni SACs/N-C shows

superior electrocatalytic performance to the commonly used Ni based nanomaterials, attributing from the greatly reduced Gibbs free energy that are required for Ni SACs/N-C in activating NO

oxidation. Moreover, Ni SACs-based flexible and stretchable sensor shows high biocompatibility and low nanomolar sensitivity, enabling the real-time monitoring of NO release from cells upon

drug and stretch stimulation. Our results demonstrate a promising means of using SACs for electrochemical sensing applications. SIMILAR CONTENT BEING VIEWED BY OTHERS A FLEXIBLE AND

PHYSICALLY TRANSIENT ELECTROCHEMICAL SENSOR FOR REAL-TIME WIRELESS NITRIC OXIDE MONITORING Article Open access 25 June 2020 CARBON-BASED SERS BIOSENSOR: FROM SUBSTRATE DESIGN TO SENSING AND

BIOAPPLICATION Article Open access 22 January 2021 ELECTROCHEMICAL SENSING SYSTEM BASED ON COORDINATION BOND CONNECTED PORPHYRIN-MOFS@MXENES HYBRIDS FOR IN SITU AND REAL-TIME MONITORING OF

H2O2 RELEASED FROM CELLS Article Open access 12 February 2025 INTRODUCTION Nitric oxide, as one of the most important signaling molecule endogenously generated by cells, functions within the

cell or penetrates cell membranes to affect adjacent cells. NO plays major roles in multiple physiological and pathological processes, with the controlled release essential to maintaining

vascular homeostasis1,2,3,4,5. An overproduction of NO in endothelial cells resulted from exposing mechanical forces, for example, circumferential stretch or fluid shear stress, triggers

cascading biological reactions that dysregulates oxidative homeostasis, and causes a range of diseases, including neurodegenerative diseases, autoimmune processes and cancer6. Consequently,

there has been enormous interest in the development of real-time sensing platforms for NO in normal and pathological conditions, upon mechanical stimulation of cells. Currently, flexible

electrochemical sensors featuring excellent stretchability and conductivity have demonstrated to be promising tools to realize real-time monitoring of chemical signals from cells or tissues

induced by deformation7,8. These sensors usually composed of nanomaterials as electrode materials and flexible polydimethylsiloxane (PDMS) substrate, yielding hybrid scaffold with synergetic

functions and better electrochemical properties9,10,11. However, their practical applications are greatly limited by the requirement of noble metal components for efficient catalytic

reactions, arguable catalytic mechanism and complicated preparation processes to maximize the utilization of the catalytic sites. Moreover, the transient nature of NO poses additional design

challenges of sensing. Single-atom catalysts (SACs), an emerging heterogeneous material with isolated metal atoms dispersed on solid supports, have received extensive interests since the

early demonstration by Zhang et al.12,13,14. Owing to its optimal atom utilization, SACs offer a unique opportunity to rationally design catalysts with excellent activity, selectivity and

stability compared with the state-of-the-art nanoparticles based catalysts15,16. Aided by significant progresses in synthetic, characterization, and computational modeling techniques, a

substantial body of SACs-based research was centered on their application in heterogeneous catalysis field, ranging from the energy conversion to the environmental protection17,18,19.

Surprisingly, the biological application of SACs has relatively been less exploited, probably owing to the challenges in controlling over the catalytic activities and biocompatibility of

SACs in complexed biological environment. Recently, SACs have been demonstrated to exhibiting excellent performance in enzyme-like catalysis, electrochemical/chemiluminescence sensing and

tumor therapy20,21,22,23,24,25,26,27,28, highlighting its great potency in applications in natural living system. Herein, we present the SACs-based electrochemical sensor for the detection

of NO in live cellular environment. The system features strategically designed nickel single atoms anchored on N-doped hollow carbon spheres that act as an excellent catalyst for

electrochemical oxidation of NO. Notably, Ni SACs/N-C shows superior electrocatalytic performance to the commonly used Ni based nanomaterials, attributing mainly from the greatly reduced

Gibbs free energy that are required for Ni SACs in activating NO, a mechanism supported by the density functional theory calculation. Importantly, the Ni SACs/N-C based flexible and

stretchable electrochemical sensor shows high biocompatibility, reproducible mechanical compliance, and low nanomolar sensitivity, enabling real-time monitoring of trace amount of NO release

from endothelial cells upon drug and stretch stimulation. As far as we know, the development of an easy, stable and even quantitative platform to analyze chemical signals in the environment

of living cells has never been achieved before using SACs. This study provides important insights into the design of SACs-based electrochemical platform for cellular sensing applications,

and thus broadens the practical applications of SACs. RESULTS SYNTHESIS AND CHARACTERIZATION OF NI SACS/N-C The nickel single atoms anchored on N-doped hollow carbon spheres were designed to

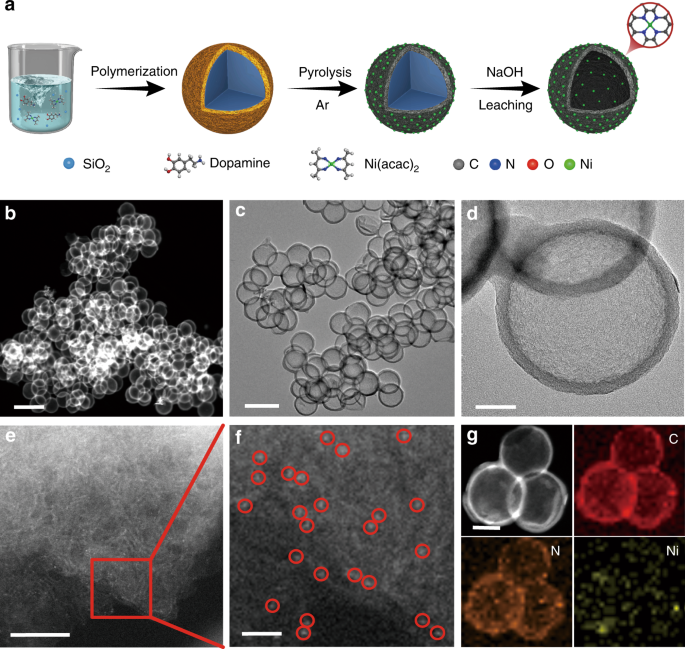

provide a large surface area and good electrical conductivity. As depicted in Fig. 1a, the synthesis of Ni SACs/N-C consists of several steps. Briefly, SiO2 sphere as a template was

dispersed in the mixed solution of dopamine hydrochloride and Ni(acac)2. After stirring, polydopamine and nickel acetylacetonate were coated on the surface of the SiO2 sphere to form a

core-shell SiO2@polydopamine/Ni(acac)2 structure. The structure was then pyrolyzed at a high temperature in an inert atmosphere and etched with sodium hydroxide to remove SiO2 sphere

template. By careful controlling of the Ni weight percent and pyrolysis temperature, Ni SACs/N-C nanospheres can be successfully obtained. The aberration-corrected high-angle annular

dark-field scanning transmission electron microscopy (HAADF-STEM) (Fig. 1b) and transmission electron microscopy (TEM) images (Fig. 1c, d) of Ni SACs/N-C revealed the hollow spherical

structures of Ni SACs/N-C, which remain the structure of the hollow N-doped porous carbon spheres (N-C), as shown in Supplementary Fig. 1. No nanoparticles were observed among the carbon

spheres, indicating that the atomic Ni sites may be embedded uniformly in the whole carbon spheres. To gain more structural information of the as-synthesized Ni atoms, spherical aberration

correction scanning transmission electron microscope (AC-STEM) was performed. Ni atoms with a high atomic number are shown as bright dots (Fig. 1e, f) with atomic dispersed ones highlighted

by red circles. Figure 1g shows the energy dispersive X-ray spectroscopy (EDX) elemental mapping of the Ni SACs/N-C, where elements C, N, and Ni were homogeneously distributed over the

entire architecture. No diffraction peak of Ni was observed in the X-ray powder diffraction (XRD) pattern for the Ni SACs/N-C (Supplementary Fig. 2), indicating that Ni atoms were anchored

on the carbon spheres with even distribution. The binding spectrum of nitrogen was measured by XPS (Supplementary Fig. 3a), which revealed the coexistence of pyridinic (398.4 eV), pyrrolic

(400.4 eV) and graphitic (401.4 eV) nitrogen species. The pyrrole-N species is the main anchoring point for stabilizing single atomic Ni because of the strong coordination affinity. For the

C1s spectrum in Supplementary Fig. 3b, three peaks with binding energies at 284.5, 286.3, and 287.9 eV were attributed to the graphitic C, C–O and C = O, respectively, indicating the

oxygen-containing property of the Ni SACs/N-C. The Ni nanoparticle immobilized on N-doped porous carbon spheres material (Ni NPs/N-C) was fabricated as control material. As shown in

Supplementary Figs. 4 and 5, Ni NPs/N-C was made up of Ni, N, C, O elements and formed by random aggregation of nickel atoms during pyrolysis because exogenous nickel atoms cannot bind with

nitrogen. To further explore the electronic structure and coordination environment of Ni species, X-ray absorption near-edge structure (XANES) and extended X-ray absorption fine structure

(EXAFS) spectroscopy were performed. Figure 2a shows the XANES curves of Ni K-edge for Ni SACs/N-C, with NiO and Ni foil as references. The position of absorption edge of Ni SACs/N-C was

located between those of Ni foil and NiO, indicating that the valence state of Ni in Ni SACs/N-C was between Ni0 and NiII. Fourier transform (FT) EXAFS of Ni SACs/N-C was shown in Fig. 2b.

Compared with Ni foil and NiO, Ni SACs/N-C exhibited only one dominant peak at 1.32 Å, which can be attributed to the first coordination shell of Ni-N. No obvious Ni-Ni peaks in the FT-EXAFS

spectrum of Ni SACs/N-C were observed, revealing the atomic dispersion of Ni in the hollow carbon support. As shown in Fig. 2c and Supplementary Table 1, the quantitative structural

parameters of Ni in Ni SACs/N-C were obtained by least-squares EXAFS fitting. The analysis shows that the coordination number of Ni was approximately 4, and the average bond length of Ni-N4

is 1.92 Å. Based on the above analysis, the local atomic structure around Ni can be constructed, proving that the isolated Ni atom is tetra-coordinated by N atom to form the Ni-N4 structure

that is anchored in the nitrogen-doped porous carbon matrix (Supplementary Table 2). The most stable coordination structure could also be determined by DFT calculation29,30,31. To further

confirm the geometrical aspects of Ni SACs/N-C prepared in this study, several models including graphene, a (6,6) carbon nanotube, a (10,0) carbon nanotube, C60 and phenanthroline with

different curvatures were proposed as carbon substrate for the Ni-N4 structure. Theoretically calculated spectra are almost consistent with the experimental ones. It is likely that the

models proposed with the carbon structures mentioned above as the substrate for the Ni-N4 structure may all exist in the experiments, of which the most possible one is the graphene model, as

shown in Fig. 2d and Supplementary Fig. 6. ELECTROCHEMICAL PERFORMANCE AND MECHANISTIC STUDY OF NI SACS/N-C-CATALYZED NO OXIDATION The electrochemical oxidation of NO is a promising

technology for exploring the multiple roles of NO in biological system, in which hunting for effective catalysts for NO oxidation is the main challenge for highly sensitive and efficient

determination of NO. Having prepared and characterized the atomically dispersed Ni SACs/N-C, we then set out to study its electrocatalytic ability towards NO oxidation. To this end, we

modified the catalyst on a glassy carbon electrode for all the subsequent testing. Electrochemical oxidation of NO on Ni SACs/N-C was measured by cyclic voltammetry (CV), as shown in Fig.

3a. Ni SACs/N-C exhibits excellent activity towards NO oxidation that commences at ca. +0.60 V and researches a well-defined oxidation peak at +0.83 V (red curve). These potentials are more

negative than those at Ni NPs/N-C (blue curve) and N-C (green curve), demonstrating the higher catalytic activity of Ni SACs/N-C. Moreover, the peak current for NO oxidation at Ni SACs/N-C

was much higher than those at Ni NPs/N-C and N-C, as shown in Fig. 3b. It’s worth noting that in these experiments, the amounts of Ni (by weight) modified onto the electrode in Ni SACs/N-C

and Ni NPs/N-C were controlled to be the same. Therefore, the observed better catalytic performance of NO oxidation from Ni SACs/N-C was most probably resulted from the atomically dispersed

catalytic sites. Ni SACs/N-C has higher turnover frequency (TOF) value of 1.23 × 104 h−1 than Ni NPs/N-C at the applied potential of +0.85 V (Supplementary Fig. 7a), again suggesting the

better catalytic performance toward NO oxidation of Ni SACs/N-C. The Ni SACs/N-C based sensor also has a good durability (Supplementary Fig. 7b), validating its application for continuous

sensing of NO. In addition, we investigated the NO adsorption behavior on the SACs/N-C using Fourier-transform infrared (FTIR) spectroscopy and found that the adsorption of NO on Ni site

belongs to the top but not to the bridged type (Supplementary Fig. 7c), implying that the single-atom state of Ni was maintained after NO adsorption. We also found that the modification of

Nafion on the sensor surface well suppressed the current response toward nitrite (NO2−) (Supplementary Fig. 8), which acts as the main interference toward NO detection32. Having demonstrated

the excellent catalytic activity of Ni SACs for the electrooxidation of NO, we moved on further to perform mechanistic study by using DFT calculation. It is generally considered that in a

typical catalytic reaction, NO molecule first loses one electron to form NO+, as reported previously9. However, this is an energetically unfavorable step since the first ionization energy of

NO molecule is higher than 9 eV. Here, we proposed the following mechanism (Eqs. (1) and (2) to describe the electrocatalytic reaction, in which the Eq. (1) refers to reaction from step 1,

whereas Eq. (2) refers a total reaction from consecutive step 2 to 5 as shown in Fig. 3c. The detailed mechanism including all the proposed reactions were included and discussed in

Supplementary Fig. 9, $$^\ast + {\mathrm{NO}} = ^\ast {\mathrm{NO}}$$ (1) $$^\ast {\mathrm{NO}} + {\mathrm{H}}_2{\mathrm{O}} = ^\ast + {\mathrm{HNO}}_2 + {\mathrm{H}}^ + + {\mathrm{e}}^ -$$

(2) The * stands for the active sites in SACs, while *NO represents the catalyst with NO molecule adsorbed. The changes in the Gibbs free energy (including the zero-point energy) in Eqs. (1)

and (2) on Ni SACs/N-C (0.67 and −0.13 eV, Fig. 3d, black curve) and on Ni NPs/N-C (−1.18 and 1.72 eV, Fig. 3d, red curve) were calculated, which were shown in Fig. 3d and also demonstrated

in Supplementary Fig. 9. We also considered the solvation effect with the Polarized Continuum Model (PCM). We found that the change of Gibbs free energy of Eq. (2) only increases by 0.08 

eV, and that of Eq. (1) remains almost unchanged, both showing the minimal effect of solvation. The Ni atom has a 3d84s2 electronic configuration, whereas its 3d and 4p orbitals are fully

occupied by the four ligands in the Ni SACs/N-C. Thus, further coordination with a NO molecule is less favorable than that for Ni NPs/N-C. Since the change of Gibbs free energy for the total

reaction NO + H2O = HNO2 + H+ + e− is fixed, Eq. (2) is favorable for the Ni SACs/N-C, therefore reasonably explaining the excellent electrocatalytic property of Ni SACs/N-C towards NO

oxidation as described above. REAL-TIME SENSING OF NO RELEASE WITH THE NI SACS/N-C-BASED STRETCHABLE SENSOR To realize real-time sensing of NO release from cells under mechanical

deformation, Ni SACs/N-C was confined on a flexible PDMS substrate to form a stretchable electrochemical sensor (Fig. 4a). Ni SACs/N-C used here features both high catalytic activity and

excellent electrical conductivity for NO oxidation, simplifying the sensor preparation. This is remarkable because most of the stretchable sensors reported so far have normally been prepared

with composite materials respectively in charge of catalytic recognition of target and electric conducting10,11. As shown in Fig. 4b, the as-prepared Ni SACs/N-C-based stretchable

electrochemical sensor is well responsive to NO with a nanomolar detection limit. The sensitivity is 430.6 nA μM−1 cm−2, which is higher than those of the stretchable electrochemical sensors

prepared with single metal nanomaterials7,33, carbon materials34, and even composite electrode materials11,35,36,37 (Supplementary Table 3). We also studied the selectivity of the Ni

SACs/N-C based sensor against commonly interfering species in a biological system, and found that that the sensor has excellent selectivity toward NO sensing (Supplementary Fig. 10). Figure

4c demonstrates the calibration curves of the sensor toward the successive addition of NO before and after 50% stretching the sensor. The similar calibration curves were obtained,

demonstrating the high tolerance to mechanical stretching of our sensor. Further tests showed that our sensor has a long-term resistance stability against mechanical bending (Supplementary

Fig. 11). When the sensor was bent to a different curvature (Supplementary Fig. 11a) or for 1000 cycles with a radius of 5 mm (Supplementary Fig. 11b), the change of deformed

resistance/original resistance (R/R0) remained almost negligible, showing the mechanical stability of the Ni SACs/N-C-based sensor. Next, we explored whether the Ni SACs/N-C-based

stretchable sensor could be used to detect NO in the cellular environment, with human umbilical vein endothelial cells (HUVECs) as a model cell line. HUVECs were cultured on the surface of

the stretchable sensor for 24 h, reaching a density of 2 × 106 cells/cm2. Most of the cells maintained their regular shapes (Fig. 4d), showing the excellent biocompatibility of Ni SACs/N-C

under the conditions employed here. Further toxicity tests showed that more than 80% of HUVECs maintain cell viability after co-cultured with different concentrations of Ni SACs/N-C for 48 h

(Supplementary Fig. 12). We then studied the capability of the Ni SACs/N-C-based sensor to monitor NO release from HUVECs under stimulation of L-arginine (L-Arg). It is known that L-Arg

treatment activates the nitric oxide synthase (NOS) and induces the production of NO in endothelial cells38,39,40. As shown in Fig. 4e (black curve), the treatment of 10 mM of L-Arg led to

an obvious increase of the oxidation current. Moreover, when we simultaneously treated HUVECs with 10 mM L-NG-Nitroarginine Methyl Ester (L-NAME), a precursor of nitric oxide synthase (NOS)

inhibitor, and 10 mM L-Arg, no current increase was observed (Fig. 4e, red curve), confirming the current response of the Ni SACs/N-C is due to the release of NO. In addition, the

introduction of L-Arg solution (10 mM) to the Ni SACs/N-C-based sensor without cells generated no perceptible current response (Fig. 4e, blue curve). Taken together, these results

substantially demonstrate that the Ni SACs/N-C-based stretchable sensor could selectively and sensitively detect the dynamics of NO in the cellular environment. To further demonstrate the

application of the stretchable electrochemical sensor prepared with Ni SACs/N-C, the sensor incubated with HUVECs on the surface was mounted on a special bracket capable of applying

precisely controlled mechanical force. When the sensor was stretched to approximately a 50% change in the electrode area, an increase in the current signal (i.e., 520 nA) was observed (Fig.

4g, black curve) and the corresponding schematic cellular mechanotransduction and NO oxidation mechanism was proposed in Fig. 4f. In addition, much smaller current change (ca. 10 nA) was

recorded on the Ni SACs/N-C-based stretchable sensor without cell at 50% deformation (Fig. 4g, blue curve), which may be ascribed to the capacitive current change, highlighting that the

mechanical force itself contributes minimally to the current response recorded with cells on the sensor surface. Moreover, when cells were pretreated with L-NAME (which inhibits the

generation of NO), followed by 50% mechanical force stimulation, less than 10% of the current response was observed (Fig. 4g, red curve), as compared with the groups without L-NAME treatment

(Fig. 4g, black curve). It is of note that an extensive mechanical strain not only provokes HUVECs to release of NO, but also triggers other signaling pathways41,42,43. Taken together,

these results suggest that Ni SACs/N-C with atomically dispersed Ni-N4 catalytic site presents a robust electrocatalyst for NO oxidation and sensing, making it reliable as a stretchable

electrochemical sensing material in biological detection. DISCUSSION In summary, by using nickel single-atom based electrocatalyst, we demonstrate that the SACs facilities NO oxidation and

accomplish the real-time NO sensing in live cellular environment. DFT calculation reveals a two-step catalytic reaction mechanism involved in activating NO with Ni SACs/N-C, in which a

greatly reduced Gibbs free energy process enables Ni SACs/N-C with high electrocatalytic performance. Moreover, when the catalytic activity of the Ni SACs/N-C was integrated with a flexible

sensor platform, a highly robust, biocompatible and low-nanomolar sensitive electrochemical tool was created, allowing the recording of trace amount of NO release under a physiological

environment. The designing of this single-atom nickel catalyst not only provides great opportunities for live cell analysis but also sheds light on our understanding of electrocatalytic

oxidation of NO through theoretical insights, opening a paradigm for the development of SACs-based advanced sensing device for potential healthcare monitoring. METHODS PREPARATION OF N-C The

preparation of different sized silica spheres involves the ammonia-catalyzed hydrolysis and condensation of tetraethyl orthosilicate (TEOS) in an aqueous ethanol solution via the classical

stöber method44. To do this, 100 mL of absolute ethanol, 30 mL of deionized water, and 5 mL of 28% NH3 H2O were mixed and stirred. A total of 5 mL of TEOS was added into the mixture and

stirred for 1 h. Then 10 mL mixture of ethanol and water containing of 0.5 g dopamine monomers was added into the preceding mixture and stirred. After reaction for 12 h, the silica spheres

were isolated by centrifugation, dried at 70 °C under vacuum, heated to 900 °C for 3 h at the heating rate of 3 °C/min under flowing of Ar gas, and finally naturally cooled to room

temperature. The obtained samples were etched in the aqueous solution of 4 M sodium hydroxide for 24 h and collected by centrifugation, washed subsequently with water and ethanol and finally

dried at 70 °C under vacuum for overnight. PREPARATION OF NI SACS/N-C Ni SACs/N-C was synthesized with the procedures similar to those for the synthesis of N-C. Briefly, 100 mL of absolute

ethanol, 30 mL of deionized water, and 5 mL of 28% NH3·H2O were mixed and stirred. A total of 5 mL of TEOS was added into the mixture and stirred for 1 h. Then, 10 mL mixture of ethanol and

water containing of 0.5 g dopamine monomers and 5.62 mg Ni(acac)2 was added into the preceding mixture and stirred. After a reaction time of about 12 h, the silica spheres were isolated by

centrifugation, dried at 70 °C under vacuum, heated to 900 °C for 3 h at the heating rate of 3 °C /min under flowing Ar gas, and finally naturally cooled to room temperature. The obtained

samples were etched in the aqueous solution of 4 mol/L sodium hydroxide for 24 h and collected by centrifugation, washed subsequently with water and ethanol and finally dried at 70 °C under

vacuum for overnight. The Ni content in Ni SACs/N-C determined by inductively coupled plasma optical emission spectrometry (ICP-OES) is ~0.10% (wt%). PREPARATION OF NI NPS/N-C A 56.2 mg

Ni(acac)2 and 0.1 g dopamine derived hollow carbon sphere were mixed and grinded. The mixture was then heated to 900 °C for 1 h at the heating rate of 3 °C/min under the flowing of Ar gas

and naturally cooled to room temperature. The obtained samples were washed with water and ethanol for 2–3 times, collected by centrifugation and finally dried at 70 °C under vacuum for

overnight. The Ni content in Ni NPs/N-C determined by ICP-OES is approximately 0.85% (wt%). PREPARATION OF NI SACS/N-C BASED SENSOR Ni SACs/N-C suspension (2 mg mL−1) was prepared by

dispersing Ni SACs/N-C into mixture of deionized water and N,N-dimethylformamide solution under ultrasonication to form homogeneous dispersion. PDMS film (~500 μm in thickness) was obtained

by spin-coating the degassed liquid prepolymer and cross-linker (w/w = 10:1) on a plastic substrate at a spin rate of 500 rpm for 10 s and thermally cured at 60 °C. Before PDMS was fully

cured, Ni SACs/N-C suspension was dropped and dried at 60 °C for 1 h. Then, the Ni SACs/N-C/PDMS film was peeled off from the substrate and contacted with a copper wire via carbon paste.

Finally, the Ni SACs/N-C/PDMS film electrode was further coated with Nafion film by dropping 4 μL 0.5% (w/v) Nafion solution in ethanol on the electrode surface (0.5 cm2) and the electrode

was dried in air to form Ni SACs/N-C-based sensor. CHARACTERIZATION TEM images were taken on a Hitachi HT7700 transmission electron microscope. The high-resolution TEM, HAADF-STEM images,

and the corresponding energy-dispersive X-ray (EDX) mapping were recorded by a JEOL JEM-2100F high-resolution transmission electron microscope operating at 200 kV. Inductively coupled plasma

optical emission spectroscopy (ICP-OES) was measured by Thermo Fisher IRIS Intrepid II. Powder X-ray diffraction patterns were measured with a Bruker D8 with Cu Kα radiation (_λ_ = 1.5406 

Å). The X-ray photoelectron spectroscopy (XPS) was measured by a PHI Quantera SXM system under 3.1 × 10–8 Pa using Al+ radiation at room temperature. XAFS MEASUREMENTS AND ANALYSIS The X-ray

absorption find structure spectra Ni K-edge were collected at BL1W1B station in Beijing Synchrotron Radiation Facility (BSRF). The data were collected in fluorescence excitation mode using

a Lytle detector. All samples were pelletized as disks of 13 mm diameter using graphite powder as a binder. The Ni L-edge absorption near-edge structure spectra were collected at BL4B9B

station in BSRF. The acquired EXAFS data were processed according to the standard procedures using the ATHENA module implemented in the IFEFFIT software packages. The EXAFS spectra were

gained by subtracting the post-edge background from the overall absorption and then normalizing with respect to the edge-jump step. Subsequently, the _χ_(k) data were Fourier transformed to

real (R) space using a hanning windows (dk = 1.0 Å−1) to separate the EXAFS contributions from different coordination shells. To obtain the quantitative structural parameters around central

atoms, least-squares curve parameter fitting was carried out using the ARTEMIS module of IFEFFIT software packages. The following EXAFS equation was applied (Eq. (3)): $$\chi \left( k

\right){\mathrm{ = }}\mathop {\sum}\limits_j {\frac{{N_jS_o^2F_j\left( k \right)}}{{kR_j^2}}} \cdot \exp \left[ { - {\mathrm{2}}k^{\mathrm{2}}\sigma _j^{\mathrm{2}}} \right] \cdot \exp

\left[ {\frac{{ - {\mathrm{2}}R_j}}{{\lambda \left( k \right)}}} \right] \cdot \sin \left[ {{\mathrm{2k}}R_j\,{\mathrm{ + }}\,\phi _j\left( k \right)} \right]$$ (3) \(S_0^2\) is the

amplitude reduction factor, _Fj(k_) is the effective curved-wave backscattering amplitude, Nj is the number of neighbors in the _j_th atomic shell, _R__j_ is the distance between the X-ray

absorbing central atom and the atoms in the _j_th atomic shell (backscatter), _λ_ is the mean free path in Å, _ɸ__j__(k)_ is the phase shift (including the phase shift for each shell and the

total central atom phase shift), σj is Debye-Waller parameter of the jth atomic shell (variation of distances around the average _R__j_). The functions _F__j__(k)_, _λ_ and _ɸ__j__(k)_ were

calculated with the ab initio code FEFF8.2. ELECTROCATALYTIC OXIDATION OF NO ON NI SACS/N-C Briefly, NO was prepared by slowly dropping 4 M H2SO4 into deoxygenated 2 M NaNO2 solution7. A

1.8 mM NO-saturated solution was obtained by perfusing pure NO gas into PBS for 30 min at 20 °C. Electrochemical measurements were performed on a computer-controlled electrochemical analyzer

(CHI 660, Shanghai, China) with a three-electrode system with the Ni SACs/N-C/PDMS as working electrode, Ag/AgCl as reference electrode and Pt wire as counter electrode. A 0.10 M PBS was

used as the electrolyte. All electrochemical experiments were carried out under the protection of nitrogen gas atmosphere. Calibration of Ni SACs/N-C-based sensor for NO detection was

performed by adding a series of NO standard solution aliquots into the deaerated PBS. The electrode potential was held at +0.80 V vs. Ag/AgCl for amperometric detection. The TOF (h−1) for NO

was calculated as using Eq. (4) as shown below: $${\mathrm{TOF}} = \frac{{I_{\mathrm{product}}/NF}}{{m_{\mathrm{cat}} \times \omega /M_{Ni}}} \times 3600$$ (4) _I_product: partial current

for certain product, NO; _N_: the number of electron transferred for product formation, which is 1 for NO; _F_: Faradaic constant, 96485 C mol−1; _m_cat: catalyst mass in the electrode, g;

ω: Ni loading in the catalyst; _M_Ni: atomic mass of Ni, 58.69 g mol−1. HUMAN UMBILICAL VEIN ENDOTHELIAL CELL CULTURE Human umbilical vein endothelial cells (HUVECs) were purchased from ATCC

(PCS-100-010) and were cultured using Endothelial medium (ScienCell,1001) at 37 °C in a humidified incubator (95% air with 5% CO2). Specially, the medium was made from 500 mL basal medium,

25 mL fetal bovine serum (FBS), 5 mL endothelial cell growth supplement (ECGS) and 5 mL penicillin/streptomycin solution. For cells experiment, HUVECs were cultivated on Ni SACs/N-C-based

sensor which was kept in the incubator for 24 h to allow cells to adhesion. These loosely bounded HUVECs were washed with sterile PBS before electrochemically recording of NO release.

REAL-TIME MONITORING OF NO RELEASE DURING CELL MECHANO-TRANSDUCTION In order to apply stretch strains to HUVECs, the Ni SACs/N-C-based sensor (active area, 0.5 cm2) cultured with HUVECs was

carefully held with clamps on the transformable device and different stretching force was exerted on the sensor. The stretching and releasing time course of each strain was 5 s and 0.5 s,

respectively. The concentrations of both L-Arg and L-NAME (NOS inhibitor) added to HUVECs culture were 10.0 mM. COMPUTATIONAL DETAILS In order to explore the geometrical and catalytic

properties of the Ni SACs, several models with different curvatures were proposed for the Ni-N4 structure. These structures were geometrically optimized with the B3LYP hybrid density

functional45,46 by using the Gaussian03 program47. The Lanl2DZ pseudopotential for the Ni atoms and 6–31 G (d) basis sets for the other atoms were used in the calculations. All the

structures were verified with vibrational analysis and no imaginary frequency was found. The zero-point energies and Gibbs free energies were also obtained in the vibrational analysis. After

geometrical optimization, the XANES spectra of the models were calculated by using the ab initio multiple-scattering code JFEFF48. Full multiple scattering algorithm was used. REPORTING

SUMMARY Further information on research design is available in the Nature Research Reporting Summary linked to this article. DATA AVAILABILITY The data that support the findings of this

study are available from the authors upon reasonable request. The supplementary data are also available at public repositories (Identifier: DOI 10.17605/OSF.IO/7TZNY). The source data

underlying Figs. 2a–d, 3a, b, d, and 4b, c, e, g and Supplementary Figs. 2, 3a–c, 5a–c, 6, 7, 8, 10–12 are provided as a Source Data file. REFERENCES * Palmer, R. M. J. et al. Vascular

endothelial cells synthesize nitric oxide from L-argmine. _Nature_ 333, 664–666 (1988). Article  ADS  CAS  PubMed  Google Scholar  * Moncada, S. et al. Nitric oxide: physiology,

pathophysiology, and pharmacology. _Pharmacol. Rev._ 43, 109–142 (1991). CAS  PubMed  Google Scholar  * Ignarro, L. J. et al. Endothelium-derived relaxing factor produced and released from

artery and vein is nitric oxide. _Proc. Natl Acad. Sci. USA_ 84, 9265–9269 (1987). Article  ADS  CAS  PubMed  Google Scholar  * Xiao, T. F. et al. In vivo analysis with electrochemical

sensors and biosensors. _Anal. Chem._ 89, 300–313 (2017). Article  CAS  PubMed  Google Scholar  * Jiang, S. et al. Real-time electrical detection of nitric oxide in biological systems with

sub-nanomolar sensitivity. _Nat. Commun._ 4, 2225 (2013). Article  ADS  PubMed  CAS  Google Scholar  * Hsieh, H. J. et al. Shear-induced endothelial mechanotransduction: the interplay

between reactive oxygen species (ROS) and nitric oxide (NO) and the pathophysiological implications. _J. Biomed. Sci._ 21, 1–15 (2014). Article  CAS  Google Scholar  * Liu, Y. L. et al.

Stretchable electrochemical sensor for real-time monitoring of cells and tissues. _Angew. Chem. Int. Ed._ 55, 4537–4541 (2016). Article  CAS  Google Scholar  * Zhao, X. et al. Fabrication of

a flexible and stretchable nanostructured gold electrode using a facile ultraviolet-irradiation approach for the detection of nitric oxide released from cells. _Anal. Chem._ 90, 7158–7163

(2018). Article  CAS  PubMed  Google Scholar  * Li, J. L. et al. Au nanoparticles-3D graphene hydrogel nanocomposite to boost synergistically in situ detection sensitivity toward

cell-released nitric oxide. _ACS Appl. Mater. Interfaces_ 7, 2726–2734 (2015). Article  CAS  PubMed  Google Scholar  * Liu, L. Y. et al. A stretchable electrochemical sensor for inducing and

monitoring cell mechanotransduction in real time. _Angew. Chem. Int. Ed._ 56, 9454–9458 (2017). Article  CAS  Google Scholar  * Wang, Y. W. et al. Stretchable and photocatalytically

renewable electrochemical sensor based on sandwich nanonetworks for real-time monitoring of cells. _Anal. Chem._ 90, 5977–5981 (2018). Article  CAS  PubMed  Google Scholar  * Qiao, B. T. et

al. Single-atom catalysis of CO oxidation using Pt1/FeOx. _Nat. Chem._ 3, 634–641 (2011). Article  CAS  PubMed  Google Scholar  * Yang, X. F. et al. Single-atom catalysts: a new frontier in

heterogeneous catalysis. _Acc. Chem. Res._ 46, 1740–1748 (2013). Article  CAS  PubMed  Google Scholar  * Chen, Y. J. et al. Single-atom catalysts: synthetic strategies and electrochemical

applications. _Joule_ 2, 1242–1264 (2018). Article  CAS  Google Scholar  * Wang, A. et al. Heterogeneous single-atom catalysis. _Nat. Rev. Chem._ 2, 65 (2018). Article  ADS  CAS  Google

Scholar  * Jiang, K. et al. Highly selective oxygen reduction to hydrogen peroxide on transition metal single atom coordination. _Nat. Commun._ 10, 3997 (2019). Article  ADS  PubMed  PubMed

Central  CAS  Google Scholar  * Cheng, N. C. et al. Platinum single-atom and cluster catalysis of the hydrogen evolution reaction. _Nat. Commun._ 7, 13638 (2016). Article  ADS  CAS  PubMed

PubMed Central  Google Scholar  * Mao, J. J. et al. Accelerating water dissociation kinetics by isolating cobalt atoms into ruthenium lattice. _Nat. Commun._ 9, 4958 (2018). Article  ADS

PubMed  PubMed Central  CAS  Google Scholar  * Zhu, C. Z. et al. Single-atom electrocatalysts. _Angew. Chem. Int. Ed._ 56, 13944–13960 (2017). Article  CAS  Google Scholar  * Cheng, N. et

al. Single-atom nanozyme based on nanoengineered Fe-N-C catalyst with superior peroxidase-like activity for ultrasensitive bioassays. _Small_ 15, 1901485 (2019). Article  CAS  Google Scholar

  * Wu, Y. et al. Oxidase-like Fe-N-C single-atom nanozymes for the detection of acetylcholinesterase activity. _Small_ 15, 1903108 (2019). Article  CAS  Google Scholar  * Ma, W. J. et al. A

single-atom Fe-N4 catalytic site mimicking bifunctional antioxidative enzymes for oxidative stress cytoprotection. _Chem. Commun._ 55, 159–162 (2019). Article  CAS  Google Scholar  * Jiao,

L. et al. When nanozymes meet single-atom catalysis. _Angew. Chem. Int. Ed._ 132, 2585–2596 (2020). Article  Google Scholar  * Yao, L. L. et al. Single-atom enzyme functionalized

solution-gated graphene transistor for real-time detection of mercury ion. _ACS Appl. Mater. Interfaces_ 56, 13944–13960 (2020). Google Scholar  * Hou, H. F. et al. Single-atom

electrocatalysis: a new approach to in vivo electrochemical biosensing. _Sci. China Chem._ 62, 1720–1724 (2019). Article  CAS  Google Scholar  * Gu, W. L. et al. Single-atom iron boosts

electrochemiluminescence. _Angew. Chem. Int. Ed._ 59, 3534–3538 (2020). Article  CAS  Google Scholar  * Wang, J. et al. Highly active graphene oxide-supported cobalt single-ion catalyst for

chemiluminescence reaction. _Anal. Chem._ 89, 13518–13523 (2017). Article  CAS  PubMed  Google Scholar  * Huo, M. F. et al. Nanocatalytic tumor therapy by single-atom catalysts. _ACS Nano_

13, 2643–2653 (2019). CAS  PubMed  Google Scholar  * Liu, W. G. et al. A durable nickel single-atom catalyst for hydrogenation reactions and cellulose valorization under harsh conditions.

_Angew. Chem. Int. Ed._ 57, 7071–7075 (2018). Article  CAS  Google Scholar  * Cao, L. L. et al. Dynamic oxygen adsorption on single-atomic ruthenium catalyst with high performance for acidic

oxygen evolution reaction. _Nat. Commun._ 10, 4849 (2019). Article  ADS  PubMed  PubMed Central  CAS  Google Scholar  * Li, F. Y. et al. Styrene hydrogenation performance of Pt

nanoparticles with controlled size prepared by atomic layer deposition. _ACS Catal._ 5, 544–552 (2015). Article  CAS  Google Scholar  * Zhang, M. N. et al. Rational design of

surface/interface chemistry for quantitative in vivo monitoring of brain chemistry. _Acc. Chem. Res._ 45, 533–543 (2012). Article  CAS  PubMed  Google Scholar  * Zheng, D. Y. et al. Sensing

of nitric oxide using a glassy carbon electrode modified with an electrocatalytic film composed of dihexadecyl hydrogen phosphate, platinum nanoparticles, and acetylene black. _Microchim.

Acta_ 176, 49–55 (2012). Article  CAS  Google Scholar  * Wang, Y. Z. et al. A multiwall carbon nanotubes film modified carbon fiber ultramicroelectrode for the determination of nitric oxide

radical in liver mitochondria. _Bioelectrochemistry_ 65, 135–142 (2005). Article  ADS  CAS  PubMed  Google Scholar  * Xu, H. Y. et al. Iron phthalocyanine decorated nitrogen-doped graphene

biosensing platform for real-time detection of nitric oxide released from living cells. _Anal. Chem._ 90, 4438–4444 (2018). Article  CAS  PubMed  Google Scholar  * Bhat, S. A. et al.

Self-assembled AuNPs on sulphur-doped graphene: A dual and highly efficient electrochemical sensor for nitrite (NO2 −) and nitric oxide (NO). _N. J. Chem._ 41, 8347–8358 (2017). Article  CAS

  Google Scholar  * Vinu Mohan, A. M. et al. Electrochemical codeposition of gold particle-poly(2-(2-pyridyl) benzimidazole) hybrid film on glassy carbon electrode for the electrocatalytic

oxidation of nitric oxide. _Sens. Actuators, B_ 196, 406–412 (2014). Article  CAS  Google Scholar  * Harrison, D. G. et al. Endothelial mechanotransduction, nitric oxide and vascular

inflammation. _J. Intern. Med._ 259, 351–363 (2006). Article  CAS  PubMed  Google Scholar  * Birukov, K. G. et al. Cyclic stretch, reactive oxygen species, and vascular remodeling.

_Antioxid. Redox, Sign,_ 11, 1651–1667 (2009). Article  CAS  Google Scholar  * Ali, M. H. et al. Mitochondrial requirement for endothelial responses to cyclic strain: Implications for

mechanotransduction. _Am. J. Physiol. Lung Cell. Mol. Physiol._ 287, 486–496 (2004). Article  Google Scholar  * Cheng, J. J. et al. Cyclic strain-induced reactive oxygen species involved in

ICAM-1 gene induction in endothelial cells. _Hypertension_ 31, 125–130 (1998). Article  CAS  PubMed  Google Scholar  * Matsushita, H. et al. Cyclic strain induces reactive oxygen species

production via an endothelial NAD(P)H oxidase. _J. Cell. Biochem._ 81, 99–106 (2001). Article  Google Scholar  * Hahn, C. et al. Mechanotransduction in vascular physiology and atherogenesis.

_Nat. Rev. Mol. Cell Biol._ 10, 53–62 (2009). Article  CAS  PubMed  PubMed Central  Google Scholar  * Liu, J. et al. Extension of the stöber method to the preparation of monodisperse

resorcinol-formaldehyde resin polymer and carbon spheres. _Angew. Chem. Int. Ed._ 50, 5947–5951 (2011). Article  CAS  Google Scholar  * Becke,A. D. et al. Density-functional thermochemistry.

III. The role of exact exchange. _J. Chem. Phys._ 98, 5648–5652 (1993). Article  ADS  CAS  Google Scholar  * Lee, C. et al. Development of the colle-salvetti correlation-energy formula into

a functional of the electron density. _Phys. Rev. B_ 37, 785–789 (1988). Article  ADS  CAS  Google Scholar  * Frisch, M. J. et al. Gaussian03; (Gaussian Inc: Wallingford, CT, USA, 2003). *

Index of /jfeff-9.7.1. http://leonardo.phys.washington.edu/jfeff-9.7.1/ (2014). Download references ACKNOWLEDGEMENTS This work was supported by the National Natural Science Foundation of

China (No. 21575090 for Y.L.; Nos. 21790390 and 21790391 for L.M.; No. 21971002 for J.M.; Nos. 21775151 and 21790053 for P.Y.), the National Key Research and Development Project (Grant No.

2018YFE0200800), the National Basic Research Program of China (Grant Nos. 2016YFA0200104), the Strategic Priority Research Program of Chinese Academy of Sciences (XDB30000000), the Beijing

Nova Program of Science and Technology (Z191100001119108), Chinese Academy of Sciences (QYZDJ-SSW-SLH030), High-level Teachers in Beijing Municipal Universities in the Period of 13th Five

year Plan (CIT&TCD20190330), Scientific Research Project of Beijing Educational Committee (KM201810028008) and Youth Innovative Research Team of Capital Normal University. AUTHOR

INFORMATION Author notes * These authors contributed equally: Min Zhou, Ying Jiang. AUTHORS AND AFFILIATIONS * Department of Chemistry, Capital Normal University, Beijing, 100048, China Min

Zhou, Guo Wang & Yuqing Lin * Beijing National Laboratory for Molecular Sciences, Key Laboratory of Analytical Chemistry for Living Biosystems, Institute of Chemistry, the Chinese

Academy of Sciences (CAS), Beijing, 100190, China Min Zhou, Wenjie Wu, Ping Yu & Lanqun Mao * College of Chemistry, Beijing Normal University, Beijing, 100875, China Ying Jiang * Key

Laboratory of Functional Molecular Solids, Ministry of Education, Anhui Key Laboratory of Molecule-Based Materials, College of Chemistry and Materials Science, Anhui Normal University, Wuhu,

241000, China Wenjie Wu & Junjie Mao * Beijing Key Laboratory of Construction Tailorable Advanced Functional Materials and Green Applications, School of Materials Science and

Engineering, Beijing Institute of Technology, Beijing, 100081, China Wenxing Chen * School of Chemical Sciences, University of Chinese Academy of Sciences, Beijing, 100049, China Ping Yu

& Lanqun Mao Authors * Min Zhou View author publications You can also search for this author inPubMed Google Scholar * Ying Jiang View author publications You can also search for this

author inPubMed Google Scholar * Guo Wang View author publications You can also search for this author inPubMed Google Scholar * Wenjie Wu View author publications You can also search for

this author inPubMed Google Scholar * Wenxing Chen View author publications You can also search for this author inPubMed Google Scholar * Ping Yu View author publications You can also search

for this author inPubMed Google Scholar * Yuqing Lin View author publications You can also search for this author inPubMed Google Scholar * Junjie Mao View author publications You can also

search for this author inPubMed Google Scholar * Lanqun Mao View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS L.M., Y.L., and J.M. conceived

the idea for the project. J.M. and W.W. conducted material synthesis and structural characterizations. W.C. conducted XAFS measurements. M.Z. and Y.J. designed and performed catalytic

performance testing, and cell studies. P.Y. and Y.J. analyzed the data; G.W. performed DFT calculations. M.Z., J.M., Y.L., and Y.J. drafted the manuscript, Y.J. and L.M. finalized the

manuscript. M.Z. and Y.J. contributed equally to this work. All authors discussed and commented on the manuscript. CORRESPONDING AUTHORS Correspondence to Yuqing Lin, Junjie Mao or Lanqun

Mao. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. ADDITIONAL INFORMATION PEER REVIEW INFORMATION _Nature Communications_ thanks Wei-Hua Huang, Xijun

Wang and the other anonymous reviewer(s) for their contribution to the peer review of this work. Peer reviewer reports are available. PUBLISHER’S NOTE Springer Nature remains neutral with

regard to jurisdictional claims in published maps and institutional affiliations. SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION PEER REVIEW FILE REPORTING SUMMARY SOURCE DATA SOURCE

DATA RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and

reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes

were made. The images or other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in a credit line to the material. If

material is not included in the article’s Creative Commons license and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain

permission directly from the copyright holder. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS

ARTICLE Zhou, M., Jiang, Y., Wang, G. _et al._ Single-atom Ni-N4 provides a robust cellular NO sensor. _Nat Commun_ 11, 3188 (2020). https://doi.org/10.1038/s41467-020-17018-6 Download

citation * Received: 05 January 2020 * Accepted: 08 June 2020 * Published: 24 June 2020 * DOI: https://doi.org/10.1038/s41467-020-17018-6 SHARE THIS ARTICLE Anyone you share the following

link with will be able to read this content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer Nature

SharedIt content-sharing initiative
