ABSTRACT The deterministic creation and modification of domain walls in ferroelectric films have attracted broad interest due to their unprecedented potential as the active element in


non-volatile memory, logic computation and energy-harvesting technologies. However, the correlation between charged and antiphase states, and their hybridization into a single domain wall


still remain elusive. Here we demonstrate the facile fabrication of antiphase boundaries in BiFeO3 thin films using a He-ion implantation process. Cross-sectional electron microscopy,


spectroscopy and piezoresponse force measurement reveal the creation of a continuous in-plane charged antiphase boundaries around the implanted depth and a variety of atomic bonding


configurations at the antiphase interface, showing the atomically sharp 180° polarization reversal across the boundary. Therefore, this work not only inspires a domain-wall fabrication


strategy using He-ion implantation, which is compatible with the wafer-scale patterning, but also provides atomic-scale structural insights for its future utilization in domain-wall


nanoelectronics. SIMILAR CONTENT BEING VIEWED BY OTHERS IN-PLANE CHARGED DOMAIN WALLS WITH MEMRISTIVE BEHAVIOUR IN A FERROELECTRIC FILM Article 18 January 2023 GIANT SWITCHABLE NON


THERMALLY-ACTIVATED CONDUCTION IN 180° DOMAIN WALLS IN TETRAGONAL PB(ZR,TI)O3 Article Open access 24 November 2022 FERROELECTRIC DOMAIN WALL MEMORY WITH EMBEDDED SELECTOR REALIZED IN LINBO3


SINGLE CRYSTALS INTEGRATED ON SI WAFERS Article 15 June 2020 INTRODUCTION In comparison to the three-dimensional domains in ferroelectric thin films, the two-dimensional domain walls or


boundaries, which separate domains of distinct crystallographic and electronic features, typically have the reduced dimensionality of only a few atomic layers. These domain walls possess


broken local symmetry and perturbed chemical environments, rendering them with promising aspects for nanoelectronics and nano-optoelectronics1,2,3,4,5,6,7,8. A wealth of physico-chemical


properties have been discovered in ferroelectric domain walls, including domain-wall conductivity9,10,11,12,13,14,15, unconventional magnetism16, optical response17,18, giant


electromechanical19 and thermotropic behaviors20. These domain walls can be categorized as either electrically neutral or charged by the net bound charge accumulated from the normal


polarization of neighboring domains21. Specifically, the spontaneous polarization in ferroelectric materials here is defined as the dipole vector drawing from the negative to positive


centers of each unit cell (u.c.), and thus in general a domain wall in the head-to-head (or tail-to-tail) state tends to be positively (or negatively) charged, while the defect types


accumulating around may affect the charge states. In ferroelectric thin films with out-of-plane polarization, it is normal to observe the neutral domain wall elongating along the


polarization direction, while a charged domain wall extending perpendicular to the film polarization direction is barely found in as-grown films (although examples exist in capacitor


geometries22), because of the energetically unfavored larger area-to-body ratio and the extra electrostatic energy built up by charging. However, such in-plane charged domain walls are


appealing by their non-trivial charged properties and functionalities of more viable controllability, which are unavailable by out-of-plane domain walls, such as the ferroelectric tunnel


junction displaying discrete quantum-well energy levels23. Recently, Liu et al. also fabricated the smallest memristor of multiple resistance states facilitated by the layer-by-layer


migration of single in-plane charged domain wall in a 4 u.c. BiFeO3 (BFO) film24. Such fascinating quasi-two-dimensional nature of in-plane charged domain walls, in regardless of the film


thickness, may enable the design of the electronic circuitry at a sub-nano scale. On the other hand, the domain walls in ferroelectric thin films can be distinguished in respect of their


crystallographic geometries, such as antiphase25,26 and twin27 boundaries. In contrast to the twin boundaries involving a reflection of neighboring lattices, the antiphase boundaries feature


a planar defect by translating half-unit-cell of atomic registry in reference to the adjacent domain. In addition to the competing effects (either serving as nucleation sites28 or promoting


the retention failure29) of antiphase boundaries during the BFO domain switching, they also play critical roles in the anomalous magnetoresistance of Fe3O430 and the antiferromagnetic


coupling of NiFe2O431. Since BFO holds robust magnetoelectric coupling above the room temperature, the hybridization of both in-plane charged (i.e., electrically switchable) and antiphase


characteristics into a single-domain wall seems a charming idea and may pave way to the possibility of controlling magnetism with electric field at room temperature32,33. However, the


realization and integration of such in-plane charged antiphase boundary (IP-CAPB) in ferroelectric films has been rather challenging and, to our best knowledge, not reported yet. Since the


antiphase boundary physically requires the half-unit-cell shift of atomic registry across the boundary, its generation poses tough conditions on the technique to be used. As a technique of


tunable energy range, being compatible with the large-scale patterning and reversible by thermal annealing34, the He-ion implantation treatment has been widely applied to a multitude of


materials to engineer their microscopic structure and apparent properties to high precision. For example, the negatively charged boron vacancy (\({V}_{B}^{-}\)) spin defects in hexagonal


boron nitride was synthesized by the He-ion implantation to facilitate the coherent control of nitrogen nuclear spins at room temperature35. It has also been developed for ferroelectric


films to produce the single-domain super-tetragonal phase in BFO36 and to triple the energy storage density in PbZrO3 by breaking film polarization into polar nanoregions37, though its


implementation in the domain-wall generation remains largely unexplored. In this paper, we report the facile construction of a spatially continuous IP-CAPB in the BFO thin film using a


He-ion implantation technique. The ferroelectric-domain-modification effect of He implantation is demonstrated by comparing the piezoresponse force microscopy (PFM) and cross-sectional TEM


results of the same BFO/LAO film before and after the He-implantation treatment. PFM measurements reveal that the in-plane multi-domain structure is refined into a uniform out-of-plane


single-domain polarization near the surface of films. Cross-sectional scanning transmission electron microscopy (STEM) and atomic-resolution energy-dispersive X-ray spectroscopy (EDS)


together elucidate various configurations of atomic bonding at the antiphase interface, which interweave to form an IP-CAPB around the implanted depth. Through quantitative analysis of


atomic column positions, the atomically sharp 180° polarization reversal across the IP-CAPB is identified. We also discover a single-unit-cell thick antipolar Bi2O3 inside the bending region


of CAPB, which switches the nearest single-unit-cell BFO layer to form multiple charged interfaces, which relieve the electrostatic energy and stabilize the IP-CAPB. Our work thus sheds


light on the domain-wall engineering by He-ion implantation and provides the direct atomic-scale observation of such unique IP-CAPBs for their future utilization in domain-wall


nanoelectronics, spintronics and memory device applications. RESULTS AND DISCUSSION We grew BFO films of ~70 nm thickness on LaAlO3 (LAO) (001) substrates using the pulsed laser deposition


(PLD) technique as detailed in the Method section. The pristine BFO film is dominated by the tetragonal-like (MC) phase as indicated by the X-ray diffraction (XRD) results in Supplementary


Fig. S1, exhibiting the strong (002) MC (tetragonal-like phase) and weak (002) MA (rhombohedral-like phase) peaks near the (002) LAO substrate peak38,39,40,41. The topography measurement by


atomic force microscopy (AFM) in Supplementary Fig. S2a shows some dark patch contrast, which can be ascribed to the rhombohedral-like (R-like) phase naturally mixed into the MC matrix when


the film thickness exceeds ~40 nm and the substrate constraint relieves38,39. Because R-like phases come from the distortion of parent matrix to exhibit a smaller c parameter, manifesting


lower local height in the topographic AFM map38,39. As shown in the schematics and the in-plane piezoresponse force microscopy (IP-PFM) phase maps in Fig. 1a, the as-grown BFO film contains


stripe domains of distinct in-plane polarization components, evincing a phase difference of π (180°). After the characterization, the BFO/LAO heterostructure was bombarded by 8 kV He ions

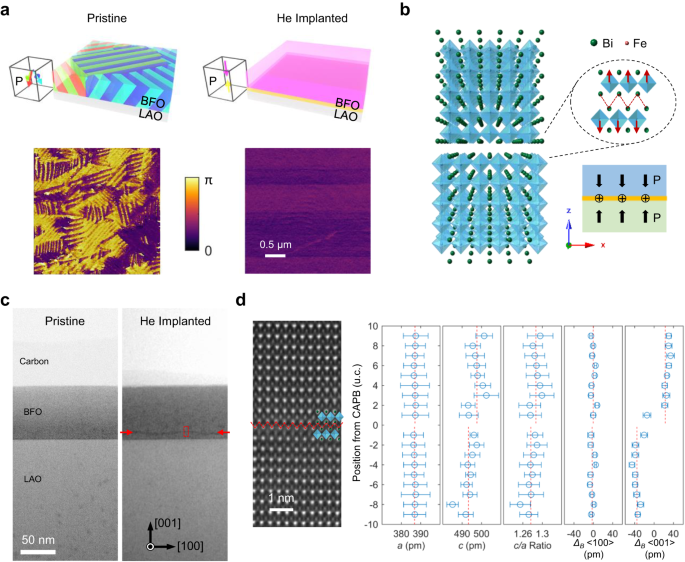

with a fluence of 2.5 × 1015 ions per cm2. It can be seen that the in-plane domain structures disappear after the He-ion implantation, leaving a uniform IP-PFM contrast in Fig. 1a (some


horizontal stripes of tiny phase variation come from flyback artifacts in the slow scan direction). By XRD in Supplementary Fig. S1 and reciprocal space map (RSM) in Supplementary Fig. S5,


we notice that the BFO film transforms into the true tetragonal (T) phase after the He-ion implantation. This phase transition is consistent with the AFM topography measurement in


Supplementary Fig. S2b, where the interweaving bright-dark stripe domain contrast is gone, and the atomic terraces on the surface can be observed. The out-of-plane (OOP) PFM phase maps of


samples before and after the He-ion implantation, as shown in Supplementary Fig. S2, do not exhibit any phase reversal or detectable domain contrast, suggesting that the He-ion implantation


process did not alter the OOP polarization component near the surface of films42. Due to the insulating nature of LAO substrates, OOP-PFM signal is a bit noisy. However, the homogeneous


contrast in both IP- and OOP-PFM results indicates the single-domain state near the surface of BFO films after implantation. According to the motivation as discussed previously in the


introduction paragraph to hybridize the antiphase and the in-plane charged characteristics into a single-domain wall, we simulated the possible atomic structure by artificially constructing


one antiphase interface in the BFO matrix. After geometric and energy refinements, there is spontaneous head-to-head polarization initialized in BFO around the boundary as shown in Fig. 1b,


which is represented by the displacement of Fe atomic columns relative to the corresponding u.c. centers (the centers of Bi rectangles). Owing to the head-to-head OOP polarization aside the


antiphase interface, the CAPB is positively charged by bound charges, since we did not observe possible sources of screening electrons. Such atomic model is verified further by direct


atomic-scale observation. Using focused ion beam (FIB) techniques, we lifted out cross-sectional membranes from the He-ion implanted BFO/LAO films for the structure characterization by


scanning transmission electron microscopy (STEM), as the scanning electron microscopy (SEM) image in Supplementary Fig. S3 shows. The BFO membrane is cut out along its <100> direction


and viewed along its <010> zone axis. To avoid surface damage during the milling processes, the BFO is capped with both carbon paint and deposited Pt protection layer. In Fig. 1c, the


cross-sectional annular bright field (ABF) images of the BFO/LAO films before and after the He-ion implantation show a difference in the occurrence of a single dark line at ~60 nm depth of


the processed BFO film. This depth position is in consistence with our simulation of He implantation depth profiles as shown in Supplementary Fig. S6. The accumulation and migration of


oxygen vacancies and generated anti-site defects to a critical level by the He implantation compose the IP-CAPB at the implantation front, where the high-enough He-ion density can arrive


under 8 kV beam energy. Varied beam energies can lead to different implantation depths and profiles as shown in Supplementary Fig. S6. Thus a different IP-CAPB position can be expected if a


different energy is used for the implantation. A zoomed-in view by high-angle annular dark field (HAADF) imaging in Fig. 1d demonstrates the exact atomic configurations of antiphase


interface (marked by red zigzag lines) in high consistence with the calculated atomic model. Through fitting the HAADF intensity of atomic columns with 2D Gaussian functions, we are able to


extract the atomic coordinates and calculate the lattice parameters unit cell by unit cell24. The average and standard deviation values of every u.c. row are plotted as the function of


distance away from the CAPB on the right panel of Fig. 1d, by which we can see the evident change of c/a ratios across the CAPB in agreement with the split (002) sub-peaks in XRD. The


<100> polarization component is nearly zero while the <001> component switches its sign across the interface, indicating an atomically sharp head-to-head 180° domain wall,


instead of the gradual rotation of polarization across the reported in-plane charged domain wall24. The cross-sectional microscopic analysis of the BFO/LAO interface can be seen in


Supplementary Fig. S4, demonstrating the single-domain polarization of BFO between the boundary and the LAO surface. Besides the stacking faults (pointed out by red zigzag lines) along the


antiphase boundary, CAPB also features a chemical ordering of anti-site occupation in opposite domains as visualized by the atomic-resolution EDS mapping shown in Fig. 2. Integrating Bi-_M_,


Fe-_K_, O-_K_ excitation peaks generates a binary contrast of atomic columns of the respective element, with or without the specific element, in a chemically selective manner. There are


three kinds of bonding configurations found in the IP-CAPB: type-I Bi-bilayer, type-II Bi-tetralayer and type-III Fe-bilayer types as listed in Fig. 2a–c, respectively. The excellent


anti-site occupation in opposite BFO domains can be well distinguished. The type-II CAPB with Bi-ion tetralayer in the interface can be regarded as a heterostructure of BFO-single u.c.


Bi2O3-BFO, though the normal tetragonal Bi2O3 phase is a metastable non-polar semiconductor43. We also notice that the type-III CAPB involves the direct face-to-face connection of FeO6


octahedra and thus exhibits a high-energy state, making the Fe-bilayer interface rarely observed and spatially discontinuous. It has been reported that a charged domain wall tends to bend


its propagation path to reduce the net bound charge accumulated from the normal polarization of neighboring domains21. Our IP-CAPB is also not completely straight as shown in the large-scale


image in Fig. 3a. As shown by the geometric phase analysis (GPA) of atomic-resolution image in Fig. 3b, the antiphase configuration is maintained in regardless of the bending. The in-plane


π phase variation and half-unit-cell lattice displacement is kept (represented by the compressed in-plane strain _ε__xx_ and the rotation component _ε__xy_) even when the CAPB bends, while


the out-of-plane lattice expansion (represented by the tensile out-of-plane strain _ε__yy_) can only be tracked in the bending section, which is explained by the configuration switch between


type-I Bi-bilayer and type-II Bi-tetralayer in the bending antiphase interface. From the atomic-resolution EDS mapping of this bending region in Fig. 3c, the alternating interchange of


type-I and type-II bonding configurations of a few unit cells makes up of the bending boundary. The type-II CAPB is formed naturally in the overlapped region of two closest neighboring


type-I CAPBs. Although the bending behaviors actually imply the bi-stable and switchable states of IP-CAPBs when electric field applied, the propagation direction change does not affect the


head-to-head OOP polarization aside the antiphase interface and the charged state of domain walls. Therefore, the question remains why such IP-CAPB bends, even though the accumulated charge


and built-up electrostatic energy cannot be released through bending. The unit-cell-by-unit-cell analysis of polarization in type-I and type-II IP-CAPBs tells us the reason. In Fig. 4, the


polarization of each u.c. is divided into orthogonal components along <001> and <100> directions, and quantified by the B-site displacement away from the u.c. center. It is


self-evident that either CAPB manifest the atomically sharp head-to-head 180° polarization change across the boundary region (framed by the white dashed rectangle) and the similar


polarization strength in BFO domains. As shown in Fig. 5, the local polarization mapping around the same boundary based on the HAADF-STEM imaging clearly demonstrates the head-to-head and


charged states of the boundary. The type-II CAPB, however, contains one-unit-cell thick Bi2O3 inside the wider domain wall. Such Bi2O3 layer is spontaneously anti-polarized against the


surrounding BFO and induces the one-unit-cell thick BFO underneath to switch its polarization direction by 180°, forming an additional tail-to-tail charged boundary that is negatively


charged. The creation of antipolar Bi2O3 layer and the resulted head-to-head/tail-to-tail oppositely charged boundaries may compensate the electrostatic potential built up by single charged


domain walls (type-I CAPB), corroborating the stabilization mechanism of IP-CAPBs through bending. Combining these atomic observations and the switching experiments performed on the


implanted BFO film as shown in Supplementary Fig. S7, the He-implanted BFO is still ferroelectric and switchable. While the direct evidence to explain how the He-ion implantation produces


IP-CAPBs remains unclear, it has been observed that the oxygen-vacancy density (the average Fe oxidation state) on the top side of IP-CAPBs is higher (lower) than that on the bottom side.


This difference has been demonstrated by the lower chemical shift of Fe-_L__3,2_ onset and the larger _L__3_/_L__2_ ratio in the top region by the atomic-resolution electron energy-loss


spectroscopy (EELS) as shown in Fig. 644. Because an antiphase domain is actually a region of anti-site defects in the parent lattice, we thus propose that the switch of A- and B-site ions,


leading to anti-site defects, was caused by the high-energy ion bombardment and assisted by the generated oxygen vacancies. The accumulation and migration of oxygen vacancies and anti-site


defects finally compose the IP-CAPB at the implanted depth after the implantation process45. The He-implantation-induced IP-CAPB is reproducible as shown in Supplementary Fig. S8, where we


fabricated three batches of samples using the same implantation condition and observed similar IP-CAPBs by cross-sectional TEM. Despite the unclear interacting model between high-energy ions


and strongly correlated crystals, our discovery of the unique IP-CAPB, which possesses an atomically sharp 180° charged interface stabilized by antiphase configuration, provides an unusual


playground for studying unconventional domain wall properties and mechanisms, such as the CAPB-controlled magnetoelectric coupling and the electron-hole pair dynamics in a charged


domain-wall sequence4. Since the IP-CAPB is charged and possibly electrically conductive, its electronic properties can be probed by cross-sectional conductive AFM22 and exploited in


multiferroic tunnel junction devices23. To sum up, we demonstrate the facile fabrication of continuous IP-CAPBs in BFO thin films using the He-ion implantation process. This technique is


highly scalable, making it suitable for wafer-size lateral patterning. PFM data confirm the disappearance of stripe domain wall structures near the surface of films. Cross-sectional STEM and


EDS spectroscopy then reveal a variety of atomic bonding configurations at the implanted depth, where they interweave to create the antiphase interface. Besides the atomically sharp 180°


polarization reversal across the IP-CAPB, a single-unit-cell thick antipolar Bi2O3 resides in the bending region of CAPB, relieving the built-up electrostatic energy. Therefore, this work


not only proposes a domain-wall fabrication strategy by the He-ion implantation, but also provides direct atomic-scale observation on such IP-CAPBs for their future utilization in


domain-wall nanoelectronics. METHODS MATERIALS SYNTHESIS A series of epitaxial ~70-nm-thick BFO films on LAO (001) substrates were grown by the pulsed laser deposition (PLD) technique at 680


 °C under an O2 pressure of 100 mTorr and cooled under 1 atm oxygen atmosphere. After deposition, the He-ion implantation was carried out at 8 keV with a fluence of 2.5 × 1015 ions per cm2


at the Ion Beam Center (IBC) at the Helmholtz–Zentrum Dresden–Rossendorf. ATOMIC FORCE MICROSCOPY (AFM) The topographical measurement was conducted by the tapping mode of our Scanning Probe


Microscope (model: Asylum Research Cypher) using Al-coated Si probes. PIEZORESPONSE FORCE MICROSCOPY (PFM) The PFM measurement was conducted by the vector PFM mode of our Scanning Probe


Microscope (model: Asylum Research Cypher) using Pt-coated conductive probes. The cantilever of probes is coated with Al to enhance the reflectivity. During scanning, the tips were applied


with 800 mV AC voltage for reading the piezoresponse of BFO films. X-RAY CHARACTERIZATION The XRD and RSM data, including 2theta-omega line scan and 3D-RSM, were obtained from the six-circle


diffractometer equipped with both 0D and 2D detectors in the 1W1A beamline station of the Beijing Synchrotron Radiation Facility using the X-ray wavelength of ~1.548 Å. The 2D RSM images


were extracted from the 3D-RSM dataset using MATLAB. ELECTRON MICROSCOPY AND SPECTROSCOPY Focused ion beam (FIB) techniques by FEI Helios G4 UX were applied to prepare the cross-sectional


membranes of BFO/ALO films. Before the ion milling processes, the surface was coated with thin carbon paint and deposited 500-nm-thick Pt protecting straps using a low-energy (2 kV) electron


beam. Then thicker Pt protecting straps (1.5 μm thick) were deposited using the ion beam. After lifting out a 1-μm-thick plate of the chosen crystal orientation to a copper finger,


step-by-step thinning processes using 30, 5, 2, 1, and 0.5 kV ion beams well minimized the beam damage. STEM imaging and spectroscopy were performed using JEOL JEM ARM 200CF equipped with a


cold field emission gun and an ASCOR fifth-order probe corrector. HAADF imaging, STEM-EDS and STEM-EELS experiments were carried out under 200 kV accelerating voltage with a 26 mrad


convergence semi-angle and 24-120 pA probe currents for optimal information transfer and minimal electron irradiation damage. The collection semi-angles for ADF signal were set to 68–200


mrad. In STEM-EELS measurements, energy dispersion of 0.25 eV per channel and 91 mrad collection semi-angle of Gatan Enfinium ER spectrometer was set up. Zero-loss peak and core-loss edges


were simultaneously recorded in dual EELS mode. The simultaneous ADF signal was acquired with a 93 mrad inner collection semi-angle. REPORTING SUMMARY Further information on research design


is available in the Nature Portfolio Reporting Summary linked to this article. DATA AVAILABILITY The authors declare that all data supporting the findings of this study are available within


the paper and its Supplementary information files. REFERENCES * Catalan, G., Seidel, J., Ramesh, R. & Scott, J. F. Domain wall nanoelectronics. _Rev. Mod. Phys._ 84, 119 (2012). Article
