ABSTRACT Wide-bandgap (WBG) perovskite solar cells (PSCs) are employed as top cells of tandem cells to break through the theoretical limits of single-junction photovoltaic devices. However,


WBG PSCs exhibit severe open-circuit voltage (_V_oc) loss with increasing bromine content. Herein, inhomogeneous halogen-phase distribution is pointed out to be the reason, which hinders


efficient extraction of carriers. We thus propose to form homogeneous halogen-phase distribution to address the issue. With the help of density functional theory, we construct a double-layer


structure (D-2P) based on 2-(9H-Carbazol-9-yl)ethyl]phosphonic acid molecules to provide nucleation sites for perovskite crystallization. Homogeneous perovskite phase is achieved through


bottom-up templated crystallization of halogen component. The efficient carrier extraction reduces the Shockley-Read-Hall recombination, resulting in a high _V_oc of 1.32 V. As a result,


D-2P-treated device (1.75 eV) achieves a record power conversion efficiency of 20.80% (certified 20.70%), which is the highest value reported for WBG (more than 1.74 eV) PSCs. SIMILAR


CONTENT BEING VIEWED BY OTHERS HETEROJUNCTION FORMED VIA 3D-TO-2D PEROVSKITE CONVERSION FOR PHOTOSTABLE WIDE-BANDGAP PEROVSKITE SOLAR CELLS Article Open access 06 November 2023 A UNIVERSAL


CLOSE-SPACE ANNEALING STRATEGY TOWARDS HIGH-QUALITY PEROVSKITE ABSORBERS ENABLING EFFICIENT ALL-PEROVSKITE TANDEM SOLAR CELLS Article 21 July 2022 DEFECT ENGINEERING IN WIDE-BANDGAP


PEROVSKITES FOR EFFICIENT PEROVSKITE–SILICON TANDEM SOLAR CELLS Article 18 July 2022 INTRODUCTION Mixed-halogen wide-bandgap (WBG) perovskite materials is often employed as the top cells of


tandem solar cells, by combining with narrow-bandgap (NBG) bottom cells such as silicon solar cells, organic solar cells, tin-lead hybrid perovskites solar cells (PSCs), etc1,2,3,4,5,6. Due


to the strong photon absorption capability in the long-wavelength range, the bottom cells are beneficial to obtain a larger photocurrent, but usually exhibit a low photovoltage. It is


crucial for tandem cells to achieve the largest possible voltage output through WBG top cells7. Nevertheless, WBG PSCs suffer from severe open-circuit voltage (_V_oc) loss compared to NBG


photovoltaic devices8. Minimizing the _V_oc loss of WBG PSCs should be one of the important issues that need to be addressed urgently in the field of efficient tandem solar cells9,10.


Inorganic nickel oxide (NiOx) film is often employed as hole transport layers (HTL) in WBG PSCs due to its remarkable thermal stability, chemical stability, and high light


transmittance11,12. It is well known that high defect states and mismatched energy levels alignment at the interface between NiOx HTL and perovskite, results in a low _V_oc13. The


application of self-assembled monolayer (SAM) is an important attempt to solve this problem, which has greatly improved the _V_oc of the PSCs14,15,16. Despite this, there is still a large


_V_oc loss in WBG PSCs, according to the Shockley-Queisser (S-Q) limit efficiency theory17. As the optical bandgap of perovskite material widens, the bromine (Br) content of films inevitably


increases, and the resulting device exhibits increasingly severe _V_oc loss18. It is generally recognized that phase separation of perovskite films during the crystallization process is a


prominent problem leading to large _V_oc loss, especially in perovskite systems with Br content exceeding 20 mol%7,19. Br-based perovskites possess lower solubility than iodine (I)-based


analogues, making it easier to nucleate and grow rapidly7. Therefore, for the commonly used solution method, the Br-rich perovskite phase preferentially crystallizes at the perovskite/air


interface at the top of the film, while the I-rich phase is deposited at the bottom of the film20. Such asynchronous crystallization is the root cause of perovskite phase separation.


Inhomogeneous phase distribution impairs efficient extraction and collection of carriers, leading to the severe nonradiative recombination, which has been demonstrated in


quasi-two-dimensional perovskite systems and formamidine (FA) perovskite systems21,22,23,24. Thus, regulating the crystallization kinetics of mixed-halogen perovskites, and achieving


homogeneous halogen-phase distribution should be an important strategy to reduce the _V_oc loss of WBG PSCs. Based on the above inspiration, it is an ideal choice to prepare a functionalized


molecular layer that acts on the buried interface of perovskite film to regulate the crystallization behavior of halides. Considering the advantages of SAM molecules in passivating defects


of NiOx film, we envision to construct a double-layer SAM film at the interface between HTL and perovskite. With the help of density functional theory (DFT) calculations, we have


successfully achieved a double-layer structure (D-2P) based on a single-layer 2-(9H-Carbazol-9-yl)ethyl]phosphonic acid (S-2P) molecules. D-2P structure could be formed through the strong


π-π interaction between the carbazole groups located at the head end of the S-2P molecule16,25,26. Meanwhile, the phosphate group located at the tail end of the S-2P molecule can anchor the


NiOx and the [PbX6]4- octahedron respectively, thereby forming a stable bond bridge structure27,28. More importantly, the phosphate group acts on the [PbX6]4- octahedron through -P-OH···X


bonds, reducing the formation energy of Br-phase and I-phase perovskite simultaneously. The nucleation sites provided by the D-2P structure induce bottom-up homogeneous crystallization of


the halogen component. The reversed crystallization process and homogeneous halogen-phase distribution have been demonstrated through in-situ grazing-incident wide-angle X-ray scattering


(GIWAXS) and depth-profiling X-ray photoelectron spectroscopy (XPS) characterization, etc. Benefiting from optimized energy level alignment and efficient carrier extraction, non-radiative


recombination is effectively suppressed. As a result, D-2P-treated WBG PSCs (1.75 eV) achieved a record power conversion efficiency (PCE) of 20.80% (certified 20.70%), accompanied by a high


_V_oc of 1.32 V. And a semitransparent PSC was employed as four-terminal (4 T) perovskite/perovskite tandem with a PCE of 28.08%. Furthermore, the homogeneous phase distribution alleviated


the lattice strain of the WBG perovskite film and ensured the long-term operational stability. The unencapsulated device still maintains more than 90% of the original PCE after being stored


under nitrogen conditions for 2500 h. RESULTS HALOGEN-PHASE SEPARATION ISSUE AND D-2P STRUCTURE CONSTRUCTION Previous reports have demonstrated that homogeneous phase distribution in


perovskite films is crucial to achieve high-performance photovoltaic devices19. Therefore, we investigate the phase distribution of mixed-halide WBG perovskite films based on a common

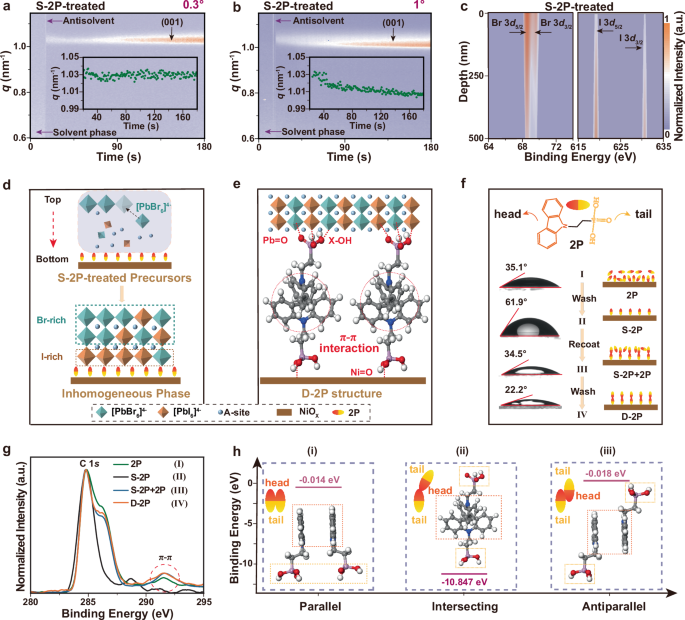

FA0.8Cs0.15MA0.05Pb(I0.7Br0.3)3 system (1.75 eV). In-situ GIWAXS technique is an effective characterization to reveal the crystallization dynamics of perovskite films. Various grazing


incidence angles (_θ_) are applied to detect crystal structure information at different depths of perovskite films29. As shown in Fig. 1a, the (001) plane of the S-2P-treated perovskite film


corresponds to a constant _q_ value at 1.03 nm−1 when the top of the film (_θ_ = 0.3°) was probed during the spin-coating stage. Crystallization situation at the bottom of the film can also


be detected by increasing the grazing incidence angle (_θ_ = 1°), and a broader diffraction signal was showed in Fig. 1b. Moreover, the _q_ value continuously decreases from 1.03 to 1.01 


nm−1 throughout the spin-coating stage. Considering that perovskite films preferentially crystallize at the air/solution interface20, the initial GIWAXS signal should mainly depend on the


crystal structure of the film surface (Fig. 1d). As the film crystallizes sequentially from top to bottom, the crystal structure at the bottom begins to dominate the GIWAXS signal. The


decreased _q_ value represents that the perovskite at the bottom film possesses a larger interplanar spacing than at the top film. The _q_ values at the top and bottom films are almost


constant during the annealing stage (Supplementary Fig. 1), indicating that an inhomogeneous perovskite phase is formed during the spin-coating stage. We further qualitatively analyzed the


phase distribution of perovskite films by depth-profiling XPS spectra (Fig. 1c). As the profiling depth increases, the intensity of I 3_d_5/2 and I 3_d_3/2 spectra (619.5 and 631.0 eV)


gradually increases, while the intensity of Br 3_d_5/2 and Br 3_d_3/2 spectra (68.6 and 69.7 eV) at the corresponding film depth gradually decreases, which is consistent with the GIWAXS


results. It is easy to understand that the [PbBr6]4- octahedron preferentially crystallizes on the top film, due to its solubility is lower than [PbI6]4- octahedron7. This results in


excessive consumption of the Br component, and hence the I-rich phase is deposited at the bottom film (Fig. 1d). Such phase distribution signifies an inhomogeneous energy landscape, which


would lead to large _V_oc loss and low PCE18. Achieving homogeneous halogen-phase distribution through crystallization kinetics regulation should be an effective strategy to address this


issue. Thereupon, we propose to construct D-2P structure based on 2P molecules to regulate the crystallization kinetics of perovskite films. D-2P structure could be formed through the strong


π-π interaction between the carbazole groups located at the head end of the S-2P molecule (Fig. 1e). We used DFT calculations to simulate the binding energy of 2P pairs in three stacking


model: parallel stacking, intersecting stacking, and antiparallel stackings (Fig. 1h)30. For parallel stacking (inset i), the benzene rings at the heads of the two 2P molecules are arranged


in parallel, and the phosphate groups at their tails extend in same directions. For intersecting stacking (inset ii), the benzene rings at the heads of the two 2P molecules intersect with


each other at a certain angle, and the phosphate groups at their tails extend in opposite directions. For parallel stacking (inset iii), the benzene rings at the heads of the two 2P


molecules are arranged in parallel, and the phosphate groups at their tails extend in opposite directions. As shown, intersecting stacking mode exhibits a larger binding energy (10.847 eV)


than parallel stacking (0.014 eV) and antiparallel stacking mode (0.018 eV), which indicates that this stacking mode should be the most stable form of D-SP structure. The electrostatic


potential distribution of 2P molecules also proves that intersecting stacking is the optimal arrangement of 2P pairs (Supplementary Fig. 2). We then construct the D-2P structure based on the


ITO/ NiOx substrate by a simple solution method (Supplementary Figs. 3, 4). A thin 2P film is deposited on the NiOx layer using spin-coating method at step I (Fig. 1f). The resulting film


spontaneously forms an S-2P structure, and the phosphate group located at the tail end of the oriented 2P molecule can anchor the NiOx layer31. Meanwhile, some non-oriented 2P molecules are


inevitably attached to the surface of the S-2P structure. S-2P structure without residual molecules can be obtained by removing attached 2P molecules with the help of absolute ethanol rinse


(step II). The benzene ring groups exposed on the surface of the S-2P layer increase the hydrophobicity of the film, and thus the film obtained at stage II exhibits a larger contact angle


(61.9°) compared with the film (35.1°) obtained at stage I. D-2P structure can be obtained by re-depositing an anhydrous ethanol solution of 2P molecules (phase III) and rinse again (phase


IV). The smallest contact angles (22.2°) can be obtained in the final film, because the intersecting π-π stacking of 2P pairs exposes the hydrophilic phosphate groups on the film surface.


This strong π-π force can also be demonstrated through C 1 _s_ spectra of XPS16. As shown in Fig. 1g, a peak at binding energy of 291.6 eV could be observed, which is consistent with the π-π


bonding collaboration. The resulting D-2P structure (stage IV) exhibited the strongest π-π interaction. The anchoring action of Ni=O bonds between the phosphate group of the D-2P structure


and the NiOx film has been demonstrated by XPS spectra (Supplementary Fig. 5), thereby forming a stable bond bridge structure. HOMOGENEOUS HALOGEN-PHASE PEROVSKITE FILM INDUCED BY THE D-2P


STRUCTURE The phosphate groups on the top layer of the D-2P structure are exposed, which is an opportunity to anchor the [PbX6]4- octahedron (Supplementary Fig. 6) and provide nucleation


sites for the crystallization of perovskite films. We then performed in-situ GIWAXS with different _θ_ angles. The characteristic signal of ITO can be observed in the GIWAXS patterns of


perovskite films (_θ_ = 1°) (Fig. 2c, Supplementary Figs. 7 and 8), indicating that the signal at the bottom of perovskite film can be detected. As shown in Fig. 2a, b, the (001) plane of


the D-2P-treated perovskite film exhibited an almost constant _q_ value of 1.02 nm−1 at spin-coating stage, both on the top (_θ_ = 0.3°) at and bottom (_θ_ = 1°) of the film29,32. The


annealed perovskite film also showed an almost the same diffraction ring of (001) plane for different incident angles (Fig. 2c, Supplementary Fig. 9), meaning that the perovskite phase is


uniformly distributed throughout the film. This is in sharp contrast to the inhomogeneous phase distribution exhibited by the surface and bottom of the S-2P-treated film. Meanwhile, the


strong perovskite signal at the top of the S-2P-treated perovskite film is detected earlier than that at the bottom (Fig. 2a), indicating that the perovskite crystallizes preferentially at


the top. This up-bottom crystallization approach allows stronger (001) signals to be detected at the top. In general, Br-based perovskite exhibits a lower formation energy than I-based one


(Fig. 2e). Thus, the Br-rich phase preferentially crystallizes at the top of the S-2P-treated perovskite film, resulting in an inhomogeneous halogen-phase distribution. In stark contrast,


the strong perovskite signal was first detected at the bottom of the D-2P-treated perovskite film rather than the top (Fig. 2b). The slower crystallization rate at the top of the film


results in a weaker (001) signal compared to that at the bottom. This bottom-up crystallization approach is attributed to the D-2P structure, and the phosphate group provides nucleation


sites for the crystallization of perovskite films. Furthermore, the D-2P-treated perovskite film displayed a faster crystallization rate than the S-2P-treated perovskite film, which can be


determined from the faster increase in GIWAXS signal intensity of the former. The in-situ laser scanning confocal microscope (LSCM) images further supports this conclusion that shorter


crystallization time is observed for the D-2P-treated perovskite film compared to S-2P-treated one (Fig. 2d and Supplementary Fig. 10). The crystallization kinetic behavior of the above


films confirms our previous assumptions. The phosphate groups exposed in the D-2P structure could simultaneously anchor the [PbI6]4- and [PbB6]4- through -P-OH···X- and -P = O···Pb2+ bonds33


(Fig. 2f). As shown in the XPS spectra of the perovskite film at the bottom, Pb 4 _f_, Br 3_d_ and I 3_d_ peaks were all shifted towards the high energy region (Fig. 2g, h), demonstrating


the strong interaction between the D-2P structure and the perovskite crystal34. The formation energy of I-based and Br-based perovskites could be reduced and closer after the introduction of


2P (2-(9H-Carbazol-9-yl)ethyl]phosphonic acid) (Fig. 2e). This indicates that the phosphate groups will interact with both I and Br components and provide nucleation sites for perovskite


crystallization, which will induce the homogeneous crystallization of the halogen phase. As expected, depth-profiling XPS spectra showed the same Br 3_d_ and I 3_d_ signal intensity at


various depths of the film (Fig. 2h, Supplementary Fig. 11). Moreover, the double-layered materials based on other carbazole-based phosphonic acids also showed similar effects, such as such


as [2-(3,6-dimethoxy-9H-carbazol-9-yl)ethyl]phosphonic acid (2M) and [4-(3,6-dimethoxy-9H-carbazol-9-yl) butyl]phosphonic acid (4M) (Supplementary Figs. 12, 13). We further quantitatively


analyzed the halogen content based on the focused ion beam (FIB)-prepared flakes located on the top and bottom of the perovskite film35. As shown in the energy dispersive spectroscopy (EDS)


combined transmission electron microscopy (TEM) (Supplementary Fig. 14), the S-2P-treated films exhibited distinguishable Br/(I+Br) ratios for the top (38.63%) and bottom (22.82%) samples.


In contrast, a close to theoretical Br/(I+Br) ratio (30%) is detected for both the top (31.42%) and bottom (29.16%) samples treated with D-2P structure (Fig. 2i). The same conclusion can be


obtained through the statistical Br/(I+Br) ratio at different spatial positions (Supplementary Fig. 15). Such halogen-phase distribution is attributed to the anchoring effect of the D-2P


structure on the buried interface of perovskite film. CARRIER TRANSPORT BEHAVIOR OF HOMOGENEOUS HALOGEN-PHASE PEROVSKITE FILM We then investigated the carrier transport behavior at the top


and bottom of the perovskite film. Kelvin probe force microscopy (KPFM) provides a channel to detect the surface electronic state information of perovskite films. According to previously


reported methods36, we stripping perovskite films form substrates (Supplementary Figs. 16, 17). EDS mapping of the substrate after stripping exhibited that the signal of the Pb element is


negligible (Supplementary Fig. 18), indicating that the complete perovskite film is stripped, which allows the information at the bottom of the film to be effectively detected. As shown in


Fig. 3a–c, similar to the top film, the bottom film also exhibits a uniform potential distribution in different regions. This also proves that the bottom films of two perovskite samples


exhibit almost negligible crystal damage after peeling off. Moreover, the top (0.482 V) exhibited significantly larger contact potential difference (CPD) than the bottom (0.188 V) of


S-2P-treated perovskite film. This is exactly in line with the situation caused by halogen-phase segregation37,38. In contrast, the D-2P-treated perovskite film exhibited close CPD at the


top (0.251 V) and bottom (0.223 V), and more uniform CPD distribution further confirmed the homogeneous halogen-phase distribution throughout the perovskite film. In general, changes in the


CPD of films are accompanied by rearrangements of the energy landscape. Thereupon, we measured the ultraviolet-visible (UV-vis) absorption spectra (Supplementary Fig. 19) and the ultraviolet


photoelectron spectroscopy (UPS) of the films to characterize the energetics (Fig. 3d–f). Considering that long-term UV-light irradiation would damage the perovskite film39, we peeled the


buried bottom surface of the perovskite film off the substrate to minimize the error in UPS measurements. As displayed on the bottom of films, the D-2P-treated perovskite film possessed a


shallower Fermi level (5.0 eV) than the S-2P-treated film (5.4 eV), showing more N-type characteristics40, which is beneficial to achieving high _V_oc. Moreover, the valence band maximum


(VBM) of the former is closer to the highest occupied molecular orbital (HOMO) of 2P molecule10, and optimized energy level alignment is achieved between the photoactive layer and the hole


transport layer. Moreover, the top of the S-2P-treated perovskite film showed more Br components than the D-2P-treated film, which means a larger _E_g. The former exhibited smaller _E_VBM


value than the latter according to their UPS measurements (Supplementary Fig. 20). Therefore, we can deduce that the D-2P-treated perovskite film possessed a larger _E_CBM value than the


S-2P-treated one. This is a smaller energy barrier between the perovskite film and the electron transport layer, which is conducive to electron extraction41. The matched energy level


structure ensures effective carrier extraction. The steady-state photoluminescence (PL) spectra of ITO/NiOx/D-2P/Perovskite film showed a lower PL intensity than that of


ITO/NiOx/S-2P/Perovskite film (Fig. 3g). And a full width at half maxima (FWHM) could also be observed, which is closely related to the homogeneous halogen-phase. In general, low PL


intensity may be caused by the following two factors. In the first case, the high defect states lead to strong PL quenching in perovskite films42. We then measured the defect states of two


perovskite films using thermal admittance spectroscopy (TAS)43. As shown, Band 1 ( < 0.4 eV) represents shallow level, Band 2 (0.4–0.5 eV) and Band 3 ( > 0.5 eV) represent deep level


(Supplementary Fig. 21). Deep level defects are the main factors affecting device performance. The density of defect states (_t_DOS) was in the order of 1016 to 1019 m−3 eV−1 in the both


devices. Meanwhile, the D-2P-treated perovskite device displayed the reduced _t_DOS over the entire trap depth compared with S-2P-treated film. Therefore, we can confirm that the low defect


state of the D-2P-treated perovskite film is not responsible for the low PL intensity. For the second case, the rapid hole extraction from the perovskite film to the hole transport layer


film induces strong PL quenching44,45. As shown in Fig. 3d–f, the valence band maximum (VBM) of the D-2P-treated perovskite film is closer to the highest occupied molecular orbital (HOMO) of


2P molecule, compared with that the S-2P-treated perovskite film. The optimized energy level alignment between the photoactive layer and the hole transport layer ensures a more efficient


hole extraction rate, which can be the reason for the low PL intensity. We then operated solar cells as light-emitting diodes (Supplementary Fig. 22), and D-2P-treated PSC device showed


enhanced electroluminescence (EL) intensity compared with S-2P-treated one. This directly demonstrates that non-radiative recombination at the interface between the perovskite and the


transport layer is reduced in the D-2P-treated devices. Furthermore, we measured the confocal laser microscopy (TCFM) mappings of the films to study the carrier lifetime distribution in


different regions. As shown in Fig. 3h, i, the overall fluorescence lifetime of the D-2P-treated film is nearly an order of magnitude lower than that of the S-2P-treated film. The


corresponding time-resolved PL (TRPL) decay also exhibited the same trend (Supplementary Fig. 23). Benefiting from the templated crystallization induced by the D-2P structure, the


high-quality and homogeneous halogen-phase perovskite film exhibited the efficient carrier extraction (Supplementary Fig. 24). Therefore, the improved optical and electrical properties lay a


solid foundation for the efficient photovoltaic devices. RELATIONSHIP BETWEEN HOMOGENEOUS HALOGEN PHASE AND THE _V_ OC LOSS We fabricated a p-i-n planar heterojunction WBG PSCs (1.75 eV)


with an architecture of ITO/NiOx/D-2P(S-2P)/Perovskite/PEAI/C60/BCP/Ag. The S-2P-treated PSC showed a PCE of 18.33% with a low _V_oc of 1.25 V (Fig. 4a). In contrast, the optimized


D-2P-treated PSC achieved a champion PCE of 20.80% (Supplementary Fig. 25, Supplementary Table 1). And a certified PCE of 20.7% was obtained at SIMIT (Fig. 4b, Supplementary Fig. 26), which


is the highest value reported for a WBG PSC with a bandgap wider than 1.74 eV (Fig. 4c, Supplementary Table 2). A short-circuit current density (_J_sc) of 18.81 mA cm−2 obtained by current


density-voltage (_J_-_V_) curve was verified by the external quantum efficiency (EQE) spectra (Supplementary Fig. 27). Moreover, the D-2P-treated PSC with high repeatability exhibited


negligible hysteresis and stable maximum power point output (Supplementary Fig. 28, 29, Supplementary Table 3). We also investigated the effects of the number of 2P layer and the bilayer


structure of other carbazole-phosphate-based acids on WBG PSCs (Supplementary Figs. 30–34, Supplementary Tables 4 and 5). In contrast, NiOx-based D-SP-treated PSCs exhibited the best


photovoltaic performance (Supplementary Figs. 35, 36, Supplementary Table 6). The remarkably high _V_oc (1.32 V) can also be obtained, and reduced _V_oc loss is a crucial factor in achieving


PCE improvement. The dependence of _V_oc on illumination intensity is an effective strategy to evaluate the internal recombination mechanism in PSCs. The ideality factor _n_ can be obtained


by calculating the slope of the fitted straight line. As shown in Fig. 4d, D-2P-treated PSC displayed a smaller _n_ value (1.21) than S-2P-treated PSC (1.88), and _n_ value close to 1


indicates that Shockley-Read-Hall recombination is substantially suppressed. This can also be demonstrated by the low reverse saturation current under dark conditions (Supplementary Fig.


37). The larger recombination resistance (_R_rec = 22.52 KΩ) and smaller transport resistance (_R_tr = 125.61 Ω) for D-2P-treated PSC corresponds to more efficient hole transport and


extraction (Supplementary Fig. 38). Therefore, a longer charge-recombination lifetime (_τ_rec = 53.33 μs) and a shorter charge-extraction time (_τ_tra = 0.38 μs) were obtained according to


the transient photovoltage (TPV) and transient photocurrent (TPC) measurements (Supplementary Fig. 39). A similar conclusion could be also obtained from the capacitance-voltage (_C_-_V_)


characteristics of PSCs (Fig. 4e). The D-2P-treated PSC displayed an increased built-in potential (_V_bi) from 1.01 to 1.16 V, implying an enlarged driving force of carrier extraction and


separation, which is contributing to the large _V_oc46. To quantitatively evaluate and correlate the recombination rate with the _V_oc and device performance, we operated solar cells as


light-emitting diodes (Fig. 4f), as follows47: $${V}_{{{{\rm{oc}}}}}={V}_{{{{\rm{oc}}}},\! {{{\rm{rad}}}}}-\frac{{kT}}{e}{ln}{{EQE}}_{{{{\rm{EL}}}}}^{-1}$$ (1) where _V_oc,rad, _EQE_EL, _k_,


_T_ and _e_ are the radiative limit of _V_oc, electroluminescence external quantum efficiency, Boltzmann’s constant, thermodynamic temperature and elementary charge. D-2P-treated device


showed a detected EL emission even under a low bias voltage of 1.10 V (Supplementary Fig. 40). The _V_oc loss was calculated by measuring the _EQE_EL of the device. D-2P-treated device


obtained an improved _EQE_EL value (0.437%), which was an order of magnitude higher than S-2P-treated device (0.034%). This demonstrated the substantially reduced _V_oc loss of 0.15 V,


agreeing well with the improved _V_oc of 1.32 V. To show the application potential of WBG PSCs with D-2P structure, we fabricated a semitransparent device to construct four-terminal (4-T)


all-perovskite tandem solar cell with NBG perovskite bottom cell41,48 (Fig. 4g). The resulting semitransparent WBG PSC yielded a PCE of 19.35% with a _V_oc of 1.30 V. The filtered NBG PSC


possessed a PCE of 8.73% based on an initial PCE of 21.70% (Fig. 4h and Supplementary Table 7). The reduced PCE of the filtered NBG PSC is mainly ascribed to the sharp decline in _J_sc from


31.52 to 12.87 mA cm−2, which is in accordance with the corresponding EQE spectra (Fig. 4i). The most of the short wavelength photons (300 – 700 nm) can be absorbed by the top


semitransparent PSC, which allows that the long wavelength photons are absorbed by the bottom PSC. As a result, 4-T all-perovskite tandem solar cell achieved a PCE of 28.08%, which is one of


the highest PCE reported for 4-T all-perovskite tandem cell. Subsequently, we investigative the stability of WBG perovskite materials and photovoltaic devices. Residual lattice strain is


usually one of the crucial factors affecting the stability of perovskite crystal structures, which could be characterized by grazing incident X-ray diffraction (GIXRD) via the 2_θ_-sin2_φ_


method49,50. As shown in Fig. 5a–c, D-2P-treated perovskite film displayed relieved lattice strain (10.0 MPa) compared to the S-2P-treated perovskite film (59.8 MPa), which is attributed to


the homogeneous halogen-phase distribution. We evaluated the migration ability of halide ions by temperature-dependent conductivity measurements51. The ion migration activation energy (_E_a)


is obtained by fitting the corresponding plots with the Nernst-Einstein equation52 (Fig. 5d). A larger _E_a (0.58 eV) is observed in the D-2P-treated perovskite film than that in the


S-2P-treated one (0.17 eV). The relieved lattice strain and increased halogen ion migration barrier facilitate the realization of robust stability of mixed-halide perovskite films. The EL


spectra of PSCs at various bias voltages are showed in the Fig. 5e, f. Distinguishable phase separation can be observed in S-2P-treated PSC when the bias voltage exceeds 3.0 V. In contrast,


D-2P-treated PSC exhibit continuously enhanced EL signals at constant wavelength with increasing bias voltage from 2.0 to 6.0 V. In addition to the improved electric field stability, the


light stability of the D-2P-treated perovskite is also impressive. Time-dependent PL measurements of perovskite films were carried out in air during continuous 1-sun light illumination (Fig.


 5g, h). The D-2P-treated film still exhibited a constant PL intensity at 708 nm after 400 h, while the S-2P-treated perovskite film showed a split and blue-shifted PL peak after being


soaked for a very short time. We further studied the phase separation of perovskite films under long-term light illumination conditions by the SEM coupled with EDS mappings (Supplementary


Fig. 41). For perovskite films, the contents of I and Br elements are large enough, so the influence of possible presence of background noise on the analysis of their distribution is


negligible. After two months of continuous light illumination, the S-2P-treated perovskite film showed an inhomogeneous halogen (Br and I) distribution compared with the pristine one. And no


obvious holes were found in the main aggregation areas of I and Br elements. It can be observed that the halogen inhomogeneous perovskite phase at different film depths will aggravate the


phase separation of the entire film. In contrast, the D-2P-treated perovskite film still exhibited homogeneous halogen distribution under the same light illumination conditions. The electric


field stability and light stability of perovskite film guarantee the long-term stability of solar cells. The PCE evolution of the unencapsulated WBG PSCs were monitored in accordance with


the ISOS-L-1 test standard53 (Fig. 5i). D-2P-treated PSC still maintained more than 90% of its initial PCE after continuous 1-sun illumination conditions in nitrogen for 2500 h, while the


S-2P-treated device has rapidly degraded to less than half its initial PCE after only 1000 h. DISCUSSION In conclusion, we demonstrate an efficient and stable WBG PSC with the homogeneous


halogen-phase distribution. Guided by DFT calculations, we design the D-2P structure through π-π interactions between 2P molecules. The phosphate groups exposed on the surface of the D-2P


structure provide nucleation sites for the homogeneous halogen-phase perovskite. Bottom-up templated crystallization results in the homogeneous perovskite phase distribution. The efficient


carrier extraction between the perovskite and the charge transport layer reduces _V_oc loss of WBG PSC. As a result, D-2P-treated PSC (1.75 eV) achieved a champion PCE of 20.80% (certified


20.70%), which is the highest value reported for a WBG PSC with a bandgap wider than 1.74 eV. Benefiting from improved electric field stability and light stability of perovskite film, the


resulting PSC achieves improved long-term stability, and maintained more than 90% of its initial PCE after continuous 1-sun illumination conditions for 2500 h. This work will provide a route


for minimizing _V_oc loss in WBG PSC, and pave the way for the development of perovskite tandem solar cells. METHODS MATERIALS _N,N_-dimethylformamide (DMF, 99.8%, anhydrous),


dimethylsulfoxide (DMSO, ≥ 99.9%, anhydrous), 2-Propanol (IPA, 99.5%, anhydrous) and chlorobenzene (CB, 99.8%, anhydrous) were obtained from Sigma-Aldrich. Tin (II) iodide (SnI2, 99.99%) and


tin (II) fluoride (SnF2, 99%) were purchased from Sigma-Aldrich. Formamidinium iodide (FAI, 99.9%), methylammonium iodide (MAI, 99.9%), cesium iodide (CsI, 99.999%), lead iodide (PbI2,


99.999%), lead bromide (PbBr2, 99.999%), methylammonium chloride (MACl, 99.9%), 2-phenylethylamine hydroiodide (PEAI, 99.5%) and indium tin oxide (ITO, 15 Ω) glass were obtained from


Advanced Election Technology Co., Ltd. [2-(9H-Carbazol-9-yl)ethyl]phosphonic Acid (2P, > 98%), [2-(3,6-Dimethoxy-9H-carbazol-9-yl)ethyl]phosphonic Acid (MeO-2PACz > 98%) and


[4-(3,6-Dimethoxy-9H-carbazol-9-yl)butyl]phosphonic Acid (MeO-4PACz > 98%) were purchased from TCI. Nickel oxide (NiOx, 99.999%) was from Xi ‘an E-light New Material Co., LTD. Fullerene


(C60, 99.9%) and bathocuproine (BCP, 99%) were obtained from Xi’an Polymer Light Technology Corporation. PEDOT:PSS (CLEVIOS P VP Al 4083) was purchased from Heraeus, LLC. None of the above


chemicals received further purification, were used directly. SINGLE-JUNCTION PEROVSKITE DEVICE FABRICATION The pre-patterned ITO substrates were placed in cleaning agent, deionized water,


anhydrous ethanol, and acetone in sequence cleaning for 20 min. The cleaned ITO substrates were treated with UV-zone for 20 min. NiOx nanoparticles (10 mg) were dissolved in 1 ml of pure


water, ultrasonic shock for 20 min, and then filtered by a filter head with an aperture of 0.22 μm for reserve use. The NiOx film was prepared by spin-coating NiOx solution on the ITO


substrate at 3000 rpm for 30 s, and then annealed at 110 °C for 15 min in air. S-2P film is formed by spinning ethanol solution of 2P molecule coating at 3000 rpm for 30 s, annealing at 100 


°C for 10 min, rinsing with anhydrous ethanol, repeat twice to form D-2P film. For 1.5 M FA0.8Cs0.15MA0.05Pb(I0.7Br0.3)3 perovskite, PbI2, PbBr2, FAI, MAI and CsI are dissolved into a mixed


solvent of DMF and DMSO (4:1) at the stoichiometric ratio. The perovskite layer was fabricated by spin coating 30 µl perovskite precursor solution at a speed of 5000 rpm for 32 s in a N2


glovebox. At the time of 22 s, 110 µl CB was dropped as an anti-solvent. The fabricated film was annealed at 100 °C for 60 min. For PEAI treatment, the 3 mg PEAI was dissolved in 1 ml IPA


and spin-coated onto the perovskite surface at 4000 rpm for 30 s. Finally, it is transferred to a high vacuum chamber (6 × 10−4 Pa), and the C60 (35 nm), BCP (6 nm) and Ag (100 nm) are


thermally evaporated. 4 T ALL-PEROVSKITE TANDEM CELLS FABRICATION SEMI-TRANSPARENT WBG PSCS Preparation of WBG perovskite films as shown above, after depositing 35 nm C60, the substrates


were then transferred to the atomic layer deposition (ALD) system where 40 nm of SnO2 was deposited at 80 °C. Next, a 100 nm-thick indium zinc oxide film (IZO) was sputtered. NBG PSCS The


PEDOT:PSS solution was spin-coated onto ITO and annealed in air at 100 °C for 15 min. Immediately after annealing the substrates were placed in the glove box to deposit NBG perovskite films.


For 2 M FAPb0.5Sn0.5I3 perovskite, PbI2, FAI, SnI2, and SnF2 are dissolved into a mixed solvent of DMF and DMSO (2:1) at the stoichiometric ratio. NBG perovskite precursor solution was


deposited on the substrate by two-part spin coating process: 1000 rpm for 10 s and 4000 rpm for 50 s. At the last 20 s, 200 μl of CB was dripped and then annealed at 100 °C for 10 min.


Finally, it was transferred to the evaporation system, depositing 35 nm C60, 6 nm BCP and 100 nm Ag, respectively. DEVICE CHARACTERIZATION The _V_oc and _J_sc were measured using a Keithley


2400 instrument. Instantaneous _J-V_ curves then measured with a scanning rate of 100 mV s−1 (voltage step of 20 mV and delay time of 200 ms). The devices were measured by a customized mask


with an effective area of 0.089 cm−2. The output of the light source was adjusted using a calibrated silicon photodiode (Newport) at 1 sun (100 mW cm−2). The _J-V_ curves is measured in


atmospheric conditions. Through the silicon standard cells (SRC-00288, Enli Tech) and sun simulator (SS-F5, Enli Tech) for light intensity calibration. Electroluminescence efficiency


(_EQE_EL) was performed via a system containing a Keithley 2400 digital source meter for current injection, a Keithley 6482 picometer, and the Si photodiode for quantifying the photons


emitted from PSCs. OTHER CHARACTERIZATIONS The in-situ GIWAXS measurements were performed at BL 17B1 beamline of the Shanghai Synchrotron Radiation Facility (SSRF). X-ray with a wavelength


of 1.238 Å was utilized for incident-angle-depending measurements, and the incident angle was fixed at 0.3° and 1°. GIWAXS data was collected at every 1 s. The ex-situ GIWAXS patterns with


various grazing incident angles of perovskite films were measured using monochromatic beam (1.54 Å) on the beamline 1W1A at Beijing Synchrotron Radiation Facility (BSRF), China. The XPS was


measured at a vacuum chamber (ESCALAB 250Xi), with a base pressure of 2 × 10−10 mbar, for XPS depth profiling measurements. XPS measurements were performed using a double-differentially


pumped He gas discharge lamp emitting He I radiation (_hν_ = 21.22 eV). REPORTING SUMMARY Further information on research design is available in the Nature Portfolio Reporting Summary linked


to this article. DATA AVAILABILITY All the data supporting the findings of this study are available within this article and its Supplementary Information. Any additional information can be


obtained from corresponding authors upon request. Source data are provided with this paper. REFERENCES * Brinkmann, K. O. et al. Perovskite-organic tandem solar cells with indium oxide


interconnect. _Nature_ 604, 280–286 (2022). Article  ADS  CAS  Google Scholar  * Chen, W. et al. Monolithic perovskite/organic tandem solar cells with 23.6% efficiency enabled by reduced


voltage losses and optimized interconnecting layer. _Nat. Energy_ 7, 229–237 (2022). Article  ADS  CAS  Google Scholar  * He, R. et al. Wide-bandgap organic-inorganic hybrid and


all-inorganic perovskite solar cells and their application in all-perovskite tandem solar cells. _Energy Environ. Sci._ 14, 5723–5759 (2021). Article  CAS  Google Scholar  * De et al.


Bifacial perovskite/silicon tandem solar cells. _Joule_ 6, 1431–1445 (2022). Article  Google Scholar  * Roger, J. et al. Laminated monolithic perovskite/silicon tandem photovoltaics. _Adv.


Energy Mater._ 12, 2200961 (2022). Article  CAS  Google Scholar  * Wen, J. et al. Steric engineering enables efficient and photostable wide-bandgap perovskites for all-perovskite tandem


solar cells. _Adv. Mater._ 34, 2110356 (2022). Article  CAS  Google Scholar  * Jiang, Q. et al. Compositional texture engineering for highly stable wide-bandgap perovskite solar cells.


_Science_ 378, 1295–1300 (2022). Article  ADS  CAS  Google Scholar  * Mahesh, S. et al. Revealing the origin of voltage loss in mixed-halide perovskite solar cells. _Energy Environ. Sci._


13, 258–267 (2020). Article  MathSciNet  CAS  Google Scholar  * Zhao, Y. et al. Reduced 0.418 V _V_oc-deficit of 1.73 eV wide-bandgap perovskite solar cells assisted by dual chlorides for


efficient all-perovskite tandems. _Energy Environ. Sci._ 16, 2080–2089 (2023). Article  CAS  Google Scholar  * Cui, H. et al. Lead halide coordination competition at buried interfaces for


low _V_oc-deficits in wide-bandgap perovskite solar cells. _Energy Environ. Sci._ 16, 5992–6002 (2023). Article  CAS  Google Scholar  * Wang, Y., Mahmoudi, T. & Hahn, Y. B. Highly stable


and efficient perovskite solar cells based on FAMA-perovskite-Cu: NiO composites with 20.7% efficiency and 80.5% fill factor. _Adv. Energy Mater._ 10, 2000967 (2020). Article  CAS  Google


Scholar  * Bai, S. et al. Planar perovskite solar cells with long-term stability using ionic liquid additives. _Nature_ 571, 245–250 (2019). Article  ADS  CAS  Google Scholar  * Li, R. et


al. CsPbCl3-cluster-widened bandgap and inhibited phase segregation in a wide-bandgap perovskite and its application to NiOx-based perovskite/silicon tandem solar cells. _Adv. Mater._ 34,


2201451 (2022). Article  CAS  Google Scholar  * Zhang, S. et al. Minimizing buried interfacial defects for efficient inverted perovskite solar cells. _Science_ 380, 404–409 (2023). Article


ADS  CAS  Google Scholar  * Li, T. et al. Inorganic wide-bandgap perovskite subcells with dipole bridge for all-perovskite tandems. _Nat. Energy_ 8, 610–620 (2023). Article  ADS  CAS  Google


Scholar  * Li, H. et al. Intermolecular π-π conjugation self-assembly to stabilize surface passivation of highly efficient perovskite solar cells. _Adv. Mater._ 32, 1907396 (2020). Article


  CAS  Google Scholar  * Lai, H. et al. High‐performance flexible all‐perovskite tandem solar cells with reduced _V_oc‐deficit in wide‐bandgap subcell. _Adv. Energy Mater._ 12, 2202438


(2022). Article  CAS  Google Scholar  * Yang, W. et al. Unlocking voltage potentials of mixed‐halide perovskite solar cells via phase segregation suppression. _Adv. Funct. Mater._ 32,


2110698 (2021). Article  Google Scholar  * Zheng, Y. et al. Downward homogenized crystallization for inverted wide‐bandgap mixed‐halide perovskite solar cells with 21% efficiency and


suppressed photo-induced halide segregation. _Adv. Funct. Mater._ 32, 2200431 (2022). Article  CAS  Google Scholar  * Chen, S. et al. Crystallization in one-step solution deposition of


perovskite films: upward or downward? _Sci. Adv._ 7, eabb2412 (2021). Article  ADS  CAS  PubMed Central  Google Scholar  * He, T., Jiang, Y., Xing, X. & Yuan, M. Structured perovskite


light absorbers for efficient and stable photovoltaics. _Adv. Mater._ 32, 1903937 (2020). Article  CAS  Google Scholar  * He, T. et al. Reduced-dimensional perovskite photovoltaics with


homogeneous energy landscape. _Nat. Commun._ 11, 1672 (2020). Article  ADS  CAS  PubMed Central  Google Scholar  * Liang, C. et al. Two-dimensional ruddlesden-popper layered perovskite solar


cells based on phase-pure thin films. _Nat. Energy_ 6, 38–45 (2021). Article  ADS  Google Scholar  * Liang, Z. et al. Homogenizing out-of-plane cation composition in perovskite solar cells.


_Nature_ 624, 557–563 (2023). Article  ADS  CAS  PubMed Central  Google Scholar  * Guo, R. et al. Tailoring multifunctional self-assembled hole transporting molecules for highly efficient


and stable inverted perovskite solar cells. _Adv. Funct. Mater._ 33, 2211955 (2023). Article  CAS  Google Scholar  * Kim, J. H., Schembri, T., Bialas, D., Stolte, M. & Wurthner, F.


Slip-stacked j-aggregate materials for organic solar cells and photodetectors. _Adv. Mater._ 34, 2104678 (2022). Article  CAS  Google Scholar  * Alghamdi, A. R. M., Yanagida, M., Shirai, Y.,


Andersson, G. G. & Miyano, K. Surface passivation of sputtered NiOx using a SAM interface layer to enhance the performance of perovskite solar cells. _ACS Omega_ 7, 12147–12157 (2022).


Article  CAS  PubMed Central  Google Scholar  * Li, X. et al. Improved performance and stability of perovskite solar cells by crystal crosslinking with alkylphosphonic acid omega-ammonium


chlorides. _Nat. Chem._ 7, 703–711 (2015). Article  ADS  CAS  Google Scholar  * Qin, M., Chan, P. F. & Lu, X. A systematic review of metal halide perovskite crystallization and film


formation mechanism unveiled by in situ GIWAXS. _Adv. Mater._ 33, 2105290 (2021). Article  CAS  Google Scholar  * Liu, L. et al. Self‐assembled amphiphilic monolayer for efficient and stable


wide-bandgap perovskite solar cells. _Adv. Energy Mater._ 13, 2202802 (2023). Article  CAS  Google Scholar  * Ou, Y. et al. Collaborative interfacial modification and surficial passivation


for high-efficiency MA-free wide-bandgap perovskite solar cells. _Chem. Eng. J._ 469, 143860 (2023). Article  CAS  Google Scholar  * Pratap, S. et al. Out-of-equilibrium processes in


crystallization of organic-inorganic perovskites during spin coating. _Nat. Commun._ 12, 5624 (2021). Article  ADS  CAS  PubMed Central  Google Scholar  * Sung, S. J. et al. Molecular


engineering for function-tailored interface modifier in high-performance perovskite solar cells. _Adv. Energy Mater._ 12, 2200758 (2022). Article  CAS  Google Scholar  * Bi, H. et al.


Perovskite solar cells consisting of PTAA modified with monomolecular layer and application to all-perovskite tandem solar cells with efficiency over 25. _Adv. Funct. Mater._ 33, 2300089


(2023). Article  CAS  Google Scholar  * Han, H. et al. Anti-phase boundary accelerated exsolution of nanoparticles in non-stoichiometric perovskite thin films. _Nat. Commun._ 13, 6682


(2022). Article  ADS  CAS  PubMed Central  Google Scholar  * Wei, K. et al. Facile exfoliation of the perovskite thin film for visualizing the buried interfaces in perovskite solar cells.


_ACS Appl. Energy Mater._ 5, 7458–7465 (2022). Article  CAS  Google Scholar  * Kim, D. et al. Microstructural evaluation of phase instability in large bandgap metal halide perovskites. _ACS


Nano_ 15, 20391–20402 (2021). Article  CAS  Google Scholar  * Lee, H. et al. In situ observation of photoinduced halide segregation in mixed halide perovskite. _ACS Appl. Energy Mater._ 6,


1565–1574 (2023). Article  CAS  Google Scholar  * Chen, S. et al. Thermal and light induced surface instability of perovskite films in the photoelectron spectroscopy measurement. _J.


Electron. Spectrosc. Relat. Phenom._ 229, 108–113 (2018). Article  ADS  CAS  Google Scholar  * Li, Y. et al. Homologous bromides treatment for improving the open‐circuit voltage of


perovskite solar cells. _Adv. Mater._ 34, 2106280 (2022). Article  CAS  Google Scholar  * Lin, R. et al. All-perovskite tandem solar cells with 3D/3D bilayer perovskite heterojunction.


_Nature_ 620, 994–1000 (2023). Article  ADS  CAS  Google Scholar  * Kirchartz, T., Márquez, J. A., Stolterfoht, M. & Unold, T. Photoluminescence-based characterization of halide


perovskites for photovoltaics. _Adv. Energy Mater._ 10, 1904134 (2020). Article  CAS  Google Scholar  * Duan, H. S. et al. The identification and characterization of defect states in hybrid


organic-inorganic perovskite photovoltaics. _Phys. Chem. Chem. Phys._ 17, 112–116 (2015). Article  CAS  Google Scholar  * Wu, W. et al. Molecular doping enabled scalable blading of efficient


hole-transport-layer-free perovskite solar cells. _Nat. Commun._ 9, 1–8 (2018). ADS  Google Scholar  * Liu, S. et al. Buried interface molecular hybrid for inverted perovskite solar cells.


_Nature_ 632, 536–542 (2024). * Zhao, D. et al. Efficient two-terminal all-perovskite tandem solar cells enabled by high-quality low-bandgap absorber layers. _Nat. Energy_ 3, 1093–1100


(2018). Article  ADS  CAS  Google Scholar  * Ross, R. T. Some thermodynamics of photochemical systems. _J. Chem. Phys._ 46, 4590–4593 (1967). Article  ADS  CAS  Google Scholar  * Li, L. et


al. Flexible all-perovskite tandem solar cells approaching 25% efficiency with molecule-bridged hole-selective contact. _Nat. Energy_ 7, 708–717 (2022). Article  CAS  Google Scholar  * Zhu,


C. et al. Strain engineering in perovskite solar cells and its impacts on carrier dynamics. _Nat. Commun._ 10, 815 (2019). Article  ADS  CAS  PubMed Central  Google Scholar  * Li, X. et al.


Strain regulation of mixed-halide perovskites enables high-performance wide-bandgap photovoltaics. _Adv. Mater._ 36, 2401103 (2024). Article  CAS  Google Scholar  * Zhao, J. et al. Strained


hybrid perovskite thin films and their impact on the intrinsic stability of perovskite solar cells. _Sci. Adv._ 3, eaao5616 (2017). Article  PubMed Central  Google Scholar  * Yang, S. et al.


Stabilizing halide perovskite surfaces for solar cell operation with wide-bandgap lead oxysalts. _Science_ 365, 473–478 (2019). Article  ADS  CAS  Google Scholar  * Reese, M. O. et al.


Consensus stability testing protocols for organic photovoltaic materials and devices. _Sol. Energy Mater. Sol. Cells_ 95, 1253–1267 (2011). Article  CAS  Google Scholar  Download references


ACKNOWLEDGEMENTS We acknowledge the National Natural Science Foundation of China (No. 52403373, T.H.), the Natural Science Foundation of Hebei Province (No. E2024201002, T.H.), the Advanced


Talents Incubation Program of the Hebei University (No. 521100222047, T.H.), the Hebei Province Optoelectronic Information Materials Laboratory Performance Subsidy Fund Project


(No.22567634H, S.Y.). The work is funded by the Researchers supporting project number (RSPD2024R762, S.M.H.Q.), King Saud University, Riyadh, Saudi Arabia. The authors gratefully acknowledge


the cooperation of the beamline scientists at BSRF-1W1A beamline. The authors thank the staff at BL17B1 beamline of the National Facility for Protein Science in Shanghai (NFPS), Shanghai


Advanced Research Institute, CAS, for providing technical support in X-ray diffraction data collection and analysis. AUTHOR INFORMATION Author notes * These authors contributed equally: Rui


Wang, Xiaoyu Liu, Shan Yan. AUTHORS AND AFFILIATIONS * College of Physics Science and Technology, Hebei University, Baoding, 071002, China Rui Wang, Xiaoyu Liu, Shan Yan, Ni Meng, Xinmin


Zhao, Shaopeng Yang & Tingwei He * Beijing Synchrotron Radiation Facility, Institute of High Energy Physics, CAS, Beijing, 100049, China Yu Chen * College of Polymer Science and


Engineering State Key Laboratory of Polymer Materials Engineering, Sichuan University, Chengdu, 610065, China Hongxiang Li * Department of Physics & Astronomy, College of Sciences, King


Saud University, Riyadh, Saudi Arabia Saif M. H. Qaid * College of Chemistry, Nankai University, Tianjin, 300071, China Mingjian Yuan * Hebei Key Laboratory of Optic-Electronic Information


and Materials, Hebei University, Baoding, 071002, China Tingwei He * National-Local Joint Engineering Laboratory of New Energy Photoelectric Devices, Hebei University, Baoding, 071002, China


Tingwei He * Province-Ministry Co-construction Collaborative Innovation Center of Hebei Photovoltaic Technology, Hebei University, Baoding, 071002, China Tingwei He * Institute of Life


Science and Green Development, Hebei University, Baoding, 071002, China Tingwei He Authors * Rui Wang View author publications You can also search for this author inPubMed Google Scholar *


Xiaoyu Liu View author publications You can also search for this author inPubMed Google Scholar * Shan Yan View author publications You can also search for this author inPubMed Google


Scholar * Ni Meng View author publications You can also search for this author inPubMed Google Scholar * Xinmin Zhao View author publications You can also search for this author inPubMed


Google Scholar * Yu Chen View author publications You can also search for this author inPubMed Google Scholar * Hongxiang Li View author publications You can also search for this author


inPubMed Google Scholar * Saif M. H. Qaid View author publications You can also search for this author inPubMed Google Scholar * Shaopeng Yang View author publications You can also search


for this author inPubMed Google Scholar * Mingjian Yuan View author publications You can also search for this author inPubMed Google Scholar * Tingwei He View author publications You can


also search for this author inPubMed Google Scholar CONTRIBUTIONS R.W., X.L., and S.Y. contributed equally to this work. T.H. conceived the idea and supervised the work. R.W., X.L., and S.Y.


fabricated devices and analyzed the data. R.W., N.M., S.M.H.Q., and X.Z. performed DFT simulation. Y.C. and H.L. guided the GIWAXS and GIXRD measurements. R.W. and X.L cowrote the paper.


S.M.H.Q., R.W., X.L., M.Y., and T.H. revised the paper. All authors read and commented on the paper. CORRESPONDING AUTHORS Correspondence to Shaopeng Yang or Tingwei He. ETHICS DECLARATIONS


COMPETING INTERESTS The authors declare no competing interests. PEER REVIEW PEER REVIEW INFORMATION _Nature Communications_ thanks the anonymous, reviewers for their contribution to the peer


review of this work. A peer review file is available. ADDITIONAL INFORMATION PUBLISHER’S NOTE Springer Nature remains neutral with regard to jurisdictional claims in published maps and


institutional affiliations. SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION PEER REVIEW FILE REPORTING SUMMARY SOURCE DATA SOURCE DATA RIGHTS AND PERMISSIONS OPEN ACCESS This article is


licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License, which permits any non-commercial use, sharing, distribution and reproduction in any


medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if you modified the licensed


material. You do not have permission under this licence to share adapted material derived from this article or parts of it. The images or other third party material in this article are


included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and


your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this


licence, visit http://creativecommons.org/licenses/by-nc-nd/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Wang, R., Liu, X., Yan, S. _et al._ Efficient wide-bandgap


perovskite photovoltaics with homogeneous halogen-phase distribution. _Nat Commun_ 15, 8899 (2024). https://doi.org/10.1038/s41467-024-53344-9 Download citation * Received: 07 March 2024 *


Accepted: 09 October 2024 * Published: 16 October 2024 * DOI: https://doi.org/10.1038/s41467-024-53344-9 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this


content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
