ABSTRACT Analogous to the condensation of Cooper pairs in superconductors, the Bose–Einstein condensation (BEC) of electron–hole pairs in semiconductors and semimetals leads to an emergence

of an exotic ground state — the excitonic insulator state. In this paper, we study the electronic structure of 1_T_-TiSe2 utilizing angle-resolved photoemission spectroscopy and alkali-metal

deposition. Alkali-metal adatoms are deposited in-situ on the sample surface, doping the system with electrons. The conduction bands of 1_T_-TiSe2 are thereby pushed down below the Fermi

energy, which enables us to characterize its temperature dependence with precision. We found that the formation of the charge density wave (CDW) in 1_T_-TiSe2 at ~ 205 K is accompanied by a

significant increase of the band gap, supporting the existence of excitonic pairing in the CDW state of 1_T_-TiSe2. More importantly, by analyzing the linewidth of the single-particle

excitation spectrum, we unveiled an incoherence-to-coherence crossover at 165 K, which could be attributed to a possible exciton condensation that occurs beneath the CDW transition in

1_T_-TiSe2. Our results not only explain the exotic transport properties of 1_T_-TiSe2, but also highlight the possible existence of an excitonic condensate in this semiconducting material.

SIMILAR CONTENT BEING VIEWED BY OTHERS OBSERVATION OF POSSIBLE EXCITONIC CHARGE DENSITY WAVES AND METAL–INSULATOR TRANSITIONS IN ATOMICALLY THIN SEMIMETALS Article 23 January 2024 ANOMALOUS

EXCITONIC PHASE DIAGRAM IN BAND-GAP-TUNED TA2NI(SE,S)5 Article Open access 18 November 2023 EVIDENCE OF STRONG AND MODE-SELECTIVE ELECTRON–PHONON COUPLING IN THE TOPOLOGICAL SUPERCONDUCTOR

CANDIDATE 2M-WS2 Article Open access 24 July 2024 INTRODUCTION 1_T_-TiSe2 is a strong candidate for realizing an excitonic BEC1,2,3,4,5. It is a typical transition-metal chalcogenide

material, whose crystal structure is formed by a stacking of TiSe2 layers6,7. Band calculations and angle-resolved photoemission spectroscopy (ARPES) studies confirmed that 1_T_-TiSe2 is a

small gap semiconductor with an indirect band gap around 80 meV8,9,10. The valence bands (VB) of 1_T_-TiSe2 are located at the Brillouin zone center (\(\bar{\Gamma }\)), while the conduction

bands (CB) are located at the Brillouin zone boundary (\(\bar{{\rm{M}}}\)). Below ~205 K, 1_T_-TiSe2 enters a 2 × 2 × 2 charge density wave (CDW) state6,11, which cannot be explained by

simple Fermi surface nesting. The CDW vector in 1_T_-TiSe2 matches the momentum of the indirect band gap which connects the VB band at \(\bar{\Gamma }\) and the CB band bottom at

\(\bar{{\rm{M}}}\). Therefore, it has been proposed that 1_T_-TiSe2 is a strong candidate for excitonic insulating material12,13,14. In this scenario, the CDW of 1_T_-TiSe2 is driven by the

excitonic pairing across the indirect band gap, and the CDW transition occurs in synchrony with the BEC of excitons. Besides the exciton-driven scenario, the CDW formation in 1_T_-TiSe2 has

also been explained as a Jahn–Teller effect15,16,17,18, where the energies of Se-4_p_ and Ti-3_d_ bands redistribute in the CDW state due to the change of the bond length and angle of the

Ti–Se bonds. Moreover, the importance of electron–phonon coupling has also been raised recently as a primary driving force of CDW in 1_T_-TiSe219,20,21,22,23. While the CDW mechanism of

1_T_-TiSe2 remains controversial, the transport property of 1_T_-TiSe2 is also abnormal6,11. Unlike other typical CDW materials where the resistivity of materials increases monotonically

under the CDW transition due to the opening of the CDW gap at the Fermi energy (_E_F), the resistivity of 1_T_-TiSe2 first increases below ~205 K and then decreases rapidly at 165 K. The

origin of such nonmonotonic behavior is under debate. Some explained it as a reconstruction of the Fermi surface24. Other mechanisms, such as the thermal population of the carriers25 and the

renormalization of quasiparticle effective mass26 have been proposed. To understand the exotic CDW and transport properties of 1_T_-TiSe2, knowing the reconstruction of electronic structure

across the CDW transition, more specifically, the temperature dependence of both VB and CB, is crucial. However, angle-resolved photoemission spectroscopy (ARPES) only measures the occupied

electronic states, which means that, for 1_T_-TiSe2, a semiconductor where _E_F is in the band gap, only the VB can be detected9,10,12,13,14,27. For the CB, most ARPES studies observed only

the residual spectral weight that extended below _E_F from the tail of the CB band bottom9. It is still unclear how the CB evolves across the CDW transition in 1_T_-TiSe2. Here, we

succeeded in measuring the detailed temperature dependence of CB in 1_T_-TiSe2 via ARPES and alkali-metal deposition. The alkali-metal adatoms on the sample surface dope electrons into the

system. The CB is pushed down below _E_F and thereby can be directly observed by ARPES. We found that the CB interacts with the VB in the CDW state, resulting in an increase in the band gap

between CB and VB. Such a hybridization gap is strongly related to the strength of CDW order. When the CDW order is suppressed by increasing either temperature or carrier doping, the

hybridization gap between CB and VB diminishes. The results support the existence of excitonic pairing between CB and VB in the CDW state of 1_T_-TiSe2. More importantly, we found that the

ARPES spectrum of 1_T_-TiSe2 exhibits an incoherent-to-coherent crossover at ~165 K. The system could be defined as a coherent metal below 165 K with well-defined quasi-particles, whose

lifetime increases rapidly when lowing temperature. Our finding provides experimental evidence that explains the exotic transport properties of 1_T_-TiSe2. It also suggests the possible

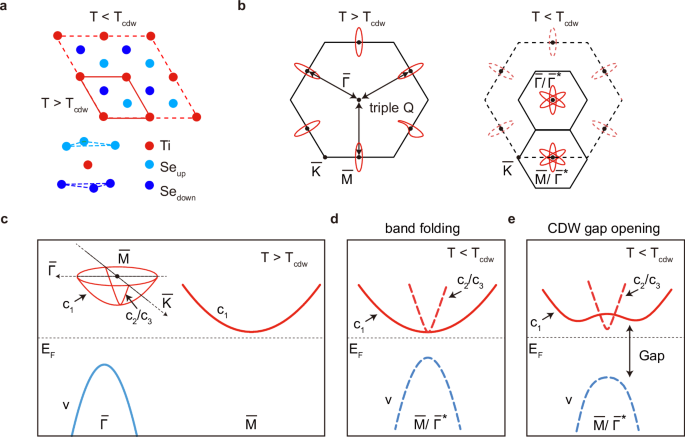

establishment of excitonic BEC in this intriguing material. RESULTS Figure 1 illustrates how the bands fold in the CDW state of 1_T_-TiSe2. Here, we only consider the two-dimensional

Brillouin zone for simplicity. The unit cell quadruples in the CDW states and the bands fold between the \(\bar{\Gamma }\) and \(\bar{{\rm{M}}}\) points (Fig. 1a, b). In the CDW state, the

bands at \(\bar{{\rm{M}}}\)/\(\bar{\Gamma }\) consist of one original CB (c1), one folded VB from \(\bar{\Gamma }\) (V), and two folded CBs from other \(\bar{{\rm{M}}}\) points (c2/c3) (Fig.

 1c, d). Note that, the dispersion of CB is highly anisotropic at the \(\bar{{\rm{M}}}\) point (Fig. 1c). The band is relatively flat along the \(\bar{\Gamma }-\bar{{\rm{M}}}\) direction

while steep along the \(\bar{{\rm{M}}}-\bar{{{{\rm K}}}}\) direction8,9,10,26,27. Therefore, at the \(\bar{{\rm{M}}}\)/\(\bar{\Gamma }\) point, the band bottoms of c1 and c2/c3 degenerate,

while their band dispersions separate. In Fig. 1e, we further consider a gap opening between v and c1. Such gap opening pushes the c1 band bottom and the v band top away from _E_F while

leaving the c2/c3 bands unaffected. Such band folding and band-selective gap opening were first predicted in the band calculation considered all three electron bands and multivalley

effects14. Although the band folding in 1_T_-TiSe214,27 has been well accepted, it is still controversial which conduction bands hybridize most strongly with the v band. Here, in our toy

model shown in Fig. 1, we ignored the interactions between different conduction bands and assumed that the hybridization gap opens between the c1 and v bands. We will see later that this

model fits best with our doping-dependent data. We note that, all three electron bands should be symmetry equivalent in the CDW state. When rotating the momentum direction by 60 degrees, the

flat electron band becomes c2 or c3. It then becomes c2 or c3 to hybridize with the v band. We then studied the doping dependence of band structure taken around the

\(\bar{{\rm{M}}}\)/\(\bar{\Gamma }\) point (Fig. 2). The doping level is illustrated using the total deposition time of alkali metal. In the pristine sample (0 s), the v band is clearly

observed at ~150 meV below _E_F, while the tail of the CB band bottom is observed at _E_F as manifested by a V-shaped-like feature (Fig. 2a). Here, the pristine sample is referred to the

as-grown sample of 1_T_-TiSe2, which is slightly self-doped due to the deviation of Ti/Se ratio from the stoichiometric ratio. With the alkali-metal deposition, both the VB and CB move to

higher binding energy. In 39 s-doped samples, an electron-like band with a V-shaped band dispersion is clearly observed. With further doping, another electron-like band emerges near _E_F in

an 88 s-doped sample, whose band dispersion is relatively flat. Considering the anisotropic band dispersion of CB, as shown in Fig. 1c, d, we attribute the V-shaped electron band to the

c2/c3 bands and the flat electron band to c1, respectively. In photoemission spectroscopy, a normal band usually exhibits a continuous band dispersion and intensity distribution. However,

unlike the intact V-shaped band dispersion of the c2/c3 band, the flat c1 band exhibits a discontinuous band dispersion with a suppressed photoemission intensity near its band bottom. Such

characteristics are consistent with the gap opening scenario illustrated in Fig. 1e. The band hybridization occurs on the c1 and v bands, resulting in the breaking of band dispersion and the

suppression of photoemission intensity observed on c1. We note that carriers pile up near the sample surface in alkali-metal deposited sample due to the band-bending effect. However,

depending on how deep the penetration depth of the electronic field is, the photoemission spectra observe different behaviors. While some ARPES studies observed an electron doping effect28,

some observed a separation of bulk and surface electronic state29 or an emergence of quantum well state30,31. Here, in our doping range, we did not observe any band splitting or shadow bands

that could be attributed to surface bulk separation or quantum well state. Therefore, the role of alkali-metal deposition here could be viewed as a simple electron doping effect that pushes

the CB below _E_F. To characterize the hybridization gap between c1 and v, we measured the doping dependence of the CB and VB band positions. For the c1 band, we took the energy

distribution curves (EDCs) at \(\bar{{\rm{M}}}{+0.1{\text{\AA }}}^{-1}\), where the band minima of c1 are located, and plotted its doping dependence in Fig. 2b. The band minima of c1 first

emerge at _E_F and then shift to higher binding energy monotonically as expected. However, for the v band, as shown in Fig. 2c, d, the EDC peaks that represent the band top of v shift

nonmonotonically. It shifts to higher binding energy in lighted doped samples (<39 s) and then shifts towards _E_F with further doping. The nonmonotonic shift of the v band top indicates

that the band gap between c1 and v changes with electron doping. We then estimated the band gap based on the band positions of c1 and v and plotted its doping dependence in Fig. 2e. The band

gap starts to drop at 50 s deposition time. In the 118 s doped sample, the hybridization gap between c1 and v is suppressed to nearly zero. Besides the change of the band gap, the

photoemission intensity transfers from the folded band to the main band. In moderately doped samples (>88 s), the main v band, as manifested by the EDC peak taken at \(\bar{\Gamma }\)

(Fig. 2d), becomes pronounced, while the folded v band as manifested by the EDC peak taken at \(\bar{{\rm{M}}}\) (Fig. 2c), fades away. The photoemission intensity ratio between the folded

and the main bands directly characterizes the strength of the CDW order. The observed intensity transfer from the folded band to the main band suggests that the CDW order is suppressed by

the alkali-metal deposition in moderately doped samples. Our doping-dependent data are consistent with the recent APRES study on alkali-doped 1_T_-TiSe231. The close relation between the

strength of the CDW order and band gap indicates that the band hybridization between c1 and v plays an important role in promoting the CDW state of 1_T_-TiSe2. We note that while the

electron doping in lightly doped samples is insufficient to suppress the CDW order, it is enough to push the CB below _E_F, which enables ARPES to characterize the temperature dependence of

CB in detail. Figure 3 shows the temperature dependence of ARPES data taken in the lightly doped sample (~39 s). The _T_cdw of our sample is around 205 K, as characterized by the transport

measurement. At 245 K, which is above _T_cdw, the photoemission intensity of the folded v band is observed at the \(\bar{{\rm{M}}}\) point. The existence of band folding above _T_cdw could

be explained as the persistence of short-range CDW above _T_cdw9,13,32,33. When the sample temperature decreases across _T_cdw, the band top of v shifts towards higher binding energy. At 13 

K, the band top of v moves to ~−200 meV, and meanwhile, its dispersion flattens. The temperature dependence of v is consistent with previous ARPES studies9,10,12,13,14. The flattening of

band dispersion and the energy shift of v indicates that there is a band hybridization between c1 and v in the CDW state of 1_T_-TiSe2. The hybridization gap opens near _T_cdw and increases

gradually as the temperature decreases. While the temperature dependence of _v_ is well explained, the temperature dependence of c2/c3 is unexpected. In the band hybridization scenario shown

in Fig. 1e, the c2/c3 band is unaffected by the band hybridization between c1 and v and, therefore, should be nearly temperature-independent. However, in our data, two phenomena could be

clearly observed. First, the c2/c3 band bottom shifts to higher binding energy. The banded bottom of c2/c3 is close to _E_F at ~205 K and moves to ~−80 meV at 13 K. This indicates that there

is a charge transfer between c1 and c2/c3. At high temperatures, the band bottoms of c1 and c2/c3 are degenerated, and the electrons in the system fill into both bands. In the CDW state,

the hybridization between c1 and v pushes c1 upwards above _E_F. As a result, electrons transfer from c1 to c2/c3 resulting in an energy shift of c2/c3 observed here. Second, we observe a

significant change in quasiparticle lifetime on the c2/c3 bands. At high temperatures, the photoemission spectra are so broad that the c2/c3 band dispersion is indistinguishable. When the

sample temperature is cooled down below ~165 K, the V-shaped band dispersion of c2/c3 could be clearly resolved. At 13 K, the spectra of c2/c3 are characterized by a clear V-shaped band

dispersion. The spectra become sharper near _E_F, exhibiting a Fermi liquid-like behavior with well-defined quasiparticles. Utilizing the alkali-metal deposition, we observed the detailed

reconstruction of both the v and c2/c3 bands in the CDW state of 1_T_-TiSe2, including the band folding, the gap opening between c1 and v, the charges transfer from c1 to c2/c3, and the

change of quasi-particle lifetime on c2/c3. Figure 4 characterized the temperature scales of these phenomena. First, we show the temperature dependence of EDCs taken at the

\(\bar{{\rm{M}}}\) point in Fig. 4a, b. The EDC peak position represents the energy position of the v band top (_E_v). We fitted the peak position using a Gaussian function and plotted it as

a function of temperature in Fig. 4c. A kink is observed at ~205 K, which is consistent with the _T_cdw of our sample. This suggests that an abrupt increase of the band gap between c1 and v

occurs at the _T_cdw. Next, we plotted the temperature dependence of MDCs taken at _E_F in Fig. 4d, e. The sharpness of the MDC represents the quasiparticle lifetime. We characterize the

spectra sharpness using the FWHM of the MDC peak fitted using a Lorentz function. We further fitted the slope to the left of the MDC peak using a linear function to supplement the FWHM

analysis. Figure 4f shows the temperature dependencies of the FWHM and the slope of MDC peaks. Instead of showing an abnormality at _T_cdw, the data show a kink at ~165 K. We applied similar

analysis methods to the temperature dependence of EDCs taken at the Fermi crossing (_k_F) of the c2/c3 band (Fig. 4g, h). Consistent results were obtained (Fig. 4i). To confirm that the

observed 165 K temperature scale reflects the intrinsic properties of 1_T_-TiSe2, we repeated the similar temperature-dependent experiment in the pristine samples (Supplementary Fig. 2).

Although the c2/c3 bands are barely observed in the pristine samples due to the lack of electron doping, the rapid decline of quasi-particle scattering below 165 K was observed consistently.

We further excluded the band shift and thermal broadening effect as the cause for the change of spectrum sharpness at 165 K (Supplementary Fig. 3). Similar EDC and MDC analysis was also

done on the valence band far away from _E_F (Supplementary Fig. 4). Consistent results were obtained on the valence band showing the existence of two temperature scales at 205 and 165 K. For

a coherent metal, the lifetime of the quasiparticle near _E_F, as manifested by the spectral sharpness, increases monotonically when temperature increases. This is consistent with what we

observed below 165 K in Fig. 4f, i. However, above 165 K, the temperature dependence of the EDC and MDC FWHM clearly deviates from a coherent metallic behavior. The temperature dependence of

the EDC and MDC FWHM is strongly suppressed. The sharpness of the spectrum is no longer a one-to-one correspondence to the lifetime of the quasiparticle, which suggests that the system

remains to be an incoherent metal above 165 K. DISCUSSION Our observation of incoherent-to-coherent crossover at the 165 K in ARPES naturally explains the transport anomalies observed by

other experiment techniques. The resistivity temperature curve of 1_T_-TiSe2 shows an infection point at 165 K6,11. Optical spectroscopy observed a significant increase in Drude's

weight below 165 K34. In previous studies, the transport anomalies at 165 K have been explained as a crossover behavior due to the Fermi surface reconstruction or the change of carrier

density24,25. However, the change in carrier density is normally related to the band shift or gap opening. According to our temperature-dependent data, the change of band structure starts at

205 K, which cannot explain the transport anomalies at 165 K. Instead, our data show that the transport anomalies in 1_T_-TiSe2 could be explained by the incoherent-to-coherent crossover

observed here. Above 165 K, the system is described as an incoherent metal, as also evident by the lack of clear Fermi cut-off in the EDCs taken at high temperatures (Fig. 4b, h). Below 165 

K, an incoherence-to-coherence crossover occurs, the system could be described as a coherent metal in transport, optical and spectral measurements. Our data show that the evolution of

electronic structure in 1_T-_TiSe2 can be divided into three different stages. In the first stage, short-range CDW forms above _T_cdw, and the bands fold between \(\bar{\Gamma }\) and

\(\bar{{\rm{M}}}\). In the second stage, the band hybridization between c1 and v takes place. Electrons transfer from c1 to c2/c3. As a result, the Ti-3_d_ conduction bands can be divided

into two groups with different properties. The c1 Ti-3_d_ band interacts with the Se-4_p_ band. The hybridization between them pushes these bands away from _E_F, exhibiting an insulating

property. Meanwhile, the c2/c3 Ti-3_d_ bands are filled with electrons, exhibiting a metallic property. Finally, in the third stage below 165 K, the incoherence-to-coherence crossover

occurs. The quasiparticle scattering on the c2/c3 bands declines rapidly when the temperature decreases. We then discuss the possible mechanisms of the different stages of transition in

1_T_-TiSe2. In the early studies of 1_T_-TiSe2, it was believed that the CDW transition is driven by the excitonic interactions between Ti-3d bands and Se-4_p_ bands. However, recently,

ultrafast spectroscopy experiments point out that the role of electron–phonon interaction cannot be negnelcted19,20,21,22,23. It was found that the periodic lattice distortion persists in

1_T_-TiSe2 even when the excitonic correlations are quenched35. Here in our studies, the carrier doping suppresses the excitonic interactions effectively due to a screening of Coulomb

interactions. However, in the heavily doped sample where the excitonic interaction between c1 and v is suppressed to nearly zero, the CDW order, as manifested by the band folding, could

still be resolved (Fig. 2). Furthermore, according to our studies, the exciton formation as characterized by the hybridization gap between c1 and v is boosted at _T_cdw. This is consistent

with the momentum-resolved electron energy loss spectroscopy experiment, which confirms the formation of exciton in 1_T_-TiSe2 at around 180 K36. However, the band folding or the formation

of short-range CDW order persists even at 250 K, which is far above _T_cdw32,33. Based on the above facts, we suggest that the formation of CDW order above _T_cdw in 1_T_-TiSe2 cannot be

solely driven by the excitonic interactions. The electron–phonon interaction may need to be considered. Below _T_cdw, the formation of exciton is boosted as manifested by the rapid increase

of band gap between c1 and v at 205 K. It is intriguing to note that, the charge transfer between c1 and c2/c3 evacuates the free carriers on the c1 band, which boosts the excitonic

formation on the c1 and v bands. Below 165 K, we observed a significant increase in quasiparticle lifetime, indicating that the system transfers from a relatively disordered state to a more

ordered state. In one scenario, the loss of spectral coherence above 165 K could be attributed to the melting of CDW order37. When the sample temperature increases above 165 K, long-range

CDW order melts, and short-range CDW bubbles persist near the defects and domain boundaries. However, there is no indication of CDW melting below 205 K in X-ray diffraction (XRD)

experiments11, which excludes this scenario. On the other hand, the phonon softening in CDW materials could also trigger an incoherent-to-coherent crossover. However, the high-resolution XRD

results show that the phonon softening at the CDW _Q_ is well established at _T_cdw19,38, which cannot explain the 165 K temperature scale. Finally, we turn to the BEC of excitons. In this

scenario, the excitons first form at a high temperature and then condense at a slightly lower temperature. The condensation of excitons may block the scattering between c2/c3 and c1, which

increases the quasiparticle lifetime on the c2/c3 band. Furthermore, the excitons in 1_T_-TiSe2 are constructed by the Ti-3_d_ electrons and Se-4_p_ holes. The BEC of excitons may also lead

to an increase in the structural orderliness of the Ti–Se bonds. Consistently this has been reported recently in an XRD experiment where a modulation of Se atomic layer was found at 165 K39.

We note that the incoherence-to-coherence crossover observed here in ARPES is not a direct probe of the phase relation for a quantum many-body system. To confirm the possible establishment

of excitonic BEC at this temperature, further experiments that measure the multi-particle correlations or phase relations are needed. In summary, utilizing ARPES and in-situ alkali-metal

deposition, we characterized the detailed doping dependence and temperature dependence of the electronic structure of 1_T_-TiSe2. We establish a close relationship between the strength of

CDW order and the excitonic formation. When the CDW order is suppressed by increasing either temperature or carrier doping, the hybridization gap between CB and VB diminishes. More

importantly, we unveiled an incoherence-to-coherence crossover at 165 K. We attributed it to the BEC of excitons that occurs beneath the CDW transition in 1_T_-TiSe2. Our result naturally

explains the anomalies observed at 165 K in transport and optical measurements in 1_T_-TiSe2. It also points out an intriguing coexistence of both metallic state and excitonic insulating

state in 1_T_-TiSe2. While the electrons on the c2/c3 band exhibit a metallic behavior, the electrons on the c1 band bond with the holes on the v band, exhibiting an insulating behavior. It

is surprising that the excitonic correlation is established in 1_T_-TiSe2 while free electrons are present. Further experimental and theoretical studies are required to understand this

exotic coexistence of electronic states with conflict properties in 1_T_-TiSe2. METHODS SAMPLE GROWTH High-quality single crystals of 1_T_-TiSe2 were synthesized using the chemical vapor

transport (CVT) method. By mixing the appropriate ratio of Ti powder and Se pieces (2% excess) well, the compound was sealed in a quartz tube using iodine as a transport agent. The quartz

tube was put in the two-zone furnace with a thermal gradient between 560 and 640 °C for 336 h. RESISTIVITY MEASUREMENTS Resistivity data were measured in a physical property measurement

system (PPMS, Quantum Design, Inc.) utilizing the standard four-probe method. The residual resistivity ratio (RRR) of our sample is around 3.7, which confirms the high quality of our

samples. ARPES MEASUREMENTS ARPES measurements were performed at Peking University using a DA30L analyzer and a helium discharging lamp. The photon energy of a helium lamp is 21.2 eV. The

overall energy resolution was ~12 meV, and the angular resolution was ~0.3°. The crystals were cleaved in-situ and measured in a vacuum with a base pressure better than 6 × 10−11 mbar. The

_E_F for the samples was referenced to that of a gold crystal attached to the sample holder by Ag epoxy. ALKALI-METAL DEPOSITION The alkali-metal deposition was performed in situ using a

SAES rubidium dispenser. The working current was set to be 5.6 A. For each deposition step, we only kept the rubidium evaporator at the working current for a few seconds to achieve a fine

doping step and then took ARPES spectra. The depositing time is defined as the total time of the rubidium deposition. DATA AVAILABILITY The authors declare that all data needed to evaluate

the conclusions of this study are available within the article and its Supplementary Information files. All raw data are available from the corresponding author upon request. REFERENCES *

Blundell, S. J. _Superconductivity: A Very Short Introduction_ (Oxford University Press, 2009). * Kohn, W. Excitonic phases. _Phys. Rev. Lett._ 19, 439–442 (1967). Article  ADS  CAS  Google

Scholar  * Halperin, B. I. & Rice, T. M. Possible anomalies at a semimetal–semiconductor transition. _Rev. Mod. Phys._ 40, 755–766 (1968). Article  ADS  CAS  Google Scholar  * Jérome,

D., Rice, T. M. & Kohn, W. Excitonic insulator. _Phys. Rev._ 158, 462–475 (1967). Article  ADS  Google Scholar  * Bronold, F. X. & Fehske, H. Possibility of an excitonic insulator at

the semiconductor-semimetal transition. _Phys. Rev. B_ 74, 165107 (2006). Article  ADS  Google Scholar  * Wilson, J. A. & Yoffe, A. D. The transition metal dichalcogenides discussion

and interpretation of the observed optical, electrical and structural properties. _Adv. Phys._ 18, 193–335 (1969). Article  ADS  CAS  Google Scholar  * Morosan, E. et al. Superconductivity

in Cu_x_TiSe2. _Nat. Phys._ 2, 544–550 (2006). Article  CAS  Google Scholar  * Fang, C. M., Groot, D. R. A. & Haas, C. Bulk and surface electronic structure of 1_T_-TiS₂ and 1_T_-TiSe₂.

_Phys. Rev. B_ 56, 4455 (1997). Article  ADS  CAS  Google Scholar  * Zhao, J. F. et al. Evolution of the electronic structure of 1_T_-Cu_x_TiSe2. _Phys. Rev. Lett._ 99, 146401 (2007).

Article  ADS  CAS  PubMed  Google Scholar  * Watson, M. D. et al. Orbital- and _k_z-selective hybridization of Se 4_p_ and Ti 3_d_ States in the charge density wave phase of TiSe₂. _Phys.

Rev. Lett._ 122, 076404 (2019). Article  ADS  CAS  PubMed  Google Scholar  * Di Salvo, F. J., Moncton, D. E. & Waszczak, J. V. Electronic properties and superlattice formation in the

semimetal TiSe₂. _Phys. Rev. B_ 14, 4321–4328 (1976). Article  ADS  Google Scholar  * Pillo, T. et al. Photoemission of bands above the Fermi level: the excitonic insulator phase transition

in 1T-TiSe₂. _Phys. Rev. B_ 61, 16213–16222 (2000). Article  ADS  CAS  Google Scholar  * Cercellier, H. et al. Evidence for an excitonic insulator phase in 1T-TiSe₂. _Phys. Rev. Lett._ 99,

146403 (2007). Article  ADS  CAS  PubMed  Google Scholar  * Monney, C. et al. Spontaneous exciton condensation in 1_T_-TiSe₂: BCS-like approach. _Phys. Rev. B_ 79, 045116 (2009). Article

ADS  Google Scholar  * Whangbo, M. H. & Canadell, E. Analogies between the concepts of molecular chemistry and solid-state physics concerning structural instabilities. Electronic origin

of the structural modulations in layered transition metal dichalcogenides. _J. Am. Chem. Soc._ 114, 9587–9600 (1992). Article  CAS  Google Scholar  * Kidd, T. E., Miller, T., Chou, M. Y.

& Chiang, T.-C. Electron–hole coupling and the charge density wave transition in TiSe₂. _Phys. Rev. Lett._ 88, 226402 (2002). Article  ADS  CAS  PubMed  Google Scholar  * Rossnagel, K.,

Kipp, L. & Skibowski, M. Charge-density-wave phase transition in 1_T_-TiSe₂: excitonic insulator versus band-type Jahn–Teller mechanism. _Phys. Rev. B_ 65, 235101 (2002). Article  ADS

Google Scholar  * Wegner, A. et al. Evidence for pseudo-Jahn–Teller distortions in the charge density wave phase of 1_T_ -TiSe₂. _Phys. Rev. B_ 101, 195145 (2020). Article  ADS  CAS  Google

Scholar  * Weber, F. et al. Electron–phonon coupling and the soft phonon mode in TiSe₂. _Phys. Rev. Lett._ 107, 266401 (2011). Article  ADS  CAS  PubMed  Google Scholar  * Monney, C. et al.

Revealing the role of electrons and phonons in the ultrafast recovery of charge density wave correlations in 1_T_-TiSe2. _Phys. Rev. B_ 94, 165165 (2016). Article  ADS  Google Scholar  *

Hellgren, M. et al. Critical role of the exchange interaction for the electronic structure and charge-density-wave formation in TiSe₂. _Phys. Rev. Lett._ 119, 176401 (2017). Article  ADS

PubMed  Google Scholar  * Hedayat, H. et al. Excitonic and lattice contributions to the charge density wave in 1_T_-TiSe₂ revealed by a phonon bottleneck. _Phys. Rev. Res._ 1, 023029 (2019).

Article  CAS  Google Scholar  * Lian, C., Zhang, S.-J., Hu, S.-Q., Guan, M.-X. & Meng, S. Ultrafast charge ordering by self-amplified exciton–phonon dynamics in TiSe2. _Nat. Commun._

11, 43 (2020). Article  ADS  CAS  PubMed  PubMed Central  Google Scholar  * Knowles, P. et al. Fermi surface reconstruction and electron dynamics at the charge-density-wave transition in

TiSe₂. _Phys. Rev. Lett._ 124, 167602 (2020). Article  ADS  CAS  PubMed  Google Scholar  * Watson, M. D., Beales, A. M. & King, P. D. C. On the origin of the anomalous peak in the

resistivity of TiSe₂. _Phys. Rev. B_ 99, 195142 (2019). Article  ADS  CAS  Google Scholar  * Monney, C. et al. Dramatic effective mass reduction driven by a strong potential of competing

periodicity. _EPL_ 92, 47003 (2010). Article  ADS  Google Scholar  * Monney, C. et al. Probing the exciton condensate phase in 1_T_-TiSe2 with photoemission. _N. J. Phys._ 12, 125019 (2010).

Article  CAS  Google Scholar  * Kim, J. et al. Observation of tunable band gap and anisotropic Dirac semimetal state in black phosphorus. _Science_ 349, 723 (2015). Article  CAS  PubMed

Google Scholar  * Seo, J. J. et al. Superconductivity below 20 K in heavily electron-doped surface layer of FeSe bulk crystal. _Nat. Commun._ 7, 11116 (2016). Article  ADS  CAS  PubMed

PubMed Central  Google Scholar  * King, P. D. C. et al. Large tunable Rashba spin splitting of a two-dimensional electron gas in Bi2Se3. _Phys. Rev. Lett._ 107, 096802 (2011). Article  ADS

CAS  PubMed  Google Scholar  * Jaouen, T. et al. Carrier-density control of the quantum-confined 1_T_-TiSe₂ charge density wave. _Phys. Rev. Lett._ 130, 226401 (2023). Article  ADS  CAS

PubMed  Google Scholar  * Monney, C. et al. Temperature-dependent photoemission on 1_T_-TiSe₂: interpretation within the exciton condensate phase model. _Phys. Rev. B_ 81, 155104 (2010).

Article  ADS  Google Scholar  * Chen, P. et al. Hidden order and dimensional crossover of the charge density waves in TiSe2. _Sci. Rep._ 6, 37910 (2016). Article  ADS  CAS  PubMed  PubMed

Central  Google Scholar  * Li, G. et al. Semimetal-to-semimetal charge density wave transition in 1_T_-TiSe₂. _Phys. Rev. Lett._ 99, 027404 (2007). Article  ADS  CAS  PubMed  Google Scholar

  * Porer, M. et al. Non-thermal separation of electronic and structural orders in a persisting charge density wave. _Nat. Mater._ 13, 857–861 (2014). Article  ADS  CAS  PubMed  Google

Scholar  * Kogar, A. et al. Signatures of exciton condensation in a transition metal dichalcogenide. _Science_ 358, 1314–1317 (2017). Article  ADS  CAS  PubMed  Google Scholar  * Yue, L. et

al. Distinction between pristine and disorder-perturbed charge density waves in ZrTe3. _Nat. Commun._ 11, 98 (2020). Article  ADS  PubMed  PubMed Central  Google Scholar  * Holt, M.,

Zschack, P., Hong, H., Chou, M. Y. & Chiang, T.-C. X-ray studies of phonon softening in TiSe₂. _Phys. Rev. Lett._ 86, 3799–3802 (2001). Article  ADS  CAS  PubMed  Google Scholar  * Ueda,

H. et al. Correlation between electronic and structural orders in 1_T_-TiSe₂. _Phys. Rev. Res._ 3, L022003 (2021). Article  CAS  Google Scholar  Download references ACKNOWLEDGEMENTS This

work is supported by the National Key Research and Development Program of China under Grant Nos. 2022YFA1403502 and 2018YFA0305602 (Y.Z.) and the National Natural Science Foundation of China

under Grant No. 11888101 (Y.Z.). AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * International Center for Quantum Materials, School of Physics, Peking University, 100871, Beijing, China Yi

Ou, Lei Chen, Ziming Xin, Yujing Ren, Penghao Yuan, Zhengguo Wang, Yu Zhu, Jingzhi Chen & Yan Zhang * Collaborative Innovation Center of Quantum Matter, 100871, Beijing, China Yan Zhang

Authors * Yi Ou View author publications You can also search for this author inPubMed Google Scholar * Lei Chen View author publications You can also search for this author inPubMed Google

Scholar * Ziming Xin View author publications You can also search for this author inPubMed Google Scholar * Yujing Ren View author publications You can also search for this author inPubMed

Google Scholar * Penghao Yuan View author publications You can also search for this author inPubMed Google Scholar * Zhengguo Wang View author publications You can also search for this

author inPubMed Google Scholar * Yu Zhu View author publications You can also search for this author inPubMed Google Scholar * Jingzhi Chen View author publications You can also search for

this author inPubMed Google Scholar * Yan Zhang View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS Y.Z. conceived and instructed the project.

Y.O. and Z.M.X. synthesized the single crystals. Y.O. and L.C. took the ARPES measurements with the contribution of Y.J.R., P.H.Y., Z.G.W., Y.Z., and J.Z.C. Y.O. and Y.Z. analyzed the data

and wrote the paper with input from all authors. CORRESPONDING AUTHOR Correspondence to Yan Zhang. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. PEER

REVIEW PEER REVIEW INFORMATION _Nature Communications_ thanks the anonymous, reviewer(s) for their contribution to the peer review of this work. A peer review file is available. ADDITIONAL

INFORMATION PUBLISHER’S NOTE Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations. SUPPLEMENTARY INFORMATION SUPPLEMENTARY

INFORMATION PEER REVIEW FILE RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License, which

permits any non-commercial use, sharing, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a

link to the Creative Commons licence, and indicate if you modified the licensed material. You do not have permission under this licence to share adapted material derived from this article or

parts of it. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If

material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain

permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by-nc-nd/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS

ARTICLE Ou, Y., Chen, L., Xin, Z. _et al._ Incoherence-to-coherence crossover observed in charge-density-wave material 1_T_-TiSe2. _Nat Commun_ 15, 9202 (2024).

https://doi.org/10.1038/s41467-024-53647-x Download citation * Received: 13 November 2023 * Accepted: 16 October 2024 * Published: 24 October 2024 * DOI:

https://doi.org/10.1038/s41467-024-53647-x SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
