ABSTRACT The relationships between materials processing and structure can vary between terrestrial and reduced gravity environments. As one case study, we compare the nonequilibrium melt

processing of a rare-earth titanate, nominally 83TiO2-17Nd2O3, and the structure of its glassy and crystalline products. Density and thermal expansion for the liquid, supercooled liquid, and

glass are measured over 300–1850 °C using the Electrostatic Levitation Furnace (ELF) in microgravity, and two replicate density measurements were reproducible to within 0.4%. Cooling rates

in ELF are 40–110 °C s−1 lower than those in a terrestrial aerodynamic levitator due to the absence of forced convection. X-ray/neutron total scattering and Raman spectroscopy indicate that

glasses processed on Earth and in microgravity exhibit similar atomic structures, with only subtle differences that are consistent with compositional variations of ~2 mol. % Nd2O3. The glass

atomic network contains a mixture of corner- and edge-sharing Ti-O polyhedra, and the fraction of edge-sharing arrangements decreases with increasing Nd2O3 content. X-ray tomography and

electron microscopy of crystalline products reveal substantial differences in microstructure, grain size, and crystalline phases, which arise from differences in the melt processes. SIMILAR

CONTENT BEING VIEWED BY OTHERS MICROGRAVITY STUDIES OF SOLIDIFICATION PATTERNS IN MODEL TRANSPARENT ALLOYS ONBOARD THE INTERNATIONAL SPACE STATION Article Open access 18 October 2023

STRUCTURAL EVOLUTION OF LIQUID SILICATES UNDER CONDITIONS IN SUPER-EARTH INTERIORS Article Open access 03 October 2024 IMPLICATIONS OF THE IRON OXIDE PHASE TRANSITION ON THE INTERIORS OF

ROCKY EXOPLANETS Article 11 February 2021 INTRODUCTION Manufacturing processes suitable to reduced gravity and microgravity environments must be developed to advance the low Earth orbit

(LEO) economy, utilize resources from locations beyond Earth, and actualize self-sustainable extraterrestrial habitats with closed-loop materials recycling1. Melt processing is one common

manufacturing step with particularly challenging differences between terrestrial and microgravity conditions. For microgravity, Earth-based melt processes must be adapted to the lack of

buoyancy-driven convection, density-induced sedimentation, and gravitational forces to direct fluid flow. Additive manufacturing techniques like selective laser melting are some examples of

melt processing that may be suitable for reduced gravity environments1,2,3,4. In such processing techniques, the product’s shape, chemical phase, and material microstructure are all

influenced by the interplay of energy deposition and the melt’s thermophysical properties, such as viscosity and surface tension5,6,7. These processing-structure-property relationships

illustrate that accurate measurements of liquid thermophysical properties are crucial to enabling space-based manufacturing. Additionally, melt processing often concludes with solidification

from nonequilibrium states, such as supercooled liquids. Because fluid flow and heat transfer differ between Earth and microgravity environments, different states of nonequilibrium will

likely be encountered that provide new challenges and new opportunities for materials discovery and manufacturing technology. Such opportunities may manifest through leveraging of curated

large datasets for low-level machine learning and algorithm development, also known as Digital Twin interests. This would drive performance and design improvements that would have both

terrestrial and space-based benefits in the form of newer materials, processes, and efficiencies. Historically, microgravity research on melt processing and liquid thermophysical properties

has focused on metallic materials, which have been studied in the TEMPUS8,9 campaign and the Electromagnetic Levitator Facility10 onboard the International Space Station (ISS). Until

recently, less attention has been given to ceramic and glass materials. One notable exception is ZBLAN glass (ZrF4-BaF2-LaF3-AlF3-NaF). ZBLAN is a candidate material for improved, low-loss

optical fiber communications because it has a theoretical optical attenuation one to two orders of magnitude lower than that of silica11. However, ZBLAN is difficult to process due to its

sensitivity to water and small working temperature range, i.e. the range between its glass transition and crystallization point. Early microgravity experiments on ZBLAN suggested that

crystallization may be suppressed in reduced gravity12, thereby widening the working temperature range and hypothetically making it possible to manufacture higher-quality ZBLAN fiber. The

increase in crystallization temperature was speculated to arise from a lack of buoyancy-driven convection13, though a full mechanistic explanation remains lacking. Nonetheless, multiple

commercial efforts are currently pursuing space-based processing of ZBLAN fibers14,15. Microgravity research on oxide ceramics, glasses, and their manufacturing remains in its infancy. In

2016, the Japanese Aerospace Exploration Agency commissioned the Electrostatic Levitation Furnace (ELF)16 onboard the International Space Station, which is well suited for high-temperature

melt processing of oxides. The ELF uses three orthogonal pairs of electrostatic transducers to position and levitate spheroidal samples ~2 mm in diameter. During levitation, samples can be

heated with four 980 nm lasers, achieving melts up to ~3070 °C17. Silhouette imaging and optical pyrometry enable volume measurements of molten samples as a function of temperature, from

which the sample density and thermal expansion coefficient can be calculated based on its preflight and/or postflight mass18. Liquid viscosity and surface tension can also be measured using

a droplet oscillation technique19. By applying a sinusoidal variation to the transducers’ voltages along one axis, oscillations in the liquid can be induced. If the excitation frequency

matches the natural resonance of the droplet, analytical expressions can relate the resonance frequency and characteristic time for oscillation damping (upon stopping the excitation) to the

liquid’s surface tension and viscosity, respectively20. These relationships depend on assumptions of fluid quiescence, which is why microgravity provides a unique advantage for measuring

these thermophysical properties at high temperatures. The ELF can operate at up to 2 bar of gas pressure and can utilize oxygen-containing gases, which are desirable for oxide studies. Using

the ELF, we are reporting a comprehensive comparison of melt processing on Earth versus in microgravity for one particular oxide, a neodymium titanate (NT) with nominal composition

83TiO2–17Nd2O3. The NT composition is of interest technologically as an optical material: its glass has a high refractive index (_n_ > 2.1)21,22 and a wide transmission window spanning

the visible and infrared range out to ~5 μm21,23. NT is also of fundamental scientific interest as a fragile liquid24 and poor glass-former25, with an atomic network of octahedrally

coordinated Ti-O polyhedra26 atypical of oxide glasses. Here, we compare the cooling rates, glass formation, and recalescence of molten and supercooled NT processed in the ELF and in a

terrestrial aerodynamic levitator. Density is reported as a function of temperature for the equilibrium liquid (ca. 1470–1850 °C), supercooled liquid (ca. 780–1470 °C), and glass (300–780 

°C). The glass atomic structure is assessed with X-ray and neutron total scattering and Raman spectroscopy. Microstructures in both glassy and crystalline samples are probed with X-ray

microtomography, X-ray small-angle scattering, and electron microscopy. This suite of characterizations aims to benchmark the microgravity melt processing technique against established

terrestrial methods, while identifying the differences and advantages offered by space-based melt processing. RESULTS MELT PROCESSING AND GLASS FORMATION Samples of 83TiO2–17Nd2O3 nominal

composition (83 mol. % TiO2; 17 mol. % Nd2O3) were prepared as spheroids ~2 mm in diameter (20–23 mg), and these samples were heated, melted, and quenched using two different containerless

processing techniques. In microgravity, samples were levitated in the ELF16 using electrostatic forces and heated with four 980 nm lasers positioned around the sample like corners of a

tetrahedron, with the sample in the center. On Earth, samples were processed in an aerodynamic levitator using a gas stream passing through a converging-diverging nozzle, and the top of the

sample was heated with a 10.6 μm CO2 laser27. In both techniques, the samples were held isothermally near 1850 °C, fully molten (_T_m = 1467 °C28), for at least 30 s before turning off the

heating lasers. The samples then cooled freely and, depending on the cooling rate, either vitrified into glass or crystallized from a supercooled state. The containerless processing

techniques provide two major benefits for melt processing research: (i) avoiding chemical contamination from sample-crucible reactions at high temperatures, and (ii) removing any source of

heterogeneous nucleation, so that supercooling and vitrification are easier at modest cooling rates (i.e., <103 °C s−1) than in the presence of a container. Electrostatic levitation has

been applied to liquids with a wide range of surface tensions, from propylene carbonate29 (43 mN m−1) to tungsten30 (~2500 mN m−1). Exemplary cooling curves for samples in microgravity

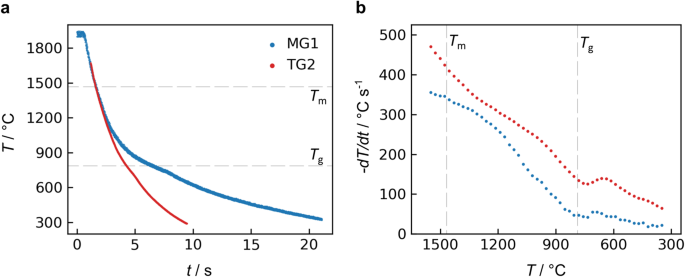

(“MG1”) and on Earth (“TG2”) are compared in Fig. 1a. Both measurements used optical pyrometers with λ ~ 1.5 μm, but the range of the terrestrial pyrometer was limited to a maximum of 1650 

°C. (Terrestrial sample temperature above 1650 °C was monitored with a pyrometer of different wavelength). Temperature measurement uncertainty is ca. ±30 °C for ELF and ±27 °C in the

aerodynamic levitator (see Supplementary Discussion). The terrestrial and microgravity samples cooled from ~1850 to 300 °C in ~8.9 and 20.6 seconds, respectively. Figure 1b shows the

corresponding cooling rates as a function of temperature. Comparing the two processing environments provides insight into the relative contributions of different heat transfer modes. At high

temperatures, radiative heat transfer (~_T_4) is dominant, while at the lowest temperatures, the samples cool due to convection and/or conduction. In microgravity, buoyancy-driven

convection is minimal, so the cooling rate of 20–60 °C s−1 observed below 800 °C is likely due to heat conduction through the gas surrounding the sample. For any given temperature, the

terrestrial cooling rate is 40–110 °C s−1 larger than in microgravity. This difference in cooling rate represents the contribution from forced convective cooling by the levitation gas around

the sample. Both the terrestrial and microgravity cooling rates in Fig. 1b exhibit slope fluctuations at several temperatures. The most reproducible fluctuation is a transient increase in

cooling rate ca. 570–740 °C, which was always observed in repeated terrestrial measurements and occurs just below the glass transition at _T_g = 786 °C21. This fluctuation is most likely an

artifact caused by a combination of the pyrometer measurement and NT optical properties. NT glasses exhibit several absorption bands in the visible and near-infrared range due to Nd3+

optical activity21; the sample transparency and fluorescence near the pyrometer wavelength may change with temperature. Two auxiliary tests in the aerodynamic levitator were conducted to

test this hypothesis. First, NT cooling rates were measured with three different pyrometer wavelengths—λ = 0.9, 1.5, and 5.0 μm (Supplementary Fig. 1a, b)—and the magnitude of the cooling

rate fluctuation varied significantly, appearing most strongly for λ = 0.9. Second, cooling curves for an optically inactive lanthanum titanate sample (83TiO2-17La2O3) did not exhibit this

cooling rate fluctuation (Supplementary Fig. 1c, d). These observations support the explanation that NT’s apparent fluctuation ca. 570–740 °C is a measurement artifact. In Fig. 1b, the

cooling rate also exhibits more subtle slope fluctuations at other temperatures, and these may be due to slow sample rotation observed in both levitation techniques. The sample surface is

known to have spatial temperature variations (e.g., ~30 °C for liquids at 1500 °C in the aerodynamic levitator31), so sample rotation could result in apparent temperature fluctuations where

the pyrometer is focused. In addition to the glass samples obtained by the cooling trajectories in Fig. 1, crystalline samples were also produced by melt quenching. Crystallization typically

occurred from the supercooled liquid at temperatures of 900–1150 °C, evidenced by a visual recalescence and a momentary increase in the sample temperature of tens to hundreds of °C. One

sample processed in microgravity was later found to contain trace amounts of crystals throughout the material (i.e., a glass-ceramic), despite its cooling curve not exhibiting recalescence.

DENSITY The densities of two NT samples melt quenched and vitrified in microgravity are shown in Fig. 2. These density values were calculated using the sample mass after melt processing

(i.e., after the sample return to Earth) and the volume deduced from silhouette backlight imaging of the levitated samples during cooling18. Samples’ post-processing masses were 0.3–1.0%

lower than their initial masses, likely due to volatilization. X-ray tomography of the recovered samples revealed internal porosity of up to 0.25%, so the sample volumes were corrected for

this porosity before calculating the density shown in Fig. 2. This correction is based on porosity observed in the glassy samples, so it is possible that the internal pore sizes were

different in the molten state when volume measurements were collected. The density vs. temperature curves in Fig. 2 agree within 0.4% for the replicate samples MG1 and MG2. Liquid density

increases from 4.54 to 4.92 g cm−3 during cooling from 1860 to 1030 °C, and the trend with temperature is described well by a linear fit: $$\rho

\left(T\right)=5.37\left(1\right)-4.40(5)\times {10}^{-4}\times T{\rm{;MG}}1,1030\, < \,T\, < \,1860$$ (1) $$\rho \left(T\right)=5.38\left(1\right)-4.43(6)\times {10}^{-4}\times

T{\rm{;MG}}2,1030\, < \,T\, < \,1740$$ (2) In these equations, _ρ_ is in units of g cm−3, _T_ is in units of °C, and the values in parentheses indicate a 95% confidence interval. The

mean values of the linear equations for MG1 and MG2 are shown in Fig. 2 with a black dashed line. The slope value of −_dρ_⁄_dT_ ~ 4.4 × 10−4 g cm−3 °C−1 for the melt is in reasonable

agreement with previously reported values for other titanate melts32,33: BaTiO3 with 3.4 × 10−4, and BaTi2O5 with 4 × 10−4. For the glass, density increases from 5.15 to 5.22 during cooling

from 670 to 300 °C, with a trend well described by a linear fit. However, this result should be accepted with some caution, since glass transparency at the pyrometer wavelength introduces

temperature uncertainties that are difficult to quantify. $$\rho \left(T\right)=5.27\left(1\right)-1.86\left(5\right)\times {10}^{-4}\times T{\rm{;MG}}1,300\, < \,T\, < \,670$$ (3)

$$\rho \left(T\right)=5.28\left(1\right)-1.76(4)\times {10}^{-4}\times T{\rm{;MG}}2,300 \,<\, T\, <\, 670$$ (4) It is emphasized that the melt and supercooled liquid measurements are

the most valuable result that the ELF instrument enables; glass density and its temperature dependence can be more easily and accurately measured by other ground-based techniques.

Extrapolation of the glass density to room temperature yields a value of 5.28 g cm−3, which is larger than expected from prior measurements22 (5.13 g cm−3, see Supplementary Discussion) and

the compositionally similar crystalline phase (5.18 g cm−3 for Nd4Ti9O2434). However, this discrepancy of 2.9% is close to the relative uncertainty of 2.5% previously reported for ELF19.

More puzzling is the observation ca. 720–930 °C of a region with larger thermal expansion than the glass or the liquid. The steeper slope in Fig. 2 for this region generally would suggest

some heat release by the sample, possibly by crystallization, but synchrotron X-ray scattering showed no sign of crystallinity. The process of melt quenching and vitrification is expected to

show a density-temperature plot with two linear regions, one each for glass and liquid, so this third anomalous region encompassing _T_g represents either a measurement artifact or a new,

unexpected behavior. Several hypotheses for measurement artifacts were explored (see Supplementary Discussion). One explanation involves the sample becoming partially transparent at the

pyrometer wavelength during cooling. If the transition to partial transparency began near 930 °C, then the pyrometer would start seeing some of the radiation emitted by the sample’s hotter

interior. This would result in a higher reading than the surface temperature, until the sample interior had also cooled enough to become partially transparent. This could explain the steeper

slope in Fig. 2 between 720 and 930 °C, yet it is not a fully convincing argument. If instead the data are accurate and this anomalous region is not due to a measurement artifact, the

unexpected density-temperature relationship could be caused by some kind of liquid-liquid phase transition or other thermodynamic anomaly in this fragile liquid approaching _T_g35. Density

measurements are challenging for fragile liquids and their glasses because melt processing typically requires containerless conditions with small sample volumes. Glass density is typically

measured using pycnometry of samples 2–3 mm in diameter, as was done by Arai et al.22 on lanthanum titanate glasses, though this technique can have significant measurement uncertainty for

small sample sizes26. Melt densities have been measured using backlight imaging techniques in aerodynamic levitation, but partial occlusion of the sample and asphericity introduce an

uncertainty of ~5%33. Improved precision with backlight imaging is possible using combined aerodynamic and acoustic levitation techniques36, which provide optical access to the entire

sample. Given this context, electrostatic levitation and microgravity processing are useful tools for improving the precision of density measurements on fragile liquids. GLASS ATOMIC

STRUCTURE The atomic structures in terrestrial and microgravity glass samples were probed using high-energy X-ray diffraction, neutron diffraction, and Raman spectroscopy. Although gravity

is not expected to directly influence atomic arrangements, these characterizations remain important to benchmark the similarities and differences between terrestrial and microgravity

processing. We recently reported a thorough structural analysis of terrestrial NT glasses26, based on X-ray/neutron diffraction and structural modeling, so only brief comments are provided

here on the interpretation of the scattering data, focusing specifically on differences between microgravity and terrestrial samples. The glass atomic network has been shown to comprise TiO5

and TiO6 polyhedra connected primarily via corner-sharing arrangements, with ~23% edge-sharing, while the Nd3+ ions act similarly to network modifiers26. X-ray total structure factors,

_S_(_Q_), and differential pair distribution functions (PDFs), _D_(_r_), are shown in Fig. 3a, b for two glasses processed in microgravity (MG1 and MG2) and two glasses processed on Earth

(TG1 and TG2). In the structure factors, the principal peak near _Q_ = 2.13 Å−1 represents the packing of Ti-O polyhedra in the glass network. In the PDFs, the low-_r_ region matches the

anticipated slope of −4πρ, where _ρ_ = 0.08163 atoms Å−3 is the atomic number density (equivalent to 5.10 g cm−3 for NT with 18.2 mol. % Nd2O3). The first PDF peak corresponds to the Ti-O

pair correlation, with a mean bond distance of _r__TiO_ = 1.92 Å and mean coordination number of _n__TiO_ = 5.2 based on peak fitting. The second PDF peak is the Nd-O correlation, with

_r__NdO_ = 2.45 Å and _n__NdO_ = 8.4. These values are somewhat different than those from the published structural model26: _r__TiO_ = 1.984(11) Å and _n__TiO_ = 5.72(6); _r__NdO_ = 

2.598(22) Å and _n__NdO_ = 7.70(26). These discrepancies are larger than the typical uncertainty from peak fitting, e.g. ±0.5 for coordination numbers, and likely arise from slight

compositional differences as discussed below. Also, peak fitting here is based on a single diffraction measurement, compared to the published structural model that was refined based on six

independent diffraction measurements, which resolves many of the issues related to overlapping features of the different atomic partial pair correlations. All glasses exhibit nearly

identical structures. From the peak fitting, all terrestrial and microgravity glasses in Fig. 3b have Ti-O and Nd-O mean bond distances within 0.01 Å and coordination numbers within 0.1 of

one another. (These variations are smaller than the typical uncertainties for peak fitting.) There are only subtle differences between samples, most easily discerned in the third peak of the

PDFs. This third peak corresponds to the cation-cation pair correlations, with overlapping contributions for Ti-Ti, Ti-Nd, and Nd-Nd. In Fig. 3b, PDFs are shown for terrestrial glasses TG1

and TG2, containing 20.5(2) or 17.1(2) mol. % Nd2O3, respectively. TG1 has greater asymmetry in the 3rd PDF peak, as compared to the nearly nominal composition in TG2, with stronger

intensity on the higher-_r_ shoulder where the Nd-Nd correlation is anticipated. This difference in the PDFs is expected, since compositional changes alter the weighting factors that

determine how much each atomic partial pair contributes to the overall PDF37. Compositional enrichment by Nd would increase the weighting factor for Nd-containing atomic partial pair

correlations. For the microgravity glasses MG1 and MG2, their 3rd PDF peaks are more similar to TG1 than TG2. For this reason, we hypothesize that the microgravity glasses are near ~19 mol.

% Nd2O3. This discrepancy vs. the nominal composition (17 mol. % Nd2O3) can be explained by (i) the typical compositional variation of ~1 mol. % Nd2O3 observed between replicate beads, and

(ii) the ~1% mass loss of samples processed in microgravity. (Compositional measurements were not performed on the microgravity glasses due to concerns about the required surface grinding

and polishing for EDS.) X-ray measurements were collected at 20 locations across each glass sample, and the structure factors were found to be consistent, indicating homogeneity throughout

each sample. Neutron diffraction is a technique for assessing atomic structure that is complementary to X-ray diffraction. Because X-rays scatter more strongly from heavier elements, the

X-ray structure factor for NT is predominantly weighted by the atomic pair correlations that contain Nd or Ti. Neutron scattering is much more sensitive to O than X-rays are, so the neutron

structure factor contains more information on the O local environments26. For this reason, neutron diffraction was also conducted as a probe for structural differences between the glasses

processed in microgravity vs. terrestrially. Neutron diffraction measurements are shown in Fig. 4 for glasses melt processed in either microgravity (MG1 and MG2) or on Earth (TG3 and TG4).

The scattering intensities, _I_(_Q_), are similar in Fig. 4a for all samples. To discern subtle differences, the scattering intensities in Fig. 4a were each divided by _I_(_Q_) for one of

the terrestrial glasses (TG3), yielding the _I_(_Q_) ratios in Fig. 4b. The most notable differences between samples are their slopes in Fig. 4b, which are likely due to slight variations in

samples’ positions relative to the neutron beam. Another possible explanation is differences in inelastic scattering, perhaps arising from hydrogen content in the samples. Optical

measurements of rare-earth titanate glass have shown that they generally have low hydroxide impurity38, so it is likely that any hydrogen differences in neutron scattering arise from water.

Otherwise, the _I_(_Q_) ratios are nearly featureless aside from some faint fluctuations near _Q_ = 4 Å−1. The reduced and normalized Raman spectra for microgravity and terrestrial glasses

are shown in Fig. 5a. Each Raman spectrum displays expected features of highly coordinated titanate polyhedra, as discussed by Su et al.39, and bears a strong resemblance to a spectrum

recently reported for 83TiO2-17La2O338. These features include a highly polarized envelope spanning roughly 550–900 cm−1, belonging to stretching modes of titanate polyhedra with

coordination numbers larger than 4, and a depolarized envelope between 300–550 cm−1 containing bending modes. For the two terrestrial glasses (TG1 and TG2 with 20.5(2) and 17.1(2) mol. %

Nd2O3, respectively), the spectra were adequately reproduced using six peaks. The peak fitting results are plotted in Supplementary Fig. 2, and the band assignments are summarized in

Supplementary Table 1 and described as follows. First, there is a weak and relatively broad band at 245 cm−1, which overlaps with the edge of the instrument range and, as such should not be

over interpreted. Vibrational activity in this region is often characteristic of network deformation modes. Rare-earth cations can also display RE-O stretching activity in the region between

200–350 cm−1, which could contribute to the 245 cm−1 component. This RE-O activity likely contributes strongly to a band at 337 cm−1, which increases in intensity with increasing Nd2O3

content. For comparison, far infrared analysis of lithium rare-earth orthoborate glasses containing 20 mol. % RE2O3 displayed peak vibrational activity between 320–380 cm−1, depending on the

RE3+ field strength40. Raman measurements on the same glasses40 as well as binary rare-earth borates displayed similar features41. Considering that the 337 cm−1 band displays a ~23%

intensity increase as the Nd2O3 content increases just a few percent, it is likely that bending modes of some titanate arrangements are also contributing here. The band at 436 cm−1 is solely

due to bending of Ti-O-Ti linkages, based on its depolarized nature (Supplementary Fig. 3) and higher frequency than is expected from RE-related activity. The high-frequency envelope is

best described by three component bands. The prominent 738 cm−1 is consistent with the stretching activity of corner-sharing TiO6 moieties39. The broadest peak, centered at 596 cm−1, is most

likely due to edge-sharing TiO6 units and is just slightly below the 600–650 cm−1 range where the corresponding feature is found in anatase and rutile39,42. Finally, the peak at ~828 cm−1

is most likely due to TiO5 polyhedra. Activity in the 830–930 cm−1 range is generally unclear in TiO2-bearing glasses43,44,45: it has often been attributed to TiO5 species, as in fresnoite,

but recently Santos et al. argued the assignment of an 825 cm−1 band as belonging to TiO4 species with nonbridging oxygen43, which are known to be at higher frequencies when all

bridging42,46,47. Since these NT glasses are expected to have ~26% of Ti in TiO5 and only a small population of TiO4 (~1%)26, the band at ~828 cm−1 here is assigned to TiO5. During the

fitting procedure, a band was positioned between 950–1050 cm−1 to simulate the symmetric stretch of possible TiO4, but the fitting optimization returned zero intensity for this component,

consistent with the previously published structural model26. The compositional variation between terrestrial glasses TG1 and TG2 is subtle but discernible. Mainly, as the Nd2O3 content

increases (TG2 < TG1), the intensities of the 337 cm−1 and 738 cm−1 bands increase, and the intensity of the 596 cm−1 band decreases. A comparison of these fitted component bands for

corner- and edge-sharing Ti-O polyhedra is shown in Fig. 5b. These differences may be due to an increase in corner-sharing TiO6 as the added Nd3+ cations depolymerize the Ti-O network and

destroy edge-sharing arrangements. Since the corner-sharing motifs are already the majority species, such a scenario would lead to a less diverse structural landscape, and this may be the

mechanism behind the decreased FWHM values fitted for the high-frequency stretching bands (Supplementary Table 1). Raman spectra for the two glasses processed in microgravity (MG1 and MG2)

are similar to each other, and their spectra are more similar to TG1 with 20.5(2) mol. % Nd2O3 than to TG2 with 17.1(2) mol. % Nd2O3. This observation is consistent with the compositional

variation suggested by the X-ray diffraction data. The microgravity glasses and TG1 show some differences in the low-frequency range (i.e., 337 and 436 cm−1 bands). MICROSTRUCTURE OF GLASSES

AND CRYSTALS Glass samples prepared in microgravity and terrestrially all appeared homogeneous in optical microscopy, X-ray tomography, and scanning electron microscopy (SEM). The

three-dimensional reconstructions from tomography exhibited no density contrast, except for a few small internal voids. Figure 6 provides exemplary cross-sections from tomography, and video

animations showing the three-dimensional reconstructions are in Supplementary Movies 1–5. The two microgravity glasses (Fig. 6a) each contained 2–3 pores ca. 0.24 mm in diameter or smaller,

yielding total porosities of 0.10–0.25%. These pores were spherical, suggestive of gas bubbles present in the melt. The terrestrial glasses (Fig. 6d) similarly exhibited a few, small

internal pores. SEM imaging of terrestrial glass cross-sections revealed no features except for surface scratches from polishing (Fig. 7a). Crystalline samples from melt quenching exhibited

much more microstructural diversity between microgravity and terrestrial conditions. Crystalline terrestrial samples appeared homogeneous in X-ray tomography (Fig. 6e), except for small

pores and cracks. The lack of density contrast suggests that the sample is single-phase or, if multi-phase, that its crystalline domains are smaller than ~8 μm (i.e., ~6 voxels wide, given

the voxel size of (1.37 μm)3). The crystalline microgravity sample exhibited clear density contrast in tomography (Fig. 6b), with lamellar crystalline grains 4–10 μm thick and as wide as

~800 μm. Voids are present in the sample both in spherical form and as small gaps or cracks between crystalline domains. SEM (Fig. 7b) and energy dispersive spectroscopy (EDS, Fig. 8) reveal

domains of three different compositions: 30.4(7), 17.3(2), and 2.5(1.3) mol. % Nd2O3. Of the previously identified crystalline phases for TiO2-Nd2O348, these compositions correspond most

closely to Nd2Ti2O7 (33.3 mol. % Nd2O3), Nd4Ti9O24 (18.2 mol. % Nd2O3), and TiO2. The glass-ceramic prepared in microgravity also appeared homogenous in X-ray tomography (Fig. 6c) and SEM

(Fig. 7c). Its crystalline phase is a minor component of the sample, based on the very weak Bragg peaks observed in its X-ray diffraction. Indexing the Bragg peaks does not provide a clear

match to any of the expected phases (Supplementary Fig. 4). The closest match is Nd2Ti2O7, though some peak positions are shifted or missing, which may be due to a highly distorted crystal

lattice and/or this measurement’s lack of orientational averaging. The glass-ceramic Bragg peaks may also match Nd2Ti3O9 with a considerable contraction of the lattice. Small-angle X-ray

scattering (SAXS, Fig. 9) shows a linear Porod regime in the range of _Q_ = 0.6–1.0 Å−1, which corresponds to the interfaces between crystalline and glassy domains. The Porod slope is close

to the value of 2 expected for flat disc-shaped particles, which is consistent with the lamellar morphology of Nd2Ti2O7 crystal grains observed in the fully crystalline product (Fig. 6b).

The SAXS exhibits a broad peak approximately centered at _Q_ = 0.5 Å−1, corresponding qualitatively to a feature 2π/_Q_ = 1.25 nm in size. The origin of this broad peak is unclear; it is too

small for the crystallite size, given the Nd2Ti2O7 monoclinic unit cell49 with _a_ = 7.67 Å, _b_ = 13.00 Å, and _c_ = 5.46 Å. DISCUSSION The discussion focuses on how melt processing in

microgravity affects the solidification behavior, both for vitrification and crystallization. We begin with vitrification. Fragile liquids generally have low glass-forming ability, as is the

case for rare-earth titanates like NT25. Glasses of NT have been prepared by only two methods: roller quenching and containerless processing. In roller quenching, exceptionally high cooling

rates (~106 °C s−1) are the key to avoiding crystallization, and only thin flakes (tens of μm thick) of product can be obtained. In containerless processes such as levitation, the lack of

surface contact eliminates heterogeneous nucleation of crystals in the sample, so glasses can be formed at much lower cooling rates (102 to 103 °C s−1) and with larger sample dimensions

(spheres ~3 mm in diameter). These benefits make levitation a useful tool for glass research on fragile liquids, providing large enough samples to investigate application-specific properties

and guide the development of new glasses. For aerodynamic levitation, however, the sample size that can be vitrified is limited by fluid properties and/or heat transfer. Stable levitation

requires that the liquid sample maintains a nearly spherical shape, so materials with low surface tension are challenging to process because liquid beads deform or fragment in response to

the forces of gravity and gas flow around the sample. For fragile liquids with sufficient surface tension, the maximum sample size for glass formation is limited by the critical cooling rate

for vitrification. As already discussed in Fig. 1b, the cooling rate (−_dT_⁄_dt_) is predominantly determined by radiative heat transfer at high temperatures (e.g., above 900 °C) and by

convection at lower temperatures. As sample size increases, the smaller ratio of surface area to volume results in a smaller radiative cooling rate. Once the sample is sufficiently large, it

can no longer cool faster than the critical cooling rate, so it will crystallize. In the terrestrial aerodynamic levitator, NT melts up to 53 mg consistently vitrified, while melts 66 mg or

larger consistently crystallized during cooling (Supplementary Fig. 1e, f). Crystallization occurred reproducibly ca. 1040 °C, which is consistent with the sample that crystallized in

microgravity (discussed further below). Based on comparison of samples with different masses, the critical cooling rate in the aerodynamic levitator is ~170 °C s−1 at 1040 °C. The cooling

rate in microgravity was consistently 40–110 °C s−1 lower than on Earth for NT samples of the same size (20–23 mg, Fig. 1b). This difference is mainly due to the forced convective cooling

associated with aerodynamic levitation, which is absent in electrostatic levitation in microgravity. Because aerodynamic levitation is not well suited for the microgravity environment, these

differences in cooling rate may also represent an inherent difference in melt processing for Earth vs. reduced gravity conditions. If the critical cooling rate is the same in both

environments, larger samples may be more difficult to vitrify in microgravity. The cooling rates for a microgravity sample (21 mg) and the largest terrestrial glass (53 mg) provide an

interesting comparison. For this pair, near 1040 °C is a crossover point (Supplementary Fig. 1f), above which the microgravity cooling rate is faster and below which the microgravity cooling

rate is slower, compared to the terrestrial 53 mg sample. Yet, the microgravity sample does not crystallize before reaching the glass transition at _T_g = 786 °C, suggesting that the most

crucial temperature range for investigating critical cooling rates is near or above the 1040 °C crossover temperature. The atomic structures of glasses were nearly identical for the Earth

and microgravity processing conditions, except for subtle differences that could be explained by compositional variations of ~2 mol. % Nd2O3. This comparison provides validation, at least

for rare-earth titanates, that the same glass can be manufactured in space as on Earth, aside from differences in thermal history. Next, we turn the discussion toward observations of

crystallization in microgravity. One NT sample crystallized in microgravity and formed a highly unusual microstructure compared to the terrestrial crystalline samples (cf. Fig. 6b, e). The

microgravity sample exhibits lamellar crystal grains of Nd2Ti2O7 (the brightest regions in Figs. 6b and 7b), with some individual lamellae spanning most of the entire sample. Many of these

lamellae originate from a common internal point (Fig. 6b, red arrow; Supplementary Movie 6), suggesting that nucleation first occurred at this location. The unusual crystal nucleation of

this sample is likely due to a combination of unstable levitation and localized laser beam heating of the supercooled melt. When this sample in ELF was being held isothermally ca. 1750 °C,

it began to drift in and out of the central levitation position where the four heating lasers were co-focused. (Levitation instability often occurs when the surface charge on the sample

diminishes or changes polarity50.) The sample exited the lasers’ focal spot for ~1.5 s, then partially reentered the levitation position, and assumed a stable position such that the lasers’

focus was off-center on the sample. Then, sudden crystallization occurred, evidenced by the sample surface becoming faceted and loss of stable surface charge. From these observations and the

clear nucleation point observed with tomography, it seems likely that the small laser focal spot (0.5 mm diameter) resulted in very localized heating, which led to crystal nucleation in the

hot spot. This scenario is very different than the terrestrial aerodynamic levitator, in which a single, less focused laser provides sample heating. The microgravity crystalline sample

contained a mixture of three crystal phases, which can be explained using the equilibrium phase diagram48 (Supplementary Fig. 5), though not with certainty since the local temperature during

nucleation is not known because the sample position was not aligned with the pyrometer. First, we assume the liquid is likely ~19 mol. % Nd2O3, based on X-ray diffraction and Raman

spectroscopy. From tomography, we infer that Nd2Ti2O7 was the first phase to nucleate from this liquid, so the sample temperature was either 1500–1589 °C (between the solidus and liquidus)

or below 1199 °C. (Between 1199 and 1500 °C, Nd2Ti3O9 is expected instead of Nd2Ti2O7.) The higher temperature range is most likely, given that the pyrometer corrected temperature was 1410 

°C at the time of nucleation, and the local temperature at the lasers’ focal spot would be higher. As the Nd2Ti2O7 crystals grew, the melt would then become depleted in Nd2O3 until

approaching the eutectic composition at 15.6 mol. % Nd2O3. Further cooling would then result in the crystallization of Nd4Ti9O24 and TiO2, consistent with the final mixture of phases

observed in SEM/EDS. METHODS SAMPLE PREPARATION AND MELT PROCESSING Samples of nominal composition 83TiO2-17Nd2O3 (NT) were prepared from powders of TiO2 (99.98%, rutile, Aldrich) and Nd2O3

(99.999%, Cerac). Powders were dried in Pt crucibles at 600 °C for at least 3 h, then weighed, and mechanically mixed. Portions of the powder mixture were then heated and briefly melted in a

copper hearth using a 10.6 μm CO2 laser. The resulting spheroids were then processed in an aerodynamic levitator27 using air as the gas stream, and they were remelted with laser beam

heating. The melts were heated to 2000 °C for approximately 30 seconds and then freely cooled by turning off the laser. Samples for both the terrestrial and microgravity experiments were

prepared following this procedure, although from different batches of powder mixtures due to an insufficient amount of the original mixture. This contributed to the compositional variations

described in the Results section. Cooling curves in the aerodynamic levitator were collected for samples of varying mass, 20–66 mg each, using pyrometers with λ = 0.9, 1.5, or 5.0 μm (Chino

Corporation, spot size 0.6 mm diameter). Multiple cooling traces for each sample and condition were recorded at 100 Hz to ensure reproducibility. The apparent temperature was corrected

assuming a sample emissivity of 0.86. For microgravity experiments, samples were loaded to a sample cartridge for the ELF16 and launched to the International Space Station. Each sample was

levitated and then laser beam heated. Levitation stability worsened upon heating as the sample charge decreased and switched polarity, particularly in the 1000–1400 °C range. If the sample

motion could be controlled, upon melting the levitation would again become stable once thermionic emission created a stable surface charge. For the NT composition, 5 out of 6 heating

attempts succeeded in melting the samples. The melts were heated to ~1850 °C and held isothermally for at least several minutes. Then, the lasers were turned off, and the sample cooled

freely. Pyrometry data (IMPAC IGA140, λ = 1.55 μm, spot size 0.3–0.5 mm diameter) were collected at 100 Hz, and the apparent temperature was corrected assuming an effective emissivity of

0.63. This effective emissivity accounts for the multiplicative effects of two windows positioned between the pyrometer and the sample, and a sample emissivity of 0.86. The temperature

uncertainty is ca. ±30 °C at 1800 °C and smaller at lower temperatures. A full discussion of the temperature correction estimations and temperature uncertainties is provided in the

Supplementary Discussion. Sample cooling rates were calculated from the pyrometry data. For each time point, a range of data ±0.5 s was defined and then fitted using a second-order

polynomial. The instantaneous cooling rate was then calculated as the slope of the fitted polynomial, evaluated at the time point. This procedure was tested using different fitting ranges

(±0.1, 0.5, or 1.0 s), and ±0.5 s was found to best fit the cooling data. However, subtle features like small recalescence events were not always resolved with this method, so cooling traces

were manually assessed for recalescence. DENSITY MEASUREMENTS AND ANALYSIS Samples’ densities were determined using their masses after melt processing and volume measurements made in ELF,

as described previously17,51. As a brief summary, during melt processing a camera recorded backlit silhouette video of the sample (30 Hz, interlaced). Individual frames from these videos

were extracted and deinterlaced, and an edge detection algorithm was used to define the perimeter of the sample. The sample volume was then calculated from the edge fitting using a Legendre

polynomial series18. Volume calibration (mm3 pixel−3) was performed by analyzing video of stainless steel calibration spheres that were levitated in ELF at the beginning and end of each

sample holders’ experiments. Lastly, the sample volumes were corrected for the internal porosity as determined from X-ray tomography. Pyrometry data, collected at 100 Hz, were spline

interpolated to a 60 Hz basis to align with the deinterlaced video frames. Sample volumes at a given temperature were compared for dynamic (i.e., during sample cooling) and isothermal

measurements, which were found to be consistent. ATOMIC STRUCTURE MEASUREMENTS OF GLASSES High-energy X-ray diffraction measurements were performed at Section 6-ID-D of the Advanced Photon

Source, Argonne National Laboratory (Argonne, IL, USA). The diffracted intensity of 99.9 keV X-rays from whole samples was measured in transmission geometry using a two-dimensional area

detector (Varex 4343CT) at a distance of ~329 mm from the sample. Samples were mounted on polyimide tape, and the sample was positioned so that the incoming X-ray beam (0.5 mm wide and 0.5 

mm tall) passed through near the edge of the glass bead, so that X-ray transmission was 84–91%. The diffracted intensity was azimuthally integrated using Fit2D52, and the data were reduced

and normalized in GudrunX53 to obtain the X-ray total structure factors, _S_(_Q_), following procedures described previously26. Free atom X-ray form factors were used according to Waasmaier

and Kirfel54, and the “top hat” convolution in GudrunX55 was not applied. A sine Fourier transform was applied to the structure factors to obtain the differential PDFs, _D_(_r_):

$$D\left(r\right)=\frac{2}{\pi }{\int }_{0}^{{Q}_{\max }}Q\left(S\left(Q\right)-1\right)M(Q)\sin \left({Qr}\right){dQ}$$ (5) where _ρ_ = 0.08163 atoms Å−3 is the atomic number density,

_M_(_Q_) is the Lorch modification function56, and _Q_max = 21.8 Å−3. To obtain mean bond distances and coordination numbers, NXFit57 was used to fit the first two PDF peaks using Gaussian

distributions convolved with their associated peak-shape functions. For peak fitting, the total PDF was used, _T_(_r_) = _D_(_r_) + 4_πρr_. In NXFit, three Gaussian distributions were

initially defined, one each for Ti-O, Nd-O, and O-O. The initial coordination numbers and O-O bond distances were taken from the published structural model26, and bond distances were set for

Ti-O and Nd-O based on the X-ray PDF maximum peak positions. The peak fitting parameters were then refined over the range _r_ = 1.335–2.60 Å using limits of ±0.04 Å for bond distances and

±0.8 for coordination numbers. Neutron diffraction measurements were collected at the NOMAD beamline58 of the Spallation Neutron Source, Oak Ridge National Laboratory (Oak Ridge, TN, USA).

Individual glass beads were loaded into 3 mm diameter thin-walled silica capillaries and measured. Because the scattering intensity from small samples is quite weak, measurements were also

collected on each empty capillary so that the background subtraction would not leave silica signatures due to differences in the capillary wall thicknesses. At the sample position, the

neutron beam was approximately Gaussian in shape with a FWHM of 6 mm. After background subtraction, the samples’ scattering intensities were normalized against that of a vanadium standard.

Raman spectroscopy was carried out on a WITec Alpha300 Raman Spectrometer, equipped with an 1800 grooves mm−1 diffraction grating with a ×50 objective lens. All measurements were made at

room temperature with a resolution of 10 cm−1 or better using an excitation wavelength of 488 nm. Each spectrum is an average of 200 scans in the range of 85–1400 cm−1 accumulated in

one-second intervals. Spectra were corrected for the Bose-Einstein thermal population factor and area normalized59,60. Peak fitting of the terrestrial glasses’ Raman spectra was carried out

using commercial graphing software (OriginLab). Lineshapes of components were assumed to be pseudo-Voigt functions. The Lorentzian and Gaussian contributions were fixed at 60% and 40%,

respectively61,62,63. The spectrum of TG2 glass (17.1 mol.% Nd2O3) was fit first, and the center frequencies of the bands were subsequently fixed while the bandwidths and areas were

optimized. This methodology produced good fits for glasses with different Nd2O3 content, including TG1, though the constant center frequency constraint needed to be relaxed for a small

shoulder band at ~828 cm−1. This feature, as discussed in the Results section, has a strong overlap with a high-intensity feature at ~740 cm−1. Good fitting results were obtained by allowing

the position of this band to vary within the range 828 ± 5 cm−1. MICROSTRUCTURE MEASUREMENTS X-ray microtomography measurements were performed at Sector 7-BM-B of the Advanced Photon

Source. Incoming X-rays were attenuated with Cu and Ge filters to yield a polychromatic X-ray beam with a mean energy ca. 80 keV. Each sample was positioned in a parallel beam configuration,

and X-ray transmission was detected with a 25 μm thick LuAG scintillator positioned in front of a ×5 objective lens and FLIR Oryx camera. The setup provided a pixel size of 1.37 μm in the

recorded projections. For each tomography scan, 2001 projections were collected at equally spaced rotational increments between 0 to 180° inclusive with a camera exposure time of 20 ms, in

addition to dark and background images. Tomographic reconstructions were obtained with TomoPy64 and TomoCuPy65, using the gridrec algorithm66 and accounting for beam hardening. Image

analysis was performed in ImageJ, first for segmentation using an automatic threshold. Then, porosity was measured by recording the number of “solid” pixels before and after filling holes in

the sample cross-section images. For SEM and energy dispersive spectroscopy (SEM/EDS, Hitachi SU8030), samples were mounted in Crystalbond 509 (Buehler), mechanically grinded, and polished

to a final step with 1 μm diamond suspension. At least ten EDS measurements were collected across four sites on each polished cross-section to assess compositional uniformity. Small-angle

X-ray scattering of the microgravity glass-ceramic sample was measured at Sector 9-ID-C of the Advanced Photon Source67. The sample was mounted with Scotch Magic Tape (3M), and scattering of

21 keV X-rays was measured in a transmission geometry. Data were reduced with Nika software68. REPORTING SUMMARY Further information on research design is available in the Nature Research

Reporting Summary linked to this article. DATA AVAILABILITY All data are available upon reasonable request. CODE AVAILABILITY All pertinent steps for analysis are detailed in the Methods

section; no author-generated code is necessary. Code-related questions can be directed to the corresponding author. REFERENCES * National Academies of Sciences, Engineering, and Medicine.

Thriving in space: ensuring the future of biological and physical sciences research, a decadal survey for 2023–2032 (2023). * Sacco, E. & Moon, S. K. Additive manufacturing for space:

status and promises. _Int. J. Adv. Manuf. Technol._ 105, 4123–4146 (2019). Article  Google Scholar  * Reitz, B. et al. Additive manufacturing under lunar gravity and microgravity.

_Microgravity Sci. Technol._ 33, 25 (2021). Article  ADS  Google Scholar  * Fateri, M. & Gebhardt, A. Process parameters development of selective laser melting of lunar regolith for

on-site manufacturing applications. _Int. J. Appl. Ceram. Technol._ 12, 46–52 (2015). Article  CAS  Google Scholar  * Zhao, C. et al. Real-time monitoring of laser powder bed fusion process

using high-speed X-ray imaging and diffraction. _Sci. Rep._ 7, 3602 (2017). Article  ADS  PubMed  PubMed Central  Google Scholar  * Levine, L. et al. Outcomes and conclusions from the 2018

AM-bench measurements, challenge problems, modeling submissions, and conference. _Integr. Mater. Manuf. Innov._ 9, 1–15 (2020). Article  Google Scholar  * Stoudt, M. R. et al.

Location-specific microstructure characterization within IN625 additive manufacturing benchmark test artifacts. _Integr. Mater. Manuf. Innov._ 9, 54–69 (2020). Article  Google Scholar  *

Team Tempus. Containerless processing in space: recent result. in materials and fluids under low gravity. Lecture notes in physics, vol. 464 (eds. Ratke, L., Walter, H. & Feuerbacher,

B.) (Springer, 1996). * Egry, I., Diefenbach, A., Dreier, W. & Piller, J. Containerless processing in space—thermophysical property measurements using electromagnetic levitation. _Int.

J. Thermophys._ 22, 569–578 (2001). Article  CAS  Google Scholar  * Soellner, W. & Aicher, W. The Electromagnetic Levitator Facility (EML) on Board the ISS. _In:_ Metallurgy in space

(eds. Fecht, H.-J. & Mohr, M.) 25–41 (The Minerals, Metals & Materials Society, 2022). * Cozmuta, I., Cozic, S., Poulain, M., Poulain, S. & Martini, J. R. L. Breaking the silica

ceiling: ZBLAN-based opportunities for photonics applications. _Proc. SPIE_ 11276, 112760R (2020). Google Scholar  * Tucker, D. S., Ethridge, E. C., Smith, G. A. & Workman, G. Effects of

gravity on ZBLAN glass crystallization. _Ann. N.Y. Acad. Sci._ 1027, 129–137 (2004). Article  ADS  CAS  PubMed  Google Scholar  * Torres, A., Ganley, J. & Maji, A. Understanding the

role of gravity in the crystallization suppression of ZBLAN glass. _J. Mater. Sci._ 49, 7770–7781 (2014). Article  ADS  CAS  Google Scholar  * Kasap, H. Exotic glass fibers from space: the

race to manufacture ZBLAN. Upward, Magazine of the ISS National Lab (2018). * Tucker, D. S. & SanSoucie, M. Production of ZBLAN optical fiber in microgravity. _In:_ Optical fiber sensors

conference 2020 Special Edition (eds. Cranch Wang, A., Digonnet, M., and Dragic, P. G.) T2B.1 (Optica Publishing Group, 2020). * Tamaru, H. et al. Status of the electrostatic levitation

furnace (ELF) in the ISS-KIBO. _Microgravity Sci. Technol._ 30, 643–651 (2018). Article  ADS  CAS  Google Scholar  * Koyama, C. et al. Densities of liquid lanthanoid sesquioxides measured

with the electrostatic levitation furnace in the ISS. _J. Am. Ceram. Soc._ 104, 2913–2918 (2020). Article  Google Scholar  * Chung, S. K., Thiessen, D. B. & Rhim, W.-K. A noncontact

measurement technique for the density and thermal expansion coefficient of solid and liquid materials. _Rev. Sci. Instrum._ 67, 3175–3181 (1996). Article  ADS  CAS  Google Scholar  *

Ishikawa, T., Koyama, C., Oda, H. & Saruwatari, H. Status of the electrostatic levitation furnace in the ISS - surface tension and viscosity measurements. _Int. J. Microgravity Sci.

Appl._ 39, 390101 (2022). Google Scholar  * Rhim, W.-K., Ohsaka, K., Paradis, P.-F. & Spjut, R. E. Noncontact technique for measuring surface tension and viscosity of molten materials

using high temperature electrostatic levitation. _Rev. Sci. Instrum._ 70, 2796–2801 (1999). Article  ADS  CAS  Google Scholar  * Kozuka, H., Ota, R. & Soga, N. Preparation and properties

of binary oxide glasses containing rare earth oxides. _J. Soc. Mater. Sci. Jpn._ 35, 73–79 (1986). Article  CAS  Google Scholar  * Arai, Y., Itoh, K., Kohara, S. & Yu, J. Refractive

index calculation using the structural properties of La4Ti9O24 glass. _J. Appl. Phys._ 103, 094905 (2008). Article  ADS  Google Scholar  * Masuno, A. et al. Glass-forming region and high

refractive index of TiO2-based glasses prepared by containerless processing. _Phys. Status Solidi C._ 9, 2424–2427 (2012). Article  ADS  CAS  Google Scholar  * Angell, C. A. Formation of

glasses from liquids and biopolymers. _Science_ 267, 1924–1935 (1995). Article  ADS  CAS  PubMed  Google Scholar  * Alderman, O. L. G., Benmore, C. J., Tamalonis, A. & Weber, R.

Rare-earth titanate melt structure and glass formation. _Int. J. Appl. Glas. Sci._ 10, 463–478 (2019). Article  CAS  Google Scholar  * Wilke, S. K., Alderman, O. L. G., Benmore, C. J.,

Neuefeind, J. & Weber, R. Octahedral oxide glass network in ambient pressure neodymium titanate. _Sci. Rep._ 12, 8258 (2022). Article  ADS  CAS  PubMed  PubMed Central  Google Scholar  *

Weber, J. K. R. The containerless synthesis of glass. _Int. J. Appl. Glas. Sci._ 1, 248–256 (2010). Article  CAS  Google Scholar  * Teterin, G. A., Zinchenko, V. F., Zagorodnyuk, A. V.

& Minaev, I. M. Estimation of thermal stability of lanthanide dititanates in high-temperature region. _Ukr. Khimicheskij Zh ._ 54, 252–255 (1988). CAS  Google Scholar  * Abe, Y. et al.

Nonlinear dynamics of levitated droplet. _Int. J. Microgravity Sci. Appl._ 30, 42–49 (2013). Google Scholar  * Paradis, P.-F., Ishikawa, T., Fujii, R. & Yoda, S. Thermophysical

properties of molten tungsten measured with an electrostatic levitator. _Heat. Transf. Res._ 35, 152–164 (2006). Article  Google Scholar  * McCormack, S. J., Tamalonis, A., Weber, R. J. K.

& Kriven, W. M. Temperature gradients for thermophysical and thermochemical property measurements to 3000 °C for an aerodynamically levitated spheroid. _Rev. Sci. Instrum._ 90, 15109

(2019). Article  ADS  Google Scholar  * Paradis, P. F., Yu, J., Ishikawa, T., Aoyama, T. & Yoda, S. Contactless density measurement of high-temperature BiFeO3 and BaTiO3. _Appl. Phys._

79, 1965–1969 (2004). Article  CAS  Google Scholar  * Alderman, O. L. G. et al. Continuous structural transition in glass-forming molten titanate BaTi2O5. _J. Phys. Chem. C._ 120,

26974–26985 (2016). Article  CAS  Google Scholar  * Hübner, N. & Gruehn, R. Nd4Ti9O24: präparation und struktur. _Z. Anorg. Allg. Chem._ 616, 86–94 (1992). Article  Google Scholar  *

Hennet, L. et al. Development of structural order during supercooling of a fragile oxide melt. _J. Chem. Phys._ 126, 074906 (2007). Article  ADS  CAS  PubMed  Google Scholar  * Ushakov, S.

V. et al. Measurements of density of liquid oxides with an aero-acoustic levitator. _Materials_ 14, 822 (2021). Article  ADS  CAS  PubMed  PubMed Central  Google Scholar  * Benmore, C. J. A

review of high-energy X-ray diffraction from glasses and liquids. _ISRN Mater. Sci._ 2012, 1–19 (2012). Article  Google Scholar  * Topper, B. et al. Mid-infrared luminescence properties of

erbium and dysprosium doped lanthanum titanate glasses. _Opt. Mater. Express_ 13, 2857–2868 (2023). Article  CAS  Google Scholar  * Su, Y., Balmer, M. L. & Bunker, B. C. Raman

spectroscopic studies of silicotitanates. _J. Phys. Chem. B_ 104, 8160–8169 (2000). Article  CAS  Google Scholar  * Topper, B., Tagiara, N. S., Herrmann, A., Kamitsos, E. I. & Möncke, D.

Yttrium and rare-earth modified lithium orthoborates: glass formation and vibrational activity. _J. Non-Cryst. Solids_ 575, 121152 (2022). Article  CAS  Google Scholar  * Sasaki, S. et al.

Structural origin of additional infrared transparency and enhanced glass-forming ability in rare-earth-rich borate glasses without B–O networks. _Inorg. Chem._ 59, 13942–13951 (2020).

Article  CAS  PubMed  Google Scholar  * Möncke, D., Lind, F., Topper, B. & Kamitsos, E. I. Anomalous deformation behavior in ULE glass upon microindentation: a vibrational spectroscopic

investigation in the induced structural changes of a Ti-silicate glass. _J. Phys. Chem. C._ 125, 4183–4195 (2021). Article  Google Scholar  * Santos, A. G., Moulton, B. J. A. & Cabral,

A. A. Discoveries about the structure of alkaline earth-bearing borosilicate glasses doped with TiO2 revealed by Raman spectroscopy. _J. Non-Cryst. Solids_ 578, 121349 (2022). Article  CAS

Google Scholar  * Henderson, G. S. & Fleet, M. E. The structure of Ti silicate glasses by micro-Raman spectroscopy. _Canad. Mineral._ 33, 399–408 (1995). CAS  Google Scholar  * Osipov,

A. A., Liška, M., Osipova, L. M., Chromčiková, M. & Hruška, B. Thermodynamic modeling and Raman spectroscopy study of Na2O-TiO2-SiO2 glasses. _Vib. Spectrosc._ 111, 103160 (2020).

Article  CAS  Google Scholar  * Richter, S. et al. Ultrashort pulse induced modifications in ULE - from nanograting formation to laser darkening. _Opt. Mater. Express_ 5, 1834–1850 (2015).

Article  ADS  CAS  Google Scholar  * Efthimiopoulos, I. et al. Femtosecond laser-induced transformations in ultra-low expansion glass: microstructure and local density variations by

vibrational spectroscopy. _J. Appl. Phys._ 123, 233105 (2018). Article  ADS  Google Scholar  * Gong, W. & Zhang, R. Phase relationship in the TiO2-Nd2O3 pseudo-binary system. _J. Alloy.

Compd._ 548, 216–221 (2013). Article  CAS  Google Scholar  * Ishizawa, N., Ninomiya, K., Sakakura, T. & Wang, J. Redetermination of Nd2Ti2O7: a non-centrosymmetric structure with

perovskite-type slabs. _Acta Crystallogr._ E69, i19 (2013). Google Scholar  * Ishikawa, T. et al. Status of the electrostatic levitation furnace in the ISS - evaluation of sample position

control. _Int. J. Microgravity Sci. Appl._ 35, 350205 (2018). Google Scholar  * Nawer, J. et al. Uncertainty analysis and performance evaluation of thermophysical property measurement of

liquid Au in microgravity. _npj Microgravity_ 9, 38 (2023). Article  ADS  CAS  PubMed  PubMed Central  Google Scholar  * Hammersley, A. P. FIT2D: a multi-purpose data reduction, analysis and

visualization program. _J. Appl. Crystallogr._ 49, 646–652 (2016). Article  ADS  CAS  Google Scholar  * Soper, A. K. & Barney, E. R. Extracting the pair distribution function from

white-beam X-ray total scattering data. _J. Appl. Crystallogr._ 44, 714–726 (2011). Article  ADS  CAS  Google Scholar  * Waasmaier, D. & Kirfel, A. New analytical scattering-factor

functions for free atoms and ions. _Acta Crystallogr._ A51, 416–431 (1995). Article  ADS  CAS  Google Scholar  * Soper, A. K. Inelasticity corrections for time-of-flight and fixed wavelength

neutron diffraction experiments. _Mol. Phys._ 107, 1667–1684 (2009). Article  ADS  CAS  Google Scholar  * Lorch, E. Neutron diffraction by germania, silica and radiation-damaged silica

glasses. _J. Phys. C. Solid State Phys._ 2, 229–237 (1969). Article  ADS  Google Scholar  * Pickup, D., Moss, R. & Newport, R. NXFit: A program for simultaneously fitting X-ray and

neutron diffraction pair-distribution functions to provide optimized structural parameters. _J. Appl. Crystallogr._ 47, 1790–1796 (2014). Article  ADS  CAS  Google Scholar  * Neuefeind, J.,

Feygenson, M., Carruth, J., Hoffmann, R. & Chipley, K. K. The nanoscale ordered materials diffractometer NOMAD at the spallation neutron source SNS. _Nucl. Instrum. Methods Phys. Res.

Sect. B_ 287, 68–75 (2012). Article  ADS  CAS  Google Scholar  * Galeener, F. L. & Sen, P. N. Theory for the first-order vibrational spectra of disordered solids. _Phys. Rev. B_ 17,

1928–1933 (1978). Article  ADS  CAS  Google Scholar  * Tagiara, N. S. et al. Synthesis, thermal and structural properties of pure TeO2 glass and zinc-tellurite glasses. _J. Non-Cryst.

Solids_ 457, 116–125 (2017). Article  ADS  CAS  Google Scholar  * Palles, D. et al. Electro-thermal poling in bioactive sodium‑calcium phosphate-silicate glass: anodic near-surface network

connectivity changes and second harmonic generation. _J. Non-Cryst. Solids X_ 17, 100164 (2023). CAS  Google Scholar  * O’Shaughnessy, C., Henderson, G. S., Nesbitt, H. W., Bancroft, G. M.

& Neuville, D. R. The influence of modifier cations on the Raman stretching modes of Qn species in alkali silicate glasses. _J. Am. Ceram. Soc._ 103, 3991–4001 (2020). Article  Google

Scholar  * Bancroft, G. M. et al. Lorentzian dominated lineshapes and linewidths for Raman symmetric stretch peaks (800–1200 cm−1) in Qn (n = 1–3) species of alkali silicate glasses/melts.

_J. Non-Cryst. Solids_ 484, 72–83 (2018). Article  ADS  CAS  Google Scholar  * Gürsoy, D., De Carlo, F., Xiao, X. & Jacobsen, C. TomoPy: a framework for the analysis of synchrotron

tomographic data. _J. Synchrotron Radiat._ 21, 1188–1193 (2014). Article  PubMed  PubMed Central  Google Scholar  * Nikitin, V. TomocuPy–efficient GPU-based tomographic reconstruction with

asynchronous data processing. _J. Synchrotron Radiat._ 30, 179–191 (2023). Article  PubMed  PubMed Central  Google Scholar  * Marone, F. & Stampanoni, M. Regridding reconstruction

algorithm for real-time tomographic imaging. _J. Synchrotron Radiat._ 19, 1029–1037 (2012). Article  CAS  PubMed  PubMed Central  Google Scholar  * Ilavsky, J. et al. Development of combined

microstructure and structure characterization facility for in situ and operando studies at the advanced photon source. _J. Appl. Crystallogr._ 51, 867–882 (2018). Article  ADS  CAS  Google

Scholar  * Ilavsky, J. Nika: software for two-dimensional data reduction. _J. Appl. Crystallogr._ 45, 324–328 (2012). Article  ADS  CAS  Google Scholar  Download references ACKNOWLEDGEMENTS

This work was supported by the National Aeronautics and Space Administration (NASA) through grant 80NSSC19K1288 and the U.S. Department of Energy (DOE) through grant DE-SC0018601. ELF

measurements were supported by JSPS KAKENHI through grants 20H05882 and 20H05878. X-ray diffraction, tomography, and small-angle scattering measurements were made at Sectors 6-ID-D, 7-BM-B,

and 9-ID-C of the Advanced Photon Source, a U.S. DOE Office of Science User Facility, operated by Argonne National Laboratory under Contract No. DE-AC02-06CH11357. Neutron diffraction

measurements were made at the NOMAD beamline of the Spallation Neutron Source, a DOE Office of Science User Facility operated by Oak Ridge National Laboratory. Raman measurements used

instrumentation supported by the National Science Foundation under Grant No. DMR-1626164. SEM/EDS measurements were made at the EPIC facility of Northwestern University’s NUANCE Center,

which has received support from the SHyNE Resource (NSF ECCS-2025633), the IIN, and Northwestern’s MRSEC program (NSF DMR-2308691). The authors would like to thank Dr. Douglas Matson and

Jannatun Nawer for guidance in microgravity experiment planning, and Dr. Robert Hyers and Dr. Richard Bradshaw for guidance in the calibration of the density measurements. AUTHOR INFORMATION

AUTHORS AND AFFILIATIONS * Materials Development, Inc., Evanston, IL, 60202, USA Stephen K. Wilke, Abdulrahman Al-Rubkhi, Vrishank Menon, Jared Rafferty, Emma Clark & Richard Weber *

X-ray Science Division, Advanced Photon Source, Argonne National Laboratory, Lemont, IL, 60439, USA Stephen K. Wilke, Alan L. Kastengren, Chris J. Benmore, Jan Ilavsky & Richard Weber *

Japan Aerospace Exploration Agency, Tsukuba, Japan Chihiro Koyama, Takehiko Ishikawa & Hirohisa Oda * Center for High Technology Materials, University of New Mexico, Albuquerque, NM,

87106, USA Brian Topper * Inamori School of Engineering at the New York State College of Ceramics, Alfred University, Alfred, NY, 14802, USA Elizabeth M. Tsekrekas & Doris Möncke * ISIS

Neutron & Muon Source, Rutherford Appleton Laboratory, Chilton, Didcot, Oxon, OX11 0QX, UK Oliver L. G. Alderman * Neutron Science Division, Spallation Neutron Source, Oak Ridge National

Laboratory, Oak Ridge, TN, 37831, USA Jörg Neuefeind * National Institute for Materials Science, Tsukuba, Japan Shinji Kohara * NASA Marshall Space Flight Center, Huntsville, AL, 35812, USA

Michael SanSoucie & Brandon Phillips Authors * Stephen K. Wilke View author publications You can also search for this author inPubMed Google Scholar * Abdulrahman Al-Rubkhi View author

publications You can also search for this author inPubMed Google Scholar * Chihiro Koyama View author publications You can also search for this author inPubMed Google Scholar * Takehiko

Ishikawa View author publications You can also search for this author inPubMed Google Scholar * Hirohisa Oda View author publications You can also search for this author inPubMed Google

Scholar * Brian Topper View author publications You can also search for this author inPubMed Google Scholar * Elizabeth M. Tsekrekas View author publications You can also search for this

author inPubMed Google Scholar * Doris Möncke View author publications You can also search for this author inPubMed Google Scholar * Oliver L. G. Alderman View author publications You can

also search for this author inPubMed Google Scholar * Vrishank Menon View author publications You can also search for this author inPubMed Google Scholar * Jared Rafferty View author

publications You can also search for this author inPubMed Google Scholar * Emma Clark View author publications You can also search for this author inPubMed Google Scholar * Alan L.

Kastengren View author publications You can also search for this author inPubMed Google Scholar * Chris J. Benmore View author publications You can also search for this author inPubMed

Google Scholar * Jan Ilavsky View author publications You can also search for this author inPubMed Google Scholar * Jörg Neuefeind View author publications You can also search for this

author inPubMed Google Scholar * Shinji Kohara View author publications You can also search for this author inPubMed Google Scholar * Michael SanSoucie View author publications You can also

search for this author inPubMed Google Scholar * Brandon Phillips View author publications You can also search for this author inPubMed Google Scholar * Richard Weber View author

publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS S.K.W. led the measurements and data analysis for cooling rates, X-ray diffraction, neutron

diffraction, X-ray tomography, and electron microscopy. A.A. analyzed density and tomography data and assisted with tomography measurements. C.K. and T.I. conducted microgravity experiments

with E.L.F., with support from H.O. B.T. and E.T. performed and analyzed Raman measurements, with supervision by D.M. O.L.G.A. contributed to planning microgravity experiments and sample

preparation. V.M. performed density analysis, with assistance from J.R. E.C. prepared samples. User facility measurements were facilitated by A.L.K. for X-ray tomography, C.J.B. for X-ray

diffraction, J.I. for small-angle X-ray scattering, and J.N. for neutron diffraction. S.K. contributed to E.L.F. experiments. M.S. and B.P. provided programmatic support. R.W. conceived the

project goals, supervised activities, contributed to X-ray diffraction and tomography measurements, to data interpretation, and procured funding. S.K.W. prepared the manuscript draft with

contributions from B.T. and E.T., and revisions were contributed by all. CORRESPONDING AUTHOR Correspondence to Stephen K. Wilke. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare

no competing interests. ADDITIONAL INFORMATION PUBLISHER’S NOTE Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION SUPPLEMENTARY MOVIE 1. THREE-DIMENSIONAL TOMOGRAPHIC RECONSTRUCTION OF A MICROGRAVITY GLASS SUPPLEMENTARY MOVIE 2. THREE-DIMENSIONAL

TOMOGRAPHIC RECONSTRUCTION OF THE MICROGRAVITY CRYSTAL SUPPLEMENTARY MOVIE 3. THREE-DIMENSIONAL TOMOGRAPHIC RECONSTRUCTION OF THE MICROGRAVITY GLASS-CERAMIC SUPPLEMENTARY MOVIE 4.

THREE-DIMENSIONAL TOMOGRAPHIC RECONSTRUCTION OF A TERRESTRIAL GLASS SUPPLEMENTARY MOVIE 5. THREE-DIMENSIONAL TOMOGRAPHIC RECONSTRUCTION OF A TERRESTRIAL CRYSTAL SUPPLEMENTARY MOVIE 6.

THREE-DIMENSIONAL TOMOGRAPHIC RECONSTRUCTION OF THE MICROGRAVITY CRYSTAL REPORTING SUMMARY RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution

4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and

the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s

Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not

permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit

http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Wilke, S.K., Al-Rubkhi, A., Koyama, C. _et al._ Microgravity effects on

nonequilibrium melt processing of neodymium titanate: thermophysical properties, atomic structure, glass formation and crystallization. _npj Microgravity_ 10, 26 (2024).

https://doi.org/10.1038/s41526-024-00371-x Download citation * Received: 20 November 2023 * Accepted: 19 February 2024 * Published: 06 March 2024 * DOI:

https://doi.org/10.1038/s41526-024-00371-x SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
