ABSTRACT We report the spatial self-phase modulation (SSPM) effect for solution dispersions of black phosphorus (BP). The experimental results suggest that this concentration-dependent

coherent light diffraction is due to the ultrafast and large third-order optical nonlinearity of BP. The third-order nonlinear susceptibility of BP has been simply obtained about 10−19 m2/V2

by analyzing the experimental results. The fast relaxation time during dynamic relaxation is obtained as 0.13 ps. Our experimental results imply novel potential application of BP in

ultrafast nonlinear phase modulation devices based on their nonlinear optical response. SIMILAR CONTENT BEING VIEWED BY OTHERS ULTRAFAST ENERGIZING THE PARITY-FORBIDDEN DARK EXCITON IN BLACK

PHOSPHORUS Article Open access 29 April 2025 NEGATIVE-MASS EXCITON POLARITONS INDUCED BY DISSIPATIVE LIGHT-MATTER COUPLING IN AN ATOMICALLY THIN SEMICONDUCTOR Article Open access 23

February 2023 FULL PHONON DISPERSION ALONG THE STACKING DIRECTION IN NANOSCALE VAN DER WAALS MATERIALS BY PICOSECOND ACOUSTICS Article Open access 13 June 2024 INTRODUCTION Low dimensional

optical materials with ultrafast response and strong nonlinearity have exhibited novel physics and tremendous application potential in optical communication, optical sensing, medical

diagnosis, etc1,2,3,4,5,6. Inspired by the emergence of two-dimensional atomic crystal graphene, the nonlinear optics of graphene and graphene-like materials have been explored intensively

in recent years endowed for their excellent nonlinear response and broadband applications7,8,9,10. Besides graphene, black phosphorus (BP), a newly rising graphene-like material with natural

band gap, has shown tremendous and intriguing physical, chemical, and electronic properties11,12,13. The BP has a thickness dependent direct band gap that changes from 0.3 eV in the bulk to

1.88 eV in a monolayer14. It can also be switched between insulating and conducting states, and it is still flat enough to confine electrons so that charge flows quickly, comparable with

those in single layer of molybdenum disulphide15. Sample mobility is also found to be thickness dependent, with the highest value up to ~1000 cm2/Vs obtained at thickness ~10 nm16.

Furthermore, the BP photodetector shows time response of 1 ms (rise) and 4 ms (fall), making few-layer BP a promising active 2D material in broadband and fast photodetectors across the

visible and near infrared region17. In addition, BP is made from a single element, in theory, the pure samples are easier to obtain. Compared to other graphene-like 2D materials, tunable

optical properties and direct bandgap for all thicknesses of BP may bring significant benefits to a variety of fascinating photonics applications. Besides its high electron mobility, BP has

unique optical properties, such as the strong in-plane anisotropic18. Considering the tunable band-gap, the electronic and optical performance of the materials can change dramatically

consequently. Beyond the linear optics regime, the optical properties, especially the ultrafast optical response and the nonlinear optical properties of BP in case of different thicknesses,

various doping conditions, and different polarization directions of the excitation light, have been paid more attention recently. The ultrafast relaxation dynamics of BP have been

investigated by the pump-probe technique19,20,21, and the fast recovery time in BP was determined to be ~24 fs at 1550 nm20, 16 and 32 fs for 800 and 2026 nm pulses21, which is much faster

than that of previous 2D crystal materials, such as graphene (~1.27 ps)22 and MoS2 (~2.1 ps)23. R. Suess _et al_. reported the anisotropic carrier dynamic with faster time to be ~180 ps at

780 nm in BP, which may be induced by hot carriers cooling19. In another aspect, the third-order nonlinear optical responses of BP have been investigated and characterized via Z-scan

technique, third-harmonic generation (THG) method, etc24,25,26. The open-aperture (OA) Z-scan experiments demonstrate that BP has perfect saturable absorption performance at both optical

communication band (1550 nm) and visible band (532 nm and 680 nm), making BP a preferred alternative material for saturable absorbers (SAs)20. The broadband nonlinear optics response of

few-layer BP towards mid-infrared has also been reported by S. Lu _et al_.24. In addition, X. Zheng _et al_. reported a transition from saturable absorption (SA) to reverse saturable

absorption (RSA) with the increase of laser intensity26. Moreover, both the passive Q-switching and the mode-locking operation of the erbium-doped fiber lasers with the BP-SA have been

experimentally demonstrated27. D. Li _et al_. studied the thickness and polarization dependent linear and nonlinear optical properties of BP thin films, and then utilized their nonlinear

absorption property to generate ultrafast and large-energy pulse with BP integrated fiber devices28. Besides Z-scan and THG methods, spatial self-phase modulation (SSPM), a phenomenon that

the intensity dependence of the refractive index in nonlinear optical media occurs, is a manifestation of the coherent response of the material. SSPM was originally observed in

liquid-crystal29, 30, then later in nanomaterials, such as carbon nanotubes (CNTs) solutions31, graphene32, graphene oxide33, topological insulators34, transition metal dichalcogenides

(TMDs)35, 36 and many other materials. While this manuscript was in preparation, a relevant work was published37. It reports the broadband spatial self-phase modulation of BP, and the

nonlinear refractive index of BP (~5 layers) is measured to be ~10−9 m2/W and the third order nonlinear susceptibility is χ(3) ~ 10−8 esu at multiple wavelengths (equals χ(3) to be 10−16 

m2/V2)37. Youngblood _et al_. report the χ(3) of multilayer (~29 layers) BP to be 10−19 m2/V2 via layer tunable THG25, while Zheng _et al_. reported a nonlinear refractive index value of

~10−13 m2/W (~50–100 layers) at 800 nm femtosecond pulsed Z-Scan measurement26. In addition, from other perspective, these methods have given the different nonlinear optical parameters of

BP25, 26, 37. It is exactly these disagreements that create the need for additional experimental and theoretical investigations to fully characterize the nonlinear susceptibility of BP

further. In this work, we studied the phenomenon of SSPM for solution dispersions of BP under different concentration and laser intensity. The ultrafast nonlinear optical response was

unambiguously observed and this coherent light diffraction is due to the remarkably large third-order nonlinearity. The third-order nonlinear refractive index of BP was then simply and

exactly obtained by analyzing the experimental results. RESULTS CHARACTERIZATIONS OF BLACK PHOSPHORUS Uniform few-layer BP dispersions have been prepared by the liquid phase exfoliation

(LPE) method, which is a simple and effective technique to prepare two dimensional (2D) materials from layered bulk crystals towards multiple layered structures. Figure 1 shows the

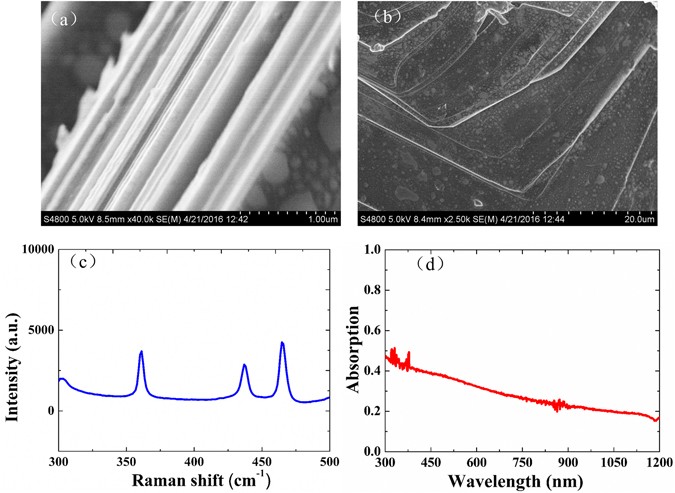

characterization of the BP sample. The scanning electron microscopy (SEM) image of BP crystal is shown in Fig. 1a,b, from which the high quality and flat layered surface of BPs can be

verified from both lateral (a) and top (b) view, respectively. As shown in Fig. 1c, there are three Raman peaks at 361.15 cm−1, 436.85 cm−1, and 464.68 cm−1 from the multi-layer phosphorus

corresponding to the \({{A}}_{{g}}^{1}\), \({B}_{2g}\), and \(\,{A}_{g}^{2\,}\) modes, respectively. Figure 1d shows the linear absorption spectrum of the BP solution dispersions in ethylene

glycol ranging from 300 to 1200 nm, measured by the spectrometer (Perkins Elmer Lambda750). The profile is nearly flat with a smooth absorption curve in the ultraviolet up to near-infrared

(UV-NIR) wavelength band, suggesting that multi-layer BP dispersions might be a promising broadband optical material. ULTRA-FAST SSPM RESPONSE Inspired by the unique electronic and optical

properties of BP, we have experimentally observed the SSPM phenomenon of BP. In the experiment, the ultrafast pulse laser was used to characterize the SSPM effects of BP solution

dispersions. The linearly polarized beam from a 1061 nm (repetition rate of 2.7 MHz and pulse duration of 220 ps) laser was firstly focused by a lens of focal length 150 mm, causing high

intensity illumination to the sample. A quartz cuvette of 5 mm thickness was used to contain the BP solution dispersions and placed before the beam focus. The distance between the focus and

the front surface of the cuvette was 20 mm. Then the transmitted spectrum was collected by a CCD camera (Coherent LaserCam HR), which is 200 mm away from the focal lens. The schematic

diagram was shown in Fig. 2. Owing to the nonlinear index change induced by the nonuniform Gaussian profile of the light beam, we observed obvious diffraction ring pattern in the far field.

Figure 3a is a typical pattern of diffraction rings caused by spatial self-phase modulation when the sample was irradiated by 1061 nm ultrafast laser. Figure 3b is the corresponding

intensity distribution of the experimental result, and Fig. 3c illustrates the corresponding far field intensity distribution simulated by means of the Fraunhofer approximation of the

Fresnel–Kirchhoff diffraction formula. From the figure, we conclude that the experimental result is in a good agreement with the theoretical one. Measurements of the pure ethylene glycol did

not show a nonlinear response for the intensity ranges that were investigated here and, therefore, confirm that the observed nonlinear behavior is from the presence of the BP (_see

supporting information_). To confirm the presence of the BP induces the nonlinear refractive index in the medium and causes the SSPM effect in laser beam propagation, we performed

concentration-dependence measurements. Figure 4a,b show the typical development of diffraction rings of SSPM when the input average power is 100 mW. They both emerged from the center of the

patterns with all their diameters enlarging gradually and they deformed with irradiation time evolution and finally become stable during one second. As shown in Fig. 4a, it takes about 0.95 

second for the development of diffraction rings, which includes emerging, enlarging and deforming. While varying the concentration of the BP solution dispersion, the number of diffraction

pattern increases, and the nonlinear response will become much faster with higher BP concentration. As the SSPM phenomena are proportional to the absorption of the nonlinear medium, pattern

formation time, the size and number of rings become larger with the increasing of the concentration. Figure 4c shows the final stable patterns for four different concentrations of solution

dispersions under the same input average power 140 mW, where the concentration decreases gradually from 15 vol.% to 7.5 vol.%, respectively. We can observe that both numbers and diameters of

the diffraction rings decrease with the concentration. These results verify that diffraction rings are mainly derived from the nonlinear optical properties of BP. We also performed

intensity-dependence measurements with the same experimental setup to convince the nonlinear response of the BP dispersion. The input laser power increases gradually from Fig. 5a–f as 60,

80, 100, 110, 130 and 140 mW, respectively. It can be observed that by increasing the laser power, the number of rings and the vertical asymmetry of the diffraction ring patterns increased.

Consequently, one can evidently confirm that when the input laser power becomes higher, the propagating beam suffers more serious distortions. The refractive index of many materials can be

described by the relation $$n={n}_{0}+{n}_{2}I$$ (1) where _n_ 0 is the linear refractive index and _I_ is the laser intensity and _n_ 2 is the coefficient of the intensity-dependent

refractive index38. The total refractive index increases with increasing optical intensity. A corresponding phase shift Δ_ψ_ of the beam traversing the nonlinear medium32: $${\rm{\Delta

}}\phi (r)=\frac{2\pi {n}_{0}}{\lambda }{\int }_{0}^{Leff}{n}_{2}I(r,z)dz$$ (2) where _r_ is the radial coordinate of the beam, _λ_ is the wavelength of incident laser, _L_ eff is the total

propagation length contributing to the SSPM. We assume, for simplicity, that $${\rm{\Delta }}\phi (r)={\rm{\Delta }}\phi (0)\exp (\frac{-2{r}^{2}}{{\omega }^{2}})$$ (3) where _ω_ is the beam

radius, as a constant. When \(r\in [0,+\infty )\), there is _r_ 1 and _r_ 2 possessing the same wave vector and can interfere, which can be expressed as29: $$\frac{d{\rm{\Delta }}\phi

({r}_{1})}{dr}=\frac{d{\rm{\Delta }}\phi ({r}_{2})}{dr}$$ (4) The constructive or destructive interference occurs and results appearance of diffraction rings. $${\rm{\Delta }}\phi

({r}_{1})-{\rm{\Delta }}\phi ({r}_{2})=m\pi $$ (5) where _m_ is an even or odd integer. The number of diffraction rings appeared can be estimated as29: $$N=\frac{{\rm{\Delta }}\phi

(0)-{\rm{\Delta }}\phi (r)}{2\pi }$$ (6) Assuming Δ_ψ_(_r_) = 0, thus, \(N={\rm{\Delta }}{\phi }_{0}/2\pi \), we can obtain the equation to solve _n_ 2 32: $${n}_{2}=(\frac{\lambda

}{2{n}_{0}{L}_{eff}})\frac{N}{I}$$ (7) The nonlinear refractive index and the third-order nonlinear susceptibility of BP at different concentrations have been summarized in Table 1. We

compared the rings number, and nonlinear refractive index _n_ 2 at different concentration and input power which corresponds to different input intensity. At lower concentration, _n_ 2

increases with input power or intensity, while the saturation of _n_ 2 occurs due to sample concentration increase, as shown in Fig. 6. In our experiment, _N_ is approximately proportional

to _I_ and the total refractive indexes increase with increasing optical intensity. The threshold for observing diffraction rings is about 0.58 × 105 W/cm2 for 15 vol.% and 0.97 × 105 W/cm2

for 7.5 vol.% BP solution dispersions. The nonlinearity _n_ 2 can be easily obtained by finding _N_/_I_ at the maximum laser power. We can estimate _n_ 2 as 4.35 × 10−12 m2/W for 15 vol.%

and 1.45 × 10−12 m2/W for 7.5 vol.% BP solution dispersions. The third order nonlinear susceptibility of BP was calculated to be 10−14 m2/ V2 (_see supporting information_). We use SI units

here to avoid confusion. We estimate that \({\chi }_{total}^{(3)}={M}^{2}{\chi }_{{single}\,{layer}}^{(3)}\) 32. The number of effective layers _M_ can be obtained as \(M=\frac{C\times

\,V\times \,{N}_{A}}{S/{a}^{2}}\), where _V_ is the volume of the solution of 1.5 mL. The total number of (BP) molecules in the solution is _C_ × _V_ × _N_ A, where _N_ A is the Avogadro’s

number, _S_ is the area of the cross-section of the cuvette ( = 1 cm × 3 cm), the total number of molecules in one effective layer is _S_/a2, where a (~4.5 Å) is the lattice constant of

BP39. In our experiment, _M_ is on the order of 300 to 600, thus the estimated \({\chi }_{single\,layer}^{(3)}\) is of the order of 10−19 m2/V2, which agrees with Z-scan measurements

(~50–100 layers)26, two order of magnitude larger than estimated from THG experiments (~29 layers)25, but more than two orders of magnitude smaller than that from ref. 37 (~5 layers). The

variation of nonlinear susceptibility by different methods can be attributed to the difference of BP thickness, as BP possesses a thickness-dependent energy band gap. Further efforts, from

both theoretical and experimental sides, are needed to fully understand the third-order nonlinear optical response of BP, e.g. the relationship between formation time and BP concentration.

The measurement uncertainty comes from several aspects: the calculation of incident pulse laser intensity, the measurement of distance between lens, sample, CCD camera, the concentration and

uniformity uncertainty of the BP sample during the formation of diffraction ring, and the counting of diffraction rings number, which is a key parameter in calculating the nonlinear

coefficient for BP. However, by well-designed experimental scheme and data analysis, SSPM phenomena can be regarded as an effective method to estimate the orders of magnitude of the

nonlinear refractive index. CARRIER DYNAMICS The ultrafast nonlinear response of BP was also investigated by time-resolved optical degenerate pump-probe transmission measurement. Femtosecond

(fs) laser (Coherent Libra-S), which gave an output with a pulse repetition rate of 1 kHz, a central wavelength of 800 nm and a pulse duration around 100 fs, was employed in the

time-resolved pump-probe experiment. The output laser beam was split into two different laser beams, one intense portion with a peak intensity of 75 GW/cm2 as the pump beam to generate the

photo-induced carriers, and the other weak portion with peak intensity of 0.3 GW/cm2 as the probe beam. Figure 7 presents the carriers dynamic relaxation process for the BP suspension. The

delay kinetics can be well fitted with a bi-exponential delay function: $$\frac{{\rm{\Delta }}T}{T}={A}_{1}{e}^{-t/{\tau }_{1}}+{A}_{2}{e}^{-t/{\tau }_{2}}$$ (8) where Δ_T_/_T_ is defined as

the relative change of the probe transmissivity caused by the pump, and τ1 is the decay time with the respective amplitude weights _A_ 1. The fast and slow relaxation time is fitted to be

0.13 ps and 1.15 ps, respectively. We attribute the SSPM effect a transient phenomenon. The interaction and diffraction can occur under the well-defined phase difference between photons. To

the ultrafast laser pulse, the carriers will relax in only about several pico-seconds, while every pulse is in the temporal slot of 0.37 μs (1061 nm, 2.7 MHz). Therefore, the incident laser

pulse is considered to be independent to each other, which confirms the transient effect of SSPM. The physical mechanism of the nonlinearity may be attributed to the reorientation and

alignment of the BP nanosheets induced by the electromagnetic field, which is similar to the case of liquid crystals29. Under the intense laser irradiation, the polarization state will

relocate to a new array which is parallel to each other. The reoriented sheets can help light beam become coherent and form SSPM rings. CONCLUSIONS In conclusion, the third-order nonlinear

susceptibility of BP dispersions was measured to be 10−19 m2/V2 and can be tuned via changing its concentration. Upon illumination, the BP solution dispersions show obvious SSPM response to

the excitation wavelengths, demonstrating its ultrafast nonlinear response. Experimental results of BP under pulse illumination are fitted with a good correspondence between experimental and

numerical results, which suggest that this coherent light scattering is due to the ultrafast, and large third-order optical nonlinearity of BP. The fast relaxation time during dynamic

relaxation is obtained as 0.13 ps. Our experimental results exhibit the practical potential of this promising material for various nonlinear and ultrafast optoelectronics applications (e.g.,

ultrafast lasers, optical switches and modulators). Moreover, our work may provide an inroad for measuring key parameters, such as molecular weights of the solvent and the nanomaterials

based on their novel nonlinear optical response. The technique can further be used to study the composition, purity and stability of other nanomaterials at broadband wavelength, including

those with potential for clinical applications. METHODS MATERIALS To begin, bulk BP crystal (purchased from Smart Elements) was grinded to BP powder. Then the powder was dispersed into

ethylene glycol, along with ultra-sonicated for 2 hours. After sonication, the phosphorene in ethylene glycol was centrifuged at a speed of 15000 rpm for 20 minutes. The upper ~80% which

contains few layers was decanted for analysis and the dispersions were settled for more than 20 hours to make sure that there is no large size sedimentations during our experiments. BP

dispersions were then diluted to 4 samples (15 vol.%, 12.5 vol.%, 10 vol.%, 7.5 vol.%, respectively) for SSPM experiments. REFERENCES * Tao, W. _et al_. Black Phosphorus Nanosheets as a
