ABSTRACT Cervical cancer (CC) is associated with alterations in immune system balance, which is primarily due to a shift from Th1 to Th2 and the unbalance of Th17/Treg cells. Using _in

silico_ DNA copy number analysis, we have demonstrated that ~20% of CC samples exhibit gain of 8q22.3 and 19q13.31; the regions of the genome that encodes the KLF10 and PSG genes,

respectively. Gene expression studies demonstrated that there were no alterations in KLF10 mRNA expression, whilst the PSG2 and −5 genes were up-regulated by 1.76 and 3.97-fold respectively

in CC compared to normal tissue controls. siRNA and ChIP experiments in SiHa cells have demonstrated that KLF10 participates in immune response through regulation of IL6, IL25 and PSG2 and

PSG5 genes. Using cervical tissues from KLF10−/− mice, we have identified down-regulation of PSG17, −21 and −23 and IL11. These results suggest that KLF10 may regulate immune system response

genes in cervical cancer among other functions. KLF10 and PSG copy number variations and alterations in mRNA expression levels could represent novel molecular markers in CC. SIMILAR CONTENT

BEING VIEWED BY OTHERS THE HIPPO PATHWAY TRANSCRIPTION FACTORS YAP AND TAZ PLAY HPV-TYPE DEPENDENT ROLES IN CERVICAL CANCER Article Open access 10 July 2024 A 10-GENE PROGNOSTIC SIGNATURE

POINTS TO LIMCH1 AND HLA-DQB1 AS IMPORTANT PLAYERS IN AGGRESSIVE CERVICAL CANCER DISEASE Article Open access 15 March 2021 BIOINFORMATICS AND EXPERIMENTAL INSIGHTS INTO F2RL1 AS A KEY

BIOMARKER IN CERVICAL CANCER DIAGNOSIS AND PROGNOSIS Article Open access 12 February 2025 INTRODUCTION Cervical cancer (CC) is currently the second most common cancer among the female

population1. As is the case with many other cancer types, host immune system evasion, involving the failure of the immune system to resist or eradicate formation and progression of incipient

neoplastic cells, late-stage tumors and micro-metastasis is problematic in CC2. The host immune response evasion by Human Papilloma Virus (HPV) associated CC has been reviewed elsewhere3.

Cytokines such as Interleukin (IL) 10, IL13 and transforming growth factor β (TGFβ) are known to be involved in evasion of CC from the immune system response3,4. Tumor-associated

inflammation and the inflammatory components present in the tumor microenvironment are also recognized as having a role in tumor development5. This is mediated in part through the supply of

bioactive molecules to the tumor microenvironment. These include growth factors, survival factors, pro-angiogenic factors, extracellular matrix-modifying enzymes, as well as the inductive

signals that lead to activation of epithelial-mesenchymal transition (EMT)2. This phenomenon is orchestrated by a plethora of cytokines and chemokines. In CC, cytokines such as IL6, −86 and

−177 as well as chemokines such as CCL28 are known to exert these pro-inflammatory effects. Expression of these molecules in the tumor microenvironment is tightly regulated by transcription

factors. Krüppel like factors (KLF’s) are a family of transcription factors that participate in various aspects of cellular growth, proliferation and differentiation9. This family is

characterized by three C2H2-type zinc finger domains that bind to either CACCC elements or GC boxes in the promoter of target genes to regulate transcriptional activity and gene expression9.

Recently, we have reported the expression of several members of the KLF family in CC including KLF1010. KLF10 can function as a _trans_-activator or –repressor11. It has been previously

reported that KLF10 is expressed in several tissues and various cell types that include smooth muscle, heart, glial cells, fibroblasts, myeloid cells12, and lymphoid cells11. Gene-targeting

studies have implicated important roles for KLFs in immune and hematopoietic cell biology. For example, in CD4+CD25− cells, KLF10 is known to play an important role in T-cell activation and

differentiation as well as Treg suppressor functions through regulation of TGFβ11. It has been reported that KLF10 can also directly regulate the pro-inflammatory cytokine IL12p4013. In

addition to the above-mentioned functions of KLF10 in multiple cell and tissue types, no one has implicated a role for KLF10 in CC. In this report we have analyzed the molecular alterations

of KLF10 in CC and have identified potential KLF10 target genes by means of DNA copy number variation (CNV) and mRNA transcription using microarrays, _in silico_ analyses and putative

transcriptional regulatory networks using gene knock-down approaches _in vitro_ and _in vivo_. RESULTS GENOME COPY NUMBER ALTERATION IN CERVICAL CANCER, 8Q22.3 AND 19Q13.31 GAIN To detect

new genes associated with immune response in cervical cancer, our first approach was to identify cytogenetic regions harboring DNA gains. The results of our studies revealed that there were

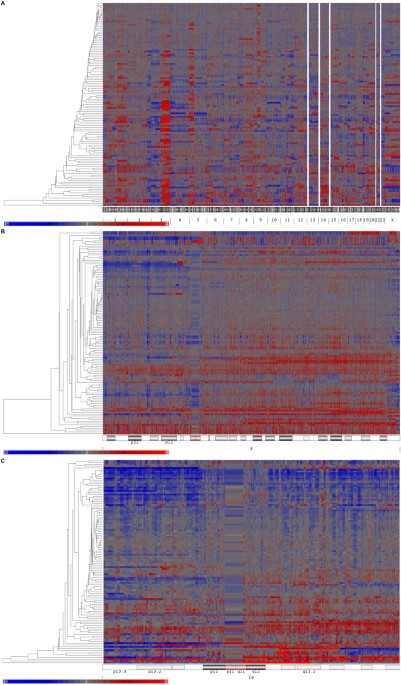

representative regions such as 1q, particularly 1q32.1 where the IL10 and IL24 genes are encoded, with over representation in ~23% of the CC samples. As expected, chromosome 3 showed mostly

gain of DNA material. The most altered regions in the chromosome were at 3q26 and 3q21 where ~60% of the CC samples showed gains in DNA material. Recently, we reported that a tumor

suppressor gene in CC, CRBP1 was located in the same region14. Interestingly, chromosome 8q22.3 where KLF10 gene is localized was also gained in ~20% (22/115), lost in ~7% (8/115) and

unchanged in the remaining 73% (85/115) of the CC samples. Since immune related genes play an important role in CC, it was of interest to look for their alterations in CC. These studies

revealed that the 19q13.31 region was gained. The Pregnancy-Specific Beta-1 Glycoproteins (PSG), PSG2 gene was gained in ~20% (22/115), lost in ~7% (8/115) and unchanged in 73% (85/115). The

PSG5 gene was gained in ~20% (23/115), lost in ~6% (5/115) and unchanged in 76% (87/115) of the CC samples (Fig. 1). Validations of these CNV results are required. KLF AND IMMUNE RESPONSE

GENES EXHIBIT ALTERED EXPRESSION IN CC Once the candidate genes were spotted by DNA gain in copy number, our second approach was to examine their mRNA expression levels using microarray

analysis. For this purpose, we compared the transcriptome of normal cervix and cervical cancer tissues, by _in silico_ analysis of publically available microarray libraries. Kruppel like

factors 5 and 6 were among other genes that exhibited alterations in these analyses. These two genes were previously described to be up-regulated in CC by our group10. In spite of DNA

amplification, KLF10 mRNA expression levels did not differ between normal and CC tissues (Fig. 2), and there where no significant clinico-pathological correlations with KLF10 (Table 1).

Interestingly, genes from the PSG family exhibited increased expression in CC (Fig. 2). Multiple interleukins and chemokines including IL17, CXCL8, CXCL1, CXCL10 and CCL20 were up-regulated

in CC samples compared to normal tissue (Fig. 2). We also observed homogeneous expression patterns for KLF3, −7, −8, −11 and −15. However, only KLF10 and KLF15 consistently exhibited copy

number gains across these samples. Of these two genes, only KLF10 is known to play an important role in immune regulation. UP-REGULATION OF PSG2, PSG5 AND IL25 GENES IN CERVICAL CANCER

TISSUE BIOPSIES The transcripts exhibiting altered expression in the _in silico_ CC microarray analyses were further evaluated in the cervical cancer biopsies collected (20 CC and 3 normal

cervix samples). We decided to validate the PSG2 and PSG5 genes, because they were found to be consistently gained in copy number and alternatively expressed in CC. Simultaneously, we also

evaluated IL25 (IL17E), because several IL17 family members were up-regulated in CC samples and also participate in immune regulation. RT-qPCR analyses revealed increased expression of PSG2

and PSG5 by 1.76 and 3.97 fold respectively in CC samples, compared to normal tissues. At the same time, a 2.25 fold up-regulation of IL25 was observed in CC samples (Fig. 2). These genes

could represent attractive targets for immune based therapy. KLF10 KNOCK DOWN (KD) IN SIHA CERVICAL CARCINOMA CELLS DOWN-REGULATES THE PSG2 AND PSG5 GENES Given our findings of DNA copy

number gains and the increased expression of the PSG genes and IL25, we next assessed the proximal promoter regions of the PSG2, PSG5 and IL25 genes for KLF10 binding sites. Interestingly,

the proximal core promoter regions of the PSG2, PSG5 and IL25 genes contained at least two putative KLF binding sequences (Fig. 3). To explore this further, we knocked down KLF10 in the SiHa

cervical cancer cell line and perform microarray analyses. The SiHa cell line was chosen as an experimental model for KLF10 knock down because this cell line was established from a cervical

squamous cell carcinoma that contains HPV16 sequences, most of CC cases have similar parameters. Once the validation of at least 70% down regulation of KLF10 protein expression was achieved

(Fig. 3), we carried out microarray analysis to identify altered genes whose expression levels were altered due to suppression of KLF10 expression. Genes previously described as

transcriptionally regulated by KLF10 such as fibroblast growth factor receptor (FGFR), epidermal growth factor receptor (EGFR), TGFβ receptor II, and runt-related transcription factor (RUNX)

among others showed down-regulation in the KLF10 knocked down cells. Supplementary Tables 1 and 2 shows the list of genes up- and down-regulated. Pathway analysis of the microarray data

using genes whose expression was significantly decreased by at least 1.5 fold indicated that KLF10 participates in several processes including the melanoma pathway and metabolism of

xenobiotics by cytochrome P450 among others. DAVID and WebGESTALT based gene pathway analysis showed that the most altered events were associated with cytokines. The down-regulated cytokines

detected in the microarray analysis included IL6, IL17A, IL25 and the chemokines CXCL1, −11–13, CCL3, −11, −13, −16 among others (Fig. 3, Table 2). We also observed suppression of

Arachidonate Lipoxygenase (ALOX) ALOXE3 and ALOX15, which are bioactive lipid metabolizing enzymes known to be associated with immune modulation. As expected, down-regulation of PSG2 and −5

were observed following suppression of KLF10 (Fig. 3). The genes down-regulated were not the only ones affected in relation to immune system response, the up-regulation of several genes

involved in immune-related functions were also observed, that include IL7, IL17C, and IL32. Chemokine CCL14 and a number of cytokines and chemokines receptors were also up-regulated.

DOWN-REGULATION OF PSG AND INTERLEUKIN MRNA IN KLF10 KD CELLS Altered expression of PSG2, PSG5 and IL25 following KLF10 knock down were selected for further validation because of their

correlation with DNA gain in copy number and microarray expression patterns in CC, and their previous association with immune system response. Since IL6 is known to be up-regulated in CC5,

we used this as a control to validate the microarray results. Of the transcripts analyzed, PSG2 was the most differentially expressed gene, both in the microarray data (−2.87) as well as in

the RT-qPCR analysis with a down regulation of 89% in the KLF10 siRNA treated cells compared to control cells, IL25 was down-regulated by 52%, PSG5 by 43% and IL6 by 38% following knockdown

of KLF10 (Fig. 3). MICROARRAY RESULTS OF CERVICAL TISSUES OF KLF10 KNOCK OUT (KO) MICE Genes previously known as direct transcriptional targets of KLF10 including FGFR and RUNX exhibited

down regulation in KO mouse cervical tissue, results that were similar to our KLF10 knocked down CC cell line (Supplementary Tables 3 and 4). DAVID and WebGESTALT KEGG-based analyses of the

down-regulated genes revealed that KLF10 participates in processes such as neuroactive ligand-receptor interaction, cancer related pathways as well as metabolism of xenobiotics by cytochrome

P450, JAK-STAT signaling, cell adhesion molecules (CAM’s), cytokine-cytokine receptor interaction and the chemokine signaling pathways (Table 3). Interestingly, immune response genes such

as PSG17, −21, −23, IL11, interleukin 1 receptor-like 1 (IL1RL1), IL1RAP, chemokines CCR8, CCL28 and XCL1 (Fig. 3) were also down-regulated in KLF10 KO cervical tissues. Additionally,

ALOX15, which was recently described to participate in the immune response in cancer, was also down regulated in KLF10 mice. Up-regulation of IL21, IL12B and cytokine and chemokine receptors

as well as IL3RA, IL9R and CCR4 were observed. These results are in concordance with the results obtained in our cell line studies. VALIDATION OF PSG MRNA RESULTS IN KLF10 KO MICE The PSG

family members were chosen for RT-qPCR validation, as they are relatively novel molecules involved in cancer and pregnancy immune system regulation. As shown in Fig. 3, we observed that

PSG17 was down-regulated 18%, PSG21 90% and PSG23 92% in KLF10 KO mouse cervical tissues compared to KLF10 WT controls (Fig. 3). KLF10 ASSOCIATES WITH PSG GENE PROMOTERS Given our results

indicating decreased expression of PSG2 and −5 in SiHa cancer cells and cervical tissues following loss of KLF10 expression, and in light of the _in silico_ analyses indicating putative

KLF10 binding sites located in the promoter regions of these genes, we sought to determine if KLF10 indeed binds to these sites. Chromatin immunoprecipitations assays (ChIP) confirmed KLF10

binding to the PSG2 and PSG5 promoter regions. These results are consistent with our gene expression studies and provide further evidence that PSG2 and PSG5 are direct KLF10 target genes in

the cervix (Fig. 3). DISCUSSION Genomic instability is manifested by gains and losses of chromosomal regions in cancer. Importantly, the recurrence of specific aberrations (both

amplifications and deletions) at particular sites in the genome indicates that such sites are likely to harbor genes whose alteration favors neoplastic progression2. Along with DNA

alterations, transcriptomic analysis and particular mRNA expression profiles could indicate which molecular pathways are altered and contribute to disease development and progression. In the

present study, we have identified novel molecular markers that are likely to play important roles in CC and its immune regulation. Although many genes were identified, KLF10 was a

transcription factor that exhibited copy number amplification and which exhibited high expression levels in cervical cancer biopsies10. This gene is known to play an important role in immune

response and TGFβ signaling pathway10. Copy number amplification of this gene has also been reported in lung cancer15. Low-Grade squamous intraepithelial lesions exhibit slightly altered

patterns of differentiation and are frequently cleared by the immune system in less than a year, however, some of these lesions can persist and progress to CC3. Immune system response, both

pro- and anti- inflammatory processes, has recently been recognized as part of the “hallmarks of cancer” and plays a pivotal role in the development and progression of transformed cells2. It

has been reported that there is an imbalance in the Th1/Th2/Th17 immune responses that are associated with differential expression of anti- and pro- inflammatory cytokines in CC16,17. By a

broad definition, inflammation involves tissue-remodeling events that are associated with alterations in epithelial, vascular and immune cell functions18. Specific molecular pathways

involving a host of transcription factors, cytokines, chemokines, growth factors and lipid mediators orchestrate these events. KLF family members have been implicated in the function and

differentiation of immune cells19. The up-regulation of IL6 in CC has been reported20 to promote the expression of vascular endothelial growth factor (VEGF) via the STAT3 pathway, and

therefore possibly mediates angiogenesis21 and autocrine growth factor signaling22. In light of immune cell skewing, IL6 has been shown to promote Th2 differentiation by induction of IL12,

to inhibit Th1 differentiation by suppression of IFNγ, and participates in B cell and macrophages differentiation23 and probably recruitment of Th17 cells24. IL25 (IL17E) belongs to the IL17

family and has been implicated in the expression of NF-κβ, activation of MAPK, as well as promotion of eosinophilic infiltration, mucus production and epithelial cell hyperplasia25. It is

also involved in Th2 and Th9 differentiation26. To our knowledge this is the first report indicating IL25 up-regulation in CC, although its role in this disease is not yet fully understood.

IL25 was not the only member of the IL17 family affected by down-regulation of KLF10 as IL17A also exhibited decreased expression at the mRNA level in the present study. This gene has been

shown to be over expressed in CC and plays a critical role in migration by induction of matrix metalloproteinase 2 and −9 trough p38/NF-κβ pathway27 and regulates angiogenesis by induction

of VEGF28. On the other hand, Pregnancy-Specific Beta-1 Glycoproteins comprise a family of 10 genes (PSG1–9, and −11) and one pseudogene (PSG10) clustered in the 19q13.31 cytogenetic region.

They are members of the carcinoembryonic antigen family29. Our CNV results show a gain in copy number of the 19q13.31 cytogenetic region, were the PSG gene cluster is encoded. Here we

report the up-regulation of two members, PSG2 and PSG5, and to our knowledge this is the first report showing up regulation of PSG mRNA molecules in CC. Members of the PSG family have been

shown to be up-regulated in breast and gastric cancers30,31. The members of this family have also been implicated in angiogenesis as well as tubulogenesis by two possible mechanisms, one by

the regulation of TGFβ and the other by interaction with glycosaminoglycans29. The PSG family members are also involved in the differentiation of Th1, Th2, Th17 and Treg cells by increasing

the expression of cytokines such as IL6, −10, −17 and TGFβ32,33. Through the use of _in silico_ analyses, we have demonstrated that IL6, IL25 and PSG genes are potential targets for KLF10

since they possess KLF binding sites in their proximal promoters. This possibility was confirmed by ChIP assay demonstrating recruitment of KLF10 to these putative binding sites. There is

evidence that KLF10 acts as a transcriptional regulator of cytokines and chemokines including IL12p40, TGFβ11 and possibly IL613 CCR7 as well as the receptor CXCR434. There is also clear

evidence that other members of the KLF family can regulate the transcription of PSG genes29. It has been shown that CC derived cells exhibit deregulation of IL6, IL17A and IL17E which

subsequently influencing leukocytosis35. All of these CC derived cell lines also express KLF10, as evidenced from our findings. Similarly, there are reports demonstrating that KLF10−/− mice

have higher expression of cytokines that influence the Th1 and Th2 differentiation profiles9. Our results support the possibility that KLF10 plays an important role in regulating essential

genes such as PSG2 and −5 in CC and also plays a critical role in immune modulation within the cervix. Given that KLF10-specific small molecule inhibitors have been developed and are known

to elicit potent effects in T cells36, such drugs could represent a novel treatment for CC. CONCLUSIONS Here, we demonstrate that KLF10 plays important roles in the transcriptional

regulation of genes involved in the immune system response including IL6, IL25 and members of the PSG family. Regulation of these genes is important with regard to the immunoediting process

in cervical tissue and likely contributes to CC development and progression. The gain in DNA copy number for the 8q22.3 and 19q13.31 cytogenetic regions represent potential DNA molecular

markers in CC. The increased expression of IL25, PSG2 and PSG5 could also serve as molecular markers and potential drug targets for immune-based therapies in CC, and may also play important

roles in the balance of the immune system response in CC. MATERIALS AND METHODS CNV _IN SILICO_ ANALYSIS, DATA MINING AND ANALYSIS For copy number variation analysis, a total of 115 cancer

libraries and 32 control libraries corresponding to GSE10092 and GSE52904 were downloaded and quality control checked prior to analysis. Partek v6.6 (Partek Incorporated, Saint Louis, MO,

USA) were used with stringent parameters set as follows: each segment must contain a minimum of 10 consecutive filtered probe sets, a p-value threshold of 0.001 when compared to the

neighboring adjacent regions and a signal-to-noise threshold of 0.5. The cut-off value for the gain was set at above 2.3, while loss was set at below 1.7. CNV was called for the gains or

losses that occurred in at least 10% of the total samples. The 22 somatic chromosomes and the X chromosome were analyzed. Hierarchical clustering was performed using the following

parameters: sample dissimilarity: Euclidian and cluster method: average linking. _IN SILICO_ ANALYSIS OF THE CERVICAL CANCER TRANSCRIPTOME A total of 8 normal (N) and 57 cervical cancer (CC)

experiments were downloaded and analyzed. The data used for these analyses were downloaded from European Bioinformatics Institute (EMBL-EBL) and GEO. These data correspond to GSE7307,

GSE5787, GSE3526 and 1 Gene Expression Atlas (GSE2109) corresponding to Affymetrix Human Gene Chip U133 platform. Quality control checks were performed on all transcriptomic libraries

downloaded, prior to inclusion in the analysis. Data sets were analyzed by means of CEL files with the Expression Console, Partek Genomics Suite 6.6 v software (Partek Incorporated, Saint

Louis, MO, USA) and Transcriptome Analysis Console (Affymetrix, Santa Clara, CA, USA). Pearson and Spearman correlation was performed and probe sets were summarized by means of Median Polish

and normalized by quantiles with no probe sets excluded from analysis. Background noise correction was achieved by means of Robust Multi-chip Average (RMA) and data were log2- transformed.

Data grouping and categorization was achieved by principal component analysis (PCA). Differentially expressed genes were determined by means of ANOVA. Genes were considered altered with +1.5

or −1.5 fold change, _p_ ≤ _0.05_ and FDR >0.05 parameters. CERVICAL TISSUE COLLECTION For confirmation of the _in silico_ findings, we collected three histologically normal tissues and

twenty carcinomas. Patients were recruited with signed informed consent and ethical approval from the Comisión Nacional de Ética e Investigación Científica del Instituto Mexicano del Seguro

Social in accordance with the Helsinki declaration. These same cervical tissues have been previously described10. KLF10 KNOCK OUT AND WILD TYPE MICE Eight weeks old female KLF10−/− knockout

(KO) and KLF10+/+ wild-type (WT) mice were used for isolation of the cervical tissues that were used in the microarray experiments. The KLF10 KO mice used in this study were generated as

described previously37. This study was carried out in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health.

The protocol was approved by the Mayo Clinic Institutional Animal Care and Use Committee. CELL CULTURE AND SIRNA TREATMENT All reagents used for the cell culture and siRNA transfection were

purchased from Life Technologies (Foster City, USA) unless otherwise stated. The SiHa cell line was cultured in Dulbecco’s Modified Eagle Medium (DMEM) supplemented with 10% fetal bovine

serum (FBS) and 1% penicillin/streptomycin at 37 °C in 5% CO2 in 12 well plates. Transient transfection was performed using KLF10-specific Silencer Select siRNA: s14129 and s14128, and

Lipofectamine RNAiMAX reagent was used for transfection. Briefly, approximately 90’000 SiHa cells per well were seeded and cultured overnight. Seventy nM siRNA was diluted in Opti-MEM media

generating solution 1, Lipofectamine RNAiMAX was diluted in Opti-MEM media generating solution 2. Solution 1 and 2 were mixed at equal volumes and incubated at room temperature for 20 min,

following the manufacturer’s protocol, and the mixture was added to SiHa cells in a total volume of 500 μl. As a negative control, a scrambled siRNA (AM4611) was transfected with the same

conditions as the KLF10 siRNA mentioned above. A GFP expression construct was used as a positive control. For comparison purposes, SiHa cell cultured in the absence of any treatment were

also examined. Six hours following transfection, 500 μl of DMEM supplemented media was added to the cell culture. All treatments were performed in triplicate a minimum of three independent

times. Forty-eight hours post transfection; RNA was isolated, pooled and used for microarray experiments. HYBRIDIZATION AND ANALYSIS OF MICROARRAY DATA PRINTING OF ARRAYS Human 70-mer oligo

library from OPERON Oligo Sets (http://omad.operon.com/) was resuspended to 40 μM in Micro Spotting solution (Telechem International Inc.). SuperAmine coated slides, 25 × 75 mm (TeleChem

International INC) were printed in single copy, and fixed at 80 °C for 4 hours. For pre-hybridization, the slides were re-hydrated with water vapor at 60 °C, and fixed with two cycles of UV

light (1200 J). After boiling for two minutes at 92 °C, slides were washed with 95% ethanol for one minute and prehybridzed in 5 × SSC, 0.1% SDS and 1% BSA for one hour at 42 °C. The slides

were washed and dried prior to hybridization. PROBE PREPARATION AND HYBRIDIZATION TO ARRAYS RNA integrity was analyzed both by agarose gel electrophoresis and by a Bioanalyzer 2100 and only

samples with RNA Integrity Numbers (RIN) greater than 8 were used in these assays. 10 μg of total RNA were used for cDNA synthesis incorporating dUTP-Alexa555 or dUTP-Alexa647 employing the

CyScribe First-Strand cDNA labelling kit (Amersham). Incorporation of fluorophore was analyzed by absorbance at 555 nm for Cy3 and 655 nm for Cy5. Equal quantities of labeled cDNA were

hybridized using hybridization solution HybIT2 (TeleChem International INC). The arrays were incubated for 14 h at 42 °C, and then washed tree times with 1 × SCC, 0.05% SDS at room

temperature. Cy3 labeling was used for control SiHa control cells and WT mouse tissue while Cy5 labeling was used for KLF10 siRNA-treated cells and KO mouse tissue. DATA ACQUISITION AND

ANALYSIS OF ARRAY IMAGES Acquisition and quantification of array images was performed in ScanArray 4000 with its accompanying software ScanArray 4000 from Packard BioChips. All images were

captured using 65% PMT gain, 70 to 75% laser power and 10 µm resolution at 50% scan rate. For each spot the Cy3 and Cy5 density mean value and the Cy3 and Cy5 background mean value were

calculated with software ArrayPro Analyzer from Media Cibernetics. DATA ANALYSIS Microarray data analysis was performed with free software genArise, developed in the Computing Unit of

Cellular Physiology Institute of UNAM (http://www.ifc.unam.mx/genarise/). GenArise carry out a number of transformations: background correction, Lowess normalization, intensity filter,

replicates analysis and selecting differentially expressed genes. The goal of genArise is to identify which of the genes show good evidence of being differentially expressed. The software

identifies differential expressed genes by calculating an intensity-dependent z-score. Using a sliding window algorithm to calculate the mean and standard deviation within a window

surrounding each data point, and define a z-score where z measures the number of standard deviations a data point is from the mean.

$${{\rm{z}}}_{{\rm{i}}}=({{\rm{R}}}_{{\rm{i}}}-{\rm{mean}}({\rm{R}}))/{\rm{sd}}({\rm{R}})$$ (1) where zi is the z-score for each element, Ri is the log-ratio for each element, and sd(R) is

the standard deviation of the log-ratio. With this criterion, the elements with a z-score >1.5 standard deviations would be the significantly differentially expressed genes. Furthermore,

WebGESTALT (http://bioinfo.vanderbilt.edu/webgestalt/) and DAVID (http://david.abcc.ncifcrf.gov) were used for identifying and understanding the biological pathway and processes that are

significantly altered based on the gene expression profiles. These analyses were conducted using KLF10 target genes that were significantly down regulated in KLF10 siRNA treated cells or

KLF10 KO tissues. RNA EXTRACTION, REVERSE TRANSCRIPTION REACTION AND RT-QPCR RNA was extracted from SiHa siRNA-treated and control cells, mouse KO and WT cervical tissue and the cervical

cancer biopsies from patients using the RNAeasy Mini Kit (Qiagen Inc, CA, USA) according to manufacturer’s instructions. RNA was quantified using a Nanodrop-ND-1000 (Thermo Scientific, DE,

USA) and RNA integrity was evaluated on 1.5% agarose gel and by a Bioanalyzer 2100. After purification, 1 μg of total RNA was reverse transcribed in a 20 μl final volume reaction with the

High capacity RNA-to-cDNA Kit (Applied Biosystems, Foster City, USA), 11 μl of Mix were added, and the reaction mixture was incubated at 37 °C for 60 min., and 95 °C for 5 min., and held at

4 °C indefinitely according to manufacturer protocols. For RT-qPCR of human PSG2, PSG5, IL6, Il25 and mouse PSG17, PSG21 and PSG23 all reagents were purchased from Applied Biosystems (Foster

City, USA), and conditions were as follows: 11 μl of Taqman Gene Expression Master Mix, 1 μl of each Taqman probe, 500 ng of cDNA in a 20 μl final volume, according to manufacturers

recommendation. RLPO and GAPDH for human and mouse respectively, were used as internal controls and all reactions were conducted in triplicate in the Step one thermal cycler (Applied

Biosystems). 2−ΔΔCt was used to calculate relative expression levels. Probe Id’s are listed in Supplementary Material and Methods Table 1. CHROMATIN IMMUNOPRECIPITATION FOR KLF10 BINDING

SITES IN PSG PROMOTERS Chromatin immunoprecipitations (ChIP) were performed using the EZ-ChIP kit (#17–371 Millipore, Darmstadt, Germany) according to the manufacturers instructions.

Briefly, 70% confluent SiHa cells were fixed with 1% formaldehyde for 10 min at room temperature and quenched with 10× glycine for 5 min. After quenching, cells were scraped in 1 × PBS

containing Protease Inhibitor Cocktail II, pelleted and the supernatant was discarded. Cell pellets were re-suspended in SDS Lysis Buffer containing Protease Inhibitor Cocktail II. Cells

were sonicated on ice using Sonics Vibracell VCX130 (Sonics, CT, USA). After sonication cell debris was eliminated by centrifugation at 12 000 g for 10 min at 4 °C. After this step, 900 μl

of Dilution Buffer containing Protease Inhibitor Cocktail II was added to each 100 μl of sheared crosslinked chromatin. Pre-clearing process was carried out by incubating with 60 μl of the

Proteing G Agarose beads for 1 h at 4 °C. The Protein G Agarose beads were collected by centrifugation at 4 000 g for 1 min at 4 °C. And 10 μl was collected as the Input loading control.

Immunoprecipitation was carried out using antibodies against RNA Pol II (positive control), mouse IgG (negative control), both provided by the EZ-ChIP kit manufacturer. KLF10 specific

antibodies (GTX108661; Genetex, CA, USA) and 992 (kindly donated by Drs. Subramaniam and Hawse, Mayo Clinic, USA) were also used. Immunoprecipitations were carried out via overnight

incubation at 4 °C with primary antibodies. Following incubation, 60 μl of Protein G Agarose beads was added and incubated for 1 hr at 4 °C, and Antibody-Antigen-DNA was collected by

centrifugation at 4 000 g for 1 min at 4 °C. Beads were washed by suspending them and incubating them for 5 min at 4 °C in Low Salt Immune Complex Wash Buffer one time, High Salt Immune

Complex Wash Buffer one time, LiCl Immune Complex Wash Buffer one time and TE Buffer two times. Complexes were eluted two times in 100 μl of elution buffer (10 μl 20% SDS, 20 μl de 1 M

NaHCO3 and 170 μl of water) and complex were suspended and incubated for 15 min at room temperature followed by centrifugation at 4 000 g for 1 min at 4 °C. Supernatant was collected and

transferred to a new tube, resulting in a final elution volume of 200 μl. To reverse DNA-Protein crosslinks, 5 M of NaCl was added and samples were incubated overnight at 65 °C. Followed by

addition of 1 μl of RNAse A and incubation at 37 °C for 30 min, to deplete al RNA species. For DNA extraction, 4 μl of 0.5 M EDTA, 8 μl of 1 M Tris-HCl and 1 μl of Proteinase K were added,

and incubated for 4 hrs at 45 °C. DNA purification was performed using columns and reagents provided by the kit. Binding Buffer A, 1 ml for every 200 μl of elution buffer, was added, and 600

 μl transferred to the column, centrifuged 12 000 g for 30 sec, this step repeated two times, until the 1.2 ml were passed through the column. Column was washed with 500 μl of Washing Buffer

B and centrifuged 12 000 g for 30 sec. Centrifugation at 12 000 g for 30 sec was repeated to eliminate the excess of buffers in the column. DNA was eluted in 50 μl of Elution Buffer C by

centrifugation at 12 000 g for 30 sec. To evaluate candidate gene-promoters PCR was conducted as follows; 12.5 μl of GoTaq® Green Master Mix (Promega, WI, USA), 5 μl of ChIP-DNA template,

and 20 pmol of each primer, in a 25 μl total volume reaction, with the following program: 30 seconds at 95 °C, 30 seconds at 59 °C and 30 seconds at 72 °C for 32 cycles. The GAPDH promoter

was analyzed in the ChIP assays as a positive control (RNA Pol II Ab), Pregnancy-Specific Beta-1 Glycoproteins 2 and 5 gene promoters were evaluated in KLF10 ChIP and IgG ChIP (Negative

control) samples. Sequences of corresponding primers are listed in Supplementary Material and Methods Table 1. STATISTICAL ANALYSIS Clinical and pathological relation analysis was performed

by means of the Student’s t-test for the gene expression studies and for clinical and pathological parameters that were normally distributed in the data sets. For non-normally distributed

parameters, the Mann-Whitney U test was utilized. All p-values represent two-tailed tests and were considered significant at 0.05. Statistical analysis was performed using SPSS v15

statistical software. REFERENCES * Woodman, C., Collins, S. & Young, L. The natural history of cervical HPV infection: unresolved issues. _Nat Rev Cancer._ 7, 11–22 (2007). Article

PubMed  CAS  Google Scholar  * Hanahan, D. & Weinberg, R. Hallmarks of Cancer: The Next Generation. _Cell._ 144, 646–674 (2011). Article  PubMed  CAS  Google Scholar  * Kanodia, S.,

Fahey, L. & Kast, M. Mechanisms Used by Human Papillomaviruses to Escape the Host Immune Response. _Current Cancer Drug Targets_ 7, 79–89 (2007). Article  PubMed  CAS  Google Scholar  *

Tindle, W. Immune evasion in human papillomavirus-associated cervical cancer. _Nat Rev Cancer._ 2, 59–65 (2002). Article  PubMed  CAS  Google Scholar  * Boccardo, E., Lepique, A. &

Villa, L. The role of inflammation in HPV carcinogenesis. _Carcinogenesis._ 31, 1905–1912 (2010). Article  PubMed  CAS  Google Scholar  * Tjiong, M. _et al_. Increased IL-6 and IL-8 Levels

in Cervicovaginal Secretions of Patients with Cervical Cancer. _Gynecol Oncol._ 73, 285–291 (1999). Article  PubMed  CAS  Google Scholar  * Tartour, E. _et al_. Interleukin 17, a

T-cell-derived Cytokine, Promotes Tumorigenicity of Human Cervical Tumors in Nude Mice. _Cancer Res._ 59, 3698–3704 (1999). PubMed  CAS  Google Scholar  * Zijlmans, H. _et al_. The absence

of CCL2 expression in cervical carcinoma is associated with increased survival and loss of heterozygosity at 17q11.2. _J Pathol._ 208, 507–517 (2006). Article  PubMed  CAS  Google Scholar  *

Cao, Z., Sun, X., Icli, B., Wara, A. & Feinberg, M. Role of Kruppel-like factors in leukocyte development, function, and disease. _Blood._ 116, 4404–4414 (2010). Article  PubMed  PubMed

Central  CAS  Google Scholar  * Marrero-Rodríguez, D. _et al_. Krüppel-like factor 5 as potential molecular marker in cervical cancer and the KLF family profile expression. _Tumour Biol._

35, 11399–11407 (2014). Article  PubMed  CAS  Google Scholar  * Cao, Z. _et al_. Kruppel-like Factor KLF10 Targets Transforming Growth Factor-1 to Regulate CD4 CD25 T Cells and T Regulatory

Cells. _JBC._ 284, 24914–24924 (2009). Article  CAS  Google Scholar  * Subramaniam, M., Hawse, J., Rajamannan, N., Ingle, J. & Spelsberg, T. Functional role of KLF10 in multiple disease

processes. _Biofactors._ 36, 8–18 (2010). PubMed  PubMed Central  CAS  Google Scholar  * Zhang, W. _et al_. Klf10 inhibits IL-12p40 production in macrophage colony-stimulating factor-induced

mouse bone marrow-derived macrophages. _Eur J Immunol._ 43, 258–269 (2013). Article  PubMed  CAS  Google Scholar  * Mendoza-Rodríguez, M. _et al_. Cellular binding retinol protein 1 could

be a tumor suppressor gene in cervical cancer. _Int J Clin Exp Pathol._ 6, 1817–1825 (2013). PubMed  PubMed Central  Google Scholar  * Zhang, Y., Xue, Q., Pan, G., Meng, Q. T. X. & Cai,

X. _et al_. Integrated Analysis of Genome-Wide Copy Number Alterations and Gene Expression Profiling of Lung Cancer in Xuanwei, China. _PLoS One_ 12, e0169098 (2017). Article  PubMed  PubMed

Central  Google Scholar  * Bais, A. _et al_. A shift to a peripheral Th2-type cytokine pattern during the carcinogenesis of cervical cancer becomes manifest in CIN III lesions. _J Clin

Pathol._ 58, 1096–1100 (2005). Article  PubMed  PubMed Central  CAS  Google Scholar  * Zhang, Y. _et al_. The imbalance of Th17/Treg in patients with uterine cervical cancer. _Clinica

Chimica Acta._ 412, 894–900 (2011). Article  CAS  Google Scholar  * Sales, K. & Katz, A. Inflammatory pathways in cervical cancer-The University of Cape Town’s contribution. _SAMJ._ 102,

493–496 (2012). Article  PubMed  CAS  Google Scholar  * Tetreault, M., Yang, Y. & Katz, J. Krüppel-like factors in cancer. _Nat Rev Cancer._ 13, 701–713 (2013). Article  PubMed  CAS

Google Scholar  * Vazquez, G. _et al_. Gene Identification by cDNA Arrays in HPV-Positive Cervical Cancer. _Archives of Medical Research._ 36, 448–458 (2005). Article  PubMed  CAS  Google

Scholar  * Wei, L. _et al_. Interleukin-6 promotes cervical tumor growth by VEGF-dependent angiogenesis via STAT3 pathway. _Oncogene._ 22, 1517–1527 (2003). Article  PubMed  CAS  Google

Scholar  * Eustace, D. _et al_. Interleukin-6 (IL-6) functions as an autocrine growth factor in cervical carcinomas _in vitro_. _Gynecol Oncol._ 50, 15–19 (1993). Article  PubMed  CAS

Google Scholar  * Diehl, S. & Rincon, M. The two faces of IL-6 on Th1/Th2 differentiation. _Mol Immunol._ 39, 531–536 (2002). Article  PubMed  CAS  Google Scholar  * Ju, X. _et al_.

Interleukin-6–Signal Transducer and Activator of Transcription-3 Signaling Mediates Aortic Dissections Induced by Angiotensin II via the T-Helper Lymphocyte 17–Interleukin 17 Axis in C57BL/6

Mice. _Arterioscler Thromb Vasc Biol._ 33, 1612–1621 (2013). Article  PubMed  CAS  Google Scholar  * Monteleone, G., Pallone, F. & MacDonald, T. Interleukin-25: A two-edged sword in the

control of immune-inflammatory responses. _Cytokine Growth Factor Rev._ 21, 471–475 (2010). Article  PubMed  CAS  Google Scholar  * Reynolds, J., Angkasekwinai, P. & Dong, C. IL-17

family member cytokines: Regulation and function in innate immunity. _Cytokine Growth Factor Rev._ 21, 413–423 (2010). Article  PubMed  PubMed Central  CAS  Google Scholar  * Feng, M. _et

al_. IL-17A Promotes the Migration and Invasiveness of Cervical Cancer Cells by Coordinately Activating MMPs Expression via the p38/NF-kB Signal Pathway. _PLoS One._ 24, e108502 (2014).

Article  ADS  CAS  Google Scholar  * Murugaiyan, G. & Saha, B. Protumor vs antitumor functions of IL-17. _J Immunol._ 183, 4169–4175 (2009). Article  PubMed  CAS  Google Scholar  *

Moore, T. & Dveksler, G. Pregnancy-specific glycoproteins: complex gene families regulating maternal-fetal interactions. _Int J Dev Biol._ 58, 273–280 (2014). Article  PubMed  CAS

Google Scholar  * Skinner, j. & Whitehead, R. Pregnancy-specific glycoprotein (sp1) in tumours of the human gastrointestinal tract. _Br j Cancer._ 44, 476–478 (1981). Article  PubMed

PubMed Central  CAS  Google Scholar  * Sorensen, S., Andersen, J. & Norgaard, T. Pregnancy-specific beta 1-glycoprotein (SP1) in serum and tissue from patients with benign and malignant

breast tumours. _Br J Cancer._ 49, 663–667 (1984). Article  PubMed  PubMed Central  CAS  Google Scholar  * Martinez, F., Cervi, L., Knubel, C., Panzetta, G. & Motran, C. The Role of

Pregnancy-Specific Glycoprotein 1a (PSG1a) in Regulating the Innate and Adaptive Immune Response. _Am J Reprod Immunol_ 69, 383–394 (2013). Article  PubMed  CAS  Google Scholar  * Martínez,

F., Knubel, C., Sánchez, M., Cervi, L. & Motrán, C. Pregnancy-specific glycoprotein 1a activates dendritic cells to provide signals for Th17-, Th2-, and Treg-cell polarization. _Eur J

Immunol._ 42, 1573–1584 (2012). Article  PubMed  CAS  Google Scholar  * Wara, A. _et al_. Bone marrow-derived Kruppel-like Factor 10 Controls Re-endothelialization in Response to Arterial

Injury. _Arterioscler Thromb Vasc Biol._ 33, 1552–1560 (2013). Article  PubMed  CAS  Google Scholar  * Cardozo, S., Marques, R., Lima, A. & Lepique, A. HPV associated tumor cells control

tumor microenvironment and leukocytosis in experimental models. _Immun Inflamm Dis._ 2, 63–75 (2014). Article  CAS  Google Scholar  * Khedkar, S., Sun, X., Rigby, A. & Feinberg, M.

Discovery of Small Molecule Inhibitors to Krüppel-like Factor 10 (KLF10): Implications for Modulation of T Regulatory Cell Differentiation. _J. Med. Chem._ 58, 1466–1478 (2015). Article

PubMed  PubMed Central  CAS  Google Scholar  * Subramaniam, M. _et al_. TIEG1 Null Mouse-Derived Osteoblasts Are Defective in Mineralization and in Support of Osteoclast Differentiation _In

Vitro_. _Mol. Cell. Biol._ 25, 1191–1199 (2005). Article  PubMed  PubMed Central  CAS  Google Scholar  Download references ACKNOWLEDGEMENTS During this work, the authors DMR, KTP, VHP, PRM,

MMR and MRE were recipients of a Consejo Nacional de Ciencia y Tecnologia fellowship, CONACyT Mexico. We thank to Dra. Lorena Chávez González, Dr. Simón Guzmán León, Dr. José Luis Santillán

Torres, and Dr. Jorge Ramírez for technical assistance in the microarray experiments. Dr. Gerardo Coello, Dr. Gustavo Corral and Dra. Ana Patricia Gómez for genArise software assistance.

Drs. Subramaniam and Hawse from the Mayo Clinic, kindly donated the cervical tissues from KO and WT mice as well as the 992 KLF10 antibody. Mauricio Salcedo is a recipient of Fundacion IMSS

A.C. Mexico fellowship. This work was partially supported by grant 202222 from Fondos Sectoriales Consejo Nacional de Ciencia y Tecnologia-Mexico (MS). This work was also supported by a NIH

Grant DE 14036 (JRH and MS). AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Laboratorio de Oncología Genómica, Unidad de Investigación Médica en Enfermedades Oncológicas, Hospital de

Oncología, CMN-SXXI. IMSS, CDMX, Mexico Daniel Marrero-Rodríguez, Keiko Taniguchi-Ponciano, Hugo Arreola-De la Cruz, Victor Huerta-Padilla, Gustavo Ponce-Navarrete, Monica Mendoza-Rodriguez,

 Miriam Rodriguez-Esquivel, Pablo Romero-Morelos & Mauricio Salcedo * Departamento de Biomedicina Molecular, CINVESTAV, CDMX, Mexico Daniel Marrero-Rodríguez, Ma. del Pilar

Figueroa-Corona, Laura Gomez-Virgilio, Teresa I. Martinez-Cuevas, Monica Mendoza-Rodriguez & Marco Meraz-Rios * Department of Biochemistry and Molecular Biology, Mayo Clinic, Rochester,

MN, USA Malayannan Subramaniam, John R. Hawse & Kevin S. Pitel * Unidad de Microarreglos de DNA, Instituto de Fisiologia Celular, UNAM, CDMX, Mexico Jorge Ramirez-Salcedo * Institute of

Molecular Life Sciences, University of Zurich, 8057, Zurich, Switzerland Michael Baudis * Laboratorio de Biotecnología, Universidad Autonóma de Ciudad Juárez, Ciudad Juárez, Chihuahua,

Mexico Florinda Jimenez-Vega Authors * Daniel Marrero-Rodríguez View author publications You can also search for this author inPubMed Google Scholar * Keiko Taniguchi-Ponciano View author

publications You can also search for this author inPubMed Google Scholar * Malayannan Subramaniam View author publications You can also search for this author inPubMed Google Scholar * John

R. Hawse View author publications You can also search for this author inPubMed Google Scholar * Kevin S. Pitel View author publications You can also search for this author inPubMed Google

Scholar * Hugo Arreola-De la Cruz View author publications You can also search for this author inPubMed Google Scholar * Victor Huerta-Padilla View author publications You can also search

for this author inPubMed Google Scholar * Gustavo Ponce-Navarrete View author publications You can also search for this author inPubMed Google Scholar * Ma. del Pilar Figueroa-Corona View

author publications You can also search for this author inPubMed Google Scholar * Laura Gomez-Virgilio View author publications You can also search for this author inPubMed Google Scholar *

Teresa I. Martinez-Cuevas View author publications You can also search for this author inPubMed Google Scholar * Monica Mendoza-Rodriguez View author publications You can also search for

this author inPubMed Google Scholar * Miriam Rodriguez-Esquivel View author publications You can also search for this author inPubMed Google Scholar * Pablo Romero-Morelos View author

publications You can also search for this author inPubMed Google Scholar * Jorge Ramirez-Salcedo View author publications You can also search for this author inPubMed Google Scholar *

Michael Baudis View author publications You can also search for this author inPubMed Google Scholar * Marco Meraz-Rios View author publications You can also search for this author inPubMed

Google Scholar * Florinda Jimenez-Vega View author publications You can also search for this author inPubMed Google Scholar * Mauricio Salcedo View author publications You can also search

for this author inPubMed Google Scholar CONTRIBUTIONS D.M.R., M.S. and F.J.M. designed, conceived the study, analyze data, and engaged manuscript preparation. D.M.R., K.T.P. and H.A.-D.l.C.

download and analyzed microarray data. D.M.R., K.T.P., M.S., J.R.H. and K.S.P. performed knockout and knockdown experiments, tissue harvest and antibody production. D.M.R., K.T.P., V.H.P.,

M.P.F.C., L.G.V. and T.I.M.C., carried out ChIP experiments. D.M.R., K.T.P., M.M.R., G.P.N., J.R.S. and M.B. perform the microarray experiments and analysis. D.M.R., K.T.P. M.M.R. and V.H.P.

performed RT-qPCR. M.R.E. and P.R.M. provide technical assistance. CORRESPONDING AUTHORS Correspondence to Florinda Jimenez-Vega or Mauricio Salcedo. ETHICS DECLARATIONS COMPETING INTERESTS

The authors declare no competing interests. ADDITIONAL INFORMATION PUBLISHER'S NOTE: Springer Nature remains neutral with regard to jurisdictional claims in published maps and

institutional affiliations. ELECTRONIC SUPPLEMENTARY MATERIAL SUPLEMENTARY INFORMATION  SUPPLEMENTARY LISTS 3 AND 4 SUPPLEMENTARY MATERIALS AND METHODS RIGHTS AND PERMISSIONS OPEN ACCESS

This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as

long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The images or other third

party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in a credit line to the material. If material is not included in the

article’s Creative Commons license and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright

holder. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Marrero-Rodríguez, D.,

Taniguchi-Ponciano, K., Subramaniam, M. _et al._ Krüppel-Like Factor 10 participates in cervical cancer immunoediting through transcriptional regulation of Pregnancy-Specific Beta-1

Glycoproteins. _Sci Rep_ 8, 9445 (2018). https://doi.org/10.1038/s41598-018-27711-8 Download citation * Received: 27 June 2017 * Accepted: 24 May 2018 * Published: 21 June 2018 * DOI:

https://doi.org/10.1038/s41598-018-27711-8 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
