ABSTRACT Frailty is an age-associated condition, characterized by an inappropriate response to stress that results in a higher frequency of adverse outcomes (e.g., mortality,

institutionalization and disability). Some light has been shed over its genetic background, but this is still a matter of debate. In the present study, we used network biology to analyze the

interactome of frailty-related genes at different levels to relate them with pathways, clinical deficits and drugs with potential therapeutic implications. Significant pathways involved in

frailty: apoptosis, proteolysis, muscle proliferation, and inflammation; genes as _FN1, APP, CREBBP, EGFR_ playing a role as hubs and bottlenecks in the interactome network and epigenetic

factors as _HIST1H3_ cluster and _miR200_ family were also involved. When connecting clinical deficits and genes, we identified five clusters that give insights into the biology of frailty:

cancer, glucocorticoid receptor, TNF-α, myostatin, angiotensin converter enzyme, ApoE, interleukine-12 and −18. Finally, when performing network pharmacology analysis of the target nodes,

some compounds were identified as potentially therapeutic (e.g., epigallocatechin gallate and antirheumatic agents); while some other substances appeared to be toxicants that may be involved

in the development of this condition. SIMILAR CONTENT BEING VIEWED BY OTHERS SHARED GENETIC ARCHITECTURE AND CAUSAL RELATIONSHIP BETWEEN FRAILTY AND SCHIZOPHRENIA Article Open access 21

February 2025 METABOLOMICS BIOMARKERS OF FRAILTY: A LONGITUDINAL STUDY OF AGING FEMALE AND MALE MICE Article Open access 23 May 2025 VALIDATION OF A POLYGENIC RISK SCORE FOR FRAILTY IN THE

LOTHIAN BIRTH COHORT 1936 AND ENGLISH LONGITUDINAL STUDY OF AGEING Article Open access 01 June 2024 INTRODUCTION As we age, physiological functions deteriorate, and these changes lead our

organism to become vulnerable and to express age-associated disorders1. Among them, frailty, an age-associated condition resulting in an inappropriate response to stress and a higher

frequency of adverse outcomes including, mortality, institutionalization and disability2. This condition results from the complex nature of _Homo sapiens_ and a lifetime of environmental

influences2. Light has been shed over the possible genetic factors involved in the origins of this condition; however, to what extent the heritability and genetic background affect an

individual’s frailty status is still a matter of debate, mainly because of the multifactorial nature of this condition3. For instance, Dato _et al_. found that the genetic component was

higher in men than in females4; nevertheless, the genetic background is not always the same and depends on several genes associated with the organism’s homeodynamic mechanisms as well as

with an environmental relationship yet unknown. Novel approaches are needed in order to disentangle the different characteristics of frailty and to narrow the gap in knowledge about this

condition with a systemic view. The latest technological advances in genomics allow to use different approaches to analyze complete biological systems at different levels of complexity. In

this context, systems biology, often referred as network biology5, has emerged over the last years as a novel paradigm in the field of big data biology aiming to improve our understanding of

system-level molecular interactions (interactomics) underlying complex cellular processes, which lead to organ dysfunction; and eventually to clinical expression. These phenomena can be

better analyzed using biological networks due to the fact that they possess several elements interacting with each other at different levels and emerging properties6. Biological networks;

represented as molecular diagrams of the cell and its functions, enable to visualize several molecular interactions. Moreover, network analysis allows us to advance into the discovery of

novel potential relationships and previously undiscovered paths through non-related molecules, enabling to figure the complete framework of multilevel cellular functions6. Network analysis

is the newest available approach to the analysis of the system as a whole, aiming to elucidate the molecular mechanisms of complex age-related diseases and conditions such as frailty7.

Network pharmacology is another application tool in systems biology, aiming to mitigate the time-consuming process of drug discovery8. It helps to understand drug interactions with different

targets and diseases from a network point of view9. These approaches, combined with other chemoinformatic methods synergize the drug repurposing process, since they allow to discover the

therapeutic potential of already known compounds with novel indications10. These approaches are often used to discover new mechanisms of action and possible adverse effects of drugs8.

Several research groups have used network pharmacology for different application, for instance, to explore bioactive ethnobotanical compounds with known use and to repurpose them for other

pharmacological use11,12. Other example is metformin that has been repurposed as a chemo-preventive drug and is already on clinical trials13. So, these methods are useful to help reposition

already used drugs (which have already proved to be safe in clinical trials) and to reveal possible novel mechanisms of action. In the present study, we contribute both: to improve the

understanding of the biology of frailty using different network biology analysis, and in therapeutics through network pharmacology analysis discovering novel possible targets and compounds

(drugs and toxicants) that could be useful in this condition. RESULTS In Fig. 1, is presented the network image showing the frailty-related genes14,15 (Supplementary Table 1S), along with

highly related genes according to different types of interactions (physical interactions, shared common signaling pathways, and co-expression information of frailty-related genes).Through

enrichment analysis of such genes, using different databases of pathways and diseases (Table 1), we observed that the most enriched pathways were apoptosis, proteolysis, smooth muscle

proliferation, cytokines, interleukins signaling and the inflammatory process that happened to be the most related pathway. Interestingly, nervous system diseases and proteostasis

deficiencies seem to be also highly related (Table 1). In Fig. 2, is presented the interactome network corresponding to the protein-protein interactions (PPI) as well as protein-miRNA

interactions with frailty-genes14,15. Network analysis identifies the more critical hubs and bottlenecks in the network (Table 2). Remarkably, there are transcription factors and proteins as

Histone cluster 1 H3 family member H as hubs and bottlenecks. The second section of Table 2 shows the miRNAs hubs involved in the network and disorders related with them, where mir200 is

among the most connected family of miRNAs (the complete list of miRNAs is in Supplementary Table 2S). Since the frailty index has been reported to be a clinically useful construct,

integrated by a number of deficits from multiple body systems, we used it, in order to relate such deficits (Supplementary Table 3S) with potential frailty-related genes (Supplementary

Dataset 1). Figure 3 shows the network topology of such relation, ordered counterclockwise from less to more related nodes, interestingly, cancer and five target genes (IL-8, IL-12, ACE, GR,

ApoE, TNF) are the most connected nodes in the network. Besides, in search of new associations and potential mechanisms of interaction, we performed a clustering analysis (see methodology

section) since we were searching for new associations and mechanisms. Figure 4 and Supplementary Table 4S, present results for such clustering analyses, as well as the behavior of the

primary network properties, in which we identified 5 clusters of deficits and genes. In order to advance in the proposal of possible therapeutic alternatives, from our results, we explored

the druggability values of the potential targets, identified because of their connectedness in the network (Figs 3, 4). As presented in Fig. 5, GR and ACE were the targets with more

potential, according to their values of druggability and tractability. Therefore, in the next step, we used such targets in a network pharmacology analysis to find any possible related drug

molecules. Results on Table 3 and Supplementary Table 5S show different molecules that interact with both GR and ACE. Interestingly, antirheumatic agents (mainly small molecules) already

used in clinical practice could modulate both receptors. Additionally, a set of toxic compounds may be showing potential interaction with these two targets. DISCUSSION A better understanding

of molecular pathways involved in frailty and its clinical outcomes may contribute to improving the likelihood of a healthy aging. However, there is still controversy about the molecular

mechanisms and pathways involved in this complex process due to its multifactorial nature. Therefore, in the present study, to contribute to a better understanding of the complexity of the

systems involved in frailty biology, we used network biology analysis. Different types of centrality measures were used to strengthen results. These results allowed additional analyses such

as drug repurposing through network pharmacology, identifying possible candidates for the intervention of this condition. The most enriched pathways of frailty-related genes (Table 1)14,15,

have a strong association with homeostatic mechanisms which are known to be affected both in aging and frailty. For example, failure in apoptosis could lead to errors in several regulatory

processes that remove damage and aberrant cells from the body; with the accumulative damage during aging an increased apoptotic activity increasing tissue damage. Besides, apoptotic activity

increases proteolysis signaling, leading to tissue atrophy and a pro-inflammatory response16. A low-grade chronic pro-inflammatory response seems to contribute to several age-related

pathologies including cancer, cardiovascular diseases, neurodegenerative disorders, and rheumatoid arthritis among others. Interestingly, these disorders were enriched significantly in the

pathways related with the genes17. Environment and diet can influence lifespan through several epigenetic mechanisms known to be altered during the normal aging process18. Epigenetic studies

associated with frailty are still growing, and most of them have focused on DNA methylation patterns in blood samples. For instance, Bellizi _et al_.,19, found that the frailty status was

associated with a significant decrease in the global DNA methylation levels. An apparent association between CpG island methylation and frailty was also found20. Other studies have also

found a strong correlation between the epigenetic clock and frailty21. In this context, our findings are in the same direction, as there is evidence of epigenetic changes occurring at

various levels, including reduced bulk levels of core histones, histone posttranslational modifications, replacement with histone variants and altered non-coding RNA molecules22. Moreover,

our results showed that HIST1H3 cluster family genes and miR200 family could act both as hubs and bottlenecks. Dysregulation of HIST1H3 histone cluster family (which is particularly

susceptible to acetylation)23, has been suggested as a driver mechanism of gliomas24. In addition, phosphorylation to H2A histone family member X (H2AX) could provide information regarding

frailty severity25. On the other hand, posttranslational histone modifications do not affect DNA nucleotide sequence but can modify its availability to the transcriptional machinery. MiRNAs

are a large family of small non-coding RNA’s that regulate gene expression post-transcriptionally via base pairing. Recently, they have been implicated in several regulatory networks

relevant to aging, for instance, miR200 family which is highly expressed within epithelial cells and known to play crucial roles in cancer initiation and metastasis24, they have also been

involved in atherosclerosis, Diabetes mellitus, kidney disease and other age-related diseases26. Five well-defined clusters (Fig. 3) were recognized, regarding deficits associated with

frailty and already mentioned genesets by Viña _et al_., and Hangelbroek _et al_.14,15. Cluster 1 corresponds to the homeostatic process of apoptosis signaling and immune system pathways and

points to the possible link between frailty and “_inflammaging_” (i.e., the hypothesis that states that systemic increases of pro-inflammatory mediators are related with the frailty

process, inducing metabolic dysfunction)17. A possible explanation of such is the induction of senescence-associated secretory phenotype (SASP), which contributes to damage of aging tissues

and facilitates the progression of several age-related disorders. Cluster 2 corresponds to genes related with Notch pathway, meaning that this transcription pathway could play a role in the

development of frailty since CREBBP has an essential role in chromatin remodeling27; KAT2B regulate the balance between cell cycle arrest and apoptosis, and MTR activity is associated with

hypomethylation and increased DNA damage28. Notch pathway defects have been reported in different human tissue, like muscles and brain diseases. Regarding cluster 3, it includes genes

involved in the central metabolic pathways of different tissues and organs, such as: striated muscle contraction, adrenaline and noradrenaline biosynthesis, cytoskeletal regulation, and

nicotinic acetylcholine receptor signaling pathway. Alterations in these pathways can modify the physiology of the muscle tissue, consequently generating the development of sarcopenia.

Interestingly, the signaling pathway ACVR1B/ACTN3/MSTN is related to the loss of skeletal muscle mass, and this may be correlated with cluster 1 since MSTN up-regulation involves TNF-α,

suggesting a probable relationship between the inflammatory process and the development of muscular diseases29. Besides, MSTN inhibits the signaling pathway related to Insulin-like growth

factor-1 (IGF-1) a potent muscle growth factor which progressively decreases with age, and has a crucial function in repairing and proliferation of skeletal muscle29. MSTN and TNF-α are also

directly involved in the modification of the redox state of muscle tissue since their direct participation in the production of ROS have been reported through the activation of NADPH

oxidase and the reduction of GST30. These have at least two consequences: oxidative damage of biomolecules that lead to apoptosis29 and a positive feedback mechanism that increases the

expression of TNF-α and MSTN regulated by the activation of NF-κB a transcription factor sensitive to modifications of the cellular redox state31. Supplementary Figure 1S indicates the

proposed mechanism for the proteins presented in gene sets and clusters based on reports of Sriram _et al_.29,32; Kovacheva _et al_., 201031; and Zhou _et al_., 201633. Cluster 4 includes

genes related to DNA metabolism and interestingly with Parkinson’s disease (PD). Frailty increases the vulnerability and impairs the homeostatic reserve, with the potential of further

aggravation of functional deterioration in patients with PD. It also increases the risk of adverse consequences including falls, disability and death16. The molecular mechanisms underlying

these interactions could be explained by their possible relationship with alterations in mitochondrial function, as reported by Gaare and collaborators in 2018.They demonstrated that the

enrichment of rare inherited variation in the pathway controlling mitochondrial DNA replication and repair influenced the risk of PD and proposed that this polygenic enrichment contributes

to the impairment of mitochondrial DNA homeostasis34, which could establish a relationship between mitochondrial dysfunction –characteristic of PD– and alterations in DNA metabolism. Cluster

5 includes genes related to signaling and maintenance processes whose primary targets are the muscle and nervous system. It is well established that the lack of trophic inputs during

adulthood leads to loss of physical function mediated by the loss of cell populations in different tissues. An example of this is the age-related reduced signaling of IGF-2, that leads to

inefficient muscle regeneration. Ikemoto-Uezumi _et al_., 2015 reported that the protein expression of IGF-2 decreases the rate of muscle regeneration in the muscle of aged mice34. The

ability to detect a decrease in the content of trophic factors or in the efficiency of the signaling pathways responsible for processing their stimulus could be promising for the timely

detection of frailty. Overall, these findings support the statement of Neal S.F.16 and Viña J.14 that frailty is tightly associated with a failure in homeodynamics around apoptosis, energy

metabolism (mitochondrial function), DNA integrity and neuromuscular changes. Regarding the network pharmacology analysis; we identified compounds (Table 3) that could have a role in

frailty. Some agents could be used because of their impact in inflammation (e.g., anti-rheumatic agents, in particular, small molecules coming from synthetic or natural sources), while

others such as vitamin C or even valproate have beneficial effects on the regeneration of connective tissue –in particular in collagen sub-types. Moreover, endocrine pathways are also

potential targets for pharmacological treatment, as shown by the estrogen-receptor blocker raloxifene; that is well-known for its impact on the treatment of osteoporosis and some types of

cancer. Oxidative stress could also be halted by some of the candidate molecules found in the analysis; such as the epigallocatechin gallate (present in chocolate). Further research must be

assessed on the matter of repurposing drugs taking advantage of quantitative systems pharmacology (QSP), a novel tool useful to simulate drug efficacy (pharmacokinetics and pharmacodynamics)

and toxicity for model-based design of treatment schedules to facilitate pharmaceutical development35. Drug repurposing has been shown to bring therapeutic alternatives for those conditions

that still lack an effective treatment36. Our results, suggest that anti-rheumatic agents could have the potential to ameliorate the progression of frailty and even halt the burden it poses

on older adults. Finally, there are some interesting, albeit toxic compounds, that may interact with some of the most druggable targets GR and ACE, such as Bisphenol A (well-known endocrine

disruptor chemical); which is present in several plastic bottles and metal cans linings that have shown to alter the epigenome. Also, arsenate, the most common form of inorganic arsenic and

a widespread pollutant found in water, cigarettes, food, and air, that has been correlated with neurotoxic effects, high levels of DNA methylation and different types of cancer34.

Altogether, these results suggest adverse environmental implications of frailty. Our work highlights the potential that new methodologies could bring to the field of aging. Frailty in

particular has shown to be a special case on the dynamics of a network of networks. Different levels, from the molecular to the clinical expression, seem to be related and understanding

their mechanics, could improve knowledge both on causes and potential interventions. In conclusion, our results show several signaling pathways: apoptosis, inflammation, Notch, and chemokine

signaling that play a significant role in the biology of frailty and may be considered as central hubs for this condition. Additionally, epigenetics may play a significant role in the

development of frailty, highlighting the role of environmental factors such as pollution that could lead to the clinical expression of this problem. Finally, there may be some drugs that

could be repurposed in order to be used in frailty, such as anti-rheumatic agents. However, further studies are needed to validate drug efficacy and toxicity before they could be implemented

in clinical practice. METHODS GENES RELATED TO FRAILTY In order to perform the interactome analysis, it was used the gene sets shown in Supplementary Table 1S, which have already been

correlated with frailty by Viña _et al_., 201614 and Hangelbroek _et al_., 201615. Cytoscape software37 (v 3.7) was used to analyze, reconstruct, and perform structural analysis from all

networks obtained in the analysis. INTERACTOME ANALYSIS OF FRAILTY-RELATED GENES Initially, we used a mirror version of GeneMANIA38 (a prediction server that finds functionally similar genes

using a wealth of genomics and proteomics) on Cytoscape39 to obtain novel genes related by physical interactions, shared common signaling pathways and co-expression information of

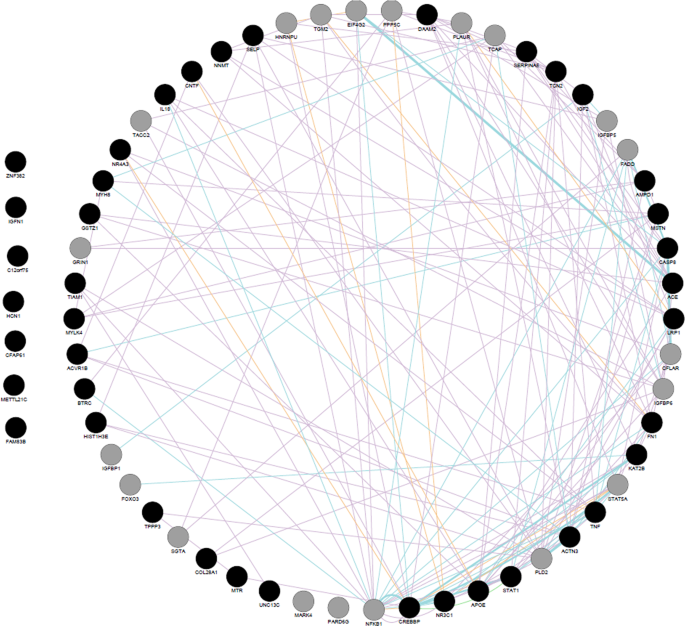

frailty-related genes (Fig. 1). Then we performed the enrichment analysis (see the section below) to analyze significant pathways and diseases from previously obtained genes (Table 1). For

the second step, we used BisoGenet40 plug-in for Cytoscape to build a structural biological analysis based on PPI and miRNA-Protein interaction network analysis using as seeds (input values)

only frailty-related genes14,15 (Fig. 2). The hubs (miRNA’s or proteins) of the network were detected using the cytoHubba plug-in developed for Cytoscape and node degree was chosen as a

centrality index41. Node degree defined as the number of neighbors connected directly to a node. Nodes with the highest degrees considered as hubs and nodes with a higher number of

betweenness and hub properties considered as bootlenecks42 (Table 2). ENRICHMENT ANALYSIS We performed an enrichment analysis of the pathways and diseases related with the genes previously

obtained from GeneMANIA by using Comparative Toxicogenomics Database (CTD)43, Database for Annotation, Visualization, and Integrated Discovery (DAVID)44 and GSEAPY module from Python. The

main biological process (BP, GO:0008150), as well as the main KEGG and Reactome pathways along with related diseases were chosen accordingly to the most significantly enriched terms,

pathways and conditions (p value < 0.05, corrected by using the Benjamini-Hochberg procedure) and listed in Table 1 separated accordingly with pathways, gene ontology (GO)-terms and

diseases. GENES-DEFICIT ANALYSIS Since the frailty index is a ratio of the number of deficits that an individual has accumulated divided by all deficits measured, we performed a search for

the relationship between deficits associated with frailty and those already mentioned genes. FRAILTY DEFINITION AND DEFICITS There is a reasonable consensus on what the conceptual definition

of frailty is; however, an operational definition has been a matter of debate that persists to our days2. We chose the frailty index, since (Mitnitski _et al_., 2001)45 this tool allows us

to look at different domains of this condition. In addition, it has shown that deficits interact as a network46,47 with particular characteristics that allow to approach this problem with a

systems biology paradigm. These items are known as ‘deficits’, and the sum of many deficits (minimum 30 – Supplementary Table 3S) allows to give an individual a score of a frailty burden, in

contrast to other tools that give cut-off points categorizing the subject as frail or not. The interest was to have a high number of features related to frailty in order to search for them

in different databases; the frailty index suits this goal. An exhaustive search of the different deficits that have been used to integrate a frailty index was done, departing from the first

table provided by the creators of this tool, and enriched with other frailty indexes used by Mitniski _et al_.48 and Searle _et al_.49. GENES-DEFICIT NETWORK CONSTRUCTION In order to relate

already mentioned genes and deficits, it was developed a weighted socio-matrix or weighted adjacency matrix through the relation of original papers linking deficits with genes performed only

on human samples or clinical studies on Pubmed over the last 15 years linking deficits with genes. The term socio-matrix is a square matrix where a number one indicates a tie between two

nodes and a number zero indicates no tie. The convention is that rows indicate the starting node and columns the receiving node. In a weighted socio-matrix, like the one it was used, edge

weights are included, and the number ones in the socio-matrix are substituted by the weights (publications) indicating the strength of a tie. Table 3S indicates the complete list of used

MESH terms and names for the search. Supplementary Information Data 1 presents the constructed weighted socio-matrix. The number of papers linking deficit i; i = 1, …, 34, with a gene j; j =

 1, …, 42, corresponds to the (i, j) entry of the socio-matrix, and by symmetry, the entry (j, i) has the same value. Associations between deficits on the one hand and between genes on the

other were not considered; hence, we used zeros in the corresponding entries. Networks were then built, and their nodes correspond to deficits or genes, and their edges are obtained from the

weighted (publications) socio-matrix. Isolated vertices were eliminated. Centrality measures were calculated (i.e., degree, closeness and betweenness) to identify central nodes. The size of

the nodes in the graphical representations depends on the value of the measure (Supplementary Figs 2S,3S). Since there are weights associated with each edge according to the socio-matrix,

weighted centrality measures were calculated as well (Supplementary Fig. 3S). To identify clustering formation k-cores (maximal subgraph, where each vertex is connected to at least k other

vertices in the subgraph) were obtained (Fig. 4). For the same purpose, community detection algorithms were used (walktrap, edge betweenness, spin-glass, fast greedy, label propagation,

leading eigenvector, and Louvain), and we chose the clusters obtained through the Louvain algorithm since it provided one of the most significant modularity values and better

interpretability. For statistical analyses, software R was used (igraph, Intergraph, statnet, and tnet libraries). Additionally, clusters were enriched according to the metabolic pathways

and the biological processes in which they participate (see Supplementary Table 4S). NETWORK PHARMACOLOGY Once identified the most critical nodes on the deficit-gene network (Fig. 3), we

performed network pharmacological analysis. In the first place, we analyzed the druggability score (evaluates the suitability of the binding site for small molecules under the Lipinski’s

Rule of five); tractability score (similar to druggability score but under more relaxed conditions), and Ensemble score (the average of druggability score calculated under different models)

from such nodes (Fig. 5). In the calculation of druggability, the average of the output from the specific predictions was calculated as the Ensemble Score ranging from undruggable (value of

−1.0) to druggable (value of 1.00). Then a novel network to identify chemical targets (drugs or toxicants) that could interact somehow with the most druggable nodes was used by using the CTD

(Fig. 5) with already known chemical compounds to identify those compounds that could be re-purposed and tested either alone or in combination in the treatment of frailty. The network was

created by using Cytoscape (v 3.7.1), (Fig. 5 and Table 3) the complete list of all the compounds interacting with the primary targets is displayed in Supplementary Table 5S. REFERENCES *

Chen, X., Mao, G. & Leng, S. X. Frailty syndrome: an overview. _Clin. Interv. Aging_ 9, 433–441 (2014). PubMed  PubMed Central  Google Scholar  * Cesari, M., Pérez-Zepeda, M. U. &

Marzetti, E. Frailty and Multimorbidity: Different Ways of Thinking About Geriatrics. _J. Am. Med. Dir. Assoc._ 18, 361–364 (2017). Article  Google Scholar  * Partridge, L., Deelen, J. &

Slagboom, P. E. Facing up to the global challenges of ageing. _Nature_ 561, 45–56 (2018). Article  ADS  CAS  Google Scholar  * Dato, S. _et al_. Frailty phenotypes in the elderly based on

cluster analysis: a longitudinal study of two Danish cohorts. Evidence for a genetic influence on frailty. _Age (Dordr)._ 34, 571–582 (2012). Article  Google Scholar  * Afendi, F. M., Kiboi,

S. K. & Kanaya, S. Systems Biology in the Context of Big Data and Networks. _Biomed Res. Int._ 2014, 11 (2014). Google Scholar  * Barabási, A.-L. & Oltvai, Z. N. Network biology:

understanding the cell&#39;s functional organization. _Nat. Rev. Genet._ 5, 101 (2004). Article  Google Scholar  * Valenzuela, J. F., Monterola, C., Tong, V. J. C., Ng, T. P. &

Larbi, A. Health and disease phenotyping in old age using a cluster network analysis. _Sci. Rep._ 7, 15608 (2017). Article  ADS  Google Scholar  * Hopkins, A. L. Network pharmacology: the

next paradigm in drug discovery. _Nat. Chem. Biol._ 4, 682 (2008). Article  CAS  Google Scholar  * Fotis, C., Antoranz, A., Hatziavramidis, D., Sakellaropoulos, T. & Alexopoulos, L. G.

Network-based technologies for early drug discovery. _Drug Discov. Today_ 23, 626–635 (2018). Article  CAS  Google Scholar  * Waring, M. J. _et al_. An analysis of the attrition of drug

candidates from four major pharmaceutical companies. _Nat Rev Drug Discov_ 14, 475–486 (2015). Article  CAS  Google Scholar  * Zhao, R. & He, Y. Network pharmacology analysis of the

anti-cancer pharmacological mechanisms of Ganoderma lucidum extract with experimental support using Hepa1-6-bearing C57 BL/6 mice. _J. Ethnopharmacol._ 210, 287–295 (2018). Article  CAS

Google Scholar  * Gómez-Verjan, J. C. _et al_. Network Pharmacology Uncovers Anticancer Activity of Mammea-Type Coumarins from Calophyllum brasiliense. _Planta Med_ 85, 14–23 (2019). Article

  Google Scholar  * Hart, T. _et al_. Toward Repurposing Metformin as a Precision Anti-Cancer Therapy Using Structural Systems Pharmacology. _Sci. Rep._ 6, 20441 (2016). Article  ADS  CAS

Google Scholar  * Viña, J. _et al_. Molecular Aspects of Medicine Biology of frailty: Modulation of ageing genes and its importance to prevent age-associated loss of function. _Mol. Aspects

Med._ 50, 88–108 (2016). Article  Google Scholar  * Hangelbroek, R. W. J. _et al_. Expression of protocadherin gamma in skeletal muscle tissue is associated with age and muscle weakness.

604–614, https://doi.org/10.1002/jcsm.12099 (2016). Article  Google Scholar  * Fedarko, N. S. The biology of aging and frailty. _Clin. Geriatr. Med._ 27, 27–37 (2011). Article  Google

Scholar  * Franceschi, C., Garagnani, P., Vitale, G., Capri, M. & Salvioli, S. Inflammaging and Garb-aging. _Trends Endocrinol. Metab._ 28, 199–212 (2017). Article  CAS  Google Scholar

* Pal, S. & Tyler, J. K. Epigenetics and aging. _Sci. Adv._ 2, e1600584 (2016). Article  ADS  Google Scholar  * Bellizzi, D. _et al_. Global DNA methylation in old subjects is correlated

with frailty. _Age (Dordr)._ 34, 169–179 (2012). Article  CAS  Google Scholar  * Collerton, J. _et al_. Acquisition of aberrant DNA methylation is associated with frailty in the very old:

findings from the Newcastle 85+ Study. _Biogerontology_ 15, 317–328 (2014). Article  CAS  Google Scholar  * Breitling, L. P. _et al_. Frailty is associated with the epigenetic clock but not

with telomere length in a German cohort. _Clin. Epigenetics_ 8, 21 (2016). Article  Google Scholar  * Laboratories, P. F. G. Epigenetic regulation of ageing. _Nat. Publ. Gr._ 16, 593–610

(2015). Google Scholar  * Hake, S. B. _et al_. Expression patterns and post-translational modifications associated with mammalian histone H3 variants. _J. Biol. Chem._ 281, 559–568 (2006).

Article  CAS  Google Scholar  * Gusyatiner, O. & Hegi, M. E. Glioma epigenetics: From subclassification to novel treatment options. _Semin. Cancer Biol._ 51, 50–58 (2018). Article  CAS

Google Scholar  * Valdiglesias, V. _et al_. Exploring Genetic Outcomes as Frailty Biomarkers. _Journals Gerontol. Ser. A_ 74, 168–175 (2018). Article  Google Scholar  * Schraml, E. &

Grillari, J. From cellular senescence to age-associated diseases: the miRNA connection. _Longev. Heal._ 1, 10 (2012). Article  Google Scholar  * Cho, K. S., Elizondo, L. I. & Boerkoel,

C. F. Advances in chromatin remodeling and human disease. _Curr. Opin. Genet. Dev._ 14, 308–315 (2004). Article  CAS  Google Scholar  * Vidal-Cardenas, S. L. & Greider, C. W. Comparing

effects of mTR and mTERT deletion on gene expression and DNA damage response: a critical examination of telomere length maintenance-independent roles of telomerase. _Nucleic Acids Res._ 38,

60–71 (2010). Article  CAS  Google Scholar  * Sriram, S. _et al_. Modulation of reactive oxygen species in skeletal muscle by myostatin is mediated through NF-κB. _Aging Cell_ 10, 931–948

(2011). Article  CAS  Google Scholar  * Panday, A., Sahoo, M. K., Osorio, D. & Batra, S. NADPH oxidases: an overview from structure to innate immunity-associated pathologies. _Cell. Mol.

Immunol._ 12, 5–23 (2015). Article  CAS  Google Scholar  * Sriram, S. _et al_. Myostatin augments muscle-specific ring finger protein-1 expression through an NF-kB independent mechanism in

SMAD3 null muscle. _Mol. Endocrinol._ 28, 317–330 (2014). Article  Google Scholar  * Kovacheva, E. L., Hikim, A. P. S., Shen, R., Sinha, I. & Sinha-Hikim, I. Testosterone supplementation

reverses sarcopenia in aging through regulation of myostatin, c-Jun NH2-terminal kinase, Notch, and Akt signaling pathways. _Endocrinology_ 151, 628–638 (2010). Article  CAS  Google Scholar

  * Zhou, J., Liu, B., Liang, C., Li, Y. & Song, Y.-H. Cytokine Signaling in Skeletal Muscle Wasting. _Trends Endocrinol. Metab._ 27, 335–347 (2016). Article  CAS  Google Scholar  *

Reichard, J. F. & Puga, A. Effects of arsenic exposure on DNA methylation and epigenetic gene regulation. _Epigenomics_ 2, 87–104 (2010). Article  CAS  Google Scholar  * Geerts, H.,

Spiros, A., Roberts, P. & Carr, R. Quantitative systems pharmacology as an extension of PK/PD modeling in CNS research and development. _J. Pharmacokinet. Pharmacodyn._ 40, 257–265

(2013). Article  CAS  Google Scholar  * Pushpakom, S. _et al_. Drug repurposing: progress, challenges and recommendations. _Nat. Rev. Drug Discov._ 18, 41–58 (2018). Article  Google Scholar

  * Shannon, P. _et al_. Cytoscape: A Software Environment for Integrated Models of Biomolecular Interaction Networks. _Genome Res._ 13, 2498–2504 (2003). Article  CAS  Google Scholar  *

Zuberi, K. _et al_. GeneMANIA Prediction Server 2013 Update. _Nucleic Acids Res._ 41, W115–W122 (2013). Article  Google Scholar  * Montojo, J. _et al_. GeneMANIA Cytoscape plugin: fast gene

function predictions on the desktop. _Bioinformatics_ 26, 2927–2928 (2010). Article  CAS  Google Scholar  * Martin, A. _et al_. BisoGenet: a new tool for gene network building, visualization

and analysis. _BMC Bioinformatics_ 11, 91 (2010). Article  Google Scholar  * Chin, C.-H. _et al_. cytoHubba: identifying hub objects and sub-networks from complex interactome. _BMC Syst.

Biol._ 8, S11–S11 (2014). Article  Google Scholar  * Yu, H., Kim, P. M., Sprecher, E., Trifonov, V. & Gerstein, M. The Importance of Bottlenecks in Protein Networks: Correlation with

Gene Essentiality and Expression Dynamics. _PLOS Comput. Biol._ 3, e59 (2007). Article  ADS  MathSciNet  Google Scholar  * Davis, A. P. _et al_. The Comparative Toxicogenomics Database:

update 2019. _Nucleic Acids Res_. gky868–gky868 (2018). * Dennis, G. _et al_. DAVID: Database for Annotation, Visualization, and Integrated Discovery. _Genome Biol._ 4, R60 (2003). Article

Google Scholar  * Mitnitski, A. B., Mogilner, A. J. & Rockwood, K. Accumulation of deficits as a proxy measure of aging. _ScientificWorldJournal._ 1, 323–336 (2001). Article  CAS  Google

Scholar  * Rutenberg, A. D., Mitnitski, A. B., Farrell, S. G. & Rockwood, K. Unifying aging and frailty through complex dynamical networks. _Exp. Gerontol._ 107, 126–129 (2018). Article

  Google Scholar  * Mitnitski, A. B., Rutenberg, A. D., Farrell, S. & Rockwood, K. Aging, frailty and complex networks. _Biogerontology_ 18, 433–446 (2017). Article  CAS  Google Scholar

  * Mitnitski, A. B., Graham, J. E., Mogilner, A. J. & Rockwood, K. Frailty, fitness and late-life mortality in relation to chronological and biological age. _BMC Geriatr._ 2, 1 (2002).

Article  Google Scholar  * Searle, S. D., Mitnitski, A., Gahbauer, E. A., Gill, T. M. & Rockwood, K. A standard procedure for creating a frailty index. _BMC Geriatr._ 8, 24 (2008).

Article  Google Scholar  Download references ACKNOWLEDGEMENTS This Project was supported by a grant from the Secretaría de Educación, Ciencia, Tecnología e Innovación de la Ciudad de México

SECITI/042/2018 “Red colaborativa de Investigación Traslacional para el Envejecimiento Saludable de la Ciudad de México” (RECITES). AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Instituto

Nacional de Geriatría (INGER), Mexico City, Mexico J. C. Gomez-Verjan, R. Ramírez-Aldana, M. U. Pérez-Zepeda, R. Quiroz-Baez, A. Luna-López & L. M. Gutierrez Robledo * Geriatric Medicine

Research, Dalhousie University and Nova Scotia Health Authority, Halifax, NS, Canada M. U. Pérez-Zepeda Authors * J. C. Gomez-Verjan View author publications You can also search for this

author inPubMed Google Scholar * R. Ramírez-Aldana View author publications You can also search for this author inPubMed Google Scholar * M. U. Pérez-Zepeda View author publications You can

also search for this author inPubMed Google Scholar * R. Quiroz-Baez View author publications You can also search for this author inPubMed Google Scholar * A. Luna-López View author

publications You can also search for this author inPubMed Google Scholar * L. M. Gutierrez Robledo View author publications You can also search for this author inPubMed Google Scholar

CONTRIBUTIONS Gomez-Verjan J.C.- Original idea, network analysis, software and writing; Ramírez-Aldana R. Network analysis, software and writing; Pérez-Zepeda M.U.-Discussion, analysis and

writing; Quiroz-Baez R.-General Writing; Luna-López A.- Writing and discussion; Gutierrez Robledo L.M.-Discussion, analysis and writing. All authors reviewed and approved the final version

of this manuscript. CORRESPONDING AUTHOR Correspondence to L. M. Gutierrez Robledo. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. ADDITIONAL INFORMATION

PUBLISHER’S NOTE: Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations. SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION

SUPPLEMENTARY DATASET RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation,

distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and

indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in a credit line to

the material. If material is not included in the article’s Creative Commons license and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will

need to obtain permission directly from the copyright holder. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE

CITE THIS ARTICLE Gomez-Verjan, J.C., Ramírez-Aldana, R., Pérez-Zepeda, M.U. _et al._ Systems biology and network pharmacology of frailty reveal novel epigenetic targets and mechanisms. _Sci

Rep_ 9, 10593 (2019). https://doi.org/10.1038/s41598-019-47087-7 Download citation * Received: 11 March 2019 * Accepted: 10 July 2019 * Published: 22 July 2019 * DOI:

https://doi.org/10.1038/s41598-019-47087-7 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
