ABSTRACT We sought to develop and characterize outer retinal degeneration induced by intravitreal injection of sodium iodate (SI) after vitrectomy in rabbits. To determine the effective dose

of SI, the right eyes of 19 male New Zealand white rabbits received an intravitreal injection of SI or sham. Based on the dose-dependence results, 0.4 mg of SI in 0.05 mL of total volume

was injected into the right eyes of 10 rabbits at two weeks after vitrectomy. In the dose-dependence study, localized retinal atrophy was observed with 0.3- and 0.4-mg SI injections without

vitrectomy. Severe and diffuse retinal atrophy was identified by spectral-domain optical coherence tomography (SD-OCT) at one month after a 0.5-mg SI injection following vitrectomy. In the

second experiment, 0.4 mg of SI in 0.05 mL was injected, and the severity of outer retinal degeneration was graded as one of two types according to electroretinography (ERG) response change.

There was no response on ERG in complete retinal degeneration, 30% of all 10 rabbits. Intravitreal injection of 0.4 mg of SI into vitrectomized rabbit eyes induces diffuse outer retinal

degeneration, and the degree of retinal degeneration can be evaluated through _in vivo_ ophthalmic examination. SIMILAR CONTENT BEING VIEWED BY OTHERS AN EXPERIMENTAL PIG MODEL WITH OUTER

RETINAL DEGENERATION INDUCED BY TEMPORARY INTRAVITREAL LOADING OF _N_-METHYL-_N_-NITROSOUREA DURING VITRECTOMY Article Open access 08 January 2021 ACUTE SYMPTOMATIC VITREOUS FLOATERS

ASSESSED WITH ULTRA-WIDE FIELD SCANNING LASER OPHTHALMOSCOPY AND SPECTRAL DOMAIN OPTICAL COHERENCE TOMOGRAPHY Article Open access 26 April 2021 ANISEIKONIA AFTER REDUCED-FLUENCE PHOTODYNAMIC

THERAPY IN PATIENTS WITH CENTRAL SEROUS CHORIORETINOPATHY Article Open access 10 October 2023 INTRODUCTION Retinal degeneration, which includes conditions such as retinitis pigmentosa (RP),

choroideremia, and geographic atrophy (GA) of age-related macular degeneration (ARMD), is the main cause of irreversible vision loss and greatly affects quality of life. RP is the most

common inherited retinal dystrophy and leads to irreversible vision loss. Initial degeneration due to RP occurs in the photoreceptors, and inner retinal thickness is gradually decreased in

advanced-stage RP1,2,3. Visual prosthetics such as retinal implants have been developed for treatment of retinal degeneration due to advances in electronic device technology and

biomaterials4,5. Recently, implantation of visual prosthetics has been performed in humans. Therefore, to further develop and refine such medical devices, larger experimental animal models

(e.g., dogs, pigs, cats, rabbits) with specific loss of photoreceptors are inevitably needed. The retinotoxin sodium iodate (SI) is an oxidizing compound toxic to retinal pigment epithelial

(RPE) cells, with secondary effects on photoreceptors and the choriocapillaris6. Specifically, SI primarily induces necrosis in RPE cells7,8, which is followed by choriocapillaris atrophy9

and panretinal degeneration8,10. In addition to these effects on RPE cells and photoreceptors, SI also provokes necrosis of the inner retina8,11. SI induces the production of reactive oxygen

species, which contribute to damage in the RPE cells12. SI retinal toxicity has been demonstrated in many different mammalian species, including sheep7, rabbits13,14, rats10,15, and

mice6,11,16, with varying doses and routes of administration. Most studies have used relatively high doses of SI (50–100 mg/kg) and have reported rapid RPE damage characterized by

defragmentation and loss of RPE cell nuclei. Systemic application of SI leads not only to bilateral retinal degeneration, but also to reduced general health of the experimental animals.

Systemic intoxication of SI after systemic administration includes gastrointestinal problems such as diarrhea, general weakness, and convulsion17,18. A high dose of SI was found to be lethal

in experimental animals17,18. Therefore, local administration of SI is required to avoid its systemic effects. In the present research, we attempted to induce unilateral diffuse homogeneous

outer retinal degeneration of the whole retina by intravitreal administration of SI in rabbits. We hypothesized that this approach would avoid the known systemic side effects. The primary

objective of this study was to elucidate the necessary effects of vitrectomy and the proper intravitreal SI dose following vitrectomy to induce diffuse homogeneous outer retinal degeneration

in rabbits. Secondarily, we evaluated the ability of the determined dose of intravitreally injected SI to induce diffuse outer retinal degeneration. RESULTS RETINAL IMAGING IN THE

DOSE-DEPENDENCE STUDY OF SODIUM IODATE WITHOUT PARS PLANA VITRECTOMY At one month after SI injection, no significant changes were observed in fundus photography (FP), fundus autofluorescence

(AF), histology with hematoxylin and eosin (H&E) staining, or spectral-domain optical coherence tomography (SD-OCT) images of rabbit eyes injected with 0.1 mg of SI (Fig. 1A–D).

Localized hyper-autofluorescent areas were observed in eyes injected with 0.2 mg, 0.3 mg, or 0.4 mg of SI without vitrectomy (Fig. 1F,J,N, respectively). Both non-degenerated retina and

degenerated retina were observed by histology and SD-OCT in the rabbit eyes injected with 0.3 mg (Fig. 1K,L) or 0.4 mg (Fig. 1O,P) of SI. Disruption of the outer retina and decrease in

retinal thickness were observed in degenerated retina. RETINAL IMAGING IN THE DOSE-DEPENDENCE STUDY OF SODIUM IODATE AFTER PARS PLANA VITRECTOMY At one month after SI injection, no localized

hyper- or hypo autofluorescence was observed by ultra-wide-field color FP or AF (Fig. 2). Additionally, no significant retinal changes were observed with SD-OCT in eyes injected with sham

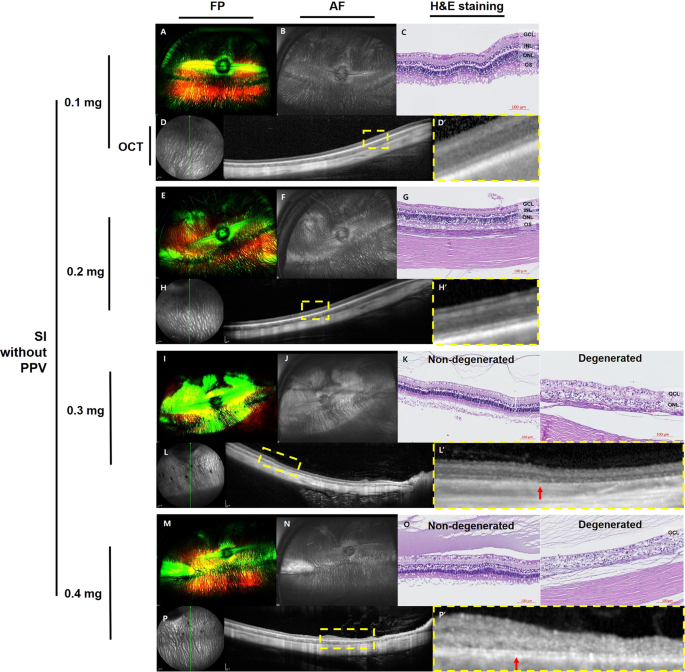

at one month, and 0.1 mg of SI at one week and one month (Fig. 2D,H,I). However, in the retina of rabbit eyes injected with 0.5 mg of SI, degenerative changes of the outer retina were

observed at one week (Fig. 2R) and degenerative changes became worse for one month (Fig. 2S). The interlayer boundary of the inner and outer retina was unclear, and layers of the outer

retina were replaced with multiple hyper-reflective materials at one month (Fig. 2S). In one of the three rabbit eyes injected with 0.3 mg of SI, degenerative changes of the outer retina

were observed at both one week and one month, while the inner retina remained normal (Fig. 2M,N). An example of histological examination by H&E staining at one month is presented in Fig.

 2. In the eye injected with 0.5 mg of SI after vitrectomy, which resulted in severe degenerative changes of the retina observed by SD-OCT, the layers of the retina were disrupted and not

distinguishable (Fig. 2Q). The nuclei of the inner nuclear layer (INL) and outer nuclear layer (ONL) were mixed and scattered, and there was a loss of the photoreceptor layer. In the eyes

injected with 0.3 mg of SI after vitrectomy with selective outer retinal degeneration on SD-OCT, the outer retinal layer was distinguishable from the INL in the area that remained relatively

intact on SD-OCT (Fig. 2L). Following sham and 0.1-mg SI injections after vitrectomy, no significant changes were observed in H&E staining (Fig. 2C,G). RETINAL DEGENERATION INDUCED BY

0.4-MG SODIUM IODATE INJECTION WITH VITRECTOMY Based on the dose-dependence study, 0.4 mg of SI in 0.05 mL of total volume was selected for further evaluation. Six weeks after the 0.4-mg SI

injection, the severity of outer retinal degeneration was graded into two types according to change in OCT images and electroretinography (ERG) response (Fig. 3). For animals classified as

having incomplete or complete retinal degeneration, the FP images showed degenerative changes (Fig. 3A,F), the AF images showed hyper-autofluorescence (Fig. 3B,G), and the ERG response was

abnormal (Fig. 3E,J). FP and AF images did not show any localized degenerative change. Seven of the 10 rabbits showed incomplete retinal degeneration, characterized by a loss of the junction

between inner and outer segments of the photoreceptor layer (IS/OS line), a relatively preserved ONL on SD-OCT, and partially remnant response on ERG (Fig. 3C–E). Three of the 10 rabbits

had complete retinal degeneration including diffuse loss of the IS/OS line and ONL on SD-OCT, which implies diffuse outer retinal degeneration, and complete loss of responses on ERG (Fig.

3H–J). Histology and immunohistochemistry findings demonstrated differences between the control eyes (left eye within the same animal) and SI-injected eyes with incomplete and complete

changes in retinal degeneration (Fig. 4). In the control eyes, all layers of the retina were easily distinguished by histology (Fig. 4A). Additionally, RPE, cone and rod photoreceptors,

bipolar cells, and ganglion cells were all easily identified with RPE65, PNA, rhodopsin, PKCα, and Brn3 staining, respectively (Fig. 4D,G,J,M,V). In eyes with incomplete changes in retinal

degeneration, H&E staining revealed a minor reduction in the photoreceptor layer, and there were fewer cone photoreceptor cells based on PNA staining (Fig. 4B,E). However, the levels of

RPE cells, rod photoreceptor cells, bipolar cells, and ganglion cells remained normal (Fig. 4H,K,N,W). In eyes with complete changes in retinal degeneration, H&E staining demonstrated

severe disruption of the photoreceptor layer, retinal thinning, and almost complete depletion of the cone and rod photoreceptor cells based on PNA and rhodopsin staining (Fig. 4C,F,I).

Additionally, bipolar cell staining and ganglion cell staining were also decreased (Fig. 4L,O). However, the level of RPE cells remained normal (Fig. 4X). Eyes determined to have any retinal

degeneration (either incomplete or complete) demonstrated increased GFAP staining, suggesting a proliferation of glial cells, which was not observed in the control eyes (Fig. 4P–R). Some

apoptotic cells, as determined by the TUNEL assay, were present in eyes with incomplete or complete retinal degeneration (Fig. 4T,U). However, there were no TUNEL-positive cells in the

control eyes (Fig. 4S). Cataracts caused by contact with the instrumental lens during vitrectomy were observed in four out of 10 eyes (40.0%) during examination at six weeks after injection.

We observed no signs of systemic toxicity such as weight loss or death in any rabbit. QUANTITATIVE COMPARISON OF 0.4-MG SODIUM IODATE INJECTION WITHOUT OR WITH VITRECTOMY We compared the

effects of a 0.4-mg SI injection depending on vitrectomy. In non-vitrectomized rabbit eyes, total retinal thickness was significantly decreased after 0.4 mg SI injection (154.06 ± 1.80 μm at

baseline vs. 71.80 ± 6.48 μm at one month after injection; p < 0.01; Fig. 5A). In vitrectomized rabbit eyes, total retinal thickness was also significantly decreased after injection

(154.80 ± 2.08 μm at baseline vs. 135.89 ± 2.99 μm at six weeks after injection; p = 0.009; Fig. 5A). Total retinal thickness of non-vitrectomized eyes showed more thinning than did that of

vitrectomized eyes (p < 0.01; Fig. 5A). In non-vitrectomized rabbit eyes, inner retinal thickness was significantly decreased after 0.4 mg SI injection (70.83 ± 1.43 μm at baseline vs.

47.50 ± 4.00 μm at one month after injection; p < 0.01; Fig. 5A). In vitrectomized rabbit eyes, inner retinal thickness was not significantly decreased after injection (69.55 ± 2.28 μm at

baseline vs. 70.95 ± 1.94 μm at six weeks after injection; p < 0.34; Fig. 5A). Inner retinal thickness of non-vitrectomized eyes presented more significant thinning than that of

vitrectomized eyes (p < 0.01; Fig. 5A). We compared total retinal thickness among the types of retinal degeneration at six weeks after 0.4-mg SI injection in vitrectomized rabbit eyes

(Fig. 5B). According to severity of outer retinal degeneration, retinal thickness change was different among the groups of retinal degeneration severity. The group of complete retinal

degeneration showed more significant retinal thinning than did the groups of incomplete retinal degeneration (145.25 ± 2.96 μm in total retinal layer for incomplete vs. 107.8 ± 3.35 μm in

total retinal layer for complete, 75.83 ± 2.19 μm in inner retinal layer for incomplete vs. 56.3 ± 1.79 μm in inner retinal layer for complete; p < 0.01, respectively; Fig. 5B).

DISCUSSION In this study, we determined that SI injection after vitrectomy was effective in inducing unilateral diffuse homogeneous outer retinal degeneration. A dose of 0.4 mg of SI in 0.05

 mL of total volume was determined to be most effective and resulted in complete retinal degeneration, with loss of cone and rod photoreceptors following intravitreal injection in 30% of

subjects. We previously reported the effectiveness of vitrectomy when retinal degeneration was induced by intravitreal injection with a drug, such as N-methyl-N-nitrosourea (MNU)19. In the

previous study, it was hard to induce diffuse outer retinal degeneration by intravitreal injection of MNU without vitrectomy. Based on our previous study, we also tried to compare the

results of intravitreal SI injection without or with vitrectomy. Without vitrectomy, only localized retinal degeneration occurred in SI-injected eyes, whereas diffuse retinal degeneration

was induced in SI-injected eyes after vitrectomy. When different doses of SI were tested after vitrectomy, we found that 0.5 mg of SI induced severe retinal atrophy. However, in eyes

injected with 0.3 mg of SI after vitrectomy, selective outer retinal degeneration developed in only one of three eyes. Therefore, we recognized that the range for a safe and effective dose

of intravitreal SI was quite narrow. Additionally, we observed that 0.4 mg of SI induced two types of retinal degeneration, and all rabbit eyes showed retinal degeneration. These results

support use of the animal rabbit model induced by 0.4 mg SI injection after vitrectomy for further experiment regarding the severity of retinal degeneration. In this study, we used

ultra-wide-field fundus photography and autofluorescence imaging to evaluate whether retinal degeneration was global and diffuse. Additionally, 55-degree SD-OCT images were produced to

visualize retinal changes after the injections because of their wide fields of view. Importantly, the degree of outer retinal degeneration, as graded based on ERG response, was associated

with SD-OCT findings and additionally validated by histological examination with immunohistochemistry. When ERG response was partially decreased, greater damage to the IS/OS with an intact

ONL was observed on SD-OCT. Finally, when all responses were lost on ERG, ONL and the photoreceptor layer were indistinguishable in SD-OCT images. Additionally, eyes with incomplete changes

in retinal degeneration had fewer cone cells based on PNA staining. Eyes with complete changes in retinal degeneration, including those with flat ERG responses, also had less staining with

PNA and rhodopsin. Immunohistochemistry demonstrated fewer bipolar and ganglion cells in eyes with complete changes in retinal degeneration. SI not only affects RPE cells and photoreceptors,

but can also lead to toxicity and necrosis of the inner retina when intravenously injected8,11,20. However, in this experiment, RPE staining remained normal despite retinal degeneration

compared with the control. There was no previous report about RPE staining after intravitreal injection of SI. A previous study reported morphologic changes of RPE with immunohistochemistry

staining after subretinal injection of SI in other species21. In this report, the RPE nuclei became bigger and more rounded after subretinal injection of SI, but RPE remained relatively

stable and appeared to be more resistant than the photoreceptors. The previous and present studies suggest that systemic administration of SI could induce toxicity of RPE, but localized

administration of SI such as subretinal and especially intravitreal injection induce less damage to the RPE. We did find that intravitreal injection of SI after vitrectomy induced direct

damage to the photoreceptor, not the level of RPE. Previous studies reported that, after SI was administered, Müller glial cells proliferated on the third day, and the ratio of GFAP-positive

cells increased markedly for 28 days8,22. In this study, GFAP staining was also increased in all the eyes that received an intravitreal injection of SI, and it is likely that the SI

injection itself caused fibrosis and proliferation of glial cells, regardless of degeneration. The TUNEL assay was positive in eyes with outer retinal degeneration, even though the degree of

staining was not extensive. This could be due to a lack of apoptotic cells. SI induced the death of photoreceptors and may have triggered apoptosis. TUNEL-positive cells were restricted to

the ONL, where photoreceptor nuclei are located6,12. Kondo _et al_.23 reported a transgenic (Tg) rabbit model of progressive retinal degeneration. That rabbit model showed decreased rod ERG

response in 5% of animals at 48 weeks of age. In that study, 15% of newborn rabbits were transgene-positive, and some died. In general, it is difficult to develop a genetically modified

animal model, and it takes a relatively long time for disease to fully manifest. Because of these limits, intravitreal injection of compounds to induce retinal degeneration has been tried

with various drugs in several different kinds of animals24,25,26,27,28,29,30,31. The main advantages of localized application of SI through intravitreal injection are that it spares the

second eye as a control and avoids unwanted systemic side effects. With a known effective drug dose, many adequate animal models for retinal degeneration could be developed quickly. Animal

models with monocular drug–induced retinal degeneration could be useful because they do not show binocular blindness. Cho _et al_.30 reported that intravitreal injection of SI induced

monocular retinal degeneration in New Zealand white rabbit eyes. They further reported that retinal damage was reversible at low doses (0.1 and 0.2 mg of SI) but irreversible at higher doses

(0.4 and 0.8 mg of SI). In the 0.4-mg SI group in that study, the outer retina was significantly destroyed, whereas the inner retina was relatively preserved. Conversely, in the 0.8-mg SI

group, the entire retinal layers were irreversibly destroyed. Those authors reported that monocular intravitreal injection with SI provided an animal model for monocular retinal

degeneration. However, Cho _et al_.30 only tested the performance of intravitreal SI injection and did not perform vitrectomy. Our study showed that intravitreal SI injection without

vitrectomy did not induce diffuse retinal degeneration and produced only localized, widely varying degrees of retinal degeneration. In addition, intravitreal SI injection without vitrectomy

could induce severe retinal thinning to affect the inner retinal layer. With intravitreal injection after vitrectomy, retinal degeneration was relatively uniform, and the RPE and inner

retinal layer remained relatively intact per the results of immunohistochemistry and quantitative outcomes of retinal thickness. Additionally, because only conventional FP without

autofluorescence imaging was used instead of ultra-wide-field FP with AF imaging, those authors were limited in their ability to determine the distribution of effects in the peripheral

retina. In the present study, we demonstrated that intravitreal injection of SI after vitrectomy was an effective method to produce a globally diffuse outer retinal degeneration animal model

with no systemic complications and low cost. Furthermore, if future researchers screen the degree of outer retinal degeneration before experimentation, the two types of outer retinal

degeneration models induced here by SI injection can be effectively used for other study purposes. Notably, there were some limitations in this study. First, the intravitreally injected SI

dose was different between the post-vitrectomy group and the without-vitrectomy group. Because we learned that diffuse homogenous retinal degeneration in the whole retina could not be

induced with intravitreal SI injection without vitrectomy in the dose-dependence study, we did not try to inject a higher SI dose than 0.4 mg. In the dose-dependent study of SI with

vitrectomy, we confirmed that intravitreal injection of SI after vitrectomy affected the whole retina homogeneously based on wide AF and SD-OCT images and focused on detecting the effective

dose that could induce diffuse retinal degeneration. We initially could not predict the effect of intravitreal SI injection after vitrectomy and could not rule out the possibility that even

lower doses of SI might induce retinal degeneration in the vitrectomized eye. Therefore, sham and a higher dose of SI (0.5 mg) were also injected in vitrectomized eyes. Second, the follow-up

periods of the dose-dependent study and the second study were different. In the dose-dependent study, the purpose was to find the effective dose to induce diffuse retinal degeneration, so

rabbits were observed for four weeks after intravitreal injection. In the second study, the purpose was to evaluate the retinal change after a 0.4-mg SI intravitreal injection, so rabbits

were sacrificed at six weeks after intravitreal injection. Third, the numbers of animals included were relatively small. However, with the rabbits used, we could compare the effects of

vitrectomy on the induction of diffuse retinal degeneration and determine the effective dose. Furthermore, in the second study, complete retinal degeneration was induced at 30% among 10

rabbits. So, while minimizing the number of sacrificed animals, the aim of this study was achieved. This SI-induced method provides an animal model that includes incomplete and complete

outer retinal degeneration and will be useful for evaluating therapeutic strategies for diseases involving retinal degeneration. After vitrectomy, an animal model induced by intravitreal SI

injection showed diffuse and uniform outer retinal degeneration. In conclusion, a vitrectomized rabbit model with an intravitreal a 0.4-mg/0.05-mL SI injection induced diffuse outer retinal

degeneration with disruption of photoreceptors. MATERIALS AND METHODS ANIMALS In a dose-dependent study of SI, the right eyes of male New Zealand white rabbits (n = 19), aged five months and

weighing between 2.5 and 3.5 kg, received either an intravitreal injection of SI without vitrectomy or an intravitreal injection of SI or sham injection at two weeks after vitrectomy. For

all injections, each dose of SI was diluted in 0.05 mL of phosphate-buffered saline (PBS). Two rabbits per concentration received the following intravitreal injections of SI without

vitrectomy: 0.4 mg, 0.3 mg, 0.2 mg, and 0.1 mg. Intravitreal injection of SI after vitrectomy was performed as follows: sham (0.05 mL of PBS; n = 2 rabbits) or 0.5 mg, 0.3 mg, or 0.1 mg of

SI (n = 3 rabbits per concentration). To identify morphological changes to the retina, ultra-wide-field color FP, fundus AF imaging, and SD-OCT were performed at one month after intravitreal

SI injection. Histological examinations after H&E staining were also completed on select rabbit eyes at one month after injection. Additionally, to analyze the change of retinal

degeneration over time, SD-OCT was also performed at one week after intravitreal SI injection in the vitrectomized eyes. Based on the results of the dose-dependence study, 0.4 mg of SI in

0.05 mL of PBS was chosen for injection into the right eyes of rabbits (n = 10) at two weeks after vitrectomy. The rabbits in the efficacy experiments had a mean body weight of 3.32 kg and

mean axial length according to A-scan ultrasonography of 15.96 mm. In addition, FP, AF imaging, SD-OCT, and histology were performed at six weeks after injection. To identify physiological

changes to the retina, ERG was also performed at six weeks after injection. All procedures adhered to the Association for Research in Vision and Ophthalmology (ARVO) Statement for the Use of

Animals in Ophthalmic and Vision Research (ARVO Animal Policy). Approval for this study was obtained from the Institutional Animal Care and Use Committee of Korea University College of

Medicine in Seoul, Korea. VITRECTOMY The rabbits were anesthetized by injection of alfaxalone (5 mg/kg, Alfaxan®; Jurox Pty Ltd., Rutherford, Australia) into the marginal auricular vein and

intramuscular injection of xylazine (4 mg/kg, Rompun®; Bayer AG, Leverkusen, Germany). After anesthesia, 0.5% tropicamide and 0.5% phenylephrine (Tropherine®; Hanmi Pharm Co., Ltd., Seoul,

Korea) were administered for pupil dilatation, and then the eye was irrigated with 5% povidone iodide and draped for surgery. Two-port, 23-gauge core vitrectomy (Associate; DORC, Zuidland,

the Netherlands) was performed with a direct biconcave lens. The two ports were prepared by inserting a trocar cannula into the sclera at 4 mm from the limbus on the superoventral and

superodosal sides. A surgical microscope was used for lighting. The vitreous was removed using a vitreous cutter while continually supplying balanced salt solution (BSS; Alcon, Fort Worth,

TX, USA). INTRAVITREAL INJECTION OF SODIUM IODATE Animals were anesthetized as described above. Immediately before the injections, SI (Sigma-Aldrich, St. Louis, MO, USA) was dissolved in

PBS. The right eye of each rabbit was prepared, and the corresponding dose of SI (in a total volume of 0.05 mL) was injected intravitreally at 4 mm posterior to the limbus using a 30-gauge

needle. No injections were performed in the left eyes. ULTRA-WIDE-FIELD IMAGING AND SPECTRAL-DOMAIN OPTICAL COHERENCE TOMOGRAPHY FP and AF images were captured using an ultra-wide-field

scanning laser ophthalmoscope (OPTOS 200 TX; Optos PLC, Dunfermline, UK). SD-OCT was performed using the Spectralis® OCT system (Heidelberg Engineering GmbH, Heidelberg, Germany). The area

of the visual streak below the optic disc was evaluated. Vertical line scans, horizontal line scans, and raster scans (33 B-scans over a 16.5-mm × 16.5-mm area in a 55-degree image) were

performed in high-resolution mode (1,536 A-scans per B-scan, lateral resolution = 10 µm/pixel in a 55-degree image). Up to 100 single images were averaged in automatic real-time mode to

obtain a high-quality mean image. ELECTRORETINOGRAPHY The ERG protocol was based on the international standard for ERG from the International Society for Clinical Electrophysiology of Vision

(ISCEV)32,33,34. The rabbits were anesthetized as described above, dark-adapted for 30 minutes, and their pupils were dilated. One eye per animal was studied to avoid accidental

contralateral light adaptation. Light stimulation and ERG signal recording were performed with a commercial system (RETIcom; Roland Consult, Brandenburg an der Havel, Germany) using a

contact lens electrode with a built-in light resource (Kooijman/Damhof ERG lens; Medical Workshop BV, Groningen, the Netherlands). The reference and ground electrodes were platinum subdermal

needle electrodes. The reference electrodes were placed in the skin near the lateral canthus of the eyes, while the ground electrode was placed on the forehead between the two eyes.

HISTOLOGICAL EXAMINATION Immediately after euthanasia, both eyes were enucleated, immersion-fixed in Davidson’s solution for 24 hours, dehydrated, and embedded in paraffin. Sections

measuring 4 µm were cut and stained with H&E. The slides were examined for pathological retinal changes using a light microscope (BX-53; Olympus Corp., Tokyo, Japan) and photographed

with a digital camera (INFINITY3-1UR; Lumenera Corp., Ottawa, ON, Canada). IMMUNOHISTOCHEMISTRY Tissue sections were deparaffinized, rehydrated, and microwave-heated in antigen retrieval

buffer [1 mM of ethylenediaminetetraacetic acid (EDTA), 0.05% Tween 20; pH: 8.0]. Sections were then blocked with 4% horse serum in PBS, followed by primary antibody incubation at 4 °C

overnight. Anti-RPE65 (Invitrogen, Carlsbad, CA, USA) staining was performed following the manufacturer’s protocol. For anti-PKCα (Invitrogen, Carlsbad, CA, USA) and rhodamine-labeled

anti-peanut agglutinin (PNA) (Vector Laboratories, Burlingame, CA, USA) coimmunostaining, fluorescent detection was performed with an Alexa Fluor 488–conjugated goat anti-mouse secondary

antibody (Invitrogen, Carlsbad, CA, USA). For anti-PKCα and anti-rhodopsin (Rockland Immunochemicals, Pottstown, PA, USA) coimmunostaining, fluorescence detection was performed with Alexa

Fluor 488–conjugated goat anti-mouse and Alexa Fluor 594–conjugated goat anti-mouse secondary antibodies (Invitrogen, Carlsbad, CA, USA). For anti-Brn3 (Santa Cruz Biotechnology, Dallas, TX,

USA) immunostaining, fluorescence detection was performed with an Alexa Fluor 594–conjugated goat anti-mouse secondary antibody. Lastly, for anti-GFAP (Novus Biological, Littleton, CO, USA)

staining, sections were incubated for two hours at room temperature and then for one hour with Alexa Fluor 594–conjugated goat anti-mouse secondary antibody. A deoxynucleotidyl

transferase-mediated dUTP nick-end labeling (TUNEL) assay (Merck Millipore, Burlington, MA, USA) was performed following the manufacturer’s protocol. Nuclei were counterstained with

4,6-diamidino-2-phenylindole (DAPI) (AnaSpec Inc., Fremont, CA, USA). Cells stained by TUNEL were evaluated using fluorescence microscopy (T2000-U; Nikon, Tokyo, Japan). RETINAL THICKNESS

MEASUREMENT AND STATISTICAL ANALYSIS FOR RETINAL THINNING INDUCED BY SODIUM IODATE INJECTION In each rabbit, we measured total retinal thickness and inner retinal thickness at 10 different

inferior retinal sites using linear horizontal SD-OCT imaging performed at baseline and at one month after a 0.4-mg SI/0.05-mL injection in the non-vitrectomized and vitrectomized eyes,

respectively. Total retinal layer was defined as from ganglion cell layer (GCL) to RPE layer and inner retinal layer was defined as from GCL to INL. To compare the effects of SI injection on

total retinal thickness and inner retinal thickness between baseline and post-injection, statistical analysis was conducted using a Wilcoxon signed-rank test. To compare the effects of

vitrectomy on total retinal thickness and inner retinal thickness, statistical analysis was conducted using the Mann–Whitney U test. To compare the type of retinal degeneration after SI

injection, statistical analysis was conducted using the Mann–Whitney U test or Kruskal Wallis test. Data are presented as mean ± standard error (SE). Differences were considered

statistically significant at p < 0.05. REFERENCES * Asakawa, K. _et al_. Histopathological Changes of Inner Retina, Optic Disc, and Optic Nerve in Rabbit with Advanced Retinitis

Pigmentosa. _Neuroophthalmology_ 40, 286–291, https://doi.org/10.1080/01658107.2016.1229339 (2016). Article  PubMed  PubMed Central  Google Scholar  * Vamos, R. _et al_. The structure and

function of the macula in patients with advanced retinitis pigmentosa. _Invest Ophthalmol Vis Sci_ 52, 8425–8432, https://doi.org/10.1167/iovs.11-7780 (2011). Article  PubMed  PubMed Central

  Google Scholar  * Strettoi, E., Porciatti, V., Falsini, B., Pignatelli, V. & Rossi, C. Morphological and functional abnormalities in the inner retina of the rd/rd mouse. _J Neurosci_

22, 5492–5504, 20026533 (2002). * da Cruz, L. _et al_. The Argus II epiretinal prosthesis system allows letter and word reading and long-term function in patients with profound vision loss.

_Br J Ophthalmol_ 97, 632–636, https://doi.org/10.1136/bjophthalmol-2012-301525 (2013). Article  PubMed  PubMed Central  Google Scholar  * Humayun, M. S. _et al_. Visual perception in a

blind subject with a chronic microelectronic retinal prosthesis. _Vision Res_ 43, 2573–2581 (2003). Article  Google Scholar  * Balmer, J., Zulliger, R., Roberti, S. & Enzmann, V. Retinal

Cell Death Caused by Sodium Iodate Involves Multiple Caspase-Dependent and Caspase-Independent Cell-Death Pathways. _Int J Mol Sci_ 16, 15086–15103, https://doi.org/10.3390/ijms160715086

(2015). Article  CAS  PubMed  PubMed Central  Google Scholar  * Nilsson, S. E., Knave, B. & Persson, H. E. Changes in ultrastructure and function of the sheep pigment epithelium and

retina induced by sodium iodate. II. Early effects. _Acta Ophthalmol (Copenh)_ 55, 1007–1026 (1977). Article  CAS  Google Scholar  * Kiuchi, K., Yoshizawa, K., Shikata, N., Moriguchi, K.

& Tsubura, A. Morphologic characteristics of retinal degeneration induced by sodium iodate in mice. _Curr Eye Res_ 25, 373–379 (2002). Article  Google Scholar  * Korte, G. E., Reppucci,

V. & Henkind, P. RPE destruction causes choriocapillary atrophy. _Investigative ophthalmology & visual science_ 25, 1135–1145 (1984). CAS  Google Scholar  * Hariri, S., Moayed, A.

A., Choh, V. & Bizheva, K. _In vivo_ assessment of thickness and reflectivity in a rat outer retinal degeneration model with ultrahigh resolution optical coherence tomography. _Invest

Ophthalmol Vis Sci_ 53, 1982–1989, https://doi.org/10.1167/iovs.11-8395 (2012). Article  PubMed  Google Scholar  * Chowers, G. _et al_. Course of Sodium Iodate-Induced Retinal Degeneration

in Albino and Pigmented Mice. _Invest Ophthalmol Vis Sci_ 58, 2239–2249, https://doi.org/10.1167/iovs.16-21255 (2017). Article  CAS  PubMed  Google Scholar  * Hanus, J., Anderson, C.,

Sarraf, D., Ma, J. & Wang, S. Retinal pigment epithelial cell necroptosis in response to sodium iodate. _Cell Death Discov_ 2, 16054, https://doi.org/10.1038/cddiscovery.2016.54 (2016).

Article  CAS  PubMed  PubMed Central  Google Scholar  * Clifton, L. & Makous, W. Iodate poisoning: early effect on regeneration of rhodopsin and the ERG. _Vision Res_ 13, 919–924 (1973).

Article  CAS  Google Scholar  * Obata, R. _et al_. Retinal degeneration is delayed by tissue factor pathway inhibitor-2 in RCS rats and a sodium-iodate-induced model in rabbits. _Eye

(Lond)_ 19, 464–468, https://doi.org/10.1038/sj.eye.6701531 (2005). Article  CAS  Google Scholar  * Hariri, S. _et al_. Noninvasive imaging of the early effect of sodium iodate toxicity in a

rat model of outer retina degeneration with spectral domain optical coherence tomography. _J Biomed Opt_ 18, 26017, https://doi.org/10.1117/1.JBO.18.2.026017 (2013). Article  CAS  PubMed

Google Scholar  * Enzmann, V. _et al_. Behavioral and anatomical abnormalities in a sodium iodate-induced model of retinal pigment epithelium degeneration. _Exp Eye Res_ 82, 441–448,

https://doi.org/10.1016/j.exer.2005.08.002 (2006). Article  CAS  PubMed  Google Scholar  * Andersen, F. A. Final Report on the Safety Assessment of Sodium Iodate. _J Am Coll Toxicol_ 14,

231–239 (1995). Article  CAS  Google Scholar  * Webster, S. H., Rice, M. E., Highman, B. & Vonoettingen, W. F. The Toxicology of Potassium and Sodium Iodates - Acute Toxicity in Mice.

_Journal of Pharmacology and Experimental Therapeutics_ 120, 171–178 (1957). CAS  PubMed  Google Scholar  * Ahn, S. M. _et al_. Development of a Post-vitrectomy Injection of

N-methyl-N-nitrosourea as a Localized Retinal Degeneration Rabbit Model. _Exp Neurobiol_ 28, 62–73, https://doi.org/10.5607/en.2019.28.1.62 (2019). Article  PubMed  PubMed Central  Google

Scholar  * Wang, J., Iacovelli, J., Spencer, C. & Saint-Geniez, M. Direct effect of sodium iodate on neurosensory retina. _Invest Ophthalmol Vis Sci_ 55, 1941–1953,

https://doi.org/10.1167/iovs.13-13075 (2014). Article  CAS  PubMed  PubMed Central  Google Scholar  * Mones, J. _et al_. A Swine Model of Selective Geographic Atrophy of Outer Retinal Layers

Mimicking Atrophic AMD: A Phase I Escalating Dose of Subretinal Sodium Iodate. _Invest Ophthalmol Vis Sci_ 57, 3974–3983, https://doi.org/10.1167/iovs.16-19355 (2016). Article  CAS  PubMed

  Google Scholar  * Chen, X., Li, Q., Xu, H. & Yin, Z. Q. Sodium iodate influences the apoptosis, proliferation and differentiation potential of radial glial cells _in vitro_. _Cellular

physiology and biochemistry: international journal of experimental cellular physiology, biochemistry, and pharmacology_ 34, 1109–1124, https://doi.org/10.1159/000366325 (2014). Article  CAS

  Google Scholar  * Kondo, M. _et al_. Generation of a transgenic rabbit model of retinal degeneration. _Invest Ophthalmol Vis Sci_ 50, 1371–1377, https://doi.org/10.1167/iovs.08-2863

(2009). Article  PubMed  Google Scholar  * Rosch, S. _et al_. Selective photoreceptor degeneration by intravitreal injection of N-methyl-N-nitrosourea. _Investigative ophthalmology &

visual science_ 55, 1711–1723, https://doi.org/10.1167/iovs.13-13242 (2014). Article  CAS  ADS  Google Scholar  * Aplin, F. P. _et al_. Stimulation of a Suprachoroidal Retinal Prosthesis

Drives Cortical Responses in a Feline Model of Retinal Degeneration. _Investigative ophthalmology & visual science_ 57, 5216–5229, https://doi.org/10.1167/iovs.16-19926 (2016). Article

CAS  Google Scholar  * Aplin, F. P. _et al_. ATP-induced photoreceptor death in a feline model of retinal degeneration. _Investigative ophthalmology & visual science_ 55, 8319–8329,

https://doi.org/10.1167/iovs.14-15732 (2014). Article  CAS  Google Scholar  * Aplin, F. P. _et al_. Retinal Changes in an ATP-Induced Model of Retinal Degeneration. _Frontiers in

neuroanatomy_ 10, 46, https://doi.org/10.3389/fnana.2016.00046 (2016). Article  CAS  PubMed  PubMed Central  Google Scholar  * Halupka, K. J. _et al_. Neural Responses to Multielectrode

Stimulation of Healthy and Degenerate Retina. _Investigative ophthalmology & visual science_ 58, 3770–3784, https://doi.org/10.1167/iovs.16-21290 (2017). Article  CAS  Google Scholar  *

Vessey, K. A. _et al_. Adenosine triphosphate-induced photoreceptor death and retinal remodeling in rats. _The Journal of comparative neurology_ 522, 2928–2950,

https://doi.org/10.1002/cne.23558 (2014). Article  CAS  PubMed  PubMed Central  Google Scholar  * Cho, B. J., Seo, J. M., Yu, H. G. & Chung, H. Monocular retinal degeneration induced by

intravitreal injection of sodium iodate in rabbit eyes. _Japanese journal of ophthalmology_ 60, 226–237, https://doi.org/10.1007/s10384-016-0429-1 (2016). Article  CAS  PubMed  Google

Scholar  * Rosch, S., Werner, C., Muller, F. & Walter, P. Photoreceptor degeneration by intravitreal injection of N-methyl-N-nitrosourea (MNU) in rabbits: a pilot study. _Graefe’s

archive for clinical and experimental ophthalmology = Albrecht von Graefes Archiv fur klinische und experimentelle Ophthalmologie_ 255, 317–331, https://doi.org/10.1007/s00417-016-3531-7

(2017). Article  CAS  PubMed  Google Scholar  * Amaral, A. V. C. _et al_. Electroretinography and immunohistochemistry of retina in rabbits treated with sildenafil citrate. _Arq Bras Med Vet

Zoo_ 67, 1589–1598, https://doi.org/10.1590/1678-4162-7464 (2015). Article  Google Scholar  * Gjorloff, K., Andreasson, S. & Ehinger, B. Standardized full-field electroretinography in

rabbits. _Doc Ophthalmol_ 109, 163–168 (2004). Article  Google Scholar  * Luebke, J., Anton, A. & Bach, M. Test-retest reliability of scotopic full-field electroretinograms in rabbits.

_Doc Ophthalmol_ 134, 157–165, https://doi.org/10.1007/s10633-017-9582-1 (2017). Article  PubMed  Google Scholar  Download references ACKNOWLEDGEMENTS This research was supported in part by

the Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (NRF-2016R1D1A1A02937018); by the Bio & Medical Technology

Development Program of the NRF funded in part by the Korean government, Ministry of Science and ICT (MSIP) (NRF-2017M3A9E2056458 and 2017M3A9E2056460); and in part by the 2016 Korea

University Ansan Hospital R&D support project through the support of the Vice President for Medical Affairs of Korea University Special Research Funds (K1613771); by a Korea University

grant. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Department of Ophthalmology, Korea University College of Medicine, Seoul, Korea So Min Ahn, Cheolmin Yun & Seong-Woo Kim * Department

of Physiology, Chungbuk National University School of Medicine, Cheongju, Korea Jungryul Ahn, Seongkwang Cha & Yong Sook Goo * Department of Ophthalmology, Bucheon Hospital,

Soonchunhyang University College of Medicine, Bucheon, Korea Tae Kwann Park * Medical Device Development Center, Osong Medical Innovation Foundation, Cheongju, Korea Young-Jin Kim Authors *

So Min Ahn View author publications You can also search for this author inPubMed Google Scholar * Jungryul Ahn View author publications You can also search for this author inPubMed Google

Scholar * Seongkwang Cha View author publications You can also search for this author inPubMed Google Scholar * Cheolmin Yun View author publications You can also search for this author

inPubMed Google Scholar * Tae Kwann Park View author publications You can also search for this author inPubMed Google Scholar * Young-Jin Kim View author publications You can also search for

this author inPubMed Google Scholar * Yong Sook Goo View author publications You can also search for this author inPubMed Google Scholar * Seong-Woo Kim View author publications You can

also search for this author inPubMed Google Scholar CONTRIBUTIONS Study design (S.K.); study conduct (S.A., S.K.); data collection (S.A., S.K.); data analysis and interpretation (S.A., J.A.,

S.C., Y.G., S.K.); and preparation, review, and approval of the manuscript (S.A., J.A., S.C., C.Y., T.P., Y.K., Y.G., S.K.). CORRESPONDING AUTHORS Correspondence to Yong Sook Goo or

Seong-Woo Kim. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. ADDITIONAL INFORMATION PUBLISHER’S NOTE Springer Nature remains neutral with regard to

jurisdictional claims in published maps and institutional affiliations. RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International

License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source,

provide a link to the Creative Commons license, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons

license, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons license and your intended use is not permitted by

statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this license, visit

http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Ahn, S.M., Ahn, J., Cha, S. _et al._ The effects of intravitreal sodium iodate

injection on retinal degeneration following vitrectomy in rabbits. _Sci Rep_ 9, 15696 (2019). https://doi.org/10.1038/s41598-019-52172-y Download citation * Received: 01 August 2019 *

Accepted: 12 October 2019 * Published: 30 October 2019 * DOI: https://doi.org/10.1038/s41598-019-52172-y SHARE THIS ARTICLE Anyone you share the following link with will be able to read this

content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
