ABSTRACT The catalytic performance with high conversion and high selectivity of Ti-based oxide catalysts have been widely investigated. Besides, stability, which is an essential parameter in

the industrial process, lacked fundamental understanding. In this work, we combined computational and experimental techniques to provide insight into the deactivation of P25 and TS-1

Ti-based oxide catalysts during the methyl oleate (MO) epoxidation. The considered deactivation mechanisms are fouling and surface oxygen vacancy (OV). The fouling causes temporary catalyst

deactivation through active site blockage but can be removed via calcination in air at high temperature. However, in this work, the OV formation plays an important role in the overall

performance of the spent catalyst as the deactivated catalyst after regeneration, cannot be restored to the initial activity. Also, the effects of OV in spent catalysts caused (i) the

formation of more Ti3+ species on the surface as evident by XPS and Bader charge analysis, (ii) the activity modification of the active region on the catalyst surface as the reduction in

energy gap (Eg) occurred from the formation of the interstates observed in the density of states profiles of spent catalyst modeled by the O-vacant P25 and TS-1 models. This reduction in Eg

affects directly the strength of Ti–OOH active site and MO bonding, in which high binding energy contributes to a low conversion because the MO needed an O atom from Ti–OOH site to form the

methyl-9,10-epoxy stearate. Hence, the deactivation of the Ti-based oxide catalysts is caused not only by the insoluble by-products blocking the active region but also mainly from the OV.

Note that the design of reactive and stable Ti-based oxide catalysts for MO epoxidation needed strategies to prevent OV formation that permanently deactivated the active region. Thus, the

interrelation and magnitude between fouling and OV formation on catalyst deactivation will be investigated in future works. SIMILAR CONTENT BEING VIEWED BY OTHERS GENERATION OF OXIDE SURFACE

PATCHES PROMOTING H-SPILLOVER IN RU/(TIO_X_)MNO CATALYSTS ENABLES CO2 REDUCTION TO CO Article 09 October 2023 EXPERIMENTAL AND FIRST-PRINCIPLES INVESTIGATION ON HOW SUPPORT MORPHOLOGY

DETERMINES THE PERFORMANCE OF THE ZIEGLER-NATTA CATALYST DURING ETHYLENE POLYMERIZATION Article Open access 01 August 2024 REVERSE OXYGEN SPILLOVER TRIGGERED BY CO ADSORPTION ON SN-DOPED

PT/TIO2 FOR LOW-TEMPERATURE CO OXIDATION Article Open access 13 June 2023 INTRODUCTION Since chemical industries are shifting towards greener technologies, utilizing renewable feedstocks,

e.g., biomass, overcomes the shortage of natural resources while reducing environmental is impacted by moving away from petroleum-based supply. In the plant-based oil-producing regions,

especially in Southeast Asia, the palm oil is oversupplied. Thus, the conversion of palm oil to other higher-value products is of great interest1. One of the targeted products is green

diesel, called the fatty acid methyl esters (FAME). It was produced either via the esterification reaction of animal or plant-based oil. 2,3 However, various energy policies in different

countries that encourage the use of electric vehicles to lower the demand for biodiesel suppressed the demand for FAME. Hence, the epoxidation reaction can be the solution towards the

utilization of the FAME producing higher-value chemicals, especially, epoxide products4 which are used in as plasticizers5, stabilizer in PVC, intermediates in polyurethane polyols 6,

lubricants 7, cosmetics, precursors of various polymer 8, wood impregnation, biofuel additives 9, and in pharmaceuticals 10. So far, the low-temperature liquid-phase epoxidation reaction was

described by Prileshajew, as shown in Supplementary Figures S1. The homogeneous reaction is catalyzed by percarboxylic acids which are formed in situ from the reaction between hydrogen

peroxide and the carboxylic acid on soluble mineral acids such as H3PO4, HCl, or H2SO49,11. In this work, an unsaturated FAME, methyl oleate (MO) is studied, where the targeted epoxide

product is the methyl-9,10-epoxy stearate (ME). However, a homogeneous process that is used as catalysts in an industrial process causes corrosion from H3PO4, HCl, and H2SO4 12, exhibiting

low selectivity since the soluble mineral acid promotes side reactions, e.g., oxirane ring-opening 1. In addition, the catalyst reuse from a homogeneous process is impractical due to the

difficult separation between the catalysts and products. Due to this, the Ti-based oxide catalysts are of interest for the epoxidation reaction. This commercial catalyst is available as

titanium dioxide (TiO2) with a great number of the Ti–O–Ti moieties known as P25 1. In addition, the ordered structure titanosilicate, TS-1 containing SiO2-doped TiO2 exhibiting high

conversion and selectivity is considered a good candidate 12 because SiO2 help promote the dispersion of the TiO213. The active center in FAME epoxidation reaction on the TiO2 is the

titanium hydroperoxo species (Ti–OOH) formed via the reaction between the added hydrogen peroxide and the clean TiO2 surface. The Ti–OOH active sites converted MO to ME product and H2O as

by-product illustrated in Figures S2 of the supplementary document. To achieve the highest performance for such catalysts, one must tackle its surface deactivation by understanding the

underlying mechanism during the liquid-phase epoxidation reaction occurred at low temperature 2. Therefore, we investigate the deactivation scheme on P25 and TS-1 Ti-based oxide catalysts

during the liquid-phase MO epoxidation reaction at low temperature based on the evidence from experimental data, surface characterizations, and computational data obtained via the density

functional theory-based (DFT) analysis 14,15,16,17,18,19. Ultimately, the information of such deactivation schemes would be used to construct the guideline towards the design of reactive and

stable Ti-based oxide catalysts for epoxidation reactions. RESULTS AND DISCUSSION To understand the deactivation of the P25 and TS-1 catalysts, we first determine their stability in terms

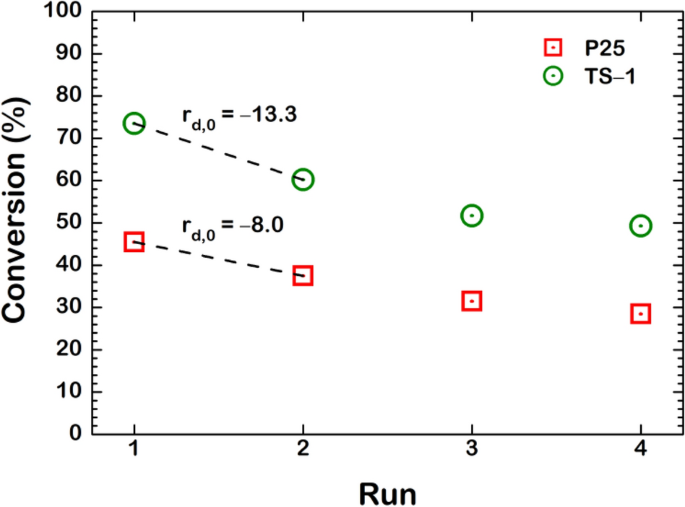

of MO conversion during the epoxidation reaction on the fresh and used catalysts, as shown in Fig. 1. For the first batch, exactly, the TS-1 yielded higher conversion at 73.5% than that of

the P25 at 45.5%. The deactivation is then pre-evaluated via the initial deactivation rate \((\mathrm{r}_{{\mathrm{d}},0})\) calculated from the change of MO conversion over the first and

second batch, where the \({\mathrm{r}}_{{{\mathrm{d}},0}}\) is − 13.3 for the TS-1 and − 8.0 for the P25. Up to this point, the assumption towards the deactivation was proposed to be formed

the fouling of either products or by-products, in which the carbon contents may occur in the used catalysts. This concern can be eliminated by the calcination method. As a result, the spent

TS-1 and P25 catalysts from the 1st batch were calcined in air at 550 °C for 5 h to confirm the removal of the fouling species. This selected temperature is confirmed to avoid the phase

change of our Ti-based oxide catalyst20. Thus, the regenerated catalysts should perform with comparable MO conversion to the fresh catalyst if the fouling is the main cause of deactivation.

The MO conversion of fresh catalysts was compared with that of with and without calcinated catalysts as shown in Table 1. It is suggested the removal of the fouling species via calcination

can be observed from the increased MO conversion of calcined catalysts. In fact, we found that the MO conversion of the calcined ones was not regenerated back to the value of the fresh

catalysts. This raised the concern about our assumption that fouling may not be only the main contributor to the deactivation mechanism. However, the catalyst surface transformation may play

a role in the modification of active regions. We intended to investigate the changes in the number of surface species of the elements on the surface: Ti and O on both catalysts. Hence, the

tracking of the surface transformation during the reaction was carried out via the XPS technique. The high-resolution XPS spectra profiles of P25 and TS-1 illustrated in Figs. 2 and 3 reveal

the changes in the amount of Ti3+, Ti4+, and O vacancy on the catalyst surfaces. The analyzed XPS is implemented in the Supplementary document as Table S1. On the Ti species of the fresh

catalysts, the Ti4+2p3/2 peaks were detected at 458.6 eV and 464.2 eV for P25, and 459.9 eV and 465.7 eV for TS-1. These peaks are in good agreement with the anatase TiO221 and TS-122. In

addition, the Ti3+2p1/2 peak, which was classified to the Ti2O3 phase 23, occurred between the peaks of Ti4+2p3/2 at 460.4 eV for P25 and 463.4 eV for TS-1 catalysts. To track the evolution

of the catalyst surface during MO epoxidation, the XPS profile in Fig. 2 was analyzed for the changes in the content of surface Ti3+ and Ti4+ species. From Fig. 2a, the fresh TS-1 possessed

8.3% of Ti3+ species, which is less than that of the P25 (13.3%), shown in Fig. 2c. On the profiles of spent catalysts shown in Fig. 2b,d, the Ti3+ species increased to 18.9% and 14.2% for

TS-1 and P25, respectively. Besides, the changes in surface oxygen vacancies were investigated via the XPS, as shown in Fig. 3. The XPS profile indicates that there are three oxygen species:

lattice oxygen (OL), sub oxide (OS), and oxygen vacancy (OV) that are also confirmed by Bharti et al.23 It was found in all fresh catalysts that only the OL and OS species were observed,

while the OV was found in all reused catalysts. The OV observed in the deactivated ones is confirmed that the deactivation during MO epoxidation involves the removal of a surface oxygen

atom. Therefore, we hypothesized the formation of these OV modified the active region on the catalyst surface, resulting in the reduced activity which leads to reduce the MO conversion. To

further clarify such argument on the deactivation mechanism, the DFT analysis was employed in the following section. To investigate the role of OV species formed on the surface of reused

catalysts, we first modeled the P25 and TS-1 surface. From the XRD profile, shown in Supplementary Figures S3, the P25 exhibits anatase as the main phases, while rutile also hardly occurs.

The TS-1 shows the ZSM-5-like the structure of high crystalline TS-1, in which the Ti peaks also appear in the TS-1 XRD profile. Therefore, the models in this study were designed based on

the XRD profiles. There are two different methods to design the P25 and TS-1 catalyst surfaces because of a different crystal structure. For the P25 surface, it is confirmed from the

experiment that anatase TiO2 is the main phase. We first calculated the full geometry-optimization in the bulk anatase TiO2, in which the structural parameters are uncovered in

Supplementary. The optimized model of P25 is illustrated in Fig. 4a. The anatase TiO2 phase was represented by the TiO2(101) slab model referring to the model construction of Lazzeri et al.

24 who revealed such TiO2(101) surface to be the most stable surface of anatase. The surface model comprised of 48 atoms having the formula of Ti16O32 as 2 × 2 × 1 supercell (Fig. 4b), where

the vacuum is set to 15 Å to avoid the interactions due to the periodicity (Fig. 4c). This surface model shows two Ti–O layers represented the unit cell of anatase TiO2 (101), where the

increase of the Ti–O layer of this pattern not effects to density of states and still has the same energy gap. In the full geometry-optimization, we use the selective dynamics in order to

allow the Ti–O top layer to free relax, while, the Ti–O bottom layer is fixed. For the TS-1 model, it was designed by the Ti-doped ZSM-5-like structure based on the reported procedures in

our previous works 25,26. In each 10 T ring, one Ti atom was substituted on one Si atom forming the TS-1 with Ti:Si ratio of 1:5 as illustrated in Fig. 4d. To represent well the real TS-1

structure, we performed the geometry optimization of the Si80Ti16O192 bulk structure shown in Fig. 4d. Because the reaction occurs in the 10 T ring rather than in other regions, the TS-1

surface model is also different from the P25. We thus scaled-down the TS-1 cluster represented by a 9.5-Å-diameter 10 T ring to be the reactive region participating in the reaction modeled

in a 25 × 25 × 15 Å3 cubic system. In addition, to represent the rest of the TS-1 framework, after the optimization of the bulk structure, one hydrogen atom was added to all terminal O atoms

of the 10 T ring. All dangling OH groups were fixed to the lattice parameter of the bulk to represent the TS-1 structure before being further optimized. In the geometry optimization, we

also used the selective dynamics method to allow atoms to relax except the OH groups fully. The optimized TS-1 surface model is shown in Fig. 4e,f. On the representation of the deactivated

surface caused by OV formation, the OV sites on the P25 and TS-1 surfaces were created and modeled by removing an O atom in each model at the following locations: (1) O16 in TS-1, (2) O24 in

P25 representing the OV near a Ti-site (OV,Ti), and (3) O12 in P25 representing the OV near a Si-site (OV,Si), in which the atomic position label is shown in Fig. 4b for P25 and Fig. 4e for

TS-1. Having all the modeled catalysts, the analysis of their electronic properties was carried out by the Bader charge analysis. On the P25 surface, it was found that the formation of OV

induced charge accumulation in the region between the two Ti atoms (Ti4 and Ti16) previously connected to the removed O atom, while the charge of both Ti atoms depleted as shown in Fig. 5.

In addition, from the charge transfers of Ti4 and Ti16, labeled in the Fig. 4b, decreased from + 2.41 |_e_| and + 2.36 |_e_| to + 2.03 |_e_| and + 1.99 |_e_|, respectively. This decrease in

charge transfer correlated with the decrease in an oxidation state of Ti from Ti4+ to Ti3+ verified by XPS. Hence, the model of P25 can represent well the P25 used in the experiment. For the

TS-1 catalyst, two models of the deactivated surface were constructed: (1) TS-1 with OV adjacent to the Ti-site (labeled as OV,Ti) and (2) TS-1 with OV far from the Ti-site (labeled as

OV,Si) illustrated in Fig. 6. The analysis of charge transfer in Table 2 suggested that only the location of OV near the Ti-site affects the charge transfer of the Ti atom, whereas the OV

located far from the Ti-site affected the charge transfer of Si atoms near such OV but not the Ti-site. We further investigated the electronic effects of OV on the surface apart from the

charge transfer via the analysis of the projected density of state (PDOS). The spin-polarized PDOS of the fresh and deactivated surface of P25 and TS-1 was obtained and analyzed, as shown in

Fig. 7, in which the Fermi level (EF) was set to 0 eV; thus, the negative and positive energy represents the valence state and conduction state, respectively. For the P25 catalyst, the

energy gap (Eg) incorporating the Hubbard U correction and D3 dispersion terms is 3.16 eV (DFT + _U_ + D3, _U_ = 6.00 eV), while Portillo-Vélez et al. 27 previously verified the Eg to be

2.98 eV with the Hubbard U correction but without the D3 dispersion term (DFT + _U_, _U_ = 6.00 eV). As for this, we suggested that one should include the D3 term to represent well the P25;

hence, our calculated band gap is reliable. On the PDOS profile of P25, the O-PDOS (red line) is the major contributor to the total density of state (TDOS) in the valence state, while the

Ti-PDOS (blue line) is the main contribution in the TDOS of the conduction state. Analyzing the changes in PDOS of the P25 catalyst after the reaction via the comparison of the PDOS of fresh

P25 and deactivated P25 is revealed that the Eg of the fresh surface of 3.16 eV reduced to 2.21 eV when the OV formed. Also, on the deactivated surface, the conduction band minimum (CBM)

shifted from 3.16 eV to 2.17 eV, while the valence band maximum (VBM) shifted from − 0.00089 eV to − 1.07 eV. Interestingly, with surface OV, unpaired electronic states were detected between

 − 0.1 eV and − 0.8 eV, comprised mainly of the Ti-state. These peaks correlated with the charge accumulation region confirmed via the Bader charge analysis, illustrated in Fig. 6. For the

TS-1, the calculated Eg is 4.45 eV (DFT + _U_ + D3, _U_ = 2.00 eV). The Hubbard _U_ correction parameter for Ti in P25 is recommended to be 6 eV27, while for other oxide materials, in this

case, TS-1, the _U_ of 2.00 eV is suggested 28. Like in the case of P25, the Ti-PDOS is the major contributor in the conduction state, while O-PDOS is the major contributor in the valence

state. The Eg value of the fresh surface at 4.45 eV reduced to 4.02 eV and 2.42 eV for the surface with OV,Si and OV,Ti, respectively. The changes of CBM and VBM in the deactivated TS-1 are

also similar to that of P25. The CBM shifted from 4.41 eV to 3.92 eV in the case of OV,Si and shifted to 2.38 eV in OV,Ti, while, the VBM shifted from − 0.035 eV to − 0.556 eV in the case of

OV,Si and shifted to − 1.19 eV in OV,Ti. However, unlike the P25 surface with OV, the unpaired electronic states were found. The paired electronic state was detected in the valence state

between − 0.0006 eV and − 0.417 eV for the TS-1 with OV,Si, while the one with OV,Ti such state, is located between − 0.035 eV and − 0.42 eV. Both of the paired electronic states comprised

the Si, Ti, and O states equally. Besides, in the conduction state, an interstate was also found at 2.5 eV only for the TS-1 with OV,Ti. As the calculated PDOS, which is indicated that the

OV induced the formation of the interstate leading to decrease Eg, the UV–vis profiles of the fresh and spent catalysts are obtained and analyzed, shown in Fig. 8, in order to confirm these

phenomena. The UV–vis profiles plotted the absorbance against energy were used to investigate the Eg for each sample. It is revealed that both spent P25 and TS-1 surface exhibited a lower Eg

than their fresh surface. In addition, the Eg of TS-1 surface, which has a higher initial rate of deactivation, reduced more than that of the P25 surface. Referring to the hypothesis for

the deactivation mechanism, the evidence from the characterizations of the surface electronic properties of the fresh and spent P25 and TS-1 revealed the OV is one of the causes altering the

activity of the active region on the catalyst surface in addition to the fouling which can be handled via the calcination in air. This deactivation via OV occurred through not only the

changes in charge transfer, which promoted more Ti3+ species on the surface but also through the formation of the interstates found in the PDOS profile that altered the ability of the active

region of the catalyst surface. The direct effect causing to lower conversion is the Ti3+ induced high binding energy between the active site, Ti–OOH, and MO. It can be implied that charge

accumulation makes bonding of Ti–OOH strong. Therefore, the conversion of ME, which is formed by one O atom form Ti–OOH and MO, is significantly decreased. CONCLUSION The following

summarizes the deactivation mechanism of the P25 and TS-1 Ti-based oxide catalysts during the MO epoxidation. * (i) The fouling causes catalyst deactivation but in a regenerative way as the

activity of the catalyst can be restored via the calcination in air oxidizing all the fouling species. * (ii) The catalyst surface also deactivated through the loss of oxygen atom, forming

the surface OV which induced the formation of the interstates in conduction and valence states of the catalyst, where these interstates resulted in the decrease in energy gap for both

catalysts leading to the modification of the activity of the active region on the surface. * (iii) The OV formation introduces a new electron-rich site on the deactivated surface in both

P25, and TS-1 confirmed via the Bader charge analysis, where the charge accumulation is observed in the OV site. Therefore, as the cause of the reduced activity stemmed from the formation of

the OV, the addition of the oxygen atom back to the same removal site would restore the activity during the reaction. However, during the reaction when the O atom was removed, the surface

may have transformed into a more stable surface configuration prior to the addition of the oxygen atom via calcination. This way, the addition of the oxygen atom back to the removed site

would not be possible, resulting in the permanent loss of the active region on the catalyst surface. Ultimately, it was proposed that the cause of deactivation in Ti-based oxide catalysts

during MO epoxidation is the combination of fouling and OV formation. The fouling causes temporary deactivation and can be cured via calcination that oxidized the fouling species, while the

OV formation resulted in the surface modification that reduced the activity of the whole catalyst by altering the electronic properties of the active region on the surface producing a number

of less active regions. METHODOLOGY EXPERIMENTAL DETAILS CATALYST SYNTHESIS The P25 catalyst was used the commercial TiO2, powder from Aeoxide (formerly Degussa), while the TS-1 catalyst

was prepared by the hydrolysis of Ti(IV) isopropoxide (TIP, 97%, Sigma Aldrich) as Ti precursor and tetraethyl orthosilicate (TEOS, > 99%, Merck) as Si precursor by ammonium hydroxide

(NH4OH, 28% solution, Sigma Aldrich). The isopropanol was used as the solvent in order to dissolve TIP in deionized water (DI water) prior to the transfer to autoclave. The synthetic gel

formed with a molar ratio of 1.0TiO2:7.4SiO2:6.2(NH4)2O:1.8TPABr:553.7H2O in the 100 cm3 PTFE autoclave was heated at 1 °C/min to 160 °C and held for 2 h prior to the second heating to 210

°C at 10 °C/min for 5 h. The synthesized crystal was filtered, washed with DI water, and dried in air at 383 K overnight. The obtained solid was calcined at 550 °C for 6 h in air. CATALYST

CHARACTERIZATION The P25 and TS-1 catalysts were characterized by X-ray diffractometer (Bruker D8 Advance) using Cu Kα radiation with 2θ between 20° to 80° for P25 and 5° to 50° for TS-1,

respectively, with a scan speed of 0.5 s/step. The elemental contents of Ti and O were analyzed by the X-ray photoelectron spectroscopy (XPS), where the spectra were obtained by AMICUS

spectrometer using Mg Kα X-ray radiation (1253.6 eV) and Al Kα X-ray radiation (1486.6 eV) at a voltage of 15 kV and current of 12 mA. The energy gap for each catalyst was derived by the

absorbance versus energy profiles obtained by the Ultraviolet–visible spectrophotometry (UV–vis), in which the absorbance from 200 to 500 nm is obtained by Perkin Elmer Lambda 650

spectrophotometer, where the step size for the scan is 1 nm. CATALYTIC REACTION TESTING The catalytic property of each catalyst was carried out in a 50 cm3 three-necked round-bottom glass

reactor with a reflux condenser. During the liquid-phase MO epoxidation reaction at 50 °C, the mixture was stirred with a magnetic stirrer at 500 rpm with a reaction of 5 h. The substrates

comprise methyl oleate (MO, ˃99%, Sigma-Aldrich) and hydrogen peroxide (H2O2, 30 wt.% in H2O, Sigma-Aldrich) as an oxidizing reagent and acetonitrile (CH3CN, 99.8%, Sigma-Aldrich) as the

solvent. The MO/H2O2 feed molar ratio is 3:1, where the naphthalene was used as an internal standard (C10H8, ˃98%, Fluka). In addition, the catalyst weighed 0.3 g, was mixed with MO before

added with H2O2. After each batch of reaction, the catalyst will be collected and reused to analyze the stability over time. The recovering process entailed separation via centrifugation,

washed with DI water, and dried overnight at 110 °C. Note that, in the studying of regeneration, the samples were further calcined in air at 550 °C for 5 h, but apart from that, all reused

catalysts were followed the recovery step up to drying only. The product distribution for each run was analyzed by gas chromatography–mass spectrometry (GC–MS) equipped with a DB-5 column

with a dimension of 30 m × 0.25 mm × 0.25 μm from Shimadzu. COMPUTATIONAL DETAILS The DFT with the projector augmented wave (PAW) implemented in the Vienna ab initio simulation package

(VASP) 29,30,31,32 was used to investigate the surface structure and electronic properties. The exchange–correlation functional along with the generalized gradient approximation (GGA) by

Perdew, Burke, and Ernzerhof (PBE), especially the GGA + _U_ was used 33. The parameter _U_ of 6.0 and 2.0 was used for Ti in P25 27 and TS-1 28, respectively. The cut-off energy of 400 eV

for P25 and 500 eV for TS-1 were used for the self-consistent loop. The structural optimization (OPT) was performed within the conjugate gradient method 34 and relaxed until the force

convergence less than 0.01 eV/Å. Also, the Van der Waals dispersion term, DFT-D3 proposed by Grimme et al_._ 35 was applied for all calculations. In the Monkhorst–Pack _k_-mesh

Brillouin-zone integration 36, the 3 × 3 × 1 and 3 × 3 × 3 were used for P25 and TS-1 during the OPT. In the density of state (DOS) calculation, the value of 5 × 5 × 1 and 5 × 5 × 5 was used

for P25 and TS-1. All structure models were drawn and visualized by VESTA package 37. The partial charge accumulation or depletion during O vacancy formation (\({{\Delta \updelta

}}_{{\mathrm{O- vac}}}\)) on the surfaces was calculated based on the Bader charge analysis 38,39,40,41 as follows: $${{\Delta \updelta }}_{{\text{O-vac}}} = \updelta_{{\mathrm{O-vac,Sur}}}

{{{-} \updelta }}_{{\mathrm{Fresh,Sur}}} + {\updelta }_{{\mathrm{O}}}$$ (1) The parameters \({\updelta }_{{\mathrm{O - vac,Sur}}}\), \({\updelta }_{{\mathrm{Fresh,Sur}}}\), and \({\updelta

}_{{\mathrm{O}}}\) are the partial charge of the surface with O vacancy, clean surface, and an O atom, respectively. Additionally, the methodology of designed models is revealed in the

Results and Discussion section. DATA AVAILABILITY The authors declare that relevant data are within the manuscript. REFERENCES * Knothe, G., Dunn, R. O. & Bagby, M. O. _Biodiesel: The

Use of Vegetable Oils and Their Derivatives as Alternative Diesel Fuels_ (ACS Publications, Washington, DC, 1997). Google Scholar  * Praserthdam, S. & Jongsomjit, B. Observation on

different turnover number in two-phase acid-catalyzed esterification of dilute acetic acid and 1-heptanol. _Catal. Lett._ 130(3–4), 583–587 (2009). Article  CAS  Google Scholar  *

Praserthdam, S., Wongmaneenil, P. & Jongsomjit, B. Investigation of different modifiers for nanocrystal zirconia on W/ZrO2 catalysts via esterification. _J. Ind. Eng. Chem._ 16(6),

935–940 (2010). Article  CAS  Google Scholar  * Camblor, M., Corma, A., Esteve, P., Martinez, A. & Valencia, S. Epoxidation of unsaturated fatty esters over large-pore Ti-containing

molecular sieves as catalysts: important role of the hydrophobic–hydrophilic properties of the molecular sieve. _Chem. Commun._ 8, 795–796 (1997). Article  Google Scholar  * Galli, F.,

Nucci, S., Pirola, C. & Bianchi, C. Epoxy methyl soyate as bio-plasticizer: two different preparation strategies. _Chem. Eng. Trans._ 37, 601–606 (2014). Google Scholar  * Li, Z. _et

al._ Catalytic synthesis of carbonated soybean oil. _Catal. Lett._ 123(3–4), 246–251 (2008). Article  CAS  Google Scholar  * Borugadda, V. B. & Goud, V. V. Epoxidation of castor oil

fatty acid methyl esters (COFAME) as a lubricant base stock using heterogeneous ion-exchange resin (IR-120) as a catalyst. _Energy Procedia_ 54, 75–84 (2014). Article  CAS  Google Scholar  *

Wei, Y., Li, G., Lü, Q., Cheng, C. & Guo, H. Green and efficient epoxidation of methyl oleate over hierarchical TS-1. _Chin. J. Catal._ 39(5), 964–972 (2018). Article  CAS  Google

Scholar  * Yao, M.-Y., Huang, Y.-B., Niu, X. & Pan, H. Highly efficient silica-supported peroxycarboxylic acid for the epoxidation of unsaturated fatty acid methyl esters and vegetable

oils. _ACS Sustain. Chem. Eng._ 4(7), 3840–3849 (2016). Article  CAS  Google Scholar  * Grinberg, S., Kipnis, N., Linder, C., Kolot, V. & Heldman, E. Asymmetric bolaamphiphiles from

vernonia oil designed for drug delivery. _Eur. J. Lipid Sci. Technol._ 112(1), 137–151 (2010). Article  CAS  Google Scholar  * Turco, R., Pischetola, C., Tesser, R., Andini, S. & Di

Serio, M. New findings on soybean and methylester epoxidation with alumina as the catalyst. _RSC Adv._ 6(38), 31647–31652 (2016). Article  CAS  Google Scholar  * Smeets, V., Mustapha, L. B.,

Schnee, J., Gaigneaux, E. M. & Debecker, D. P. Mesoporous SiO2-TiO2 epoxidation catalysts: Tuning surface polarity to improve performance in the presence of water. _Mol. Catal._ 452,

123–128 (2018). Article  CAS  Google Scholar  * Cozzolino, M., Di Serio, M., Tesser, R. & Santacesaria, E. Grafting of titanium alkoxides on high-surface SiO2 support: An advanced

technique for the preparation of nanostructured TiO2/SiO2 catalysts. _Appl. Catal. A_ 325(2), 256–262 (2007). Article  CAS  Google Scholar  * Rittiruam, M., Yangthaisong, A. & Seetawan,

T. Enhancing the thermoelectric properties of TiNiSn by transition metals co-doped on the Ti-site of Ti0.5TMI0.25TMII0.25NiSn: a first-principles study. _J. Appl. Phys._ 124(17), 175101

(2018). Article  ADS  CAS  Google Scholar  * Rittiruam, M., Yangthaisong, A. & Seetawan, T. Enhancing the Thermoelectric Performance of Self-Defect TiNiSn: A First-Principles

Calculation. _J. Electron. Mater._ 47(12), 7456–7462 (2018). Article  ADS  CAS  Google Scholar  * Rittiruam, M., Jongsomjit, B. & Praserthdam, S. A computational-experimental

investigation on high ethylene selectivity in ethanol dehydration reaction found on WO x/ZrO 2-activated carbon bi-support systems. _Sci. Rep._ 9(1), 1–9 (2019). Article  CAS  Google Scholar

  * Rittiruam, M., Yangthaisong, A. & Seetawan, T. Reduced lattice thermal conductivity of Ti-site substituted transition metals Ti1-XTMXNiSn: a quasi-harmonic Debye model study. _Chin.

J. Phys._ 57, 393–402 (2019). Article  CAS  Google Scholar  * Saelee, T., Namuangruk, S., Kungwan, N. & Junkaew, A. Theoretical insight into catalytic propane dehydrogenation on Ni

(111). _J. Phys. Chem. C_ 122(26), 14678–14690 (2018). Article  CAS  Google Scholar  * Praserthdam, S., Somdee, S., Rittiruam, M. & Balbuena, P. B. Computational study of the evolution

of Ni-based catalysts during the dry reforming of methane. _Energy Fuels_ 34(4), 4855–4864 (2020). Article  CAS  Google Scholar  * Romeiro, A., Freitas, D., Azenha, M. E., Canle, M. &

Burrows, H. D. Effect of the calcination temperature on the photocatalytic efficiency of acidic sol–gel synthesized TiO2 nanoparticles in the degradation of alprazolam. _Photochem.

Photobiol. Sci._ 16(6), 935–945 (2017). Article  CAS  Google Scholar  * Sanjines, R. _et al._ Electronic structure of anatase TiO2 oxide. _J. Appl. Phys._ 75(6), 2945–2951 (1994). Article

ADS  CAS  Google Scholar  * Hasegawa, Y. & Ayame, A. Investigation of oxidation states of titanium in titanium silicalite-1 by X-ray photoelectron spectroscopy. _Catal. Today_ 71(1–2),

177–187 (2001). Article  CAS  Google Scholar  * Bharti, B., Kumar, S., Lee, H.-N. & Kumar, R. Formation of oxygen vacancies and Ti3+ state in TiO2 thin film and enhanced optical

properties by air plasma treatment. _Sci. Rep._ 6, 32355 (2016). Article  ADS  CAS  Google Scholar  * Lazzeri, M., Vittadini, A. & Selloni, A. Structure and energetics of stoichiometric

TiO2 anatase surfaces. _Phys. Rev. B_ 63(15), 155409 (2001). Article  ADS  CAS  Google Scholar  * Nahreen, S. _et al._ Catalytic upgrading of methane to higher hydrocarbon in a nonoxidative

chemical conversion. _Energy Fuels_ 30(4), 2584–2593 (2016). Article  CAS  Google Scholar  * Gao, J. _et al._ Structure of Mo2Cx and Mo4Cx molybdenum carbide nanoparticles and their

anchoring sites on ZSM-5 zeolites. _J. Phys. Chem. C_ 118(9), 4670–4679 (2014). Article  CAS  Google Scholar  * Portillo-Vélez, N., Olvera-Neria, O., Hernández-Pérez, I. & Rubio-Ponce,

A. Localized electronic states induced by oxygen vacancies on anatase TiO2 (101) surface. _Surf. Sci._ 616, 115–119 (2013). Article  ADS  CAS  Google Scholar  * Hu, Z. & Metiu, H. Choice

of U for DFT+ U calculations for titanium oxides. _J. Phys. Chem. C_ 115(13), 5841–5845 (2011). Article  CAS  Google Scholar  * Kresse, G. & Hafner, J. Ab initio molecular dynamics for

liquid metals. _Phys. Rev. B_ 47(1), 558 (1993). Article  ADS  CAS  Google Scholar  * Kresse, G. & Hafner, J. Ab initio molecular-dynamics simulation of the

liquid–metal–amorphous–semiconductor transition in germanium. _Phys. Rev. B_ 49(20), 14251 (1994). Article  ADS  CAS  Google Scholar  * Kresse, G. & Furthmüller, J. Efficiency of

ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. _Comput. Mater. Sci._ 6(1), 15–50 (1996). Article  CAS  Google Scholar  * Kresse, G. &

Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. _Phys. Rev. B_ 54(16), 11169 (1996). Article  ADS  CAS  Google Scholar  *

Perdew, J. P., Burke, K. & Ernzerhof, M. Generalized gradient approximation made simple. _Phys. Rev. Lett._ 77(18), 3865 (1996). Article  ADS  CAS  Google Scholar  * Teter, M. P., Payne,

M. C. & Allan, D. C. Solution of Schrödinger’s equation for large systems. _Phys. Rev. B_ 40(18), 12255 (1989). Article  ADS  CAS  Google Scholar  * Grimme, S., Antony, J., Ehrlich, S.

& Krieg, H. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. _J. Chem. Phys._ 132(15), 154104 (2010).

Article  ADS  CAS  Google Scholar  * Monkhorst, H. J. & Pack, J. D. Special points for Brillouin-zone integrations. _Phys. Rev. B_ 13(12), 5188 (1976). Article  ADS  MathSciNet  Google

Scholar  * Momma, K. & Izumi, F. VESTA: a three-dimensional visualization system for electronic and structural analysis. _J. Appl. Crystallogr._ 41(3), 653–658 (2008). Article  CAS

Google Scholar  * Henkelman, G., Arnaldsson, A. & Jónsson, H. A fast and robust algorithm for Bader decomposition of charge density. _Comput. Mater. Sci._ 36(3), 354–360 (2006). Article

  Google Scholar  * Tang, W., Sanville, E. & Henkelman, G. A grid-based Bader analysis algorithm without lattice bias. _J. Phys.: Condens. Matter_ 21(8), 084204 (2009). ADS  CAS  Google

Scholar  * Sanville, E., Kenny, S. D., Smith, R. & Henkelman, G. Improved grid-based algorithm for Bader charge allocation. _J. Comput. Chem._ 28(5), 899–908 (2007). Article  CAS  Google

Scholar  * Yu, M. & Trinkle, D. R. Accurate and efficient algorithm for Bader charge integration. _J. Chem. Phys._ 134(6), 064111 (2011). Article  ADS  CAS  Google Scholar  Download

references ACKNOWLEDGMENT This research is supported by Second Century Fund (C2F), Chulalongkorn University. Also, the experimental results are supported by “Innovation and technology

foresight in catalysis and catalytic reaction engineering for biodiesel, ethanol, and catalyst-related industry for sustainable development (CAT-REC Industrial Project).” The Grant for

Research Development, Faculty of Engineering, Chulalongkorn University, and the Seed Project from the Department of Chemical Engineering, Faculty of Engineering, Chulalongkorn University,

Thailand, are highly acknowledged. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * High-Performance Computing Unit (CECC-HCU), Center of Excellence on Catalysis and Catalytic Reaction

Engineering (CECC), Chulalongkorn University, Bangkok, 10330, Thailand Supareak Praserthdam, Meena Rittiruam, Tinnakorn Saelee & Siriwimol Somdee * Center of Excellence on Catalysis and

Catalytic Reaction Engineering (CECC), Chulalongkorn University, Bangkok, 10330, Thailand Supareak Praserthdam, Meena Rittiruam, Kanokpon Maungthong, Tinnakorn Saelee, Siriwimol Somdee &

 Piyasan Praserthdam Authors * Supareak Praserthdam View author publications You can also search for this author inPubMed Google Scholar * Meena Rittiruam View author publications You can

also search for this author inPubMed Google Scholar * Kanokpon Maungthong View author publications You can also search for this author inPubMed Google Scholar * Tinnakorn Saelee View author

publications You can also search for this author inPubMed Google Scholar * Siriwimol Somdee View author publications You can also search for this author inPubMed Google Scholar * Piyasan

Praserthdam View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS M.R., T.S., S.S., and S.P. conceived the computational simulations. M.R., T.S.,

and S.S. performed computational simulations. K.M. and P.P conceived the experiments. K.M. performed the experiments. M.R., T.S., S.S., and S.P. performed computational data analyses. K.M.,

M.R., T.S., S.P., and P.P. performed experimental data analyses. The paper was written by M.R., K.M., S.P., T.S., and P.P. All authors reviewed the manuscript. CORRESPONDING AUTHOR

Correspondence to Piyasan Praserthdam. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. ADDITIONAL INFORMATION PUBLISHER'S NOTE Springer Nature

remains neutral with regard to jurisdictional claims in published maps and institutional affiliations. SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION RIGHTS AND PERMISSIONS OPEN ACCESS

This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as

long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third

party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the

article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the

copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Praserthdam, S., Rittiruam,

M., Maungthong, K. _et al._ Performance controlled via surface oxygen-vacancy in Ti-based oxide catalyst during methyl oleate epoxidation. _Sci Rep_ 10, 18952 (2020).

https://doi.org/10.1038/s41598-020-76094-2 Download citation * Received: 20 July 2020 * Accepted: 20 October 2020 * Published: 03 November 2020 * DOI:

https://doi.org/10.1038/s41598-020-76094-2 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
