ABSTRACT The cumulative effects of anthropogenic stress on freshwater ecosystems are becoming increasingly evident and worrisome. In lake sediments contaminated by heavy metals, the

composition and structure of microbial communities can change and affect nutrient transformation and biogeochemical cycling of sediments. In this study, bacterial and archaeal communities of

lake sediments under fish pressure contaminated with heavy metals were investigated by the Illumina MiSeq platform. Despite the similar content of most of the heavy metals in the lagoon

sediments, we found that their microbial communities were different in diversity and composition. This difference would be determined by the resilience or tolerance of the microbial

communities to the heavy metal enrichment gradient. Thirty-two different phyla and 66 different microbial classes were identified in sediment from the three lagoons studied. The highest

percentages of contribution in the differentiation of microbial communities were presented by the classes Alphaproteobacteria (19.08%), Cyanophyceae (14.96%), Betaproteobacteria (9.01%) y

Actinobacteria (7.55%). The bacteria that predominated in sediments with high levels of Cd and As were Deltaproteobacteria, Actinobacteria, Coriobacteriia, Nitrososphaeria and Acidobacteria

(Pomacocha), Alphaproteobacteria, Chitinophagia, Nitrospira and Clostridia (Tipicocha) and Betaproteobacteria (Tranca Grande). Finally, the results allow us to expand the current knowledge

of microbial diversity in lake sediments contaminated with heavy metals and to identify bioindicators taxa of environmental quality that can be used in the monitoring and control of heavy

metal contamination. SIMILAR CONTENT BEING VIEWED BY OTHERS MICROBIAL COMMUNITY OF SODA LAKE VAN AS OBTAINED FROM DIRECT AND ENRICHED WATER, SEDIMENT AND FISH SAMPLES Article Open access 15

September 2021 COMPARATIVE METAGENOMIC ANALYSIS FROM SUNDARBANS ECOSYSTEMS ADVANCES OUR UNDERSTANDING OF MICROBIAL COMMUNITIES AND THEIR FUNCTIONAL ROLES Article Open access 13 July 2024 THE

EFFECT OF URBANIZATION ON PLANKTONIC AND BIOFILM BACTERIAL COMMUNITIES IN DIFFERENT WATER BODIES OF THE DANUBE RIVER IN HUNGARY Article Open access 12 October 2024 INTRODUCTION Lake

environments are fragile ecosystems that have been experiencing strong anthropogenic pressure and limited natural pressure. Anthropogenic stressors such as intensification of water use,

overexploitation of hydrobiological resources, nutrient inputs, hydrological stress, dumping of agricultural, urban and industrial waste, in addition to natural stressors, are generating

negative effects on these ecosystems1,2. Contamination of aquatic ecosystems by heavy metals, such as Cd, Pb, Hg and Ni, is a widespread concern due to their toxicity, persistence,

non-degradability and tendency to accumulate in their various compartments3,4,5. In sediments, microbiota play a fundamental role in the biogeochemical transformations of nutrients and

contaminants, and mediate the uptake, accumulation, release and transfer of heavy metals6,7,8,9. Heavy metals in sediments under favorable conditions can be released to the water column10

and influence microbial abundance and diversity11. Microbial communities are strongly related to their surrounding environments and are sensitive to environmental changes caused by

anthropogenic factors12,13,14. Microbial communities may undergo significant changes in structure and function due to heavy metal contamination15 and influence the ecological functions of

aquatic ecosystems. Bacteria and archaea, as the most abundant sedimentary organisms, play key roles in nutrient recycling, the breakdown of chemical compounds and water quality16,17. They

can also produce anionic polymers capable of complexing metals. Understanding the cumulative effects of heavy metal pollution on the composition and structure of microbial communities and

function helps to find ways to reduce and remediate the damage of heavy metal pollution in aquatic systems18. Culture-independent molecular methods currently used to study environmental

microbiota include gene analysis, functional gene inventory and direct sequencing of DNA recovered from environmental samples19,20. Metagenomic analysis methods have proven to be useful in

sediment microbial ecology studies21,22. In addition, they are of great importance for elucidating the composition of microbial communities because they provide simultaneous insight into the

phylogenetic composition and metabolic capabilities of uncultivated populations23. Gene fragments from individual sequencing reads and small assembled segments can be annotated and assigned

to approximate phylogenetic garbage cans based on known reference genomes24. Several studies document that freshwater sediments have received less attention compared to sediments from

marine environments25. Others report that the composition of sediment microbial communities can be influenced by physicochemical factors such as temperature, stream flow, pH and nutrients26.

It is recognized that microbial communities co-vary with the high concentrations of nutrients and metals in sediments27. However, information on microbial diversity in sediments from ponds

used in intensive fish farming with different trophic status and metal content is scarce. Therefore, the assessment of microbial community composition can lead to a better understanding of

intensively farmed aquatic ecosystems and be a useful tool for environmental monitoring and control. In this regard, and considering that lake environments under fish farming pressure need

to be monitored not only at the trophic state and metal content level but also at the microbial diversity level due to the fundamental role of microorganisms in nutrient cycling, structure

and function of the ecosystem. The objective of this study was to investigate microbial diversity in lake sediment contaminated by heavy metals using metagenomics and to identify microbial

taxa that are bioindicators of environmental quality. RESULTS STATUS OF LAKE SEDIMENT CONTAMINATION BY HEAVY METALS Table 1 shows the descriptive statistics for heavy metals in lake sediment

and mean values for the upper continental crust (UCC)28. The decreasing order of the mean concentrations of heavy metals in sediment was: Zn > V > Ni > Cu > Pb > As > Cr 

> Co > Cd > Sb. The highest mean concentration of Zn (36.30 ± 0.84 mg kg‒1), V (31.03 ± 1.53 mg kg‒1), Ni (11.16 ± 0.50 mg kg‒1), Cu (10.83 ± 1.10 mg kg‒1), Cr (3.45 ± 0.21 mg kg‒1)

and Cd (0.18 ± 0.0. 011 mg kg‒1) was recorded in Tranca Grande lagoon and As (6.95 ± 0.57 mg kg‒1), Pb (6.88 ± 0.19 mg kg‒1), Co (2.12 ± 0.13 mg kg‒1) and Sb (0.17 ± 0.01 mg kg‒1) in

Tipicocha lagoon. The lowest concentrations of heavy metals were recorded in the Pomacocha lagoon. The Kruskal–Wallis (KW) test revealed that the concentrations of As, Cu, Ni and V in

sediment from the three lagoons differed significantly (p < 0.05) compared to the concentrations of Cd, Cr, Pb, Co and Sb which showed no significant differences (p > 0.05) (Fig. 1A).

The present results were similar to the geochemical composition of bottom sediments from other lakes under similar fish pressure29 and to the UCC values, except for the concentration of As

and Cd which were twice these values (1.5 and 0.098 mg kg‒1, respectively). The increase in As and Cd concentrations could be related to the fish farming activity carried out in floating

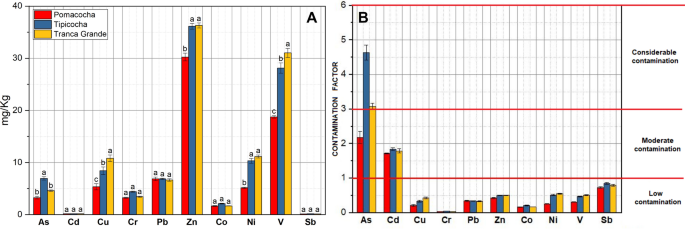

cages. Figure 1B shows the contamination factor (CF) values for heavy metals in lake sediment. In Pomacocha, Tipicocha and Tranca Grande lagoons, the CF values of 80% of the heavy metals

qualified as low contamination factor (CF < 1) and 20% as moderate (Cd, CF = 1–3) and considerable contamination factor (As, CF = 3–6). The increasing order of the range of moderate

contamination of the lagoons (CF) by As was: Pomacocha (1.96–2.52) < Tranca Grande (2.99–3.27) < Tipicocha (4.29–5.04) and by Cd was: Pomacocha (1.70–1.75) < Tranca Grande

(1.74–1.92) < Tipicocha (1.77–1.91) (Table S1). MICROBIAL COMPOSITION, DIVERSITY, AND SIMILARITY PROFILES A total of 32 phyla and 66 different classes of microorganisms were determined in

sediment from three intensively farmed ponds. The most abundant phyla (> 1% of all sequences in all samples) were Proteobacteria (46.5–54.44%), followed by Cyanobacteria (8.40–18.64%),

Actinobacteria (2.79–13. 30%), Bacteroidetes (8.68–10.31%), Firmicutes (3.96–6.24%), Acidobacteria (0.84–2.69%), Euryarchaeota (2.14–2.33), Chloroflexi (1.85–2.43%), and Ignavibacteriae

(1.16–1.54%) (Table S2). The similarity percentage procedure (SIMPER) analysis at the class level showed that the highest percentages of contribution in the differentiation of microbial

communities were presented by the classes Alphaproteobacteria (19.08%), Cyanophyceae (14.96%), Betaproteobacteria (9.01%) and Actinobacteria (7.55%). Other classes with important

contribution (> 1%) to the sedimentary microbial communities in high Andean lagoons were: Deltaproteobacteria (6.04%), Coriobacteriia (5.02%), Flavobacteriia (4.66%), Chitinophagia

(4.04%), Clostridia (4.05%), Nitrospira (3.71%), Acidobacteria (2.84%), Methanomicrobia (2.28%), Gemmatimonadetes (1.88%), Gammaproteobacteria (1.78%), Dehalococcoidia (1.25%),

Erysipelotrichia (1.13%) and Bacteroidia (1.02%) (Table S3). Members of the Archaea domain were also found in the lake sediments, with Euryarchaeota being the predominant phylum with an

relative abundance ranging from 2.14 to 2.33%. The number of microbial classes was similar in the three lagoons and was around 65 classes per lagoon (Table 2). The highest number of

individuals was recorded in Tipicocha lagoon (112,995 ± 5016) followed by Tranca Grande (107,958 ± 2571) and Pomacocha (105,941 ± 1210). The Margalef and Chao-1 indices represent microbial

richness and the Shannon and Simpson indices reflect microbial diversity. Margalef index revealed that Tipicocha is the lagoon with the lowest microbial richness. Chao-1 index has similar

behavior as the Margalef index, with the value of the expected classes being higher in the Pomacocha lagoon, with 62.83 ± 2.02. While in the other two lagoons the microbial richness showed

values around 60, indicating that Pomacocha is slightly more diverse, which could be due to the process of resilience due to the cessation of fish farming. The value of Simpson's index

was similar in the three lagoons, varying from 0.89 ± 0.004 in Tranca Grande to 0.91 ± 0.002 in Tipicocha. Shannon index values in decreasing order were: 2.85 ± 0.02 (Tipicocha) > 2.64 ± 

0.01 (Pomacocha) > 2.61 ± 0.04 (Tranca Grande). The dendrogram based on the similarity of Euclidean distances at the class level showed that the sediment microbial communities of

Pomacocha (Po), Tipicocha (Ti) and Tranca Grande (Tr) lagoons were divided into four groups (Fig. 2). The results obtained from the initial distance matrix showed that the distances of the

first and second groups were significantly greater than the distances of the third and fourth groups with Euclidean distances (ED) close to 18. The first and second groups differed with

values of 9, similarly the third and fourth groups (Fig. S1). Based on abundance, the first group included the classes Methanomicrobia, Clostridia, Acidobacteria, Actinobacteria and

Flavobacteria. The second and most frequent group consisted of Gammaproteobacteria, Betaproteobacteria, Deltaproteobacteria, Cyanophyaceae and Alphaproteobacteria. These microbial classes

were the most representative and the ones that generated the greatest dissimilarity between the frequencies of classes found in the lagoons. Anaerolineae, Bacteroidia, Ignavibacteria,

Bacilli, Gemmatimonadetes, Erysipelotrichia, Chitinophagia, Coriobacteriia, Methylacidiphilae, Ardenticatenia, Mollicutes, Cytophagia, Verrumicrobiate, Deinococci, Thermoplasmata,

Negativicutes, Thermodesulfobacteria, Spirochaetia, Thermoleophilia, Acidimicrobia, Methanobacteria, Saprospriria and Nitrospira. The fourth group consisted of classes that are not

representative and present uniform distribution in the sediment microbial communities of the three ponds. The result of the clustering also indicated that the first two microbial groups

reveal that the microbial communities from the most dominant to the rarest were selected for their habitats. MICROBIAL PROFILES OF LAKE SEDIMENTS WITH STATISTICAL DIFFERENCES The LefSe

analysis was performed at the class level to examine the differences in the distribution of microbial classes according to the three lagoons evaluated. The discriminating and

sediment-enriched microbial classes that presented a LDA value higher than 4.0 in Pomacocha lagoon corresponded to Deltaproteobacteria, Actinobacteria, Coriobacteriia, Nitrososphaeria and

sediment Acidobacteria. In Tipicocha lagoon, Alphaproteobacteria, Chitinophagia, Nitrospira and Clostridia were predominant. In the Tranca Grande lagoon, the class that significantly

enriched the sediment was Betaproteobacteria (Fig. 3). The heavy metal contamination factor revealed that bacteria are prevalent in sediments with high levels of Cd and As. In this study, we

suggest that Cd in sediments was probably derived from natural (lithogenesis, geological processes and natural weathering of rocks and minerals) and anthropogenic (fish farming, runoff from

agricultural and mining areas, mainly) sources. Therefore, in lagoons with high Cd concentrations and fish farming pressure, these microbial classes were the most common, revealing their

capacity to tolerate and adapt to contamination by this heavy metal. While the persistence of As denotes that it is an element that increases due to intensive fish farming activity. The

microbial classes discriminated for Tipicocha lagoon would be the predominant ones in areas with high As levels. However, as the concentration of this element in particular tends to

decrease, it favors the reaction and adaptability of the microbial classes discriminated in the Pomacocha lagoon. EFFECTS OF HEAVY METALS ON MICROBIAL COMMUNITIES The forward stepwise forced

RDA analysis with a total variance of 0.23 (Table S4), under an adjustment between biological and abiotic matrices, determined that As has a contribution to the explained distribution of

both matrices of 50.1% of the total adjusted 91.61%. The difference in microbial classes between Tipicocha and Tranca Grande ponds was the response to the effect of V with a 39% contribution

to the total explained distribution significantly (p < 0.05). These results reveal that these two elements were the most important factors that shaped the microbial community. The

classes Alphaproteobacteria, Chitinophagia and Methanomicrobia were positively correlated with As, being in the Tipicocha lagoon a transcendental element explained by anthropogenic

activities as a source of As in the lagoon. As, Sb, Cr and Co also showed positive associations to a lesser degree with the classes Oligoflexia, Ardenticatenia, Caldilineae, Methanomicrobia,

Chloroflexia, Aquificae, Fimbriimonadia, Gemmatimonadetes, Sphingobacteriia, Acidimicrobiia and Nitrospira. On the other hand, V was positively and significantly correlated with the

Saprospiria class. While the classes Bacteroidia Nitrososphaeria, Methanobacteria, Deltaproteobacteria and Coriobacteriia tended to be better expressed in environments with low

concentrations of all the elements studied (Fig. 4). DISCUSSION Microbial communities play a fundamental role in the function of aquatic ecosystems. The present study provides information on

microbial diversity in sediment contaminated by heavy metals from intensively farmed fish ponds. As well as, information on microbial taxa bioindicators of environmental quality of

potential use in pollution monitoring and control. Most of the heavy metal concentrations did not exceed the UCC values, except for Cd and As which doubled the UCC concentrations. The CF

values of the heavy metals studied reveal that Cu, Cr, Pb, Co, Ni, V and Sb contamination is low in the Pomacocha, Tipicocha and Tranca Grande lagoons. Cd contamination is moderate in the

three lagoons and As contamination is considerable, except in Pomacocha where contamination is moderate. These results reveal pressure from fish farming activity, input of pollutants through

tributaries running through areas with mining influence and runoff from agricultural areas30,31,32. In addition, they agree with other studies reporting that fish farming and environmental

conditions around fish cages influence the sedimentation of these elements33,34. Heavy metal concentrations in the sediments of the studied lagoons are similar to those of other lagoons

investigated in Peru35,36, but lower than those reported in aquatic ecosystems receiving high pollution loads18,37. Analysis of microbial communities in lake sediments revealed that

Proteobacteria are the most abundant and diverse phylum that play an important role in degradation and metabolism in lake sediments38. Other important phyla typical of freshwater ecosystems

observed in this study are Cyanobacteria, Actinobacteria, Bacteroidetes, Firmicutes, Acidobacteria, Euryarchaeota, and Chloroflexi. This observation is in agreement with studies in similar

environments in other regions that report the phyla Proteobacteria, Actinobacteria, Cyanobacteria, Bacteroidetes and Verrucomicrobia as the most abundant39,40,41. Proteobacteria (Alpha-,

Beta- and Gammaproteobacteria) and Actinobacteria predominated in the sediment of the Pomacocha and Tranca Grande lagoons, which are in a mesotrophic state. Cyanobacteria is a phylum that

performs photosynthesis, play a key role in nutrient cycling and are probably responsible for eutrophication processes in water bodies42. In this study, we found that Cyanobacteria

predominate in sediments of the Tipicocha lagoon, which is in a mesotrophic-eutrophic state, a trophic state reported in previous studies2 This observation agrees with the study of Shen et

al.43, who found large differences in the taxonomic structures of microbial communities in eutrophic, mesotrophic and oligotrophic aquatic environments. The Bacteroidetes and Verrucomicrobia

found in the sediment of the studied lagoons have been widely reported in studies of aquatic environments contaminated by heavy metals44. The results obtained for microbial diversity

indices in lake sediments were lower than those reported in other studies using the same method of analysis45. This difference would be determined by multiple stressors such as heavy metal

contamination of sediments in the studied ponds under fish pressure. It has been reported that there is a negative correlation between richness and heavy metals in inland lake sediments46.

Other studies using the fingerprinting method reveal that the response of microbial communities to heavy metal contamination may vary according to the magnitude-dependent toxic effect47.

Chemical contaminants can favor the proliferation of microbial consortia of more tolerant species that replace non-tolerant ones, increasing diversity. The use of different methods to

determine richness may lead to different results, as they are limited to determine only the richness of dominant species. The main contributions in community differentiation were made by the

classes Alphaproteobacteria, Cyanophyceae, Betaproteobacteria, Actinobacteria and Deltaproteobacteria. These findings are similar to other studies that report these classes as the

predominant classes in sediments of freshwater environments48. However, it differs with some studies regarding Alphaproteobacteria which report that they are generally not very abundant in

freshwater environments45,49. Betaproteobacteria are diverse and commonly inhabit continental environments worldwide, where they are numerically dominant50. However, their abundance is

determined by the depth of the water body, pH and nutrients51. Several studies have reported that nutrient sources are potential drivers of microbial community composition. Increased

nutrient loading may favor select groups of bacteria that have the ability to rapidly consume these available resources or selectively eliminate certain bacteria from the community52,53. The

reduction or absence of essential microorganisms in the nitrogen cycle will affect the nitrogen cycle chain and the transformation and removal of nitrogenous elements during bioremediation

of eutrophic waters54. Other studies have shown that heavy metal contamination affects the abundance, composition and structure of microbial communities and disrupts replication processes by

destroying microbial DNA55,56. The abundance of heavy metal susceptible microbes decreases as those resistant to these metal contaminants adapt and proliferate under chemical stress49.

Redundancy analysis revealed that As and V were the most important factors shaping microbial communities in lake sediments with intensive fish farming activity. The classes

Alphaproteobacteria, Chitinophagia and Methanomicrobia observed in this study showed the greatest contribution to the structure of microbial communities in As-contaminated lagoons. This

metalloid acts as a gene biotransforming agent that results in emergence and proliferation of resistance to this metalloid40, where organisms that are already tolerant become more

competitive and thus more numerous. These three microbial classes can be used as bioindicators of As contamination. Oligoflexia, Ardenticatenia, Caldilineae, Methanomicrobia, Chloroflexia,

Aquificae, Fimbriimonadia, Gemmatimonadetes, Sphingobacteriia, Acidimicrobiia and Nitrospira can be used to identify aquatic environments contaminated by Sb, Cr and Co, and Saprospiria from

aquatic environments contaminated by V. CONCLUSIONS This study is the first investigation of microbial diversity in lake sediment using metagenomic analysis in the Central Andes of Peru.

Analysis of 16S rRNA gene amplicon sequences revealed that heavy metal contamination in sediment from intensively used fish lagoons modulates the composition and structure of microbial

communities. SIMPER analysis showed Alphaproteobacteria, Betaproteobacteria and Actinobacteria as the classes with the highest percentage contributions to the differentiation of microbial

communities. Diversity indices indicated that lagoons with lower anthropogenic pressure have higher microbial diversity, as is the case of Pomacocha lagoon. The dendrogram based on the

similarity of Euclidean distances showed microbial communities from the most dominant to the rarest. The results presented here are the first direct comparison of microbial profiles of lake

sediment with intensive fish farming and heavy metal effects in central Peru. The heavy metal contamination factor revealed that bacteria are prevalent in sediments with high levels of Cd

and As. The RDA analysis determined that As and V were the influential factors in the composition of microbial communities. Finally, the results obtained allow us to expand the current

knowledge of the composition of microbial communities in sediments of similar environments under fish pressure contaminated with heavy metals and to identify bioindicator taxa of

environmental quality that can be used in the monitoring and control of heavy metal contamination. METHODS STUDY AREA The lagoons considered in the study are located on the eastern slope of

the upper Perene river basin in the Central Andes of Peru, between latitudes: 11° 4̍3′ 45S–12° 08′ 19S and longitudes: 75° 13′ 40W–75° 38′ 01W, at an altitude ranging from 4310 to 4330 masl.

The study area was defined using ArcMap version 10.8 software57 (Fig. 5). The climate presents two contrasting periods, a dry period from May to September and a rainy period from October to

April. Annual precipitation varies between 80 and 110 mm and the temperature ranges between − 2 and 16 °C58. The area and depth of the lagoons vary from 90 to 164 ha and from 9 to 25 m,

respectively. Water temperature varies between 9.3 and 16.6 °C and turbidity between 7.3 and 10.18 NTU. Two lagoons are dominated by sandy sediment and the other by clayey sediment. These

lagoons have been used for intensive culture of _Oncorhynchus mykiss_ (rainbow trout) in large floating cages since the 1990s. The cages are constructed of eucalyptus wood or Guayaquil cane,

nylon mesh and aluminum cylinders for volumes ranging from 56 m3 (for fry and juveniles) to 87.5 m3 (grow-out). Two of the three lagoons are in a mesotrophic state and one in a

mesotrophic-eutrophic state2. LAKE SEDIMENT SAMPLING Surface sediment samples (0–10 cm depth) were collected from three lagoons with intensive culture of _Oncorhynchus mykiss_ in November

2019. In each lagoon, nine sampling stations were established covering the northern, central and southern part. At each sampling station, four sites were selected for sediment sampling.

Sediment samples from each lagoon were collected using a stainless steel auger-type device. Samples from each station were mixed to obtain two 250 g composite samples. Sediment samples were

packed in sterile airtight plastic bags and transported on ice to the laboratories for analysis. Sediment samples destined for microbial metagenomic analysis were stored at − 80 °C and for

heavy metal analysis at 4 °C. HEAVY METAL DETERMINATION, QUALITY CONTROL AND ASSURANCE Heavy metals were extracted according to the standard method of environmental quality validated by

INACAL of Peru (acronym of the National Institute of Quality in Spanish), using a mixture of HF, HNO3 and concentrated HClO4 (5:2:1). The reading was performed with an inductively coupled

plasma mass spectrometer (ICP-MS, PerkinElmer NexION 1000). Quality control was performed by applying standard laboratory measurements and quality control methods including replication, the

use of standards for each metal investigated and determination of instrument precision59. The determination of heavy metals was performed in triplicate, the blank experiments followed the

same procedure applied for the samples. Evaluation of the heavy metal contamination status. The contamination factor (CF) evaluates the heavy metal contamination status of the sediment60.

The CF for each metallic element were calculated using the Eq. (1)61: $$\mathrm{CF}=\frac{{\mathrm{C}}_{m} \, \mathrm{ sample }}{{\mathrm{C}}_{m} \, \mathrm{ background}}$$ (1) where ‘Cm

sample’ is the concentration of heavy metals in the sediment sample and ‘Cm background’ is the mean concentration of heavy metal present in the upper continental plate28. DNA EXTRACTION, PCR

AMPLIFICATION OF 16S RRNA GENES, AND SEQUENCING DNA extraction was performed from 0.5 g sample using the PrestoTM Soil DNA Extraction Kit, in accordance with the manufacturer's

instructions and standard protocols. DNA concentration and quality were determined using a NanodropTM ONe quantification spectrophotometer (Thermo Fisher Scientific, Massachusetts, USA)

obtaining ranges from 0.3 to 88.5 ng/µl62. PCR amplification was performed using the Gene One and GE Healthcare Life Sciences kits by mixing 1 µl of the 16S rRNA F universal primer, 1 µl of

the 16S rRNA R universal primer, 22 µl of the PCR mix (containing premix buffer, MgCl2, dNTPs and taqPolymerase) and 1 µl DNA sample obtaining a total reaction volume of 25 µl. Primers 27 F

(5′-AGAGTTGATCCTGGCTCAG-3′) and 1392R (5′-GGTACCTTGTACGACTT-3′) were used and amplified for a product of about 1365 bp. Bacterial sequencing of the 16S rRNA amplicon was performed using the

standard next-generation Illumina MiSeq. The construction of the library was carried out commercially (ADMERA HEALTH LLC, USA). BIOINFORMATIC ANALYSIS OF SEQUENCE READINGS The FASTQ files

generated by the program FASTQC v0.11.9 were processed to know the length of the readings, the quality of the bases and the percentage of nucleotide bases, as we showed in a preliminary

study in lake sediment bacterial communities63. Subsequently, quality filtering and removal of regions of the primer and adapters present in the readings was performed using the Trimmomatic

v0.39 program64 with minimum trimming values of Q30 and trimming of readings below 30 bp. All individual reads were greater than 150,000 per isolate with a read length of 251 nucleotides and

a quality value of each sequenced base greater than 30. The taxonomic analysis was performed using the program65, based on the database minikraken_20171019_4GB. This program also handles

multiple scripts for circular representation. Finally, operational taxonomic units were identified and abundances calculated66. STATISTICAL ANALYSIS The KW test was used as a non-parametric

method to compare heavy metal concentrations in sediment between the evaluated ponds. Tests were performed using R software. A probability of 0.05 or less is considered significant in

testing the null hypothesis that there are no differences in concentrations and other calculated values67. The contribution of each species to the average Bray–Curtis dissimilarity among all

groups was calculated using the SIMPER68. The heat map was generated using R4.0.569 with the package pheatmap and clusters were performed according to the Bray–Curtis similarity analysis

(data were square root transformed and fully linked to reduce the significance of extreme values) using the PAST program. Redundancy analysis (RDA) was used to investigate the relationships

between sediment element concentrations and the distribution of OTU evaluated according to class in Canoco70. Linear discriminant analysis (LDA) effect size analysis (LEfSe) was performed

using the Galaxy package to identify whether any individual taxa are discriminatory for the three gaps71. NUCLEOTIDE SEQUENCE ACCESS NUMBERS The 16S rRNA gene sequences reported in this

study were sent to the GenBank database with the access number PRJNA657251 (https://www.ncbi.nlm.nih.gov/sra/PRJNA657251). CHANGE HISTORY * _ 23 FEBRUARY 2022 A Correction to this paper has

been published: https://doi.org/10.1038/s41598-022-07332-y _ REFERENCES * Vareda, J. P., Valente, A. J. M. & Durães, L. Assessment of heavy metal pollution from anthropogenic activities

and remediation strategies: A review. _J. Environ. Manage._ 246, 101–118 (2019). CAS  PubMed  Google Scholar  * Chanamé, F., Custodio, M., Poma-Chávez, C. & Huamán, A. Nutrient

concentrations and trophic state of three Andean lakes from Junín, Perú. _Rev. Ambient Agua_ 15, 1–9 (2020). Google Scholar  * Bhardwaj, R., Gupta, A. & Garg, J. K. Evaluation of heavy

metal contamination using environmetrics and indexing approach for River Yamuna, Delhi stretch, India. _Water Sci._ 31, 52–66 (2017). Google Scholar  * Custodio, M. _et al._ Human risk from

exposure to heavy metals and arsenic in water from rivers with mining influence in the Central Andes of Peru. _Water (Switzerland)_ 12, 1–20 (2020). Google Scholar  * Arisekar, U., Jeya, R.,

Shalini, R. & Jeyasekaran, G. Human health risk assessment of heavy metals in aquatic sediments and freshwater fish caught from Thamirabarani River, the Western Ghats of South Tamil

Nadu. _Mar. Pollut. Bull._ 159, 111496 (2020). CAS  PubMed  Google Scholar  * Chabukdhara, M. & Nema, A. K. Assessment of heavy metal contamination in Hindon River sediments: A

chemometric and geochemical approach. _Chemosphere_ 87, 945–953 (2012). ADS  CAS  PubMed  Google Scholar  * Chai, L. _et al._ Heavy metals and metalloids in the surface sediments of the

Xiangjiang River, Hunan, China: Distribution, contamination, and ecological risk assessment. _Environ. Sci. Pollut. Res._ 24, 874–885 (2017). CAS  Google Scholar  * Liu, T. T. & Yang, H.

Comparative analysis of the total and active bacterial communities in the surface sediment of Lake Taihu. _FEMS Microbiol. Ecol._ 96, 1–11 (2020). ADS  CAS  Google Scholar  * Custodio, M.

_et al._ Evaluation of surface sediment quality in rivers with fish farming potential (Peru) using indicators of contamination, accumulation and ecological risk of heavy metals and arsenic.

_J. Ecol. Eng._ 22, 78–87 (2021). Google Scholar  * Zhang, Z. _et al._ Assessment of heavy metal contamination, distribution and source identification in the sediments from the Zijiang

River, China. _Sci. Total Environ._ 645, 235–243 (2018). ADS  CAS  PubMed  Google Scholar  * Sojka, M., Jaskula, J. & Siepak, M. Heavy metals in bottom sediments of reservoirs in the

lowland area of western Poland: Concentrations, distribution, sources and ecological risk. _Water (Switzerland)_ 11, 1–20 (2018). Google Scholar  * Xu, Z., Te, S. H., Xu, C., He, Y. &

Gin, K. Y. H. Variations of bacterial community composition and functions in an estuary reservoir during spring and summer alternation. _Toxins (Basel)_ 10, 1–22 (2018). CAS  Google Scholar

  * Xiao, F. _et al._ The impact of anthropogenic disturbance on bacterioplankton communities during the construction of Donghu Tunnel (Wuhan, China). _Microb. Ecol._ 77, 277–287 (2019). CAS

  PubMed  Google Scholar  * Wang, B. _et al._ Bacterial community responses to tourism development in the Xixi National Wetland Park, China. _Sci. Total Environ._ 720, 137570 (2020). ADS

CAS  PubMed  Google Scholar  * Deng, W. _et al._ Heavy metals, antibiotics and nutrients affect the bacterial community and resistance genes in chicken manure composting and fertilized soil.

_J. Environ. Manage._ 257, 109980 (2020). CAS  PubMed  Google Scholar  * Gubelit, Y. _et al._ Nutrient and metal pollution of the eastern Gulf of Finland coastline: Sediments, macroalgae,

microbiota. _Sci. Total Environ._ 550, 806–819 (2016). ADS  CAS  PubMed  Google Scholar  * Wang, J. _et al._ Contribution of heavy metal in driving microbial distribution in a eutrophic

river. _Sci. Total Environ._ 712, 136295 (2020). ADS  CAS  PubMed  Google Scholar  * Liao, H. _et al._ Profiling microbial communities in a watershed undergoing intensive anthropogenic

activities. _Sci. Total Environ._ 647, 1137–1147 (2019). ADS  CAS  PubMed  Google Scholar  * Liu, J. _et al._ Spatiotemporal dynamics of the archaeal community in coastal sediments: Assembly

process and co-occurrence relationship. _ISME J._ 14, 1463–1478 (2020). PubMed  PubMed Central  Google Scholar  * Liao, H., Yen, J. Y., Guan, Y., Ke, D. & Liu, C. Differential responses

of stream water and bed sediment microbial communities to watershed degradation. _Environ. Int._ 134, 105198 (2020). CAS  PubMed  Google Scholar  * Song, H., Li, Z., Du, B., Wang, G. &

Ding, Y. Bacterial communities in sediments of the shallow Lake Dongping in China. _J. Appl. Microbiol._ 112, 79–89 (2012). CAS  PubMed  Google Scholar  * Ligi, T. _et al._ Characterization

of bacterial communities in soil and sediment of a created riverine wetland complex using high-throughput 16S rRNA amplicon sequencing. _Ecol. Eng._ 72, 56–66 (2014). Google Scholar  *

Wilmes, P. _et al._ Natural acidophilic biofilm communities reflect distinct organismal and functional organization. _ISME J._ 3, 266–270 (2009). CAS  PubMed  Google Scholar  * Mavromatis,

K. _et al._ Use of simulated data sets to evaluate the fidelity of metagenomic processing methods. _Nat. Methods._ 4, 495–500 (2007). CAS  PubMed  Google Scholar  * Yuan, X., Zhang, L., Li,

J., Wang, C. & Ji, J. Sediment properties and heavy metal pollution assessment in the river, estuary and lake environments of a fluvial plain, China. _CATENA_ 119, 52–60 (2014). CAS

Google Scholar  * Lin, Q., Liu, E., Zhang, E., Li, K. & Shen, J. Spatial distribution, contamination and ecological risk assessment of heavy metals in surface sediments of Erhai Lake, a

large eutrophic plateau lake in southwest China. _CATENA_ 145, 193–203 (2016). CAS  Google Scholar  * Guo, T. _et al._ Distribution of arsenic and its biotransformation genes in sediments

from the East China Sea. _Environ. Pollut._ 253, 949–958 (2019). CAS  PubMed  Google Scholar  * Taylor, S. R. & Mclennan, S. M. The geochemical the continental evolution crust. _Rev.

Miner. Geochem._ 33, 241–265 (1995). Google Scholar  * Lastauskienė, E. _et al._ The impact of intensive fish farming on pond sediment microbiome and antibiotic resistance gene composition.

_Front. Vet. Sci._ 8, 1–12 (2021). Google Scholar  * Ragab, S., Sikaily, A. E., Nemr, A. E. & Sea, R. Concentrations and sources of pesticides and PCBs in surficial sediments of the Red

Sea coast, Egypt. _Egypt. J. Aquat. Res._ 42, 365–374 (2016). Google Scholar  * Kavita, V. & Pandey, J. Heavy metal accumulation in surface sediments of the Ganga River (India):

Speciation, fractionation, toxicity, and risk assessment. _Environ. Monit. Assess._ 191, 20 (2019). Google Scholar  * Haghnazar, H. _et al._ Potentially toxic elements contamination in

surface sediment and indigenous aquatic macrophytes of the Bahmanshir River, Iran: Appraisal of phytoremediation capability. _Chemosphere_ 285, 131446 (2021). ADS  CAS  PubMed  Google

Scholar  * Perera, P. C. T., Sundarabarathy, T. V., Sivananthawerl, T., Kodithuwakku, S. P. & Edirisinghe, U. Arsenic and cadmium contamination in water, sediments and fish is a

consequence of paddy cultivation: Evidence of river pollution in Sri Lanka. _Achiev. Life Sci._ 10, 144–160 (2016). Google Scholar  * Kalantzi, I., Rico, A., Mylona, K., Pergantis, S. A.

& Tsapakis, M. Fish farming, metals and antibiotics in the eastern Mediterranean Sea: Is there a threat to sediment wildlife?. _Sci. Total Environ._ 764, 142843 (2021). ADS  CAS  PubMed

  Google Scholar  * Monroy, M., Maceda-Veiga, A. & de Sostoa, A. Metal concentration in water, sediment and four fish species from Lake Titicaca reveals a large-scale environmental

concern. _Sci. Total Environ._ 487, 233–244 (2014). ADS  CAS  PubMed  Google Scholar  * Rodbell, D. T., Delman, E., Abbott, M., Besonen, M. & Tapia, P. The heavy metal contamination of

Lake Junín National Reserve, Peru: An unintended consequence of the juxtaposition of hydroelectricity and mining. _GSA Today_ 24, 4–10 (2014). Google Scholar  * Ni, C. _et al._ High

concentrations of bioavailable heavy metals impact freshwater sediment microbial communities. _Ann. Microbiol._ 66, 1003–1012 (2016). CAS  Google Scholar  * Huang, W. _et al._ Comparison

among the microbial communities in the lake, lake wetland, and estuary sediments of a plain river network. _Microbiologyopen_ https://doi.org/10.1002/mbo3.644 (2018). Article  PubMed  PubMed

Central  Google Scholar  * Abia, A. L. K., Alisoltani, A., Keshri, J. & Ubomba-Jaswa, E. Metagenomic analysis of the bacterial communities and their functional profiles in water and

sediments of the Apies River, South Africa, as a function of land use. _Sci. Total Environ._ 616–617, 326–334 (2018). ADS  PubMed  Google Scholar  * Guo, X. _et al._ Characteristics of

microbial community indicate anthropogenic impact on the sediments along the Yangtze Estuary and its coastal area, China. _Sci. Total Environ._ 648, 306–314 (2019). ADS  CAS  PubMed  Google

Scholar  * Betiku, O. C. _et al._ Evaluation of microbial diversity of three recreational water bodies using 16S rRNA metagenomic approach. _Sci. Total Environ._ 771, 144773 (2021). ADS  CAS

  PubMed  Google Scholar  * Zhang, T. _et al._ Suspended particles phoD alkaline phosphatase gene diversity in large shallow eutrophic Lake Taihu. _Sci. Total Environ._ 728, 138615 (2020).

ADS  CAS  PubMed  Google Scholar  * Shen, M. _et al._ Trophic status is associated with community structure and metabolic potential of planktonic microbiota in Plateau Lakes. _Front.

Microbiol._ 10, 1–15 (2019). Google Scholar  * Quero, G. M., Cassin, D., Botter, M., Perini, L. & Luna, G. M. Patterns of benthic bacterial diversity in coastal areas contaminated by

heavy metals, polycyclic aromatic hydrocarbons (PAHs) and polychlorinated biphenyls (PCBs). _Front. Microbiol._ 6, 1–15 (2015). Google Scholar  * Wang, Y. _et al._ Comparison of the levels

of bacterial diversity in freshwater, intertidal wetland, and marine sediments by using millions of illumina tags. _Appl. Environ. Microbiol._ 78, 8264–8271 (2012). ADS  CAS  PubMed  PubMed

Central  Google Scholar  * Long, Y. _et al._ The response of microbial community structure and sediment properties to anthropogenic activities in Caohai wetland sediments. _Ecotoxicol.

Environ. Saf._ 211, 111936 (2021). CAS  PubMed  Google Scholar  * Yao, X., Zhang, J., Tian, L. & Guo, J. The effect of heavy metal contamination on the bacterial community structure at

Jiaozhou Bay, China. _Braz. J. Microbiol._ 48, 71–78 (2017). CAS  PubMed  Google Scholar  * Hur, M. & Park, S. J. Identification of microbial profiles in heavy-metal-contaminated soil

from full-length 16s rRNA reads sequenced by a pacbio system. _Microorganisms_ 7, 25 (2019). Google Scholar  * Zhuang, M., Sanganyado, E., Li, P. & Liu, W. Distribution of microbial

communities in metal-contaminated nearshore sediment from Eastern Guangdong, China. _Environ. Pollut._ 250, 482–492 (2019). CAS  PubMed  Google Scholar  * Gu, Y. _et al._ Degradation shaped

bacterial and archaeal communities with predictable taxa and their association patterns in Zoige wetland at Tibet plateau. _Sci. Rep._ 8, 1–11 (2018). ADS  Google Scholar  * Newton, R. J.,

Jones, S. E., Eiler, A., McMahon, K. D. & Bertilsson, S. A guide to the natural history of freshwater lake bacteria. _Microbiol. Mol. Biol. Rev._ 75, 25 (2011). Google Scholar  * Hu, A.

_et al._ Strong impact of anthropogenic contamination on the co-occurrence patterns of a riverine microbial community. _Environ. Microbiol._ 19, 4993–5009 (2017). CAS  PubMed  Google Scholar

  * Ren, Z. _et al._ Taxonomic and functional differences between microbial communities in Qinghai Lake and its input streams. _Front. Microbiol._ 8, 1–14 (2017). Google Scholar  * Yin, X.

_et al._ Cadmium isotope constraints on heavy metal sources in a riverine system impacted by multiple anthropogenic activities. _Sci. Total Environ._ 750, 141233 (2021). ADS  CAS  PubMed

Google Scholar  * Yan, C. _et al._ Integrating high-throughput sequencing and metagenome analysis to reveal the characteristic and resistance mechanism of microbial community in metal

contaminated sediments. _Sci. Total Environ._ 707, 136116 (2020). ADS  CAS  PubMed  Google Scholar  * Coclet, C. _et al._ Trace metal contamination impacts predicted functions more than

structure of marine prokaryotic biofilm communities in an anthropized coastal area. _Front. Microbiol._ 12, 1–16 (2021). Google Scholar  * Esri Inc. ArcMap 10.8. Esri Inc. (2020).

https://www.esri.com/en-us/arcgis/products/arcgis-pro/overview. * Avalos, G. _et al._ _Climate Change in the Mantaro River Basin_ (MINEN, 2013). Google Scholar  * APHA. Standard methods for

the examination of water and wastewater. _Stand. Methods_ 541, 25 (2012). Google Scholar  * Singh, H., Pandey, R., Singh, S. K. & Shukla, D. N. Assessment of heavy metal contamination in

the sediment of the River Ghaghara, a major tributary of the River Ganga in Northern India. _Appl. Water Sci._ 7, 4133–4149 (2017). ADS  CAS  Google Scholar  * El-Amier, Y. A., Elnaggar, A.

A. & El-Alfy, M. Evaluation and mapping spatial distribution of bottom sediment heavy metal contamination in Burullus Lake, Egypt. _Egypt. J. Basic Appl. Sci._

https://doi.org/10.1016/j.ejbas.2016.09.005 (2016). Article  Google Scholar  * Miller, D. N., Bryant, J. E., Madsen, E. L. & Ghiorse, W. C. Evaluation and optimization of DNA extraction

and purification procedures for soil and sediment samples. _Appl. Environ. Microbiol._ 65, 4715–4724 (1999). ADS  CAS  PubMed  PubMed Central  Google Scholar  * Custodio, M. _et al._

Metagenomic data on the composition of bacterial communities in lake environment sediments for fish farming by next generation Illumina sequencing. _Data Br._ 32, 106228 (2020). Google

Scholar  * Bolger, A. M., Lohse, M. & Usadel, B. Trimmomatic: A flexible trimmer for Illumina sequence data. _Bioinformatics_ 30, 2114–2120 (2014). CAS  PubMed  PubMed Central  Google

Scholar  * Wood, D. E. & Salzberg, S. L. Kraken: Ultrafast metagenomic sequence classification using exact alignments. _Genome Biol._ 15, 25 (2014). Google Scholar  * Edgar, R. C.

UPARSE: Highly accurate OTU sequences from microbial amplicon reads. _Nat. Methods_ 10, 996–998 (2013). CAS  PubMed  Google Scholar  * Gan, Y. _et al._ Multiple factors impact the contents

of heavy metals in vegetables in high natural background area of China. _Chemosphere_ 184, 1388–1395 (2017). ADS  CAS  PubMed  Google Scholar  * Diallo, M. D. _et al._ Polymerase chain

reaction denaturing gradient gel electrophoresis analysis of the N2-fixing bacterial diversity in soil under _Acacia tortilis_ ssp. raddiana and _Balanites aegyptiaca_ in the dryland part of

Senegal. _Environ. Microbiol._ 6, 400–415 (2004). CAS  Google Scholar  * R Core Team. R: A language and environment for statistical computing. R Foundation for Statistical Computing, Vienna

(2020). https://www.R-project.org/. * Li, C. _et al._ Effects of heavy metals on microbial communities in sediments and establishment of bioindicators based on microbial taxa and function

for environmental monitoring and management. _Sci. Total Environ._ 749, 141555 (2020). ADS  CAS  PubMed  Google Scholar  * Murtaza, N. _et al._ Analysis of the effects of dietary pattern on

the oral microbiome of elite endurance athletes. _Nutrients_ 11, 1–12 (2019). Google Scholar  Download references ACKNOWLEDGEMENTS This work was funded by CONCYTEC-FONDECYT under the call

E041-01 [contract number 76-2018- FONDECYT-BM-IADT-MU]. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Centro de Investigación de Medicina en Altura y Medio Ambiente, Facultad de Medicina

Humana, Universidad Nacional del Centro del Perú, Av. Mariscal Castilla N° 3909, Huancayo, Peru María Custodio, Ciro Espinoza & Richard Peñaloza * Facultad de Ingeniería Pesquera y

Ciencias del Mar, Universidad Nacional de Tumbes, Calle Los Ceibos S/N, Puerto Pizarro, Tumbes, Peru Tessy Peralta-Ortiz, Alberto Ordinola-Zapata & Enedia Vieyra-Peña * Departamento

Académico de Medicina Veterinaria y Zootecnia, Facultad de Ciencias Agrarias, Universidad Nacional de Tumbes, La Cruz S/N, Tumbes, Peru Héctor Sánchez-Suárez Authors * María Custodio View

author publications You can also search for this author inPubMed Google Scholar * Ciro Espinoza View author publications You can also search for this author inPubMed Google Scholar * Richard

Peñaloza View author publications You can also search for this author inPubMed Google Scholar * Tessy Peralta-Ortiz View author publications You can also search for this author inPubMed

Google Scholar * Héctor Sánchez-Suárez View author publications You can also search for this author inPubMed Google Scholar * Alberto Ordinola-Zapata View author publications You can also

search for this author inPubMed Google Scholar * Enedia Vieyra-Peña View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS M.C. and C.E.

conceptualized the study. M.C., T.P.O, H.S.S., A.O.Z and E.V.P. performed the laboratory analysis, M.C. and R.P. performed the data analysis and wrote the first draft of the manuscript. All

the authors contributed to the final draft of the manuscript and approved it for submission. CORRESPONDING AUTHOR Correspondence to María Custodio. ETHICS DECLARATIONS COMPETING INTERESTS

The authors declare no competing interests. ADDITIONAL INFORMATION PUBLISHER'S NOTE Springer Nature remains neutral with regard to jurisdictional claims in published maps and

institutional affiliations. The original online version of this Article was revised: The original version of this Article contained an error in Reference 32. Full information regarding the

corrections made can be found in the correction for this Article. SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION. RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a

Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit

to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are

included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons

licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of

this licence, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Custodio, M., Espinoza, C., Peñaloza, R. _et al._ Microbial

diversity in intensively farmed lake sediment contaminated by heavy metals and identification of microbial taxa bioindicators of environmental quality. _Sci Rep_ 12, 80 (2022).

https://doi.org/10.1038/s41598-021-03949-7 Download citation * Received: 10 July 2021 * Accepted: 07 December 2021 * Published: 07 January 2022 * DOI:

https://doi.org/10.1038/s41598-021-03949-7 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
