ABSTRACT Ocular abnormal angiogenesis and edema are featured in several ocular diseases. S1P signaling via S1P1 likely is part of the negative feedback mechanism necessary to maintain

vascular health. In this study, we conducted pharmacological experiments to determine whether ASP4058, a sphingosine 1-phosphate receptor 1/5 (S1P1/5) agonist, is useful in abnormal vascular

pathology in the eye. First, human retinal microvascular endothelial cells (HRMECs) were examined using vascular endothelial growth factor (VEGF)-induced cell proliferation and

hyperpermeability. ASP4058 showed high affinity and inhibited VEGF-induced proliferation and hyperpermeability of HRMECs. Furthermore, S1P1 expression and localization changes were examined

in the murine laser-induced choroidal neovascularization (CNV) model, a mouse model of exudative age-related macular degeneration, and the efficacy of ASP4058 was verified. In the CNV model

mice, S1P1 tended to decrease in expression immediately after laser irradiation and colocalized with endothelial cells and Müller glial cells. Oral administration of ASP4058 also suppressed

vascular hyperpermeability and CNV, and the effect was comparable to that of the intravitreal administration of aflibercept, an anti-VEGF drug. Next, efficacy was also examined in a retinal

vein occlusion (RVO) model in which retinal vascular permeability was increased. ASP4058 dose-dependently suppressed the intraretinal edema. In addition, it suppressed the expansion of the

perfusion area observed in the RVO model. ASP4058 also suppressed the production of VEGF in the eye. Collectively, ASP4058 can be a potential therapeutic agent that normalizes abnormal

vascular pathology, such as age-related macular degeneration and RVO, through its direct action on endothelial cells. SIMILAR CONTENT BEING VIEWED BY OTHERS A NOVEL RETINOIC ACID DRUG,

EYE-502, INHIBITS CHOROIDAL NEOVASCULARIZATION BY TARGETING ENDOTHELIAL CELLS AND PERICYTES Article Open access 27 June 2023 SPECIFIC ABLATION OF PDGFRΒ-OVEREXPRESSING PERICYTES WITH

ANTIBODY-DRUG CONJUGATE POTENTLY INHIBITS PATHOLOGIC OCULAR NEOVASCULARIZATION IN MOUSE MODELS Article Open access 08 December 2021 ANGIOPOIETIN/TIE2 SIGNALLING AND ITS ROLE IN RETINAL AND

CHOROIDAL VASCULAR DISEASES: A REVIEW OF PRECLINICAL DATA Article Open access 09 February 2021 INTRODUCTION Chorioretinal vascular diseases share common pathological features based on

vascular vulnerability and are a leading cause of blindness due to their potential to cause severe tissue edema, hemorrhage, abnormal angiogenesis, and rhegmatogenous retinal detachment1,2.

Therapeutic approaches targeting vascular endothelial growth factor (VEGF) have dramatically improved the outcomes of patients with chorioretinal vascular disease3. However, all patients do

not respond to anti-VEGF therapy, and anti-VEGF therapy may enhance the possibility of ocular and systemic side effects4,5. Therefore, novel VEGF-independent factors that can effectively

treat abnormal angiogenesis and hyperpermeability need to be identified. Sphingosine 1-phosphate receptor (S1P), a bioactive sphingolipid, is a critical signaling molecule responsible for

regulating various intracellular processes, including cell survival, differentiation, and proliferation6,7,8. S1P exhibits biological effects mainly through five membrane-bound

G-protein-coupled receptors, S1P1-S1P59. A recent study that evaluated endothelium-specific S1P1 deficiency showed that the S1P1 signal inhibits angiogenesis in the retina of neonatal

mice10. S1P signaling via S1P1 likely is part of the negative feedback mechanism necessary to maintain vascular health by resisting VEGF signaling and excessive vascular sprouting11. S1P1

appears critical in inhibiting VEGF-dependent angiogenesis and enhancing vascular stability by strengthening the endothelial cell–cell junction. FTY720, an S1P receptor agonist, has been

marketed for the treatment of multiple sclerosis. FTY720 is a non-selective S1P receptor (S1P 1/3/4/5) agonist and may cause S1P3-induced bradycardia and bronchoconstriction12,13. An S1P

receptor agonist without binding activity to S1P3 could be a therapeutic agent for lesions associated with angiogenesis and increased vascular permeability. We have already succeeded in

synthesizing ASP4058, an S1P1/5-selective S1P receptor agonist that exerts no binding activity to S1P314. S1P receptor agonists, which do not show serious side effects, are expected to

benefit patients with retinochoroidal vascular disease who do not responsive to anti-VEGF monotherapy when used in combinational therapy with anti-VEGF agents. This study investigates the

efficacy of ASP4058 in choroidal neovascularization and retinal vascular hyperpermeability model mice. MATERIALS AND METHODS CELL CULTURE We bought primary human retinal microvascular

endothelial cells (HRMECs) from Cell Systems (Kirkland, WA, USA). HRMECs were kept in a complete classical medium mixed with CultureBoost-R (Cell Systems) and antibiotics composed of 100

U/mL penicillin (Meiji Seika Pharma Co., Ltd.) and 100 μg/mL streptomycin (Meiji Seika Pharma Co., Ltd., Tokyo, Japan). Before seeding the cells, the culture dishes were coated with

attachment factor (Cell Systems). Chinese hamster ovary-K1 (CHO-K1) cells overexpressing human S1P1 receptors (S1P1-CHO) was previously established14. S1P1-CHO cells and mock CHO-K1 cells

were cultured in Ham’s F12 medium supplemented with 10% FBS, 50 µg/mL streptomycin, 50 U/mL penicillin and 1 mg/mL G418 sulfate. All cells were sustained at 37 °C in a humidified atmosphere

with 5% CO2. POLYMERASE CHAIN REACTION Conventional polymerase chain reaction (PCR) was utilized to determine the presence of S1P receptors in HRMECs. Total ribonucleic acid (RNA) was

extracted from HRMECs using an RNeasy Plus Mini Kit (QIAGEN, Hilden, Germany), and cDNA was synthesized using SuperScript IV VILO Master Mix (Thermo Fisher Scientific, Waltham, MA, USA).

Reverse transcription-PCR was then performed with KOD FX (Toyobo, Osaka, Japan), and amplified samples were resolved by agarose gel electrophoresis. The primer sets utilized were as follows:

forward, 5′- GCTCTCCGAACGCAACTTC-3′ and reverse, 5′- GCTTCAGGGGTGGTTCGATG-3′ for S1P1, forward, 5′- GAGGTCTGAGAATGAGGAATGG-3′ and reverse, 5′- CACTGTCCTGAGGAGCTAGAGG-3′ for S1P2, forward,

5′- CGGAGGAGCCCTTTTTCAAC-3′ and reverse, 5′- TGCCATCACTTGGCATTCAC-3′ for S1P3, forward, 5′- ATCATCAGCACCGTCTTCAGC-3′ and reverse, 5′- CTCTACTCCAAGCGCTACATCC-3′ for S1P4, forward, 5′-

TCACTCGGTTCAAGGCAGCG-3′ and reverse, 5′-GGAGCTTGCCGGTGTAGTTG-3′ for S1P5. FLOW CYTOMETRY Cells were treated with a mouse anti-S1P1 antibody (R&D systems, Minneapolis, MN, USA) for 30 min

on ice and then reacted with PE-conjugated anti-mouse immunoglobulin G (IgG; Biolegend, San Diego, CA). As an isotype control, purified mouse IgG2b (Biolegend) was prepared. The cells were

analyzed using CantoII and FlowJo software (BD Biosciences, San Jose, CA, USA). Dead cells were stained with 7-amino actinomycin D or SYTOX Blue Dead Cell Stain (Thermo Fisher Scientific)

and gated out. CAMP ASSAY HRMECs were cultured and grown at a density of 1 × 104 cells per well in 96-well plates. After overnight serum starvation, the cells were reacted with 10 μM

forskolin (Sigma-Aldrich, St. Louis, MO, USA) and 0.5 mM IBMX (Sigma-Aldrich) in the presence of compounds for 10 min at 37 °C and then treated with lysis buffer (50 mM HEPES, 10 mM CaCl2,

0.35% Triton X-100). The cAMP concentration in cell lysates was determined by LANCE cAMP 384 kit (PerkinElmer, Shelton, CT, USA) or LANCE Ultra cAMP Kit (PerkinElmer) following the

manufacturer’s instructions. The EC50 value was calculated via nonlinear regression by GraphPad Prism 8.0.2 (GraphPad Software, San Diego, CA, USA). CELL PROLIFERATION ASSAY HRMECs were

seeded into a 96-well plate at a density of 2 × 103 cells/well and incubated for 24 h at 37 °C with 5% CO2. The medium was replaced with CSC medium containing 10% fetal bovine serum

(Biosera, Kansas City, MO, USA) without cell boost and incubated at 37 °C for 24 h. The cells were pre-incubated with ASP4058 for 1 h, and VEGF (10 ng/mL) was added into the medium. Then,

HRMECs were incubated for 72 h. After incubation, the cell proliferation rates were analyzed using a cell counting kit (Dojindo, Kumamoto, Japan) per the information from the manufacturer’s

protocol. The absorbance at 450/650 nm was recorded using a plate reader (Thermo Fisher Scientific). EVALUATION OF ENDOTHELIAL BARRIER FUNCTION HRMECs were seeded at 1 × 105 cells/well on

fibronectin and collagen-coated Transwell inserts (pore size: 0.4 μm, diameter: 6.5 mm) and cultured for two days. The cells were stimulated with VEGF (30 ng/mL), while FITC-conjugated

dextran (500 KDa, 1 mg/mL) was added into the insert wells. Medium from the bottom wells was collected over time, and the fluorescence intensity was recorded with a FlexStation 3 microplate

reader (Molecular Devices, excitation wavelength 490 nm, emission wavelength 520 nm). To evaluate the effect of ASP4058 on endothelial barrier function, given concentrations of ASP4058 were

added 1 h before or 6 h after the addition of VEGF. ANIMALS Eight-week-old male C57BL/6J mice and ddY mice were purchased from Japan SLC (Shizuoka, Japan). They were kept at 24 ± 2 °C under

a 12 h light–dark cycle and provided with free access to food and water. All investigations were performed in conformity with the Association for Research in Vision and Ophthalmology

statement for the Use of Animals in Ophthalmic and Vision Research. In addition, all animal experiment were approved (approval numbers; 2016–300, 2017–163, 2017–165, 2017–272, 2017–273,

2018–028, and 2018–068) and monitored by the institutional animal care and use committee of Gifu Pharmaceutical University. Ethics statement of animal experimentation; All investigations

were performed under protocols approved by the institutional animal care and use committee of Gifu Pharmaceutical University (approval numbers; 2016–300, 2017–163, 2017–165, 2017–272,

2017–273, 2018–028, and 2018–068). In addition, all work was done were conducted according to ARRIVE guidelines (https://arriveguidelines.org). IMMUNOSTAINING For the in vitro study, HRMECs

were seeded at 1 × 105 cells/well on fibronectin- and collagen-coated Transwell inserts and cultured for 2 days. The cells were stimulated with VEGF (30 ng/mL) for 3 h after 1 h pretreatment

with ASP4058 (10 nM). To examine the expression of S1P1 receptor, HRMECs were seeded at 1 × 105 cells/well on chamber slide and cultured for one day. Then, the cells were fixed with 4%

paraformaldehyde (PFA; pH 7.4) for 10 min at room temperature (RT) and treated with 0.1% TritonX-100 for 10 min at RT. The cells were blocked in 5% goat serum for 1 h and incubated overnight

at 4 °C with a mouse monoclonal antibody against VE-cadherin (1:100, Merck, Germany) or S1P1/EDG rabbit polyclonal antibody (1:100, Santa cruz biotechnology, TX, USA). After that, the cells

were incubated with Alexa594-goat anti-mouse IgG (1:1000, Thermo Fisher Scientific) or Alexa594-goat anti-rabbit IgG (1:1000, Thermo Fisher Scientific) for 1 h and mounted with medium

containing DAPI (Thermo Fisher Scientific). The stained cells were photographed on an Axio Imager microscope (Carl Zeiss Microscopy GmBH, Germany) or a confocal fluorescence microscope

system (LSM-710, Carl Zeiss Microscopy GmBH), and maximum intensity projection was performed on images from confocal microscopy. For the in vivo study, the eyes were removed and fixed with

4% PFA for 24 h at 4 °C and then dehydrated in 25% sucrose at 4 °C for two days. The eyes were then embedded in optimal cutting temperature compound (Sakura Finetek Japan) and instantly

frozen with liquid nitrogen. Then, 10 µm thick chorioretinal sections were cut using a cryostat (Leica Microsystems, Bensheim, Germany) and put on the glass slides (MAS COAT; Matsunami

Glass, Osaka, Japan). The sections were blocked in goat serum (Vector Laboratories, Burlington, USA) and then reacted with S1P1/EDG rabbit polyclonal antibody (1:200, Abcam, Cambridge, MA,

USA), fluorescein-labeled griffonia simplicifolia lectin I (GSL I) isolectin B4 (IB4) (20 µg/mL: Vector Laboratories), and glutamine synthetase (GS) mouse polyclonal antibody (1:100, Merck

Millipore, Burlington, USA) Alexa Flour-647 rat monoclonal CD31 antibody (1:50, Biolegend, San Diego, CA, USA) overnight at 4 ℃. The next morning, the samples were rinsed with

phosphate-buffered saline (PBS) and covered with Alexa Fluor 488 goat anti-mouse IgG (1:1000, Thermo Fisher Scientific) and Alexa Fluora-546 Goat anti-rabbit IgG (1:1000, Thermo Fisher

Scientific) for 1 h at RT. The nuclei were counterstained with Hoechst 33,342 (1:1000; Thermo Fisher Scientific) for 15 min at RT. After rinsing with PBS, the slides were mounted with

Fluoromount. The immunofluorescence images were obtained with a confocal microscope (FLUOVIEW FV10i; Olympus, Tokyo, Japan). LASER-INDUCED CHOROIDAL NEOVASCULARIZATION (CNV) MODEL

Eight-week-old male C57BL/6J mice were anesthetized by using a mixture of xylazine (2.5 mg/kg; Bayer Healthcare, Tokyo, Japan) and ketamine (43.8 mg/kg; Daiichi Sankyo Propharma, Tokyo,

Japan) by intramuscular injection. The pupils were dilated with 0.5% phenylephrine and 0.5% tropicamide (Santen Pharmaceuticals Co., Ltd., Osaka, Japan). After dilation, laser

photocoagulation was performed using a 647 nm laser (MC500, NIDEC, Kyoto, Japan). Laser spots were generated using a red laser (647 nm wavelength, 50 µm spot size, 100 mW power and 100 ms

duration) on day 0. Six laser spots were applied to around the optic nerve. Successful laser photocoagulation was verified by the presence of bubble formation, indicating the rupture of

Bruch’s membrane. QUANTITATIVE REAL-TIME POLYMERASE CHAIN REACTION (QRT-PCR) The total RNA in the retinal pigment epithelium (RPE)-choroid complex from mice was isolated using the NucleoSpin

RNA kit (Takara, Shiga, Japan) per the information from the manufacturer’s protocol. Also, the total RNA from ARPE-19 cells was performed in the same manner. The RNA concentration was

measured by using NanoVue Plus (GE HealthCare Japan, Tokyo, Japan), and cDNA was synthesized by PrimeScript RT Reagent kit (Takara). To determine the _S1p1 and VEGF_ mRNA expression, SYBR

Premix Ex TaqII (Takara) and TP8000 Thermal Cycler Dice Real-Time system (Takara) were used. For housekeeping, the expression of _β-actin_ was used. The PCR primer sequences for murine

tissues used were: _S1p1_ forward, 5′-CACCGGCCCATGTACTATTT-3′ and reverse, 5′-GACTGCCCTTGGAGATGTTC-3′ and _β-actin_ forward: 5′-TCAAGATCATTGCTCCTCCTG -3′, reverse: 5′- CTGCTTGCTGATCCACATCTG

-3′. The PCR primer sequences for human cells used were: _Vegf_ forward, 5′-TCTACCTCCACCATGCCAAGT-3′ and reverse, 5′-GATGATTCTGCCCTCCTCCTT -3′ and _β-actin_ forward:

5′-TCAAGATCATTGCTCCTCCTG-3′, reverse: 5′-CTGCTTGCTGATCCACATCTG-3′. IMMUNOBLOTTING Western blotting was performed as previously described15. To evaluate the effect of ASP4058 on HRMECs in

detail, HRMECs were seeded into a 24-well plate at a density of 2 × 104 cells/well and cultured for 24 h. Then, we changed the medium to 1% FBS containing CSC medium and incubated for 6 h.

HRMECs were pre-incubated with ASP4058 for 1 h, and treated with VEGF (10 ng/mL). After incubating for 5 min, HRMECs were treated with cell lysis buffer. The eyes were removed, and

RPE-choroid complexes were rapidly frozen with liquid nitrogen. The tissues were put into cell lysis buffer and homogenized using a homogenizer (Physcotron; Microtec Co. Ltd., Chiba, Japan).

The cell lysis buffer comprised a radioimmunoprecipitation buffer containing 150 mM sodium chloride (Kishida Chemical, Osaka, Japan), 1% Igepal CA-630 (Sigma-Aldrich), 0.5% sodium

deoxycholate (Wako, Osaka, Japan), 0.1% sodium dodecyl sulfate (SDS) (Wako), 50 mM Tris-hydrochloride (Nacalai Tesque, Kyoto, Japan), phosphatase inhibitor cocktails (Sigma-Aldrich), and

protease inhibitor cocktail (Sigma-Aldrich). The homogenized and collected samples were centrifuged at 12,000×_g_ for 20 min at 4 °C. After configuration, their supernatant was collected,

and the protein concentrations were measured using the bicinchoninic acid protein assay kit (Pierce Biotechnology, Rockford, IL, USA) with bovine serum albumin as the standard, following the

manufacturer’s protocol. The sample buffer (Wako) and protein samples were admixed at a ratio of 1:3, and the mixtures were boiled for 5 min. The samples were separated by a gradient of

5–20% SDS-PAGE (Wako) and transferred to polyvinylidene difluoride membranes (Millipore, Bedford, MA, USA). After the membranes were rinsed with tris-buffered saline containing 0.05% Tween20

(Bio-Rad, Hercules, CA, USA), they were treated with Blocking One-P (Nacalai Tesque) for 30 min at RT. After blocking, the membranes were incubated overnight at 4 °C with primary

antibodies. The primary antibodies used were: phosphor-p38 mitogen-activated protein kinase (p38) rabbit polyclonal antibody (1:1000, Cell Signaling Technology, Danvers, MA, USA), p38 rabbit

polyclonal antibody (1:1000, Cell Signaling Technology), phospho-src tyrosine kinase (src) rabbit polyclonal antibody (1:1000, Cell Signaling Technology), src rabbit polyclonal antibody

(1:1000, Cell Signaling Technology) S1P1/EDG rabbit polyclonal antibody (1:1000, Abcam), VEGF rabbit polyclonal antibody (1:1000, Merck Millipore) and β-actin mouse monoclonal antibody

(1:2000, Sigma-Aldrich). The membranes were then washed and incubated with horseradish peroxidase (HRP)-conjugated goat anti-mouse IgG (1:2000, Thermo Fisher Scientific) and HRP- conjugated

goat anti-rabbit IgG (1:2000, Thermo Fisher Scientific). The immunoreactive bands were made visible using ImmunoStar LD (Wako). The band intensity was analyzed using LAS-4000 Luminescent

Image Analyzer (Fuji Film Co. Ltd., Tokyo, Japan). DRUG ADMINISTRATION ASP4058 was obtained from Astellas Pharma Inc. (Tokyo, Japan). In the in vivo study, ASP4058 was suspended in 0.5%

sodium carboxymethyl cellulose (Wako) and orally administered in all experiments. In the choroidal neovascularization (CNV) model, 0.03 or 0.3 mg/kg ASP4058 was orally dosed daily before

laser irradiation (Figs. 4 and 6). Aflibercept was purchased from Bayer (Leverkusen, Germany) and intravitreally injected at 20 µg/eye immediately after laser irradiation. PBS was injected

in the control group (Fig. 4D–F). In the retinal vein occlusion (RVO) model, ASP4058-treated mice were divided into three groups. The mice in the first group were administered ASP4058

(0.003, 0.01, 0.03, 0.3, 1, and 3 mg/kg) just after laser irradiation (Fig. 5A–D). The mice in the second group were administered 0.3 mg/kg ASP4058 twice (12 h before and just after laser

irradiation; Fig. 5E–F). Furthermore, 0.3 mg/kg ASP4058 was administered twice seven days after laser irradiation (Fig. 5E,G). FLUORESCEIN ANGIOGRAPHY Fourteen days after the CNV induction,

the mice were anesthetized with a mixture of xylazine and ketamine with an intramuscular injection. The pupils were dilated using 0.5% phenylephrine and 0.5% tropicamide, and 0.1% sodium

hyaluronate (Santen Pharmaceuticals Co., Ltd.) was applied to prevent desiccation. After the tail vein was injected with saline to confirm successful injection, 0.1 mL fluorescein (10 mg/mL;

Alcon Japan Ltd., Tokyo, Japan) was injected, and its leakage was confirmed using MicronIV Retinal Imaging Microscope (Phoenix Research Laboratories, Pleasanton, CA). Fluorescent fundus

photographs were obtained at one and three minutes after the fluorescein administration, and the images were defined as early or late phase. The following scores were used as previously

described16. MEASUREMENT OF CNV AREA After performing fluorescein angiography, the mice were subsequently perfused with 0.5 mL PBS solution containing FITC-conjugated dextran (MW = 2000 kDa,

20 mg/mL). After perfusion, the eyes were removed and immediately fixed with 4% PFA for 12 h at 4 °C. The RPE-choroid complex was flat-mounted, and these flat-mounted preparations were

mounted on slide glass (Matsunami Glass) using Fluoromount (Diagnostic BioSystems, Pleasanton, CA, USA). The CNV regions were photograghed using a confocal microscope. The CNV areas were

measured in a blind manner. RVO MODEL The RVO mice were created using ddY mice as described in detail17 The mice were anesthetized with a mixture of xylazine (6 mg/kg) and ketamine (120

mg/kg). Three retinal veins were photocoagulated to induce retinal edema using the MicronIV imaging guide laser. Mice were injected with rose bengal (8 mg/mL; Wako) through the tail vein,

and ten to 15 laser irradiations (532 nm wavelength, 50 µm spot size, 5 s duration, and 50 mW power) were delivered to the veins at three disk diameters from the optic disk. Successful

occlusions were confirmed by fundus imaging one day after the laser occlusion. HISTOLOGICAL ANALYSIS Histological analyses of the RVO model were performed using retinal cross-sections

stained with hematoxylin and eosin (H&E), as previously described17. One day after vein occlusion, the RVO model mice were euthanized by cervical dislocation, and the eyes were removed

and fixed in 4% PFA for 48 h at 4 °C. Following embedding in paraffin, a 5 µm thick section was sliced through the optic disk and subjected to H&E. The stained sections were photographed

using a fluorescent microscope (BZ-X710; Keyence, Osaka, Japan). The thickness of the inner nuclear layer (INL) at 240–1920 nm from the optic nerve head was measured using ImageJ (National

Institutes of Health, Bethesda, MD, USA). EVALUATION OF RETINAL NON-PERFUSION AREAS One, seven, eight, or 14 days after RVO, the mice were subsequently perfused with 0.5 mL PBS solution

containing FITC-conjugated dextran (MW = 2000 kDa, 20 mg/mL), and the eyes were enucleated. The retinas were isolated from the eyes and fixed with 4% PFA for 7 h. After fixing, the samples

were mounted with Fluoromount and visualized utilizing Metamorph (Universal Imaging Corp., Downingtown, PA, USA). The retinal non-perfused regions were measured using ImageJ. CELL CULTURE

Human-derived retinal pigment epithelium cell line (ARPE-19) was obtained from American Type Culture Collection (Manassas, VA, USA) and cultured in Dulbecco’s modified Eagle’s medium

(DMEM)/F-12 (FUJIFILM Wako Pure Chemical Corporation, Osaka, Japan) containing 10% FBS, 100 U/mL penicillin and 100 µg/mL streptomycin. Cells were grown and maintained in a humidified

atmosphere of 95% air and 5% CO2 at 37%. The cells were passaged by trypsinization every 4 days. HYPOXIC EXPOSURE TO ARPE-19 ARPE-19 were seeded at a density of 7.5 × 104 cells per well in

24-well plates and incubated for 24 h at 37 °C with 5% CO2. The medium was replaced with DMEM/F12 without FBS, and the cells were treated with ASP4058 for 1 h. For hypoxic exposure, the

cells were incubated in an oxygen-free incubator (94% N2, 1% O2, 5% CO2) for 6 h. STATISTICAL ANALYSES Data are expressed as the mean ± standard error of the mean (SEM). In cases the data

were not normally distributed, non-parametric tests were performed. Levene’s tests were used for equal variances. Statistical analyses were performed using SPSS version 15.0 for Windows

(Japan Inc., Tokyo, Japan) or GraphPad Prism 8.0.2 or 10.1.2 (GraphPad Software). Comparisons between group means were conducted utilizing the Student’s_ t_-test and for multiple

comparisons, data were analyzed with one-way ANOVA followed by Dunnett’s test for data with equal variance and Kruskal–Wallis test with the Bonferroni correction. _P_ < 0.05 was

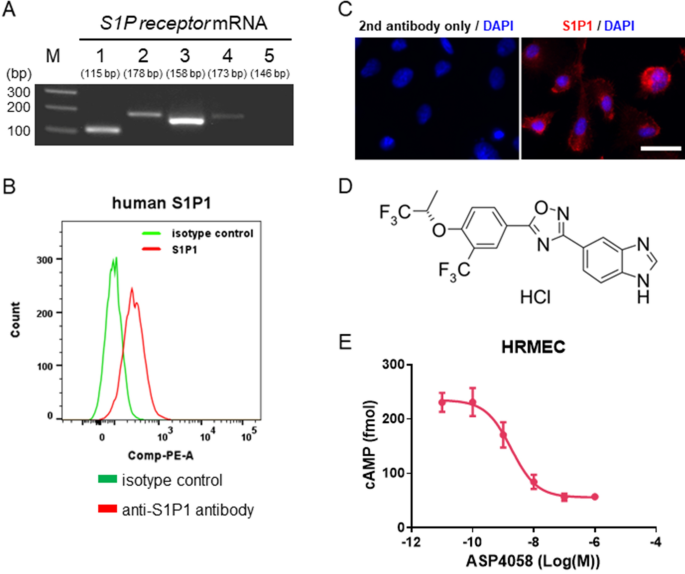

considered statistically significant. RESULTS ASP4058 FUNCTIONS AS AN S1P1 AGONIST IN HRMECS To investigate whether S1P1 could be a potential drug target for retinochoroidal vascular

disease, we investigated the pharmacological effects of the S1P1 agonist ASP4058 in the primary cultures of HRMECs. First, we investigated the S1P receptors expression in HRMECs and detected

all S1P receptor subtypes mRNA expression other than S1P5 and the cell surface expression of S1P1 (Fig. 1A–C). Supplementary Fig. 1 indicate that the experimental system used in this study

guarantees the specificity of S1P1. The chemical structure of ASP4058 is shown in Fig. 1D. We hypothesized that ASP4058 could act selectively on S1P1 in HRMECs. We evaluated the S1P1

agonistic activity of ASP4058 on HRMECs by assessing its effect on forskolin-induced cAMP production. ASP4058 inhibited cAMP production concentration-dependently, with an EC50 value of 1.8

nM (Fig. 1E). To confirm whether this effect was mediated via S1P, we evaluated the effect of FTY720 phosphate (FTY720-P), an S1P analog, in the same assay system and found that FTY720-P

also suppresses cAMP production. In addition, the effects of ASP4058 and FTY720-P were both blocked by simultaneous treatment with TASP0277308, an S1P1 antagonist, suggesting that these

compounds suppress cAMP production through their agonistic effects on S1P1 (Supplementary Fig. 2). Taken together, these results suggest that ASP4058 function as an S1P1 agonist in HRMECs.

ASP4058 ATTENUATED VEGF-INDUCED HRMEC PROLIFERATION AND HYPERPERMEABILITY Next, we investigated the cell proliferation rate of HRMECs using WST assay. The exposure to VEGF significantly

increased the proliferation of HRMECs. ASP4058 inhibited VEGF-induced cell proliferation compared to VEGF alone in a concentration-dependent manner (Fig. 2A). We examined whether ASP4058

could suppress VEGF-induced vascular hyperpermeability. To estimate the effect of ASP4058 on the endothelial cell–cell junctions, we examined the expression and localization of VE-cadherin

in HRMEC monolayers by immunofluorescent staining. As previously reported13, we observed a decrease in VE-cadherin expression at cell junctions after VEGF stimulation. This VEGF-induced

reduction in junctional VE-cadherin staining was blocked by pretreatment with ASP4058 (Fig. 2B). We examined endothelial permeability using the Transwell permeability assay. HRMECs were

monolayered on the Transwell inserts, and their permeability was measured by diffusion of FITC-conjugated dextran (500 KDa) across the insert. Pretreatment with ASP4058 inhibited this

VEGF-induced hyperpermeability concentration-dependently (Fig. 2C). To examine whether ASP4058 has a therapeutic effect on VEGF-induced hyperpermeability, ASP4058 was added 3 h after VEGF

treatment. We found that ASP4058 significantly inhibited hyperpermeability even when treated after VEGF stimulation (Fig. 2D). Furthermore, we investigated the effect of ASP4058 on the

activation of VEGF-VEGFR2 pathway using Western-blot analysis. The treatment of ASP4058 inhibited the phosphorylation of p38 and Src which mean the hyperactivation of endothelial cells (Fig.

 2E–G). EXPRESSION OF S1P1 IN THE CNV MODEL MICE To elucidate the role of S1P1 in chorioretinal pathologies, we examined the changes in the mRNA and protein expression levels of S1p1 on a

laser-induced CNV model, a common model of exudative AMD. In the RPE-choroid complex, the mRNA of _S1p1_ tended to decrease with a temporary increase only five days after laser irradiation

(Fig. 3A), and S1P1 protein was slightly kept at low levels from one to seven days after laser irradiation (Fig. 3B). Next, we investigated the localization of S1P1 in the CNV model using

dual immunofluorescence staining of S1P1 with IB4, a marker of endothelial cells, or GS, a marker of Müller cells. From 1 day after laser irradiation, S1P1 was localized with expression of

IB4 (Fig. 3C); as with IB4, S1P1 was expressed on CD31 positive cells, supporting the results in Fig. 3C (Supplementary Fig. 3). In addition, S1P1 also co-localized with GS, a marker of

Müller cells from 1 day after laser irradiation (Fig. 3D). As a result, the expression of S1P1 co-localized with the expression of IB4 and GS at the CNV lesion (Fig. 3C–D). ASP4058

SUPPRESSED VASCULAR LEAKAGE AND CNV FORMATION IN THE CNV MODEL MICE To evaluate the effectiveness of ASP4058 on CNV development, ASP4058 (0.03 and 0.3 mg/kg) was orally administered in the

CNV model. The oral administration of 0.3 mg/kg ASP4058 significantly reduced the fluorescein leakage from CNV and CNV formation (Fig. 4A–C). We compared the anti-angiogenic effect of

ASP4058 to that of aflibercept, an anti-VEGF drug. The oral administration of 0.3 mg/kg ASP4058 and the single intravitreal administration of aflibercept suppressed vascular leakage and

tended to decrease CNV formation (Fig. 4D–F). The combination administration of these agents significantly reduced CNV development and vascular leakage. The combination-therapy group showed

a trend toward increased efficacy relative to the monotherapy group, but this was not significant statistically. ASP4058 REDUCED THE FORMATION OF RETINAL EDEMA AND NON-PERFUSED REGION IN THE

RVO MODEL MICE We previously reported establishing a murine RVO model17. To determine the effect of ASP4058 on the RVO model, we determined the thickness of INL and the area of the

non-perfused region. The oral administration of ASP4058 (0.01–3 mg/kg) suppressed the retinal edema dose-dependently (Fig. 5A–D), and 0.3 mg/kg ASP4058 12 h before and just after laser

irradiation decreased the ratio of the non-perfused region at one and seven days after laser irradiation (Fig. 5E–F). Treatment with 0.3 mg/kg ASP4058 in the late phase also suppressed the

formation of the non-perfused region (Fig. 5E, G). EFFECT OF ASP4058 ON VEGF PRODUCTION To reveal the mechanism that ASP4058 alleviated the chorioretinal pathologies, we performed a western

blot analysis using a CNV model. We found that CNV induction increased the VEGF expression in the RPE-choroid complex, while ASP4058 reduced that compared to the vehicle-treated groups (Fig.

 6A). Then, in vitro experiment by using ARPE-19 cells was conducted to determine whether ASP4058 affects _VEGF mRNA_ production. As a result, ASP4058 did not suppress hypoxia-induced

increase in _VEGF mRNA_ expression (Fig. 6B). These results imply that ASP4058 does not directly inhibit VEGF production via S1P signaling. DISCUSSION Endothelial S1P has been reported to

contribute to normalizing blood vessels18. As it has a different mechanism of action from anti-VEGF drugs, a new treatment for intraocular vascular lesions is expected. However, S1P3

signaling is associated with serious side effects12,13, making it difficult to develop an active compound against S1P3. We have already succeeded in synthesizing the S1P 1/5 selective

agonist ASP4058, which has extremely weak activity against S1P314. The current study investigated the efficacy of ASP4058 against intraocular angiogenesis and vascular permeability and

examined whether it could be a candidate drug. S1P1 was expressed in HRMECs as in other endothelial cells19. ASP4058 is presumed to have a high affinity for HRMECs. ASP4058 showed a

concentration-dependent inhibitory effect on VEGF-induced cell proliferation and was not cytotoxic at the highest concentration of 300 nM. It also suppressed the disruption of intercellular

junction protein, significantly inhibiting the increased permeability in a concentration-dependent manner. In an ex vivo rat aortic ring explant assay, S1P1 antagonist was reported to

promote vigorous angiogenesis, while S1P1 agonist inhibited angiogenesis11. S1P1 agonist also suppressed the decreased expression of VE-cadherin by VEGF, while the S1P1 antagonist

downregulated VE-cadherin11. The current results are in agreement with these previous reports, indicating that S1P signaling directly induces vascular stability in endothelial cells.

Interestingly, ASP4058 inhibited phosphorylation of p38 and Src by VEGF, indicating that S1P agonist may inhibit intracellular VEGF signaling. S1P1 expression in the RPE-choroid complex,

including the lesion area of the CNV model, decreased at the protein level, although there was a transient point of increase in mRNA. The decreased expression of S1P1, which contributes to

vascular homeostasis, is hypothesized to cause abnormal angiogenesis and disruption of barrier function in abnormal vessels. This is consistent with the typical phenotype in CNV models in

which abnormal angiogenesis is accompanied by increased vascular permeability. S1P1 in the CNV model is expressed in endothelial and Müller glial cells, which are localized in the CNV and

its surroundings20,21. FTY720 was phosphorylated in vivo and has been demonstrated to exert anti-inflammatory effects on astrocytes by regulating the release of inflammatory cytokines22.

Therefore, S1P1 in glial cells that accumulate at CNV sites may be aimed at activating S1P signals to suppress the secretion of inflammatory cytokines, suggesting a type of homeostasis that

inhibits the pathologic progression. Nonetheless, the role of S1P signaling in Müller glial cells and astrocytes in CNV pathogenesis remains unclear. Oral administration of ASP4058 had a

remarkable inhibitory effect on vascular hyperpermeability and choroidal neovascularization in the CNV model mice that mimicked exudative AMD23. Recently, it has been reported that

siponimod, showing specificity for S1P1/5, could prevent the progression of suture-induced corneal neovascularization in rabbits. Modulation of S1PR signaling with S1P antibodies or FTY720

has already been reported to be effective in suppressing CNV24,25,26 and vascular inflammation27, and the present experimental results support these previous reports. The efficacy of FTY720

was verified at 0.3 mg/kg orally, the same dose that was shown to be effective in ASP4058; nonetheless, no significant effect was observed (Supplementary Fig. 4). However, a previous study

reported the effect of FTY720 in the CNV model mice26. The reason for the difference between the results may be because the previous report may have shown a stronger protective effect with

earlier administration than the present experiment. The efficacy of oral administration of ASP4058 against intraretinal edema was tested using RVO model mice. The minimum and maximum

effective concentrations of ASP4058 for oral administration to RVO model mice were found to be approximately 0.01 and 1 mg/kg, respectively. ASP4058 has shown an inhibitory effect on retinal

vascular permeability with a low dose of 0.01 mg/kg and is expected to be a drug that supports retinal vascular homeostasis. ASP4058 was effective from 1 nM in an in vitro assay using

HRMECs, suggesting that ASP4058 is a compound that can inhibit the expansion of the intercellular spaces in retinal vascular endothelial cells from extremely low doses. Oral administration

of ASP4058 suppressed the development of ischemic areas of retinal vessels in RVO model mice. We have previously shown that the administration of anti-VEGF-neutralizing antibodies further

exacerbates retinal ischemia in RVO model mice28. Clinically, development of the ischemic area of the RVO is serious and can lead to neovascular glaucoma and irreversible vision loss.

Therefore, it is medically significant to advocate the activation of S1P1 in the treatment of RVO, in which anti-VEGF therapy is the mainstay. It is possible that continuous activation of

S1P1 is essential for cortical actin formation in endothelial cells, which may be related to the maintenance of tight-junction protein complexes29. Another possibility is that S1P1 regulates

the phosphorylation of tight-junction proteins30, which may enhance intercellular binding. Nevertheless, the detailed molecular mechanisms by which S1P1 signaling maintains endothelial cell

intercellular homeostasis are unknown. Oral administration of ASP4058 inhibited the VEGF production in the RPE-choroid complexes of CNV model mice. Therefore, ASP4058 may be useful for

normalizing choroidal vascular hyperpermeability and neovascularization. As activation of S1P suppresses HIF-1 signaling31, it is reasonable that ASP4058 administration leads to improvement

of ischemia and suppression of VEGF expression in the eye. We used human retinal pigment epithelial cells, which are known to routinely produce VEGF in the eye. Contrary to expectations,

ASP4058 did not suppress hypoxia-induced increase in VEGF mRNA expression. The suppression of VEGF production by ASP4058 in mouse choroidal tissues may be due to suppression of pathological

progression by activation of S1P signaling. Although it is unclear whether Müller glia S1P1 is a target for reducing VEGF production in the choroidal complex, the strong expression of S1P1

in Müller glia accumulating at the lesion site suggests that the administered ASP4058 has some effect on Müller glial cells through S1P1. ASP4058 has several strengths; it differentiates

itself from existing anti-VEGF therapies in terms of mechanism, it can be administered orally, and there is less concern about serious side effects such as bradycardia because it has no

affinity for S1P3. This study has several limitations. First, it was not possible to calculate the extent to which ASP4058 migrated intraocularly by oral administration. After 14 days of

repeated oral administration of ASP4058 (0.1 mg/kg), the maximum plasma concentration of ASP4058 was 16.4 ± 0.463 ng/ml in Lewis rats14. ASP4058 was effective from 1 nM in vitro. Oral

administration of ASP4058 at doses of 0.01 mg/kg has shown inhibitory effects against intraretinal edema and retinal vascular permeability. Even if we took species difference into account,

we speculate that the concentration of ASP4058 shown to be effective in vivo in this study had reached or exceeded the concentration that would be effective in vitro. Second, as ASP4058

activates both S1P1 and S1P5, it is unknown whether the present effect is due to S1P1, S1P5, or both. In summary, our data indicate that the oral administration of the S1P1/5 agonist ASP4058

could be a potential drug for ocular diseases with vascular abnormalities such as AMD and RVO. Because existing anti-VEGF therapies are administered intravitreally, there is a need for

other drugs that could help improve adherence. DATA AVAILABILITY Data supporting the findings of this manuscript are available from the corresponding author upon reasonable request.

REFERENCES * Campochiaro, P. A. Ocular neovascularization. _J. Mol. Med. (Berl.)_ 91, 311–321. https://doi.org/10.1007/s00109-013-0993-5 (2013). Article  CAS  PubMed  Google Scholar  *

Rajappa, M., Saxena, P. & Kaur, J. Ocular angiogenesis: Mechanisms and recent advances in therapy. _Adv. Clin. Chem._ 50, 103–121 (2010). Article  CAS  PubMed  Google Scholar  * Nguyen,

D. H., Luo, J., Zhang, K. & Zhang, M. Current therapeutic approaches in neovascular age-related macular degeneration. _Discov. Med._ 15, 343–348 (2013). PubMed  Google Scholar  *

Falavarjani, K. G. & Nguyen, Q. D. Adverse events and complications associated with intravitreal injection of anti-VEGF agents: A review of literature. _Eye (Lond.)_ 27, 787–794.

https://doi.org/10.1038/eye.2013.107 (2013). Article  CAS  PubMed  Google Scholar  * Maguire, M. G. _et al._ Five-year outcomes with anti-vascular endothelial growth factor treatment of

neovascular age-related macular degeneration: The comparison of age-related macular degeneration treatments trials. _Ophthalmology_ 123, 1751–1761.

https://doi.org/10.1016/j.ophtha.2016.03.045 (2016). Article  PubMed  Google Scholar  * Hernández-Coronado, C. G. _et al._ Sphingosine-1-phosphate, regulated by FSH and VEGF, stimulates

granulosa cell proliferation. _Gen Comp Endocrinol_ 236, 1–8. https://doi.org/10.1016/j.ygcen.2016.06.029 (2016). Article  CAS  PubMed  Google Scholar  * Merrill, A. H. Jr. _et al._

Sphingolipids–the enigmatic lipid class: Biochemistry, physiology, and pathophysiology. _Toxicol. Appl. Pharmacol._ 142, 208–225. https://doi.org/10.1006/taap.1996.8029 (1997). Article  CAS

  PubMed  Google Scholar  * Yanagida, K. & Hla, T. Vascular and immunobiology of the circulatory sphingosine 1-phosphate gradient. _Ann. Rev. Physiol._ 79, 67–91.

https://doi.org/10.1146/annurev-physiol-021014-071635 (2017). Article  CAS  Google Scholar  * Obinata, H. & Hla, T. Sphingosine 1-phosphate in coagulation and inflammation. _Semin.

Immunopathol._ 34, 73–91. https://doi.org/10.1007/s00281-011-0287-3 (2012). Article  CAS  PubMed  Google Scholar  * Jung, B. _et al._ Flow-regulated endothelial S1P receptor-1 signaling

sustains vascular development. _Dev. Cell_ 23, 600–610. https://doi.org/10.1016/j.devcel.2012.07.015 (2012). Article  CAS  PubMed  PubMed Central  Google Scholar  * Gaengel, K. _et al._ The

sphingosine-1-phosphate receptor S1PR1 restricts sprouting angiogenesis by regulating the interplay between VE-cadherin and VEGFR2. _Dev. Cell_ 23, 587–599.

https://doi.org/10.1016/j.devcel.2012.08.005 (2012). Article  CAS  PubMed  Google Scholar  * Sanna, M. G. _et al._ Sphingosine 1-phosphate (S1P) receptor subtypes S1P1 and S1P3,

respectively, regulate lymphocyte recirculation and heart rate. _J. Biol. Chem._ 279, 13839–13848. https://doi.org/10.1074/jbc.M311743200 (2004). Article  CAS  PubMed  Google Scholar  *

Trifilieff, A. & Fozard, J. R. Sphingosine-1-phosphate-induced airway hyper-reactivity in rodents is mediated by the sphingosine-1-phosphate type 3 receptor. _J. Pharmacol. Exp. Ther._

342, 399–406. https://doi.org/10.1124/jpet.112.191585 (2012). Article  CAS  PubMed  Google Scholar  * Yamamoto, R. _et al._ ASP4058, a novel agonist for sphingosine 1-phosphate receptors 1

and 5, ameliorates rodent experimental autoimmune encephalomyelitis with a favorable safety profile. _PLoS ONE_ 9, e110819. https://doi.org/10.1371/journal.pone.0110819 (2014). Article  ADS

  CAS  PubMed  PubMed Central  Google Scholar  * Inoue, Y. _et al._ Both autocrine signaling and paracrine signaling of HB-EGF enhance ocular neovascularization. _Arterioscler. Thromb. Vasc.

Biol._ 38, 174–185. https://doi.org/10.1161/atvbaha.117.310337 (2018). Article  CAS  PubMed  Google Scholar  * Masuda, T. _et al._ Edaravone is a free radical scavenger that protects

against laser-induced choroidal neovascularization in mice and common marmosets. _Exp. Eye Res._ 146, 196–205. https://doi.org/10.1016/j.exer.2016.03.020 (2016). Article  CAS  PubMed  Google

Scholar  * Fuma, S. _et al._ A pharmacological approach in newly established retinal vein occlusion model. _Sci. Rep._ 7, 43509. https://doi.org/10.1038/srep43509 (2017). Article  ADS

PubMed  PubMed Central  Google Scholar  * Gaengel, K., Genové, G., Armulik, A. & Betsholtz, C. Endothelial-mural cell signaling in vascular development and angiogenesis. _Arterioscler.

Thromb. Vasc. Biol._ 29, 630–638. https://doi.org/10.1161/atvbaha.107.161521 (2009). Article  CAS  PubMed  Google Scholar  * Chen, S. _et al._ Role of sphingosine-1-phosphate receptor 1 and

sphingosine-1-phosphate receptor 2 in hyperglycemia-induced endothelial cell dysfunction. _Int. J. Mol. Med._ 35, 1103–1108. https://doi.org/10.3892/ijmm.2015.2100 (2015). Article  CAS

PubMed  Google Scholar  * Miloudi, S. _et al._ Nestin contributes to laser choroidal and retinal neovascularization. _Mol. Vis._ 28, 280–299 (2022). PubMed  PubMed Central  Google Scholar  *

Caicedo, A., Espinosa-Heidmann, D. G., Piña, Y., Hernandez, E. P. & Cousins, S. W. Blood-derived macrophages infiltrate the retina and activate Muller glial cells under experimental

choroidal neovascularization. _Exp. Eye Res._ 81, 38–47. https://doi.org/10.1016/j.exer.2005.01.013 (2005). Article  CAS  PubMed  Google Scholar  * Van Doorn, R. _et al._ Sphingosine

1-phosphate receptor 1 and 3 are upregulated in multiple sclerosis lesions. _Glia_ 58, 1465–1476. https://doi.org/10.1002/glia.21021 (2010). Article  PubMed  Google Scholar  * Alshaikh, R.

A., Zaki, R. G. E., El Din, R. A. S., Ryan, K. B. & Waeber, C. Siponimod as a novel inhibitor of retinal angiogenesis: In vitro and in vivo evidence of therapeutic efficacy. _J.

Pharmacol. Exp. Ther._ 386, 224–241. https://doi.org/10.1124/jpet.122.001529 (2023). Article  CAS  PubMed  Google Scholar  * Xie, B. _et al._ Blockade of sphingosine-1-phosphate reduces

macrophage influx and retinal and choroidal neovascularization. _J. Cell. Physiol._ 218, 192–198. https://doi.org/10.1002/jcp.21588 (2009). Article  CAS  PubMed  PubMed Central  Google

Scholar  * Caballero, S. _et al._ Anti-sphingosine-1-phosphate monoclonal antibodies inhibit angiogenesis and sub-retinal fibrosis in a murine model of laser-induced choroidal

neovascularization. _Exp. Eye Res._ 88, 367–377. https://doi.org/10.1016/j.exer.2008.07.012 (2009). Article  CAS  PubMed  Google Scholar  * Sorenson, C. M. _et al._ Fingolimod (FTY720), a

Sphinogosine-1-phosphate receptor agonist, mitigates choroidal endothelial proangiogenic properties and choroidal neovascularization. _Cells_ https://doi.org/10.3390/cells11060969 (2022).

Article  PubMed  PubMed Central  Google Scholar  * Terao, R., Honjo, M. & Aihara, M. Apolipoprotein M inhibits angiogenic and inflammatory response by Sphingosine 1-phosphate on retinal

pigment epithelium cells. _Int. J. Mol. Sci._. https://doi.org/10.3390/ijms19010112 (2017). Article  PubMed  PubMed Central  Google Scholar  * Nishinaka, A. _et al._ Pathophysiological role

of VEGF on retinal edema and nonperfused areas in mouse eyes with retinal vein occlusion. _Investig. Ophthalmol. Vis. Sci._ 59, 4701–4713. https://doi.org/10.1167/iovs.18-23994 (2018).

Article  CAS  Google Scholar  * Spindler, V., Schlegel, N. & Waschke, J. Role of GTPases in control of microvascular permeability. _Cardiovasc. Res._ 87, 243–253.

https://doi.org/10.1093/cvr/cvq086 (2010). Article  CAS  PubMed  Google Scholar  * González-Mariscal, L., Tapia, R. & Chamorro, D. Crosstalk of tight junction components with signaling

pathways. _Biochim. et Biophys. Acta_ 1778, 729–756. https://doi.org/10.1016/j.bbamem.2007.08.018 (2008). Article  CAS  Google Scholar  * Gstalder, C., Ader, I. & Cuvillier, O. FTY720

(Fingolimod) inhibits HIF1 and HIF2 signaling, promotes vascular remodeling, and chemosensitizes in renal cell carcinoma animal model. _Mol. Cancer Ther._ 15, 2465–2474.

https://doi.org/10.1158/1535-7163.mct-16-0167 (2016). Article  CAS  PubMed  Google Scholar  Download references AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Molecular Pharmacology,

Department of Biofunctional Evaluation, Gifu Pharmaceutical University, 1-25-4 Daigaku-nishi, Gifu, 501-1196, Japan Shinsuke Nakamura, Hiroto Yasuda, Anri Nishinaka, Kei Takahashi, Masamitsu

Shimazawa & Hideaki Hara * Discovery Accelerator, Astellas Pharma Inc., Tsukuba, Japan Rie Yamamoto & Sadao Kuromitsu * Alliance Laboratory for Advanced Medical Research, Kyoto

University Graduate School of Medicine, Kyoto, Japan Rie Yamamoto & Sadao Kuromitsu * Pharmaceutical Research and Technology Labs, Astellas Pharma Inc., Yaizu, Japan Takaya Matsuda *

Astellas Institute for Regenerative Medicine, Marlborough, MA, USA Yuki Inoue & Masahide Goto * Department of Drug Discovery Medicine, Kyoto University Graduate School of Medicine,

Kyoto, Japan Shuh Narumiya Authors * Shinsuke Nakamura View author publications You can also search for this author inPubMed Google Scholar * Rie Yamamoto View author publications You can

also search for this author inPubMed Google Scholar * Takaya Matsuda View author publications You can also search for this author inPubMed Google Scholar * Hiroto Yasuda View author

publications You can also search for this author inPubMed Google Scholar * Anri Nishinaka View author publications You can also search for this author inPubMed Google Scholar * Kei Takahashi

View author publications You can also search for this author inPubMed Google Scholar * Yuki Inoue View author publications You can also search for this author inPubMed Google Scholar *

Sadao Kuromitsu View author publications You can also search for this author inPubMed Google Scholar * Masamitsu Shimazawa View author publications You can also search for this author

inPubMed Google Scholar * Masahide Goto View author publications You can also search for this author inPubMed Google Scholar * Shuh Narumiya View author publications You can also search for

this author inPubMed Google Scholar * Hideaki Hara View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS S.N., M.G., S.N., and H.H. conceived and

designed the study and wrote the manuscript. R.Y. performed experiments for polymerase chain reaction, flow cytometry, cAMP assay, and endothelial barrier function. T. M. confirmed the

physical properties and contributed to the stability of the compound. H.Y., A.N., K.T., and Y.I. performed the cell proliferation assay and the in vivo and in vitro experiments. S.K.

reviewed the manuscript. M.S. helped to perform the analysis with constructive discussions in in vivo experiments. All authors have read and approved the final manuscript and figures.

CORRESPONDING AUTHOR Correspondence to Hideaki Hara. ETHICS DECLARATIONS COMPETING INTERESTS S.N., M.S., S.N., and H.H. received a research grant from Astellas Pharma Inc. R.Y., T.M., and

S.K. are employees of Astellas Pharma Inc. Y.I. and M.G. are employees of Astellas Institute for Regenerative Medicine. H.Y., A.N., and K.T. declare no competing interests. ADDITIONAL

INFORMATION PUBLISHER'S NOTE Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations. SUPPLEMENTARY INFORMATION

SUPPLEMENTARY FIGURES. RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation,

distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and

indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit

line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use,

you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS

ARTICLE CITE THIS ARTICLE Nakamura, S., Yamamoto, R., Matsuda, T. _et al._ Sphingosine-1-phosphate receptor 1/5 selective agonist alleviates ocular vascular pathologies. _Sci Rep_ 14, 9700

(2024). https://doi.org/10.1038/s41598-024-60540-6 Download citation * Received: 12 October 2023 * Accepted: 24 April 2024 * Published: 27 April 2024 * DOI:

https://doi.org/10.1038/s41598-024-60540-6 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
