ABSTRACT Nanoscale liquid immiscibility is observed in the 2018–2021 Fani Maoré submarine lavas (Comoros archipelago). Heat transfer calculations, Raman spectroscopy, scanning and

transmission electron microscopy reveal that in contrast to thin (500 µm) outer rims of homogeneous glassy lava (rapidly quenched upon eruption, >1000 °C s−1), widespread liquid

immiscibility is observed in thick (1 cm) inner lava rims (moderately quenched, 1–1000 °C s−1), which exhibit a nanoscale coexistence of Si- and Al-rich vs. Ca-, Fe-, and Ti-rich melt

phases. In this zone, rapid nanolite crystallization contrasts with the classical crystallization process inferred for the slower cooled ( < 1 °C s−1) lava interiors. The occurrence of

such metastable liquid immiscibility at eruptive conditions controls physicochemical characteristics of nanolites and residual melt compositions. This mechanism represents a common yet

frequently unobserved feature in volcanic products, with the potential for major impacts on syn-eruptive magma degassing and rheology, and thus on eruptive dynamics. SIMILAR CONTENT BEING

VIEWED BY OTHERS A CHEMICAL THRESHOLD CONTROLS NANOCRYSTALLIZATION AND DEGASSING BEHAVIOUR IN BASALT MAGMAS Article Open access 18 November 2022 OXIDE NANOLITISATION-INDUCED MELT IRON

EXTRACTION CAUSES VISCOSITY JUMPS AND ENHANCED EXPLOSIVITY IN SILICIC MAGMA Article Open access 19 January 2024 OXIDATION-INDUCED NANOLITE CRYSTALLIZATION TRIGGERED THE 2021 ERUPTION OF

FUKUTOKU-OKA-NO-BA, JAPAN Article Open access 09 May 2023 INTRODUCTION Liquid immiscibility is a thermodynamic state characterized by the coexistence of two or more immiscible melt phases of

distinct compositions1. It was long thought to occur only at temperatures irrelevant to magmatic and volcanic processes2. In subsequent experimental petrology studies however, the potential

of natural magma compositions to exhibit liquid immiscibility at super- to sub-liquidus conditions has been well-documented3,4,5,6,7. Currently, liquid immiscibility is suspected to be the

cause of major petrogenetic processes, such as the genesis of carbonatitic melts8 and hydrothermal systems9, as well as the origin of compositional variations of major magmatic intrusions10

and even the origin of the Daly gap11. Although liquid immiscibility has been described in volcanic products at macro- to micro-scales12,13, it has been rarely documented and characterized

at the nanoscale14. The very nature of magmatic/volcanic crystallization can be expected to be significantly different in an emulsion (i.e., immiscible system) compared with a homogeneous

liquid, largely because of inherited compositional variations15. Thus, the nanoscale nature of such emulsion can be expected to be an enhancement of the generation of specific nanoscale

crystalline phases, termed nanolites16. However, such a mechanism has not been yet described in detail in natural volcanic products. Instead, an increasing number of studies have reported

the characteristic occurrence of nanolites within more typical homogeneous liquids, especially in juvenile tephra deposits17,18,19. In a purely physical analysis, the direct impact of the

presence of isolated nanolites should not play a significant role in magma suspension rheology. However, nanolite clustering, Si-poor phase crystallization, and subsequent Si enrichment in

the residual melt can lead to drastic increases in magma viscosity20,21,22,23,24. Further, it has also been shown that these crystals play a role in supporting further heterogeneous

nucleation processes such as bubble nucleation, with their consequences for magma fragmentation and, in turn, eruptive dynamics24,25. Indeed, recently, nanolites in submarine volcanic

products from the Havre 2012 rhyolitic eruption have been inferred to be the trigger and indicator of unexpected magma fragmentation26. The present work focuses on textural and associated

chemical heterogeneities identified in submarine basanitic volatile-bearing lavas (dissolved H2O of 1.2 wt.%27), which were erupted during the 2018–2021 Fani Maoré eruption28, ca. 50 km

offshore east of Mayotte Island (France), the easternmost island of the Comoros archipelago (Mozambique Channel, Fig. 1a). This eruption represents the largest submarine eruption ever

monitored to date with a total estimated lava volume of ca. 6.6 km3 (emplaced between 2.5 and 3.3 km b.s.l., corresponding to an eruptive pressure of 0.29–0.33 kbar)28. This volcanic

activity has aroused a lot of interest, giving extensive insights into the origin and characteristics of this major eruption and associated products27,28,29,30,31, as well as the complex

aspects of the active volcanic area32,33,34,35. Here, we specifically investigate the nanoscale features of the Fani Maoré lava matrixes, which show an evolution from homogeneous to

heterogeneous textures, due to nanoscale liquid immiscibility and associated crystallization. More specifically, macroscopic observations, heat transfer calculations, scanning electron

microscopy (SEM), Raman spectroscopy, and transmission electron microscopy (TEM) investigations have been used to deduce under which conditions nanoscale liquid immiscibility occurs, and how

it affects crystallization as a newly described mechanism for volcanic nanolite generation. Ultimately, we discuss how this mechanism may potentially reveal dynamic processes occurring

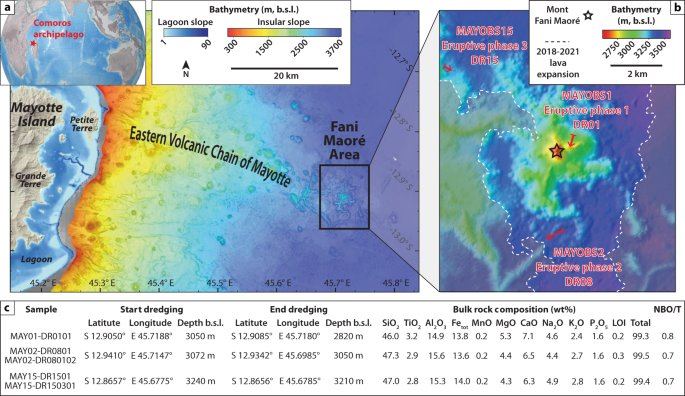

during volcanic eruptions. RESULTS LAVA SAMPLE DESCRIPTIONS AND ESTIMATED QUENCHING/COOLING RATES Studied lava samples were dredged during the following oceanographic campaigns: MAYOBS136,

MAYOBS237, and MAYOBS1538 (Fig. 1b). Five samples have been specifically chosen, which cover the evolution of Fani Maoré eruption in time and space31. MAY01-DR0101 sample is from the central

edifice and was emitted during the eruptive phase 1, from June 2018 to May 2019, corresponding to the main building stage of Fani Maoré. MAY02-DR0801 and MAY02-DR080102 samples were

collected on the peripheral lava flows emplaced in June 2019 during the eruptive phase 2. Finally, MAY15-DR1501 and MAY15-DR150301 samples were dredged on a complex lava flow field that

occurred between August 2019 and May 2020 during the eruptive phase 3. Fani Maoré lavas are relatively homogeneous in composition, they are relatively aphyric (<5 vol.% of 20–1000 µm

euhedral to skeletal olivines and magnetites formed during magma transport in the crust), with an average porosity of 35 vol.%29. Their basanitic composition (Fig. 1c) represents a complex

evolution controlled both by fractional crystallization and mixing between a rising mantellic basanitic magma and a static subcrustal tephri-phonolitic magma31. The ratio of non-bridging

oxygens to tetrahedrally coordinated cations (NBO/T), which represents a proxy for melt polymerization, is calculated for each studied sample, using bulk rock composition39 and assuming a

typical Fe oxidation ratio for basanite (Fe3+/Fe2+) of 0.340. These calculations led to estimated NBO/T values ranging between 0.7 and 0.8 (cf. Supplementary Data 1), which are slightly

higher than recent estimations for experimental scenarios at atmospheric conditions which consider all Fe as oxidized in rock compositions41. NBO/T values of 0.5 were also found using

residual melt compositions from previously performed microprobe analyses on slightly crystallized matrices31. All selected samples are part of lava flow margin blocks ca. 5 to 10 cm thick.

Three main facies have been identified from macroscopic observations, as well as SEM and Raman transects on the MAY15-DR150301 sample (Fig. 2). Moreover, according to heat transfer

calculations using the semi-infinite solid thermal approach42, the corresponding average eruptive quenching/cooling rate of lava in contact with seawater as a function of lava

thickness/depth can be estimated from the eruptive temperature (_T_E = 1095 °C 29) to the glass transition temperature range (_T_G = 500–600 °C, which represents the viscous to brittle

transition of the lava, threshold below which crystallization and degassing cannot occur anymore27). Note that latent heat of crystallization is shown to have an insignificant impact on the

lava quenching/cooling rates when compared to the total heat released during cooling (cf. Supplementary Information SI1). * (1) Outer lava rims, ca. 500 µm thick (cf. area 1 in Fig. 2a),

exhibited relatively high eruptive quenching rates greater than ca. 1000 °C s−1 (cf. area 1 in Fig. 2b), yielding a translucent glassy brown macroscopic appearance. This minimum value is

coherent with estimated quenching rates by calorimetric relaxational geospeedometry on submarine, fine (i.e., 30–80 µm of diameter) basaltic shards (i.e., 105 °C s−1)43. These outer lava

rims are highly fractured, either via thermal stresses in these hyper-quenched volcanic glasses44, or due to sampling methodology and sample selection bias (dredging). Thus, the original

thin lava rims were difficult to sample. However, rare, thin outer lava rims are identifiable and specifically investigated here from the MAY15-DR1501 sample. * (2) Inner lava rims are

considered as ca. 1 cm thick (cf. area 2 in Fig. 2a). They exhibited moderate quenching rates between ca. 1 and 1000 °C s−1 (cf. area 2 in Fig. 2b), yielding an adamantine yet opaque

macroscopic appearance (i.e., slight crystallization). This range is also consistent with estimated quenching rates by geospeedometry on submarine, coarse (i.e., 0.08–0.12 cm) basaltic

shards (i.e., 102 °C s−1)43, confirming the validity of the calculations. Inner lava rims are specifically studied here from the MAY01-DR0101 and MAY02-DR080102 samples. * (3) Lava interiors

correspond to areas located more than ca. 1 cm away from the lava margin (cf. area 3 in Fig. 2a). They underwent slow cooling rates below ca. 1 °C s−1 (cf. area 3 in Fig. 2b), likely

favoring pervasive crystallization and volatile degassing/percolation45, yielding a matte and opaque macroscopic appearance with the occurrence of irregularly shaped vesicles. They are

specifically studied here from the MAY02-DR0801 sample. Back-scattered electron images acquired by SEM (BSE-SEM) show that the outer lava rims form a glassy area without any apparent

crystallization (cf. image 1 in Fig. 2c), coherently with the previous observations. In contrast, the inner lava rims show slight microlite crystallization and widespread nanoscale matrix

heterogeneities (cf. image 2 in Fig. 2c). Within the lava interiors, the matrix tends to be progressively more crystalline with well-defined microlites and nanolites (cf. image 3 in Fig.

2c). Qualitative Raman spectra analysis acquired from 50 to 1300 cm−1 are consistent with this textural evolution. Raman signatures obtained in the outer lava rims (cf. area 1 in Fig. 2d)

are characterized by the presence of a peak at ca. 75 cm−1. The changes in this low-wavenumber intensity of Raman spectra can be interpreted as resulting in a shift/intensity change of the

Boson peak46, which is a typical signature of the glassy state47 that tends to disappear in the presence of significant crystalline phases48. Also, the absence of any peaks in the 600–700 

cm−1 Raman shift range excludes the abnormal presence of Fe49 in this area. In contrast, Raman spectroscopic signatures from the inner lava rims (cf. area 2 in Fig. 2d) show that the

low-wavenumber peak at ca. 75 cm−1 is no longer well-defined due to the interference with secondary signals, likely originating from amorphous and/or crystalline nanoscale heterogeneities in

this area. In addition, a slight rise of the Raman spectrum between 600 and 700 cm−1 suggests the significant presence of Fe that can be either amorphous (i.e., Fe clustering before the

actual formation of objects definable as nanolites) and/or crystalline (i.e., occurrence of one or more Fe-bearing nanolite phases)50. Within the lava interiors (cf. area 3 in Fig. 2d),

Raman signatures show that the low-wavenumber peak at ca. 75 cm−1 is absent, most likely due to crystallization and the progressive disappearance of glass. Well-identified peaks between 600

and 700 cm−1 also suggest the significant presence of Fe-bearing crystalline phases. In the following sub-sections, the three lava facies identified above, as well as their corresponding

textures are described. It is important to note that these three different facies, observed in the MAY15-DR150301 sample (a full transect description of the sample, illustrated by BSE-SEM

images is available in the Supplementary Information SI2), occur consistently in all studied Fani Maoré lava samples (cf. Supplementary File 1) and are thus considered as ubiquitous textures

in these eruptive products. For practical reasons involving sample preparation, specific samples were chosen for each case: case 1 (MAY15-DR1501), case 2 (MAY01-DR0101 and MAY02-DR080102),

and case 3 (MAY02-DR0801) are representatives of the outer lava rim, inner lava rim, and lava interior textures of the Fani Maoré eruption, respectively. CASE 1: EFFICIENTLY QUENCHED OUTER

LAVA RIMS BSE-SEM images and Raman spectra acquired on outer lava rims from the MAY15-DR1501 sample (cf. Supplementary Data 2) reveal signatures similar to those shown in area 1 Fig. 2c, d,

confirming the general occurrence of these glassy facies. Unfortunately, TEM analysis could not be performed on that area because it was too thin and difficult to work with to make any

usable thin section. However, qualitative Raman spectroscopy and SEM analysis confidently suggest that this area is glassy and homogeneous. This highlights the fact that pre-eruptive melts

from the Fani Maoré eruption were homogeneous, microlite- and nanolite-free, and have been efficiently quenched (i.e., >ca. 1000 °C s−1) to glass within the first ca. 500 µm outer lava

rims. CASE 2: FAST NANOLITE CRYSTALLIZATION INDUCED BY LIQUID IMMISCIBILITY IN THE INNER LAVA RIMS Observations made on the inner lava rims reveal more complex textures, characterized by

microscale/nanoscale crystalline phases and heterogeneities. Two distinct matrix textures are described below. BSE-SEM images acquired on the inner lava rims of sample MAY02-DR080102 (Fig.

3a) show that, in addition to the pre-existing pre-eruptive micro-phenocrysts, small (<ca. 20 µm in length) acicular to dendritic microlites and nanolites occur in this sample area.

Moreover, the background matrix is characterized by ubiquitous well-structured nanoscale heterogeneities. Raman spectra performed on the matrix (cf. Supplementary Data 2) show signatures

similar to those shown in area 2, Fig. 2d, confirming the presence of amorphous and/or crystalline Fe-rich heterogeneities in this facies. High-Angle Annular Dark Field images acquired by

Scanning Transmission Electron Microscopy (HAADF-STEM, Fig. 3b), reveal that this lava matrix is dominated by a nanoscale binodal-type liquid immiscibility. The binodal unmixing is

characterized by a two-liquid immiscibility field, in which the volumetrically minor immiscible melt phase nucleates and grows as droplets within the volumetrically dominant immiscible melt

phase that remains as a continuous matrix phase1. These sub-round droplets have equivalent spherical diameters from 50 to 200 nm, with rare coalesced droplets having a maximum equivalent

diameter of 300 nm. Both immiscible melt phases exhibit partial nanoscale crystallization. These nanolites tend to nucleate at the interface between the two melt phases (sometimes resulting

in highly deformed droplets) and on other simultaneously formed nanolites, thereby generating rounded aggregates of nanolites (Fig. 3b). Energy-dispersive X-ray spectroscopic analyses

acquired by scanning electron microscopy (EDXS-STEM) enable the identification of the micro-crystalline phases (Fig. 3c): acicular microlites are Mg-, Fe- and Al-rich silicate crystals,

which act as nucleation site for smaller (<1 µm) Fe- and Ti-rich crystals. Binodal droplets are enriched in Ca, Fe, and Ti, while the remaining background matrix is enriched in Si and Al.

No clear patterns are identified for P, Na, K, Mg, and Mn. In addition to EDXS-STEM data, images from energy-filtered by transmission electron microscopy (EF-TEM) enable an even better

resolution of chemical mapping (Fig. 3c). They highlight that uncrystallized parts of the binodal droplets are Ca-rich, while crystallized parts of the binodal droplets are Fe- and Ti-rich,

in agreement with the EDXS-STEM data. Bright-field and high-resolution images acquired by TEM (BF-TEM and HR-TEM), as well as associated selected area electron diffraction patterns (SAEDP)

were acquired to determine the mineralogy of this sample area (Fig. 3d): micro-crystalline acicular laths are biotites and smaller crystals that nucleate on them are ilmenites, in agreement

with the chemical characterization made by EDXS-STEM. Looking further at the binodal-type texture, euhedral to anhedral titanomagnetite nanolites are observed in the binodal droplets while

euhedral to anhedral phlogopites are observed in the background matrix, in agreement with the chemical characterization made by EF-TEM. Crystal size distributions (CSD) highlight that the

phlogopite population is less developed (2 vol.%) than the titanomagnetite population (15 vol.%) (Fig. 3e) (cf. Supplementary Data 3). The apparent decrease of phlogopite population density

<0.05 µm in crystal length may be representative of the occurrence of the Ostwald ripening20,51. Also note that the line representative of the binodal droplet population (47 vol.%) is

coherently above the titanomagnetite one (i.e., titanomagnetites cannot be more voluminous than the binodal droplets). The second identified texture has been specifically investigated in the

inner lava rims of sample MAY01-DR0101. BSE-SEM images (Fig. 4a) show similar macro- and micro-textures as observed in the inner lava rims of the MAY02-DR080102 sample. The main difference

is that the nanoscale binodal-type liquid immiscibility, which is observed near the microlites, rapidly develops into a quite different texture more distally. Raman spectra performed on the

matrix (cf. Supplementary Data 2) also show similar signatures as shown in area 2, Fig. 2d, confirming the presence of amorphous and/or crystalline nanoscale heterogeneities in this facies.

Nevertheless, the acquired spectra show slight differences compared to the MAY02-DR080102 sample. The low-wavenumber peak at ca. 75 cm−1, interpreted as the occurrence of the Boson peak, is

identifiable and suffers slightly less from interference with secondary peaks compared to the MAY02-DR080102 sample. The observed peak between 600 and 700 cm−1 is also more diffuse than in

the inner lava rims of the MAY02-DR080102 sample, suggesting that Fe-bearing nanolites are much less abundant than in the binodal-type texture. HAADF-STEM images (Fig. 4b) reveal that this

texture is characterized by a nanoscale spinodal-type liquid immiscibility. In spinodal liquid immiscibility separation of the immiscible melts occurs spontaneously with no activation energy

required but with kinetic limitations (i.e., it is thought to occur under high degrees of rapid undercooling52). It is typically characterized by a highly inter-connected and deformed tube

structure of two different melts1, which contrasts with the expression of the nucleating and growing droplets of the binodal-type liquid immiscibility. The diameter/thickness of these

spinodal tubes is ca. 50 nm. Both unmixed melt phases are associated with slight partial nanoscale crystallization. These nanolites tend to nucleate at the interface between the two melt

phases and on synchronously formed nanolites that ultimately form elongated aggregates of nanolites (Fig. 4b). Reconstructed images from EDXS-STEM and EF-TEM (Fig. 4c) highlight that one

melt phase is enriched in Ca, Fe, and Ti (with Fe- and Ti-rich nanolites) and the other is enriched in Si and Al (with Mg-rich nanolites), similarly to the binodal-type texture. BF-TEM,

HR-TEM, and SAEDP data confirm that most of the spinodal texture is amorphous, but with the same mineralogy as in the binodal-type texture (Fig. 4d). Indeed, CSD data (Fig. 4e) show that

nanolites are much less developed (5 vol.% of titanomagnetites and 1 vol.% of phlogopites) but slightly larger (maximum length of 0.3 µm) than in the binodal-type texture (cf. Supplementary

Data 3). Most importantly, binodal-type and spinodal-type textures are not specific to the inner lava rims of the MAY02-DR080102 and MAY01-DR0101 samples, respectively. In fact, these two

textures occur ubiquitously in all observed inner lava rims (cf. Supplementary File 1) but are not randomly distributed: binodal areas are preferentially observed around the quenching

microlites (i.e., mostly acicular laths of biotite-formed during the lava quenching), while spinodal areas tend to preferentially develop in zones beyond the binodal areas. As a summary,

this case, characterized by both binodal- and spinodal-type textures, demonstrates that eruptive melts from Fani Maoré eruption are not efficiently quenched (ca. 1–1000 °C s−1) in the inner

lava rims (from ca. 500 µm to 1 cm deep from the lava margin). Quenching microlites are formed and nanoscale liquid immiscibility occurs in the background matrix, which induces fast nanolite

crystallization before the remaining melts transform into glass. CASE 3: CLASSICAL CRYSTALLIZATION INDUCED BY SLOW COOLING IN THE LAVA INTERIORS Finally, BSE-SEM images acquired in the lava

interiors from the MAY02-DR0801 sample (Fig. 5a) reveal a texture distinct from those identified in the outer and inner lava rims. In this sample area, the background matrix is no longer

characterized by liquid immiscibility, but by a significant microscale to nanoscale crystallization. Raman spectra of the matrix (cf. Supplementary Data 2) show similar signatures as shown

in area 3, Fig. 2d, confirming the occurrence of significant crystallization in these facies, including Fe-bearing phases. HAADF-STEM images (Fig. 5b), together with EDXS-STEM (Fig. 5c) and

BF-TEM as well as SAEDP data (Fig. 5d) reveal the presence of euhedral to sub-euhedral clinopyroxenes, ilmenites, biotites, and apatites, in decreasing order of volumetric abundance.

Associated CSD (Fig. 5e) highlights that the apatites are generally smaller (30 to 300 nm in length) but much more numerous (population density up to 7500 µm−4) than the other

micrometer-scale phases (cf. Supplementary Data 3). The overall CSD concave trend observed in this sample also suggests that this crystallization was controlled by both nucleation (mostly

apatites) and growth (mostly ilmenites, clinopyroxenes, and biotites), which is a typical signature of classical cooling at eruptive conditions53. In conclusion, this case, characterized by

classical microlite and nanolite crystallization, demonstrates that eruptive melts from Fani Maoré eruption are slowly cooled down (ca. <1 °C s−1) in the lava interior areas deeper than 1

 cm from the lava margin. Note that from ca. 5 cm from the lava margin, lava interiors tend to be fully crystallized mainly because of crystal growth allowed by relatively slow cooling rates

(ca. 0.1 °C s−1, Fig. 2b) (cf. Supplementary File 1). DISCUSSION MAGMATIC LIQUID BEHAVIOR UPON DIFFERENT QUENCHING/COOLING RATES The three previously described cases show that the eruptive

melt behaves differently upon different eruptive quenching/cooling rates (i.e., different undercooling rates). * (1) When experiencing relatively fast quenching rates (>ca. 1000 °C s−1,

i.e., in the outer lava rims), the erupted homogeneous magmatic melt is quenched and transformed into glass in less than 1 s (cf. Supplementary Information SI1), recording the pre-emission

magma signatures (step 1 in Fig. 6a), with no time for post-eruptive crystallization, liquid immiscibility, or degassing, which could change the lava texture and geochemistry from its

pre-eruptive state (i.e., this area is the most ideally preserved material that is representative of the initial eruptive melt without any major post-eruptive modification). * (2) When

experiencing moderate quenching rates (between ca. 1 and 1000 °C s−1, i.e., in the inner lava rims), the erupted magmatic melt exhibits a slight increase in melt differentiation (because of

minor crystallization, i.e., microlites of biotite) and a decrease of temperature (because of natural lava cooling). As a result of these two changes, the residual magmatic melt falls into

the liquid immiscibility field (step 2 in Fig. 6a). For this area, the cooling from the eruptive temperature down to the glass transition temperature range occurred between ca. 1 s (for a

cooling rate of 1000 °C s−1) and 8–10 min (for a cooling rate of 1 °C s−1), which is enough time to enable crystallization and liquid immiscibility (cf. Supplementary Information SI1).

Interestingly, the fact that homogeneous glassy (case 1), binodal-type, and spinodal-type (case 2) textures are simultaneously observed within a narrow region of interest in the studied

lavas (i.e., sometimes within less than a millimeter) suggests that the temperature vs. composition path experienced by the magmatic melt must be close to the so-called critical point, which

represents the conditions where these three textures can coexist1 (Fig. 6a). Moreover, the fact that the volumetrically dominant melt phase is represented by the background matrix enriched

in Si and Al, highlights that this quenching path is heading towards a similar theoretical melt composition, in agreement with the natural differentiation evolution of a magmatic melt1 (step

2 in Fig. 6a). Note that this metastable liquid immiscibility, occurring in strong disequilibrium due to the involvement of high to moderate cooling rates, has to be considered to be

distinct from the super- or sub-liquidus liquid immiscibility, which is considered to be in equilibrium and thermodynamically stable1,54. Also note that the difference in liquid

immiscibility textural type (binodal vs. spinodal) cannot be explained by a difference in undercooling as these textures are observed within relatively small areas in the Fani Maoré inner

lava rims which surely experienced the same cooling histories. It is more likely a compositional effect of quenching microlite crystallization, which depletes the surrounding melt

composition in certain elements, and by doing so ultimately changes the nature of the liquid immiscibility from spinodal to binodal around the newly formed microlites. This process has

already been suggested in some Kilauea Iki lava lake samples, where binodal-type liquid immiscibility is triggered by compositional boundary layers around plagioclase microlites14. In our

case, biotite (i.e., aluminosilicate) micro-crystallization must increase the Fe and Ti concentrations in the residual melt. The relatively low incompatibility of these two latter elements

in the matrix can be considered as the main driving force of the formation of amorphous atomic clusters and then nanolites50, which can be also accounted here as the origin of the

homogeneous to spinodal and binodal transition, together with the low liquid-liquid interfacial energy that must facilitate the generation of emulsions15. * (3) Finally, when experiencing

relatively slow cooling rates ( < ca. 1 °C s−1, i.e., in the lava interiors), the relatively slow kinetics involved allow the erupted magmatic melt to be in slighter disequilibrium

compared to the previous case. For this area, the cooling from the eruptive temperature down to the glass transition temperature range took more than 8–10 min (cf. Supplementary Information

SI1), which is enough for pervasive crystallization. Lava interiors do not directly evidence the occurrence of liquid immiscibility (step 3 in Fig. 6a), even though immiscibility could have

occurred and its signature might have been lost during further cooling. This is however unlikely as we observed very different crystals between case 2 and case 3, in terms of both phase and

texture. Note that at 5 cm of depth (i.e., where the lava tends to be fully crystallized), lava took ca. 1.4–1.7 h to cool down the glass transition temperature range (cf. Supplementary

Information SI1). WHY DOES LIQUID IMMISCIBILITY FAVOR CRYSTALLIZATION? By cooling a liquid below its liquidus temperature (e.g., quenching/cooling of a magmatic/volcanic melt during an

eruption), it becomes a super-cooled liquid from which crystalline phases will tend to form55. This phenomenon happens in two steps: (i) nucleation, which is the formation of atomic

cluster/nucleus from the super-cooled liquid, and (ii) growth, which represents the nucleus size evolution to larger sizes after reaching the critical nucleus size. These two phenomena

combined are called crystallization56. The classical nucleation theory is still commonly used to describe crystal formation in silicate systems55,56. This theory is based on a balance

between thermodynamic and kinetic parameters and the steady-state crystal nucleation rate (_I_st in m−3 s−1) is given by: $${{{I}}}_{{{{{{\rm{st}}}}}}} \sim {{{{{\rm{CD}}}}}}\exp

\left(\frac{-{{{{{\rm{\alpha }}}}}}\,{{{W}}}_{{{{{{\rm{C}}}}}}}}{{{{k}}}_{{{{{{\rm{B}}}}}}}{{T}}}\right),$$ (1) where _C_ is a nearly constant value (in m−5), _D_ is the effective diffusion

coefficient of the structural unit of the melt phase (in m2 s−1), _α_ is a dimensionless number linked to the crystal nucleation on pre-existing surfaces (ranging from 0 and 1), _W_C is the

critical work for nucleus formation (in J), _k_B is the Boltzmann constant (in J K−1), and _T_ is the temperature of the system (in K). The effective diffusion coefficient (related to the

viscosity by the Stokes-Einstein-Eyring relation) and the critical work for crystal formation are expressed respectively as: $${{D}}\sim\frac{{{{k}}}_{{{{{{{\rm{B}}}}}}}}{{T}}}{{{{{{\rm{\eta

}}}}}}{{{d}}}_{0}},$$ (2) and $${{{W}}}_{{{{{{\rm{C}}}}}}}=\frac{16{{\pi }}{{{\sigma }}}^{3}}{3\Delta {{{G}}}_{{{{{{\rm{V}}}}}}}},$$ (3) where _η_ is the viscosity of the melt phase (in Pa

s), _d_0 is an atomic parameter linked to the atomic jump distance (in m), 16_π_/3 refers to the spherical radius of the forming crystalline phase, _σ_ is the surface free energy (in J m−2),

and Δ_G_V is the thermodynamic driving force (in J m−3). When a silicate melt undergoes liquid immiscibility, the novel melt phases are separated by an interface and present different

chemical compositions when compared to the initially mixed melt. Both factors may affect the aforementioned parameters for crystal nucleation and it will consequently alter

crystallization15. Firstly, it has been shown that for several systems undergoing liquid immiscibility, the novel melt phase compositions are often shifted towards that of a stoichiometric

crystalline phase, which in turn enhances the thermodynamic driving force for nucleation (Δ_G_V), and favors crystal nucleation15 (cf. Equation 1 and Eq. 3). In the investigated Fani Maoré

inner lava rims, the matrix is separated into two melt phases, either in binodal- (Fig. 3) or spinodal-type (Fig. 4) textures. In each case, one melt phase is enriched in Fe, Ti, and Ca,

which gives rise to nanolites enriched in Fe and Ti (titanomagnetites) with a residual Ca-rich melt composition. The other melt phase is enriched in Si and Al, leading to the crystallization

of aluminosilicate nanolites (i.e., phlogopites). Secondly, these compositional changes also induce the formation of an important viscosity contrast between the two melt phases, which are

also different from the initially mixed melt viscosity41. The viscosity of silicates is closely linked to the structural functions exerted by their compounds. The structural environment of

Fe is complex since it may exist in two oxidation states (Fe3+ and Fe2+) as well as in 4−, 5−, and 6-fold coordination57. Titanium, in its turn, is generally presented on Earth as Ti4+ and

can also have 4-, 5-, and 6-fold coordination58. As a result, the silicate melt viscosity decreases when Fe and/or Ti are added to silicate networks59,60. Moreover, this viscosity decrease

is more pronounced at lower temperatures, where the entropic effect is more relevant60. In this low-viscosity scenario, higher atomic mobility is reached and therefore, a higher nucleation

rate is expected in these zones (see Eq. 1 and Eq. 2)15. Also, the Stokes-Einstein-Eyring relation (cf. Equation 2) provides a good approximation of atomic mobility in melts that undergo

near-stoichiometric crystal nucleation at relatively high temperatures. This could explain why titanomagnetites are much more abundant in the melt phase enriched in Fe, Ti, and, Ca (since

this latter element also lowers viscosity) than phlogopites in the melt phase enriched in Si and Al (which are elements working as a network formers increasing melt viscosity58). It is also

important to mention that a decoupling between viscosity and diffusion has been observed at deeper undercooling, which can also affect crystal growth, especially for systems undergoing

nanoscale compositional reorganization and non-isochemical nucleation61. Thirdly, two other parameters can enhance crystal nucleation at the interface between two melt phases. On the one

hand, the crystal nucleation can occur directly on this new interface: this heterogeneous nucleation process decreases the alpha parameter of Eq. (1), and therefore increases the crystal

nucleation rate. On the other hand, the enrichment of certain elements at the boundaries between the melt phases is generating a local zone with a higher driving force for nucleation and/or

higher atomic mobility15. Despite the fact that nucleation facilitation at the droplet interface is not common in silicates due to the low interfacial energy of liquid droplet when compared

to crystal/nucleus interfaces15, this type of heterogeneous nucleation is widely observed in our system (Figs. 3b and 4b). Also, note that this is not the first time that preferential

nucleation of crystals at the droplet interface has been observed62. Since this interfacial energy is expressed per unit area (i.e., J.m−2) and in our case, we have nanoscale droplets, it is

expected that the absolute amount of energy is much greater, and consequently a nucleation events will be favored at the interfaces. This explains why nanolites are more abundant in the

binodal-type texture than in the spinodal-type one. It is also important to note that nanolite aggregation is enhanced in both binodal and spinodal-type textures but in different ways:

binodal texture favors the formation of rounded aggregates of nanolites while spinodal texture favors the formation of chains of nanolites. Finally, and in addition to the impact on the

three aforementioned processes, it is important to emphasize that Fe- and Ti-bearing silicates generally present a worse glass-forming ability (i.e., the propensity of a melt to vitrify upon

cooling), being, therefore, more prone to undergo crystallization than Fe- and Ti-poor silicates63. CONCLUSIONS AND PERSPECTIVES ON THE POTENTIAL IMPACTS OF METASTABLE LIQUID IMMISCIBILITY

IN MAGMAS This study highlights that Fani Maoré magmas are subject to metastable liquid immiscibility at nanoscale and upon moderate quenching rates in the range of 1 to 1000 °C s−1, likely

to occur in numerous eruptive cases (e.g., submarine eruption of lavas and pyroclasts, but also post-eruptive cooling in air of lavas/pyroclasts, as well as syn-eruptive phreatomagmatic

interactions). This process is associated with an enhanced nanoscale crystallization, producing nanoscale mineralogy (i.e., nanolite chemical compositions) and textures (i.e., CSDs, crystal

habits and shapes, and occurrence of aggregation) that are significantly different from the classical nanoscale crystallization originating from a homogeneous mixed volcanic melt (Fig. 6b).

Therefore, this study highlights a new mechanism for nanolite generation in unmixed volcanic melts and opens up new questions about its potential impacts on the physicochemical

characteristics of magmas, and at the end, on volcanic phenomena, given that nanolites are claimed to impact key processes of eruptive dynamics such as (i) volatile degassing and (ii) magma

viscosity17,18,19,20,21,23,24,25,26,50. (i) Liquid immiscibility and associated crystallization likely significantly affect the degassing behavior of the volatile species dissolved in the

magmatic melts (e.g., H2O, CO2, SO2, F, and Cl). Based on the observed physicochemical characteristics of the inner lava rims of Fani Maoré lavas (this study) and on previously performed

Simultaneous Thermal Analysis and Evolved Gas Analysis (STA-EGA) experiments on the same samples27, a complex magmatic volatile segregation emerges. First, the crystallization of hydrated

minerals (i.e., biotites and phlogopites) is impacted by the initial dissolved H2O content64, and at the end must control volatile concentrations of the residual melts. Second, we speculate

that H2O, F, and Cl tend to migrate in the Si- and Al-rich melt, as phlogopite nanolites, which ideally contain the aforementioned volatile species, are only observed within this melt.

During STA-EGA experiments, the main part of H2O (0.8–1 wt.%) is degassed just above TG upon heating and corresponds to the H2O mainly dissolved in the residual Si- and Al-rich melt, while a

small amount of H2O (0.2–0.3 wt.%) is degassed synchronously to endothermic crystal melting and corresponds to the H2O stored within the biotites and phlogopites. This volatile degassing

behavior for unmixed systems highly contrasts with samples implying homogeneous residual melts, which only show one degassing step originating from the mixed melt27. Note that the relatively

high eruptive pressures involved in the Fani Maoré eruption (0.29–0.33 kbar) led to a relatively high H2O dissolved content (1.2 wt.% because of the high H2O solubility as a function of

pressure) compared to low SO2 (initially low content in the parental magma) and CO2 (mainly exsolved forming CO2-rich vesicles because of the low CO2 solubility as a function of pressure)

contents27. Also, note that crystals with high contact angle values between bubbles and the surrounding melt (i.e., high wettability), exhibit textures reflecting strong bubble-particle

interaction, which alter bubble dynamics and outgassing regimes of multiphase systems65. Therefore, in a scenario involving relatively lower eruptive pressures than the ones of Fani Maoré,

heterogeneous nucleation of bubbles is excepted to be strong on the titanomagnetite nanolites, which have a relatively high wettability and which densely form at the liquid-liquid interface

between the two unmixed melts, therefore enhancing bubble generation in contact with these nanolites, preferentially within the Si- and Al-rich melt66. (ii) In the presence of these

nanoscale phases, magma viscosity is also expected to increase due to chemical modifications of the remaining silicate melts and because of the physical presence of suspended

crystals20,22,23,24. Since nanolites are generally Si-poor crystals, there must be an increase of the Si content within the remaining melt composition, and therefore an increase of

viscosity23,67. In our case, this Si increase already occurred at the melt unmixing stage when the Fe- and Ti-rich melt was formed. It has been also shown for analog materials that the

physical presence of nanolites increase the viscosity of the system, especially for low rates of shear (e.g., Brownian regimes). If these scenarios are achieved in conditions suitable for

volcanic systems, particle aggregation is facilitated and during this process, particles trap fluid in the aggregate interstices, increasing the apparent volume fraction of crystals (by the

creation of dead-fluid volumes), and therefore inducing a viscosity increase22. Finally, it should be noted that the viscosity of the unmixed system will be also impacted due to the

distribution of volatile contents, as some volatiles are known to impact melt viscosity67. In conclusion, if nanoscale metastable liquid immiscibility and associated crystallization are

indeed moving toward more (i) porous and (ii) viscous magmas, this newly evidenced mechanism could most likely enhance primary magma fragmentation, but also secondary fragmentation of

cooling lavas and/or pyroclasts68. Indeed, the potential increase of magma porosity (still with a low permeability because of the generation of isolated bubbles on the nanolites), and the

potential increase of magma viscosity would drastically decrease the magma fragmentation threshold (by decreasing the glass transition temperature range and the strain rate needed to

fragment the magma68,69). All these processes are identified as key points for eruptive dynamics in volcanology (i.e., directly linked to the generation of different hazards and related

risks). Also, a possible influence of the redox state evolution on the liquid immiscibility occurrence and crystallization path should be better investigated, as quenching/cooling rates

might influence iron speciation and liquidus temperatures of the melts. For these reasons, the description of such metastable liquid immiscibility and associated nanolite crystallization

upon eruption deserves further investigation in order to decipher under which conditions (i.e., magma composition, pressure, and temperature evolutions) this kind of texture can develop

naturally, and experimentally measure its specific effect on volatile degassing as well as on rheology, under relevant volcanic conditions. METHODS LAVA SAMPLING AND SELECTION Investigated

rock samples were dredged during MAYOBS0136, MAYOBS0237, and MAYOBS1538 oceanographic campaigns (operated by the Marion Dufresne II research vessel). A cylindrical metallic dredge with

cutting teeth was used in order to break off samples from their original submarine outcrops31. Each dredge was remotely pulled by a cable along the ocean floor and could collect a maximum of

ca. 1000 kg of sample from which a first selection of clasts from fresh lava flow margins was performed onboard. Then, a second selection was realized in the laboratory to pick up the

best-preserved samples for further analysis, as described hereafter. All samples were collected and exported in a responsible manner and in accordance with relevant permits and local laws.

LAVA QUENCHING/COOLING RATES ESTIMATION BY HEAT TRANSFER CALCULATIONS When an idealized planar geometry that has a plane surface and extends to infinity in all directions except one

undergoes a sudden change in temperature on one of its sides (i.e., applicable to lava flows), transient one-dimensional conduction will occur within this material. An energy balance is

developed based on an infinitesimal element of volume inside the body that is exchanging energy: $$\left[{{{{{{\rm{heat}}}}}}}\,{{{{{{\mathrm{input}}}}}}}\,{{{{{{\mathrm{rate}}}}}}}\right] -

\left[{{{{{{\mathrm{heat}}}}}}}\,{{{{{{\mathrm{output}}}}}}}\,{{{{{{\mathrm{rate}}}}}}}\right]+\left[{{{{{{\mathrm{heat}}}}}}}\,{{{{{{\mathrm{generation}}}}}}}\,{{{{{{\mathrm{rate}}}}}}}\right]\\

=\left[{{{{{{\mathrm{heat}}}}}}}\,{{{{{{\mathrm{rate}}}}}}}\,{{{{{{\mathrm{accumulation}}}}}}}\right]$$ (4) By applying this relation to a cartesian system and considering the material

properties in the three orthogonal components (_x_, _y_, _z_) that have the same thermal properties (isotropic material), one can obtain the following expression for the energy balance:

$$\alpha \left(\frac{{\partial }^{2}T}{\partial \,{x}^{2}}+\frac{{\partial }^{2}T}{\partial \,{y}^{2}}+\frac{{\partial }^{2}T}{\partial \,{z}^{2}}\right)+\frac{\dot{q}}{\rho

{C}_{p}}=\frac{\partial T}{\partial t},$$ (5) $$\alpha =\frac{\kappa }{\rho {C}_{p}},$$ (6) where _α_ is the thermal diffusivity (5.0 10−7 m2 s−1 (ref. 70)) that is defined in Eq. (6), _T_

is the temperature at a given time _t_, \(\dot{q}\) is the rate of energy generation per unit of volume, \(\rho\) is the density (of the basanitic liquid 2700 kg m−3 (ref. 29), also coherent

with the density used in ref. 70), \({C}_{p}\) is the specific heat capacity (1259 J kg−1 K−1, deduced from Eq. (6), also coherent with values from71), and \(\kappa\) is the thermal

conductivity (1.7 W m−1 K−1 (ref. 70) of the magmatic melt. For our specific case, it can be considered that (i) the lava flow morphology has two dimensions much larger than the third one

(planar geometry), and (ii) that the generation of heat (i.e., latent heat of crystallization) is minor and can be neglected. This latter assumption is based on Differential Scanning

Calorimetry (DSC) measurements on the Fani Maoré lava samples in order to measure the exothermic heat related to the sample crystallization, which only represents 5.3% of the total heat

absorption by seawater that is estimated in parallel by theoretical calculations (cf. Supplementary Information SI1). Also note that due to the hydrostatic pressure exerted on the erupted

lavas (i.e., eruptive pressure of 0.29–0.33 kbar), bubble formation is mostly hindered27 (i.e., sample average porosity of 35 vol%, large vesicles being mostly found in the internal parts of

the lavas) and therefore these thermal calculations in the absence of significant bubble fraction is still valid. Thus, Eq. (5) becomes: $$\alpha \left(\frac{{\partial }^{2}T}{\partial

\,{x}^{2}}\right)=\frac{\partial T}{\partial t}$$ (7) If a sudden change of conditions is imposed at the body’s surface (e.g., interaction with colder seawater), transient and

one-dimensional conduction will take place within the solid. In this case, two conditions are applied to solve the problem (i) at the initial moment, the whole solid has a constant

temperature in all points equals to the eruptive temperature and (ii) the surface temperature for any time greater than zero has the surface temperature constant and equal to the external

temperature. Therefore, the analytical solution considering Eq. (7) and the aforementioned conditions is given by the semi-infinite approach solution:

$$\frac{{{T}}-{{{T}}}_{{{{{{\rm{E}}}}}}}}{{{{T}}}_{{{{{{\rm{SW}}}}}}}-{{{T}}}_{{{{{{\rm{E}}}}}}}}={{{{{\rm{erf}}}}}}\left(\frac{{{x}}}{2\sqrt{{{\alpha }}{{t}}}}\right),$$ (8) where _T_ is

the local temperature of lava (in °C) at a given depth from the rim x (in m), _T_E is the initial eruptive temperature of lava (1095 °C29), _T_SW is the seawater temperature (considered as

10 °C), and t is the time the lava takes to cool from _T_E to _T_ (in s). Two different final temperatures of 500 and 600 °C (cf. blue and red lines in Fig. 2b) were considered for _T_ when

executing the calculations. These temperatures correspond to the expected glass transition (_T_G) temperature range of these magmatic melts27 (cf. also Supplementary Information SI1) below

which any physical change, such as crystallization, is disregarded. Note that taking either _T_G value, the obtained quenching rates are similar. SAMPLE PREPARATION FOR INDUCTIVELY COUPLED

PLASMA ATOMIC EMISSION SPECTROSCOPY (ICP-AES), RAMAN SPECTROSCOPY, AND SCANNING ELECTRON MICROSCOPY (SEM) ANALYSES The selected samples were dried for 72 h at 60 °C. Then, they were manually

broken into coarse chips (≤1 cm). One part of these chips was subsequently powdered with an agate mortar to perform an ICP-AES analysis. The other part of the rock chips was used to make

impregnated-epoxy polished sections for Raman and SEM analyses. For SEM analyses, polished sections were carbon coated (10 nm) using a Leica Sputter Coater EM ACE600. BULK ROCK COMPOSITION

ACQUIRED BY ICP-AES Powdered samples were mixed with LiBO2, placed in a graphite crucible, and melted in an induction oven at 1050 °C for 5 min, resulting in homogeneous glasses. Each of

these glasses was dissolved in a solution of deionized H2O and HNO3, and finally diluted by a factor of 2000. The final solutions were analyzed using an Agilent 5800 VDV ICP-AES, following

an already documented procedure72, giving an external reproducibility (2σ error) between 1 and 3% for all major elements, except for K2O, MnO (4%), and P2O5 (7%), calibrated on the DR-N

standard (diorite). Note that compositions of samples from MAYOBS01 and MAYOBS02 are already published29, following the same procedure. GROUNDMASS SIGNATURE INVESTIGATED BY RAMAN

SPECTROSCOPY Raman spectra were acquired on the sample groundmass from 50 to 1300 cm−1 Raman shift, using a Jobin Yvon XPlora One spectrometer coupled with an Olympus microscope, adapted

from an already documented procedure49. The instrument was calibrated using a silicon standard. Instrumental settings consisted of 1800 grooves/mm grating density, a confocal hole of 300 μm,

and a slit of 200 μm with an exposure time of 10 s repeated 3 times. A x100 magnification was used during the acquisitions, with a laser excitation wavelength of 532 nm and an applied

filter of 50%. Preliminary acquisition tests have been performed from 50 to 100 cm−1 Raman shift on pure glasses and crystals to confirm the application of this procedure also on

low-wavenumber region, with a 532 nm edge filter. Raman spectra were systematically collected near the sample surfaces (from 0 to ca. 3 μm of depth), in order to get intense enough signals

and at the same time check the analyzed textures with the microscope. All qualitative Raman analysis can be found in Supplementary Data 2. MICROSCOPIC TEXTURE INVESTIGATED BY SEM

Back-Scattered-Electron images acquired by SEM (BSE-SEM) were done using a Hitachi SU5000 Field-Emission SEM with a high vacuum-mode and an acceleration voltage of 10 kV. All BSE-SEM images

acquired for this project can be found in Supplementary Information SI2 and Supplementary File 1. SAMPLE PREPARATION FOR TRANSMISSION ELECTRON MICROSCOPY (TEM) Thin sections for TEM analyses

were systematically made perpendicular to the sample surface imaged by BSE-SEM, following the thin section lift-out technique that uses a FEI Strata DB235 Focused Ion Beam Scanning Electron

Microscope (FIB-SEM), allowing a high spatial precision, which is good enough to isolate specific region of interest for detailed TEM analyses. TEM preparation and lift out were performed

at 30 kV with the intensity of 7 nA to 100pA and a final cleaning at 5 kV to limit amorphization. SEM images related to the TEM thin sections can be found in Supplementary Information SI3.

NANOSCALE TEXTURE AND CHEMISTRY INVESTIGATED BY TEM TEM observations were carried out using a Jeol 2100F TEM with a Schottky emitter operating at 200 kV, equipped with a high-resolution pole

piece, a Gatan US4000 CCD camera, a Gatan GIF 2001 electron energy loss spectrometer, and a Jeol Si(Li) X-ray energy-dispersive spectrometer. TEM analysis consisted of different techniques.

(i) The use of a high-angle annular dark field detector in the scanning transmission electron microscopy mode (HAADF-STEM) provided sample images based on the atomic number (Z contrast),

similar to BSE-SEM images. Electrons were collected at high angles in the range of 60–170 mrad. Chemical mapping using (ii) Energy-dispersive X-ray spectroscopy acquired by STEM (EDXS-STEM)

and (iii) Energy-filtered TEM (EF-TEM) was realized to infer the spatial distributions of chemical elements. (iii) Bright field and (iv) High-resolution images acquired by TEM (BF-TEM and

HR-TEM) as well as associated (v) Selected area electron diffraction patterns (SAEDP) were acquired to identify the different crystalline phases occurring in the selected samples.

Mineralogical identification based on SAEDP was performed using the single crystal software. For small crystals unsuitable for SAEDP analysis, fast fourier transforms (FFT) were directly

realized from the HR-TEM images to produce diffraction patterns. CRYSTAL SIZE DISTRIBUTION (CSD) ANALYSIS CSD analysis was performed following an already described procedure73. Binarized

images used for the analysis were created both from HAADF-STEM and EDXS-STEM images. For CSD calculations using CSDcorrections software, the 3-dimensional crystal habits of each phase were

estimated using the CSDslice database74. Images and CSD data can be found in Supplementary Data 3. DATA AVAILABILITY All data used in this paper are available in the supplementary material

of this paper, also published in the EarthChem public repository data (https://doi.org/10.60520/IEDA/113054), and available on request to the corresponding author. REFERENCES * Schuller, S.

in _From Glass to Crystal: Nucleation, Growth and Phase Separation: From Research to Applications._ 125–154 (EDP Sciences, 2017). * Greig, J. W. Immiscibility in silicate melts; part I. _Am.

J. Sci._ 5, 1–44 (1927). Article  Google Scholar  * Freestone, I. C. Liquid immiscibility in alkali-rich magmas. _Chem. Geol._23, 115–123 (1978). Article  CAS  Google Scholar  * Philpotts,

A. R. Silicate liquid immiscibility in tholeiitic basalts. _J. Petrol._ 20, 99–118 (1979). Article  CAS  Google Scholar  * Bogaerts, M. & Schmidt, M. W. Experiments on silicate melt

immiscibility in the system Fe2SiO4–KAlSi3O8–SiO2–CaO–MgO–TiO2–P2O5 and implications for natural magmas. _Contrib. Mineral. Petrol._ 152, 257–274 (2006). Article  CAS  Google Scholar  *

Thompson, A. B., Aerts, M. & Hack, A. C. Liquid immiscibility in silicate melts and related systems. _Rev. Mineral. Geochem._ 65, 99–127 (2007). Article  CAS  Google Scholar  * Honour,

V. C., Holness, M. B., Partridge, J. L. & Charlier, B. Microstructural evolution of silicate immiscible liquids in ferrobasalts. _Contrib. Mineral. Petrol._ 174, 1–24 (2019). Article

CAS  Google Scholar  * Panina, L. I. & Motorina, I. V. Liquid immiscibility in deep-seated magmas and the generation of carbonatite melts. _Geochem. Int._ 46, 448–464 (2008). Article

Google Scholar  * Veksler, I. V. Liquid immiscibility and its role at the magmatic–hydrothermal transition: a summary of experimental studies. _Chem. Geol._ 210, 7–31 (2004). Article  CAS

Google Scholar  * Veksler, I. V., Dorfman, A. M., Borisov, A. A., Wirth, R. & Dingwell, D. B. Liquid immiscibility and the evolution of basaltic magma. _J. Petrol._ 48, 2187–2210 (2007).

Article  CAS  Google Scholar  * Charlier, B. et al. Large-scale silicate liquid immiscibility during differentiation of tholeiitic basalt to granite and the origin of the Daly gap.

_Geology_ 39, 907–910 (2011). Article  CAS  Google Scholar  * Philpotts, A. R. Compositions of immiscible liquids in volcanic rocks. _Contrib. Mineral. Petrol._ 80, 201–218 (1982). Article

CAS  Google Scholar  * Honour, V. C., Holness, M. B. & Stock, M. J. The effect of cooling rate on immiscible silicate liquid microstructure: an example from the Palaeogene dykes of

Northeast England. _Mineral. Magaz._ 83, 809–820 (2019). Article  CAS  Google Scholar  * Honour, V. C. et al. Compositional boundary layers trigger liquid unmixing in a basaltic crystal

mush. _Nat. Commun._ 10, 1–8 (2019). Article  CAS  Google Scholar  * Zanotto, E. D. Effect of liquid phase separation on crystal nucleation in glass-formers. Case closed. _Ceram. Int._ 46,

24779–24791 (2020). Article  CAS  Google Scholar  * Sharp, T. G., Stevenson, R. J. & Dingwell, D. B. Microlites and” nanolites” in rhyolitic glass: microstructural and chemical

characterization. _Bull. Volcanol._ 57, 631–640 (1996). Article  Google Scholar  * Mujin, M. & Nakamura, M. A nanolite record of eruption style transition. _Geology_ 42, 611–614 (2014).

Article  CAS  Google Scholar  * Matsumoto, K. & Geshi, N. Shallow crystallization of eruptive magma inferred from volcanic ash microtextures: a case study of the 2018 eruption of

Shinmoedake volcano, Japan. _Bull. Volcanol._ 83, 1–14 (2021). Article  Google Scholar  * Mujin, M., Nakamura, M. & Miyake, A. Eruption style and crystal size distributions:

Crystallization of groundmass nanolites in the 2011 Shinmoedake eruption. _Am. Mineral._ 102, 2367–2380 (2017). Article  Google Scholar  * Di Genova, D. et al. In situ observation of

nanolite growth in volcanic melt: a driving force for explosive eruptions. _Sci. Adv._ 6, eabb0413 (2020). Article  Google Scholar  * Cáceres, F. et al. From melt to crystals: the effects of

cooling on FeTi oxide nanolites crystallisation and melt polymerisation at oxidising conditions. _Chem. Geol._ 563, 120057 (2021). Article  Google Scholar  * Pereira, L., Vasseur, J.,

Wadsworth, F. B., Trixler, F. & Dingwell, D. B. Interparticle and Brownian forces controlling particle aggregation and rheology of silicate melts containing platinum-group element

particles. _Sci. Rep._ 12, 1–10 (2022). Article  Google Scholar  * Okumura, S. et al. Rheology of nanocrystal-bearing andesite magma and its roles in explosive volcanism. _Commun. Earth

Environ._ 3, 1–7 (2022). Article  Google Scholar  * Di Genova, D., Zandona, A. & Deubener, J. Unravelling the effect of nano-heterogeneity on the viscosity of silicate melts:

Implications for glass manufacturing and volcanic eruptions. _J. Non-Cryst. Solids_ 545, 120248 (2020). Article  Google Scholar  * Cáceres, F. et al. Can nanolites enhance eruption

explosivity? _Geology_ 48, 997–1001 (2020). Article  Google Scholar  * Knafelc, J. et al. Havre 2012 pink pumice is evidence of a short-lived, deep-sea, magnetite nanolite-driven explosive

eruption. _Commun. Earth Environ._ 3, 1–11 (2022). Article  Google Scholar  * Thivet, S., et al. Volatiles of the active Mayotte volcanic chain: STA & EGA-MS analysis of volcanic

products. _Chem. Geol_. 121297. https://doi.org/10.1016/j.chemgeo.2022.121297 (2023) * REVOSIMA. _Bulletin de l’activité Sismo-volcanique à Mayotte, Août, IPGP, Université de Paris, OVPF,

BRGM, Ifremer_, _REVOSIMA News-Institut de Physique du Globe de Paris_ (ipgp.fr) (2022) * Berthod, C. et al. The 2018-ongoing Mayotte submarine eruption: Magma migration imaged by

petrological monitoring. _Earth Planet. Sci. Lett._ 571, 117085 (2021). Article  CAS  Google Scholar  * Feuillet, N. et al. Birth of a large volcanic edifice offshore Mayotte via

lithosphere-scale dyke intrusion. _Nat. Geosci._ 14, 787–795 (2021). Article  CAS  Google Scholar  * Berthod, C. et al. Temporal magmatic evolution of the Fani Maoré submarine eruption 50 km

east of Mayotte revealed by in situ sampling and petrological monitoring. _Comptes Rendus. Géosci._ 354, 1–29 (2022). Google Scholar  * Berthod, C. et al. Mantle xenolith-bearing phonolites

and basanites feed the active volcanic ridge of Mayotte (Comoros archipelago, SW Indian Ocean). _Contrib. Mineral. Petrol._ 176, 1–24 (2021). Article  Google Scholar  * Foix, O. et al.

Offshore Mayotte volcanic plumbing revealed by local passive tomography. _J. Volcanol. Geotherm. Res._ 420, 107395 (2021). Article  CAS  Google Scholar  * Lavayssière, A. et al. A new 1D

velocity model and absolute locations image the Mayotte seismo-volcanic region. _J. Volcanol. Geotherm. Res._ 421, 107440, https://doi.org/10.1016/j.jvolgeores.2021.107440 (2022). Article

CAS  Google Scholar  * Andújar, J. et al. Experimental evidence for the shallow production of phonolitic magmas at Mayotte. _Comptes Rendus. Géosci._ 354, 1–32 (2022). Google Scholar  *

Feuillet, N. MAYOBS1 cruise. RV Marion Dufresne. https://doi.org/10.17600/18001217 (2019) * Jorry, S. J. MAYOBS2 cruise. RV Marion Dufresne. https://doi.org/10.17600/18001222 (2019) *

Rinnert, E., Thinon, I., & Feuillet, N. MAYOBS15 cruise. RV Marion Dufresne. https://doi.org/10.17600/18001745 (2020) * Mysen, B. O., Virgo, D. & Seifert, F. A. The structure of

silicate melts: implications for chemical and physical properties of natural magma. _Rev. Geophys._ 20, 353–383 (1982). Article  CAS  Google Scholar  * Middlemost, E. A. Iron oxidation

ratios, norms and the classification of volcanic rocks. _Chem. Geol._ 77, 19–26 (1989). Article  CAS  Google Scholar  * Verdurme, P. et al. Viscosity of crystal-free silicate melts from the

active submarine volcanic chain of Mayotte. _Chem. Geol_. https://doi.org/10.1016/j.chemgeo.2023.121326 (2023) * Incropera, F. P., DeWitt, D. P., Bergman & T. L., Lavine, A. S.

Introduction to heat transfer. 6th edn. John Wiley & Sons (2007). * Potuzak, M., Nichols, A. R., Dingwell, D. B. & Clague, D. A. Hyperquenched volcanic glass from Loihi seamount,

Hawaii. _Earth Planet. Sci. Lett._ 270, 54–62 (2008). Article  CAS  Google Scholar  * Mastin, L. G. Generation of fine hydromagmatic ash by growth and disintegration of glassy rinds. _J.

Geophys. Res. Solid Earth_. 112. https://doi.org/10.1029/2005JB003883 (2007). * Heide, K., Woermann, E. & Ulmer, G. Volatiles in pillows of the Mid-Ocean-Ridge-Basalt (MORB) and vitreous

basaltic rims. _Geochemistry_ 68, 353–368 (2008). Article  CAS  Google Scholar  * Cassetta, M., et al. Estimating the viscosity of volcanic melts from the vibrational properties of their

parental glasses. _Sci. Rep_. 11. https://doi.org/10.1038/s41598-021-92407-5 (2021). * Malinovsky, V. K. & Sokolov, A. P. The nature of boson peak in Raman scattering in glasses. _Solid

State Commun._ 57, 757–761 (1986). Article  Google Scholar  * Takahashi, Y., Osada, M., Masai, H. & Fujiwara, T. Crystallization and nanometric heterogeneity in glass: In situ

observation of the boson peak during crystallization. _Phys. Rev.B_ 79, 214204 (2009). Article  Google Scholar  * Di Genova, D. et al. Effect of iron and nanolites on Raman spectra of

volcanic glasses: a reassessment of existing strategies to estimate the water content. _Chem. Geol._ 475, 76–86 (2017). Article  Google Scholar  * Scarani, A. et al. A chemical threshold

controls nanocrystallization and degassing behaviour in basalt magmas. _Commun. Earth Environ._ 3, 1–14 (2022). Article  Google Scholar  * Voorhees, P. W. The theory of Ostwald ripening. _J.

Stat. Phys._ 38, 231–252 (1985). Article  Google Scholar  * Cahn, J. W. On spinodal decomposition. _Acta Metallurgica_ 9, 795–801 (1961). Article  CAS  Google Scholar  * Thivet, S. et al.

Evidences of plug pressurization enhancing magma fragmentation during the September 2016 basaltic eruption at Piton de la Fournaise (La Réunion Island, France). _Geochem. Geophys. Geosyst._

21, e2019GC008611 (2020). Article  Google Scholar  * Veksler, I. V., Dorfman, A. M., Borisov, A. A., Wirth, R. & Dingwell, D. B. Liquid immiscibility and evolution of basaltic magma:

reply to SA Morse, AR McBirney and AR Philpotts. _J. Petrol._ 49, 2177–2186 (2008). Article  CAS  Google Scholar  * Cormier, L. Nucleation in glasses–new experimental findings and recent

theories. _Procedia Mater. Sci._ 7, 60–71 (2014). Article  CAS  Google Scholar  * Montazerian, M. & Zanotto, E. D. Nucleation, growth, and crystallization in oxide glass-formers. A

current perspective. _Rev. Mineral. Geochem._87, 405–429 (2022). Article  Google Scholar  * Henderson, G. S. & Stebbins, J. F. The short-range order (SRO) and structure. _Rev. Mineral.

Geochem._ 87, 1–53 (2022). Article  Google Scholar  * Farges, F. & Brown, G. E. Coordination chemistry of titanium (IV) in silicate glasses and melts: IV. XANES studies of synthetic and

natural volcanic glasses and tektites at ambient temperature and pressure. _Geochim. Cosmochim. Acta_ 61, 1863–1870 (1997). Article  CAS  Google Scholar  * Dingwell, D. B. Shear viscosity of

alkali and alkaline earth titanium silicate liquids. _Am. Mineral._ 77, 270–274 (1992). CAS  Google Scholar  * Chevrel, M. O., Giordano, D., Potuzak, M., Courtial, P. & Dingwell, D. B.

Physical properties of CaAl2Si2O8–CaMgSi2O6–FeO–Fe2O3 melts: analogues for extra-terrestrial basalt. _Chem. Geol._ 346, 93–105 (2013). Article  CAS  Google Scholar  * Schmelzer, J. W. P.,

Abyzov, A. S., Fokin, V. M., Schick, C. & Zanotto, E. D. Crystallization in glass-forming liquids: effects of decoupling of diffusion and viscosity on crystal growth. _J. Non-Cryst.

Solids_ 429, 45–53 (2015). Article  CAS  Google Scholar  * Ohlberg, S. M., Golob, H. R., & Strichler, D. Crystal nucleation by glass in glass separation. In: _Proceedings of the

Symposium on Nucleation and Crystallization in Glasses and Melts, Columbus, Ohio, United States._ 55–62. (Columbus, 1962). * Cormier, L., Galoisy, L., Lelong, G. & Calas, G. From

nanoscale heterogeneities to nanolites: cation clustering in glasses. _Comptes Rendus. Physique_ 24, 1–15 (2023). Article  CAS  Google Scholar  * Davis, M. J., Ihinger, P. D. & Lasaga,

A. C. Influence of water on nucleation kinetics in silicate melt. _J. Non-Cryst. Solids_ 219, 62–69 (1997). Article  CAS  Google Scholar  * Pereira, L. et al. The physics of dancing peanuts

in beer. _R. Soc. Open Sci._ 10, 230376 (2023). Article  CAS  Google Scholar  * Gardner, J. E. et al. Bubble formation in magma. _Ann. Rev. Earth Planet. Sci._ 51, 131–154 (2023). Article

CAS  Google Scholar  * Giordano, D., Russell, J. K. & Dingwell, D. B. Viscosity of magmatic liquids: a model. _Earth Planet. Sci. Lett._ 271, 123–134 (2008). Article  CAS  Google Scholar

  * Scheu, B. & Dingwell, D. B. Magma fragmentation. _Rev. Mineral. Geochem._87, 767–800 (2022). Article  Google Scholar  * Colombier, M. et al. Degassing and gas percolation in basaltic

magmas. _Earth Planet. Sci. Lett._ 573, 117134 (2021). Article  CAS  Google Scholar  * Whittington, A. G., Hofmeister, A. M. & Nabelek, P. I. Temperature-dependent thermal diffusivity

of the Earth’s crust and implications for magmatism. _Nature_ 458, 319–321 (2009). Article  CAS  Google Scholar  * Lesher, C. E., & Spera, F. J. Thermodynamic and transport properties of

silicate melts and magma. in _The encyclopedia of volcanoes_ 113–141 (Academic Press, 2015). * Gurioli, L. et al. Integrating field, textural, and geochemical monitoring to track eruption

triggers and dynamics: a case study from Piton de la Fournaise. _Solid Earth_ 9, 431–455 (2018). Article  Google Scholar  * Thivet, S., Gurioli, L. & Di Muro, A. Basaltic dyke eruptions

at Piton de La Fournaise: characterization of the eruptive products with implications for reservoir conditions, conduit processes and eruptive dynamics. _Contrib. Mineral. Petrol._ 175, 1–24

(2020). Article  Google Scholar  * Higgins, M. D. Measurement of crystal size distributions. _Am. Mineral._ 85, 1105–1116 (2000). Article  CAS  Google Scholar  Download references

ACKNOWLEDGEMENTS This work has been supported by the Alexander von Humboldt Foundation, the ERC 2018 ADV Grant 834225 (EAVESDROP), the LMU Excellence PostDoc Support Fund, the Services

d’Observation en Volcanologie (SNOV, INSU), and the Réseau de Surveillance Volcanologique et Sismologique de Mayotte (REVOSIMA), a partnership between IPGP, BRGM, OVPF-IPGP, CNRS, and

IFREMER. The studied samples were collected by the MAYOBS set of campaigns that are authorized to collect geological samples in the area (https://doi.org/10.18142/291). MAYOBS1 campaign was

funded by the CNRS-INSU TELLUS MAYOTTE program (SISMAYOTTE project). MAYOBS1 (mission chief: N. Feuillet; scientists onboard: C. Deplus, P. Bachèlery), MAYOBS2 (mission chief: S. Jorry;

scientist onboard: A. Le Friant, M. Bickert), and MAYOBS15 (mission chiefs: E. Rinnert, I. Thinon, N. Feuillet; scientist onboard: C. Berthod, J.-C. Komorowski) campaigns were funded by

several French research institutions and laboratories (IPGP, CNRS, BRGM, IFREMER, IPGS). We also thank the captains and crews of the R/V Marion Dufresne (TAAF, IFREMER, LDA). Since June

2019, all REVOSIMA activities on Mayotte are funded by several French ministries (MESRI, MTE, MOM, MI, MA), with the support of DIRMOM and MAPPPROM. We thank A. Peltier (OVPF-IPGP) and C.

Mucig (BRGM) respectively the Operational Leader and the Co-leader of the REVOSIMA. We are grateful to C. Cimarelli, M. Kaliwoda, D. Müller (LMU), C. Constantin and E. Chaudron-Vrignaud

(LMV) for their assistance with SEM, Raman, EPMA, sample preparation and ICP-AES analysis, respectively. We also thank A. Di Muro (LGL-TPE) and P. Besson (IPGP) for constructive discussions,

as well as the three anonymous reviewers, whose comments improved the quality of the manuscript. This study contributes to IdEx Université de Paris ANR-18-IDEX-0001. FUNDING Open Access

funding enabled and organized by Projekt DEAL. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Ludwig-Maximilians-Universität, Department of Earth and Environmental Sciences, 80333, Munich,

Germany Simon Thivet, Luiz Pereira, Kai-Uwe Hess & Donald B. Dingwell * Department of Earth Sciences, University of Geneva, Geneva, Switzerland Simon Thivet * Sorbonne Université, Muséum

National d’Histoire Naturelle, CNRS, Institut de Minéralogie, de Physique des Matériaux et de Cosmochimie, 75005, Paris, France Nicolas Menguy * Laboratoire Magmas et Volcans, Université

Clermont Auvergne, CNRS, IRD, OPGC, 63178, Aubière, France Étienne Médard & Pauline Verdurme * Observatoire Volcanologique et Sismologique de la Guadeloupe, Institut de physique du globe

de Paris, 97113, Gourbeyre, France Carole Berthod * Université Paris Cité, Institut de Physique du Globe de Paris, CNRS, 75005, Paris, France Carole Berthod & Jean-Christophe Komorowski

* Institut d’Electronique de Microélectronique et de Nanotechnologies, Université de Lille, 59655, Villeneuve d’Ascq, Lille, France David Troadec Authors * Simon Thivet View author

publications You can also search for this author inPubMed Google Scholar * Luiz Pereira View author publications You can also search for this author inPubMed Google Scholar * Nicolas Menguy

View author publications You can also search for this author inPubMed Google Scholar * Étienne Médard View author publications You can also search for this author inPubMed Google Scholar *

Pauline Verdurme View author publications You can also search for this author inPubMed Google Scholar * Carole Berthod View author publications You can also search for this author inPubMed

Google Scholar * David Troadec View author publications You can also search for this author inPubMed Google Scholar * Kai-Uwe Hess View author publications You can also search for this

author inPubMed Google Scholar * Donald B. Dingwell View author publications You can also search for this author inPubMed Google Scholar * Jean-Christophe Komorowski View author publications

You can also search for this author inPubMed Google Scholar CONTRIBUTIONS S.T. and L.P. initiated the project. E.M., C.B., and J.-C.K. provided the samples. E.M. and C.B. provided the bulk

rock compositions of the samples. S.T., L.P., K.-U.H. conceptualized and performed the heat transfer calculations, performed the sample preparation and analysis at the SEM and Raman. D.T.

performed the sample preparation for the TEM. S.T. and N.M. carried out the TEM analysis and associated data treatment. S.T., L.P., E.M., P.V., C.B., D.B.D., and J.-C.K. participated in the

data interpretation. S.T. wrote the majority of the paper. All authors reviewed and approved this paper. CORRESPONDING AUTHOR Correspondence to Simon Thivet. ETHICS DECLARATIONS COMPETING

INTERESTS The authors declare no competing interests. PEER REVIEW PEER REVIEW INFORMATION _Communications Earth & Environment_ thanks Ilya Veksler, Alessio Zandona and the other,

anonymous, reviewer(s) for their contribution to the peer review of this work. Primary handling editors: Lucia Pappalardo, Joe Aslin, Heike Langenberg. A peer review file is available.

ADDITIONAL INFORMATION PUBLISHER’S NOTE Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations. SUPPLEMENTARY INFORMATION PEER

REVIEW FILE SUPPLEMENTARY INFORMATION DESCRIPTION OF SUPPLEMENTARY MATERIALS TEMPLATE SUPPLEMENTARY DATA 1 SUPPLEMENTARY DATA 2 SUPPLEMENTARY DATA 3 SUPPLEMENTARY FILE 1 RIGHTS AND

PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any

medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The

images or other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in a credit line to the material. If material is not

included in the article’s Creative Commons license and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly

from the copyright holder. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Thivet, S.,

Pereira, L., Menguy, N. _et al._ Metastable liquid immiscibility in the 2018–2021 Fani Maoré lavas as a mechanism for volcanic nanolite formation. _Commun Earth Environ_ 4, 483 (2023).

https://doi.org/10.1038/s43247-023-01158-w Download citation * Received: 26 April 2023 * Accepted: 04 December 2023 * Published: 16 December 2023 * DOI:

https://doi.org/10.1038/s43247-023-01158-w SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
