ABSTRACT African swine fever is a contagious and often lethal disease for domestic pigs with a significant economic impact for the swine industry. The etiological agent, African swine fever


virus (ASFV), is a highly structurally complex double stranded DNA virus. No effective vaccines or antiviral treatment are currently commercially available. We present here the development


of a strain of ASFV that has been shown to retain its ability to cause disease in swine, efficiently replicate in swine macrophage and that is fluorescently tagged. The insertion of an EGFP


cassette replacing the reading frames for two neighboring genes, MGF360-13L and MGF360-14L, in highly virulent field isolate Georgia/2007, did not affect virus replication in cell cultures


and did not affect disease progression in swine, the natural host for ASFV. A virulent fluorescently tagged ASFV is a suitable tool to conduct pathogenesis studies in swine, study on


virus-macrophage interaction and to run large scale screens that require a sensitive high throughput output. Utilizing an EGFP reporter system for observing ASFV replication and infectivity


can circumvent the time and labor-intensive steps associated with viral antigen-based assays such as the observation of hemadsorption or cytopathic effect. SIMILAR CONTENT BEING VIEWED BY


OTHERS RECENT PROGRESS ON GENE-DELETED LIVE-ATTENUATED AFRICAN SWINE FEVER VIRUS VACCINES Article Open access 13 March 2024 DELETION OF B125R INCREASES PROTECTION INDUCED BY A GENOTYPE II


AFRICAN SWINE FEVER VACCINE CANDIDATE Article Open access 19 March 2025 AFRICAN SWINE FEVER VIRUS VACCINE STRAIN ASFV-G-∆I177L REVERTS TO VIRULENCE AND NEGATIVELY AFFECTS REPRODUCTIVE


PERFORMANCE Article Open access 06 March 2025 INTRODUCTION African swine fever virus (ASFV) is the only member of the Asfarviridae family and is the etiological agent of African swine fever


(ASF). ASFV has large and complex genomic structure consisting of a linear double stranded DNA that contains approximately 180–190 kilobase pairs with more than 150 ORFs. ASF causes a


spectrum of disease, from highly lethal to sub-clinical, depending on host characteristics and the virus strain1. ASF is endemic in several sub-Saharan African countries. In Europe, the


disease is endemic in Sardinia (Italy) and outbreaks have been recorded in the Caucasus region since 2007, affecting Georgia, Armenia, Azerbaijan and Russia and more recently in Ukraine,


Belarus, Lithuania, Latvia and Poland, threatening to disseminate into neighbouring West European countries2. The contagious and often lethal nature of ASFV in domestic pigs has substantial


economic consequences for the swine industry in countries where infection occurs3. Currently there is no commercial vaccine available for ASF and outbreaks are controlled by animal


quarantine and elimination of affected animals4,5. In addition, there are no antivirals that are available to control ASF in swine. A few antiviral agents have been discovered, but only


tested in cell culture using non-virulent cell culture adapted strains5,6,7. Identification of new and novel antiviral agents would require a system that allows for high throughput detection


of virus replication using a virulent virus strain, in a system that mimics the host. Previous work in adaptation of ASFV strains to cell cultures has resulted in large deletions occurring


in ASFV in both the left and right variable regions8,9,10,11. These large deletions typically affect several distinct multigene families (MGF), characterized as genes that contain partially


repetitive sequence similarities. The different MGF groups were named to reflect the average lengths of the predicted gene product12,13. Importantly, this adaptation to cell cultures has


coincided with the decreased ability of ASFV to grow in swine macrophages, and the attenuation of ASFV in swine. Therefore, these adapted viruses may not closely represent antigenically


and/or pathogenically to those causing swine disease in the field9,14. In a previous study, several smaller deletions in the MGF family region were tested for their role in _Ornithodoros


porcinus_ ticks, the arthropod host for ASFV15, in this study one of these smaller mutants deleted area in the left variable region of ASFV comprising of only MGF360-12L to MGF360-14L. This


small deletion had no effect on growth in swine macrophages, but a defect in growth in ticks. This study suggested that these genes are not required for replication in swine, but only in


ticks. We hypothesized that this site could be used as a safe harbor site to express a foreign protein of interest without affecting virus replication in swine macrophages or virus virulence


in swine. To date there is no available virulent ASFV strain that can be used for hi-throughput assays. Monitoring infection relies on time consuming and labor intensive viral antigen-based


assays as hemadsorption (HA) or cytopathic effect detection. Quantification of viral infection on a large scale is also unfeasible, and requires laborious counting and subjectivity. In


order to use an ASFV strain for hi-throughput screening the strain would require that several conditions be met. First, the strain would require some sort of reporter that could be


quantitated mechanically, such as green fluorescent protein (GFP). Second, the strain would have to grow in macrophage cultures, as growth in macrophage cultures has in the past been a


partial predictor for the ability of ASFV to grow _in vivo_. Finally, a strain would have to retain its ability to be virulent in swine. The introduction of a fluorescent tag attached to


ASFV structural protein p54 has been previously described using a non-virulent cell culture adapted strain16 and using 5-bromo-2′-deoxyuridine selection to replace the ASFV thymidine kinase


(TK) locus with GFP in field isolates17, however in both cases the resulting virus were not shown to be virulent in swine, or to still be able to efficiently replicate in swine macrophages.


Here we report the development of a genetically modified ASFV strain that contains an enhanced green fluorescent protein (EGFP) as a reporter gene. Using the highly virulent parental virus


ASFV Georgia/2007 (ASFV-G), we developed a novel virus strain, ASFV-G-ΔMGF13/14-EGFP, which has deleted MGF360-13L and MGF360-14L genes and replaced with EGFP under the control of a p72


promoter. ASFV-G-ΔMGF13/14-EGFP maintains the ability to grow in macrophages and the ability to cause full disease progression in swine, with similar disease characteristics to the parental


virus. This EGFP reporter virus could be used for both rapid, hi-throughput _in vitro_ screenings as well as in pathogenesis studies in swine. RESULTS AND DISCUSSION INTRODUCTION OF EGFP IN

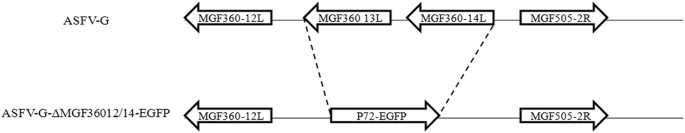

THE MGF360-13/14 LOCUS Recombinant ASFV-G-ΔMGF-13/14-EGFP was generated by homologous recombination between the parental ASFV-G genome and a recombination transfer vector following infection


and transfection of swine macrophage cell cultures18. The recombinant transfer vector (p72ΔMGF13/14-EGFP) (Fig. 1) contained flanking genomic regions, the left arm is located between


genomic positions 29352-30551 and the right arm is located between genomic positions 32914-33615. A reporter gene cassette containing the green fluorescent protein (EGFP) gene with the ASFV


p72 late gene promoter was inserted between these arms. This construction created a deletion of the MGF360-13L and MGF360-14L genes, with an insertion of EGFP in the same area (Fig. 1).


Recombinant transfer vector p72ΔMGF13/14-EGFP was obtained by DNA synthesis (Epoch Life Sciences, Sugar Land, TX, USA). Macrophage cell cultures were infected with ASFV-G and transfected


with p72ΔMGF13/14-EGFP. Recombinant viruses representing independent primary foci were purified to homogeneity by successive rounds of limiting dilution purification. ANALYSIS OF THE


ASFV-G-ΔMGF13/14-EGFP GENOME SEQUENCE RELATIVE TO PARENTAL ASFV-G GENOME SEQUENCE To evaluate the accuracy of the genetic modification and the integrity of the genome of the recombinant


virus, full genome sequences of ASFV-G-ΔMGF13/14-EGFP and parental ASFV-G were obtained using NGS on the Ion Torrent PGM and compared. First, a full-length genome comparison between parental


ASFV-G and ASFV Georgia 2007/119 was performed. The following differences were observed between these two viruses (nucleotide positions are provided based on ASFV Georgia 2007/1 GenBank


accession no. FR682468): (i) two nucleotide insertions, T at position 433 and A at position 441, in a non-coding segment of the genome; (ii) two nucleotide deletions, T at position 1602 and


T at position 1603, in the MGF360-1L gene ORF resulting in a frame shift; (iii) a nucleotide insertion, T at position 1620, in the MGF360-1L gene ORF resulting in a frame shift; a nucleotide


mutation of A to G at position 97321 resulting in a silent mutation in ORF B438L; (v) a nucleotide mutation of C to G at position 166192 resulting in a residue substitution (Ala to Pro) at


residue position 85 in ORF E199L; and (vi) a nucleotide insertion of T at position 183303, a non-coding segment of the genome. Second, a full-length genome comparison between


ASFV-G-ΔMGF13/14-EGFP and parental ASFV-G was performed. The DNA sequence of ASFV-G-ΔMGF13/14-EGFP revealed a deletion of 2,363 nucleotides in ORFs MGF360-13L and MGF360-14L relative to


parental ASFV-G that corresponds with the introduced modification. The consensus sequence of the ASFV-G-ΔMGF13/14-EGFP genome showed an insertion of 1300 nucleotides replacing ORFs


MGF360-13L and MGF360-14L corresponding to the p72EGFP cassette sequence introduced. Besides the insertion of the p72EGFP cassette, no additional changes were observed. In summary,


ASFV-G-ΔMGF13/14-EGFP virus did not accumulate any substantial mutations during the process of homologous recombination and consequent plaque purification steps. EGFP EXPRESSION IN


ASFV-G-ΔMGF13/14-EGFP Expression of EGFP in the recombinant virus during infection was tested using fluorescent microscopy in cells infected with ASFV-G-ΔMGF13/14-EGFP or parental virus


ASFV-G. Cells were infected with a MOI of 0.5 or mock infected, in 6-well plates with the addition of red blood cells and observed at 16 (hpi) and examined by fluorescent microscopy. EGFP


expression was clearly observed by fluorescence in macrophages displaying hemadsorption (HA) at 16 hpi (Fig. 2). Importantly, no observed EGFP activity was detected in cells infected with


ASFV-G. Furthermore, it was assessed if the deletion of ΔMGF13/14 and the expression of EGFP genes may alter in any way the ability of ASFV-G-ΔMGF13/14-EGFP infected cells to hemadsorb, a


classic indicator of ASFV infectivity. Cells were infected with ASFV-G-ΔMGF13/14-EGFP or parental virus ASFV-G with the addition of red blood cells, and sequentially observed during 24hpi


detecting the presence of HA as well as fluorescence. In ASFV-G-ΔMGF13/14-EGFP infected cells all hemadsorbing positive cells expressed EGFP (Fig. 2A). As expected, in ASFV-G infected cells,


none of hemadsorbing positive cells had any detectable fluorescent activity. Therefore, expression of EGFP does not affect the phenomenon of HA. Furthermore, EGFP activity is easily


detected by fluorescence in macrophages infected with ASFV-G-ΔMGF13/14-EGFP and the genetic modifications involved in the development of this strain do not alter the ability of the infected


cell to mediate HA. The cellular localization of EGFP is widespread across the entire cytoplasm of the cell during late time points during infection (Fig. 2B). As expected there was no EGFP


signal during early gene expression time points before 8hrs (data not shown). ABILITY OF ΔMGF13/14-EGFP TO GROW _IN VITRO_ Field ASFV isolates fully grown in peripheral blood derived primary


swine macrophages, the primary cell targeted by ASFV during infection in swine, but not in otherstable cell cultures To evaluate if deletion of ΔMGF13/14 genes and the expression of EGFP


genes may alter the ability of ASFV-G-ΔMGF13/14-EGFP to replicate in swine macrophage its kinetics of replication was assessed and compared relative to parental ASFV-G in a multistep growth


curve (Fig. 3). Cell cultures were infected at an MOI of 0.1, supernatant samples were collected at 2, 24, 48, and 72 h post infection (hpi) and virus yields titrated also in swine


macrophage cell cultures. Results demonstrated that ASFV-G-ΔMGF13/14-EGFP displayed almost identical growth kinetics as parental ASFV-G virus, therefore suggesting that genomic changes in


ASFV-G-ΔMGF13/14-EGFP does not affect growth _in vitro_. COMPARISON OF VIRUS DETECTION SENSITIVITY USING DIRECT FLUORESCENCE VERSUS HEMADSORPTION (HA) The sensitivity of using EGFP as a


detection system was tested against the use of conventional HA, a detection system proven to be more sensitive than real time-RT-PCR20. Presence of ASFV-G-ΔMGF13/14-EGFP in ten-fold dilution


samples was simultaneously detected by fluorescence and HA. ASFV-G-ΔMGF13/14-EGFP dilutions were seeded on primary swine macrophage cell cultures in 96-well plates, after three days the


presence of virus was assessed either by HA to calculate HAD50 or by visualizing EGFP activity by fluorescence microscopy to calculate the TCID50. Remarkably, results demonstrated identical


titer values using both detection methodologies (Fig. 4). ASSESSMENT OF ASFV-G-ΔMGF13/14-EGFP VIRULENCE IN SWINE Parental ASFV-G, a highly virulent isolate, causes disease and death in 100%


of infected swine when intramuscularly (IM) inoculated at a dose of 102 HAD50. To determine if genetic modifications introduced in ASFV-G-ΔMGF13/14-EGFP may alter its virulence we compared


the outcome of infection in swine inoculated with ASFV-G-ΔMGF13/14-EGFP along to animals infected with parental ASFV-G. Eighty to ninety-pound pigs were IM inoculated with 102 HAD50 of


either ASFV-G or ASFV-G-ΔMGF13/14-EGFP. In both groups of animals an increased body temperature (>104oF) was observed at four days post infection (Table 1). Pigs presented clinical signs


associated with the disease, including anorexia, depression, purple skin discoloration, staggering gait, and diarrhea. Clinical signs progressed over time, and animals either died or were


euthanized _in extremis_ by day 7 post infection. The progression of ASFV observed in animals infected with ASFV-G-ΔMGF13/14-EGFP were similar to those seen in the parental virus inoculated


animals (Table 1). Viremia in experimentally inoculated animals was quantified at different days post-infection. All animals inoculated with 102 HAD50 of ASFV-G-ΔMGF13/14-EGFP or parental


ASFV-G had very high virus titers in blood until the day of their death, therefore the progression of the viremia in ASFV-G-ΔMGF13/14-EGFP (Fig. 5A) was similar to that of swine inoculated


with ASFV-G (Fig. 5B). Therefore, it is clear that genetic modification involving the deletion of MGF36013L and MGF36014L or the inclusion of EGFP gene do not meaningfully alter the


virulence of ASFV-G-ΔMGF13/14-EGFP in pigs. Animals infected with ASFV-G-ΔMGF13/14-EGFP develop clinical disease kinetics indistinguishable from those observed in animals infected with


parental ASFV-G. Similarly, viremia levels in ASFV-G-ΔMGF13/14-EGFP infected animals overlap those observed in animals infected with ASFV-G. Importantly, blood samples obtained from animals


infected with ASFV-G-ΔMGF13/14-EGFP were able to be titrated using fluorescence, giving the same TCID50 values as HAD50, suggesting stability of the EGFP cassette after the virus has


undergone an _in vivo_ infection. Therefore, using EGFP as a reporter gene assessed by fluorescent microscopy is as effective as HA as a methodology of detecting presence of


ASFV-G-ΔMGF13/14-EGFP-infected cells in primary swine macrophages cultures. Although we did observe more EGFP expressing cells than HA positive cells especially in low titration dilutions,


there were no differences in calculated titers. It is possible that fluorescent detection is slightly more sensitive than HA as it can be observed as soon as the EGFP protein is produced


rather than requiring enough protein expression present to mediate the presence of hemadsorption. To further test the stability of the EGFP protein insertion we isolated virus from tonsils


and spleen samples obtained from the same animals. We found comparable virus titers in tonsils and spleen of animals infected with either virus. In addition, ASFV-G-ΔMGF13/14-EGFP titer


values in both tissues were identical regardless of whether or not they were calculated by fluorescence microscopy of HA (Fig. 6). As a summary, we described here for the first time the


development of a highly virulent ASFV strain expressing EGFP as reporter gene. We show that insertion of EGFP in the MGF360-13/14 locus had no effect on virus growth in swine macrophages


cultures or virulence in swine. Having an EGFP reporter virus will allow the ability to adapt hi-throughput methods to ASFV that could be used for screening antiviral compounds or for other


large scale genomic based screens to identify cellular factors involved in ASFV replication. Having the ability to conduct screens in swine macrophages, the natural target cell during animal


infection, with a virus that is highly infectious that may have the ability to mimic a naturally occurring infection in cell cultures. This is of great importance, as ASFV-G-ΔMGF13/14-EGFP


has not been adapted to cell culture, still is able to cause disease in swine and has to the ability to grow in swine macrophage cultures, indicates that it is likely that


ASFV-G-ΔMGF13/14-EGFP utilizes the same cellular environment or cellular pathways that occur in virulent strains of ASFV. MATERIALS AND METHODS CELL CULTURES AND VIRUSES Primary swine


macrophage cell cultures were prepared from defibrinated swine blood as previously described by Zsak _et al_.18. Briefly, heparin-treated swine blood was incubated at 37 °C for 1 hour to


allow sedimentation of the erythrocyte fraction. Mononuclear leukocytes were separated by flotation over a Ficoll-Paque (Pharmacia, Piscataway, N.J.) density gradient (specific gravity,


1.079). The monocyte/macrophage cell fraction was cultured in plastic Primaria (Falcon; Becton Dickinson Labware, Franklin Lakes, N.J.) tissue culture flasks containing macrophage media,


composed of RPMI 1640 Medium (Life Technologies, Grand Island, NY) with 30% L929 supernatant and 20% fetal bovine serum (HI-FBS, Thermo Scientific, Waltham, MA) for 48 hours at 37 °C under


5% CO2. Adherent cells were detached from the plastic by using 10 mM EDTA in phosphate buffered saline (PBS) and were then reseeded into Primaria T25, 6- or 96-well dishes at a density of


5x106 cells per ml for use in assays 24 hours later. ASFV Georgia (ASFV-G) was a field isolate kindly provided by Dr. Nino Vepkhvadze, from the Laboratory of the Ministry of Agriculture1 in


Tbilisi, Republic of Georgia9. Comparative growth curves between ASFV-G, ASFV-GΔMGF13/14-EGFP were performed in primary swine macrophage cell cultures. Preformed monolayers were prepared in


24-well plates and infected at a MOI of 0.1 (based on HAD50 previously determined in primary swine macrophage cell cultures). After 1 hour of adsorption at 37 °C under 5% CO2 the inoculums


were removed and the cells were rinsed two times with PBS. The monolayers were then rinsed with macrophage media and incubated for 2, 24, 48, 72 and 96 hours at 37 °C under 5% CO2. At


appropriate times post-infection, the cells were frozen at ≤−70 °C and the thawed lysates were used to determine titers by HAD50/ml in primary swine macrophage cell cultures. All samples


were run simultaneously to avoid inter-assay variability. For immunofluorescence studies, 2 × 106 cells were seeded in 24 well plates on glass coverslips, after the indicated time,


coverslips were fixed with 4% paraformaldehyde for 15 min, and washed twice in PBS. Virus titration was performed on primary swine macrophage cell cultures in 96-well plates. Virus dilutions


and cultures were performed using macrophage medium. Presence of virus was assessed either by HA or by fluorescent microscopy three days after being plated, virus titers were calculated by


the Reed and Muench method21 and expressed as HAD50 or TCID50 as detected by the presence HA or fluorescence. NEXT GENERATION SEQUENCING OF ASFV GENOMES ASFV DNA was extracted from infected


cells and quantified as described earlier9. Full-length sequencing of the virus genome was performed as described elsewhere9. Briefly, one microgram of virus DNA was enzymatically sheared


and the resulting fragmented DNA size distribution was assessed. Adapters and library barcodes were ligated to the fragmented DNA. The appropriate size range of the adapter-ligated library


was collected using the Pippin Prep™ system (Sage Science, Beverly, MA) followed by normalization of library concentration. The DNA library was then clonally amplified onto ISPs and


enriched. Enriched template ISPs were prepared and loaded onto Ion chips for sequencing using an Ion Torrent PGM™ instrument. Sequence analysis was performed using Galaxy


(https://usegalaxy.org/) and CLC Genomics Workbench (CLCBio, Waltham, MA). ANIMAL EXPERIMENTS Animal experiments were performed under biosafety level 3 conditions in the animal facilities at


PIADC where all methods were performed in accordance with the relevant guidelines and regulations following a protocol approved by the Plum Island Animal Disease Center Institutional Animal


Care and Use Committee. ASFV-GΔMGF13/14-EGFP was assessed for its virulence phenotype relative to the parental ASFV-G virus using 80–90 pound commercial breed swine. Five pigs were


inoculated intramuscularly (IM) either with 102 or 103 HAD50 of ASFV-GΔMGF13/14-EGFP or 102 HAD50 of ASFV-G. Clinical signs (anorexia, depression, fever, purple skin discoloration,


staggering gait, diarrhea and cough) and changes in body temperature were recorded daily throughout the experiment. ADDITIONAL INFORMATION HOW TO CITE THIS ARTICLE: Borca, M. V. _et al_.
