ABSTRACT The regulation of gene editing is being elucidated in mammalian cells and its potential as well as its limitations are becoming evident. ssODNs carry out gene editing by annealing

to their complimentary sequence at the target site and acting as primers for replication fork extension. To effect a genetic change, a large amount of ssODN molecules must be introduced into

cells and as such induce a Reduced Proliferation Phenotype (RPP), a phenomenon in which corrected cells do not proliferate. To overcome this limitation, we have used TAL-Effector Nucleases

(TALENs) to increase the frequency, while reducing the amount of ssODN required to direct gene correction. This strategy resolves the problem and averts the serious effects of RPP. The

efficiency of gene editing can be increased significantly if cells are targeted while they progress through S phase. Our studies define new reaction parameters that will help guide

experimental strategies of gene editing. SIMILAR CONTENT BEING VIEWED BY OTHERS CRISPR/CAS9-MEDIATED BASE-EDITING ENABLES A CHAIN REACTION THROUGH SEQUENTIAL REPAIR OF SGRNA SCAFFOLD

MUTATIONS Article Open access 13 December 2021 SYNERGISTIC GENE EDITING IN HUMAN IPS CELLS VIA CELL CYCLE AND DNA REPAIR MODULATION Article Open access 08 June 2020 EXPERIMENTAL STRATEGIES

TO ACHIEVE EFFICIENT TARGETED KNOCK-IN VIA TANDEM PAIRED NICKING Article Open access 19 November 2021 INTRODUCTION The correction of a single base mutation within the context of the human

chromosome can be accomplished through the use of single-stranded oligonucleotide (ssODNs)1,2,3. The frequency with which these events occur is highly dependent on the introduction of a

large amount of ssODN into the target cell, a type of mass action effect4,5. The frequency of the process, known as gene editing, can be enhanced by the pre-treatment with reagents or drugs

that induce double strand (ds) DNA breakage6,7,8. Ds breakage activates the DNA damage response pathway and, in conjunction with the ends of the ssODNs, cause replication fork delay and

retardation of cell cycle progression9,10. Stalled or slowed replication forks actually provide a more amenable target for ssODN by expanding the window of time that the ssODNs align in

homologous register and initiate the gene editing reaction11,12,13. The mechanism of action and its regulation2 have now been partly elucidated and as a result we know there are some adverse

effects to the cell as a function of gene editing. In some cases, a genotoxicity has been reported in response to the standard ssODN vector composition which incorporates phosphorothioate

linkages to prevent nuclease digestion and sustain half-life in the cell14,15,16. Additionally, the abundance of single-stranded DNA ends, at levels required to direct gene editing in human

cells, induces a Reduced Proliferation Phenotype (RPP)17,18,19 in which corrected cells proliferate at a much slower rate than their unedited counterparts. Thus, over time, the level of

corrected cells in a population becomes reduced by simple dilution and outgrowth of the uncorrected population. Since ds DNA breaks enhance the frequency of gene editing, we sought a

complimentary technology that would elevate ssODN-directed gene editing without leading to RPP. Transcription Activator-Like Effector Nucleases (TALENs) are chimeric enzymes that can be

designed to make a unique cut in the genome after exogenous introduction of their expression vectors into human cells20,21. Since cut sites are unique, this low level of cleavage may not

activate the DNA damage response pathway to the same degree as the broader spectrum DNA cleavage reagents (drugs), thereby sidestepping the collateral effect of RPP. While ssODN-directed

gene editing can lead to inheritable nucleotide changes, the level of editing simply needs to be elevated for practical use in gene therapy or genomics. Thus, the main goals of this study

were to (i), determine the potential of gene editing directed by both ssODNs and TALENs; (ii), establish some of the parameters and limitations of that reaction; and (iii), define conditions

to bypass Reduced Proliferation Phenotype. Our results suggest that TALENs enable a lower level of ssODNs to be used in the gene editing reaction while simultaneously increasing frequency

and providing a means to avoid RPP. RESULTS Gene editing activity is measured by the correction of a single base mutation in an eGFP gene integrated into HCT116 cells, the clonally expanded

cell line known as HCT116-1923. This system has been used as the workhorse for mechanism of action and regulation studies in mammalian cells. Introduction of a specific ssODN by

electroporation, lipofection or nucleofection at a level where it can direct correction of the mutant base results in the expression of a wild type eGFP transcript and the associated

protein. Quantitation of gene editing is carried out by FACS which is also used to measure viability. Segments of the wild type eGFP gene sequence and its mutant analog are displayed with

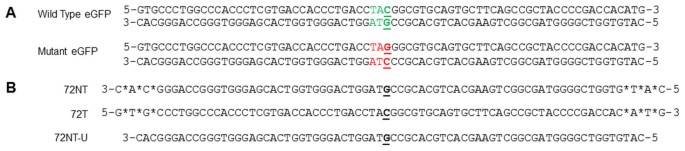

three ssODNs (Fig. 1); 72NT, a 72 mer that hybridizes to the non-transcribed strand and, 72T, a 72 mer that hybridizes to the transcribed strand. In addition, we present the sequence of

72NT-U, a 72 mer that hybridizes to the nontranscribed strand but does _not_ contain the phosphothioate linkages among the three terminal bases. 72NT and 72T contain these linkage

modifications. Figure 2 exhibits a dose curve of gene editing activity after 48 hours directed by either 72NT or 72NT-U. Since these cells are not synchronized and released, the level of

eGFP− gene correction is predictably low throughout. But, detectable levels of gene editing are seen at different dosages of the modified and unmodified ssODN; 72NT appears to be

consistently more effective at the moderate levels while 72NT-U requires a higher dosage to produce even a modest level of correction, as reported previously17. Low levels of correction can

be enhanced by simultaneous nondiscriminant ds DNA cleavage, originally induced by the addition of anticancer drugs such as camptothecin7. Here, we sought less broad spectrum DNA cleavage by

employing Tal-Effector Nucleases (TALENs)20 to cut at a specific site, 5′ to the mutant base pair. The TALEN pairs used in this study were designed according to previously published

guidelines22,24,25 for high DNA binding affinity and cutting efficiency. Construction of the TALENs followed the original Golden Gate Assembly method with a slight modification to include

the Goldy TALEN backbone. Antibiotic selection and colony PCR was performed to confirm correctly constructed TALENs and corrected clones were sent for sequence confirmation (Genewiz Inc,

South Plainfield, NJ). Figure 3A represents a schematic of the TALEN used in these studies. The two arms, L848-19 and R898-19 bind to the indicated bases using the standard RVD code of NI,

NG, HD and NN respectively. The spacer region of 13 nucleotides positions the FOK1 domains so that they dimerize and initiate DNA cleavage. The cut site is 5′ to the target codon, TAG. The

top strand in the diagram (5′-3′) represents the non-transcribed strand to which 72NT hybridizes. Plasmids containing TALEN expression constructs L848-19 and R898-19, were electroporated

with 72NT into HCT116-19 cells under the reaction conditions presented in Figure 3B. A parallel dose curve of plasmid DNA relative to ssODN was carried out along with controls that are used

routinely to validate the readout system. In parallel, 72NT levels were varied 100-fold with plasmid levels ranging from 0.5 μg to 5 μg respectively. At 1.35 μg ssODN, a clear improvement in

gene editing activity is observed as a function of added TALEN dosage; at a 1.35 μg ssODN/2 μg TALEN ratio, the highest level of gene editing is seen. As the level of TALEN increases, gene

editing activity decreases; and a clear optimal range is evident. Neither higher nor lower levels of ssODN, beyond 1.35 μg, direct significant levels of correction no matter what amount of

TALEN expression construct is added. These data suggest that ssODNs and a TALEN designed to cleave at the 5′ side of the mutant base in the eGFP− gene carry out effective gene editing.

Activity is dependent on the proper levels of ssODN and TALEN plasmids being present, which may signal a cooperative interaction among the molecules; gene editing is dependent on having both

ssODNs and TALENs present in the same reaction. To confirm the specificity of gene editing at the target base, we isolated eGFP+ cells from various time points following electroporation of

a reaction mixture containing 1.35 μg ssODN and 2 μg of TALEN plasmids by FACS. Genomic DNA was prepared and DNA sequencing was carried out across the targeted region. Figure 3C displays the

results of several samples isolated under these conditions; all contain the changed DNA base at the predicted site; the specific base change G → C is shown. These data show that complete

correction from TAG to TAC takes place over a 72 hour time frame and mixed peaks are seen in the 24/48 hour time period. Thus, the incorporation/replication model of gene editing as proposed

by Parekh-Olmedo and Kmiec1 may be one of the pathways taken when the reaction is coupled by TALEN cleavage activity. Taken together, these data suggest that the ssODN/TALEN combinatorial

approach leads to precise gene editing at an ssODN level that, by itself, directs undetectable levels. Based on the data presented in Figure 3B, we established the 1.35 μg/2 μg ratio for

gene editing as a foundational condition and then examined several reaction parameters surrounding it; these are presented as Supplemental Data (see Supplemental Figures Online). In this

series of experiments, we changed the ssODN, using a 72-mer (72T) that is complimentary to the transcribed strand instead of 72NT. The level of gene editing is approximately half (0.3%) of

the level supported by the 72NT/TALEN combination. These data align with previous observations that show gene targeting with the NT ssODN directs a higher level of gene editing than ssODNs

that can hybridize to the transcribed strand. Similar results are seen when a 72 mer (NT) lacking phosphorothioate linkages (Fig. 2) is used instead of the standard 72NT; a significantly

lower level of gene editing activity is observed. Mixing the 72NT/72T ssODNs at equimolar levels does not rescue the low gene editing levels seen when 72NT is used alone. A totally

unrelated, scrambled 72 mer, 72NS, does not direct detectable levels of gene editing, results that align with previous observations addressing the specificity of ssODN gene

editing26,27,28,29. The reaction is dependent on TALENs being expressed to achieve the significant levels of correction especially at the low levels of ssODN used in these reactions (see

Supplemental Fig. S1 online). The levels of gene editing activity can be raised if the targeted population contains a preponderance of cells in S phase9,30,31. In fact, a slowing of S phase

progression can enhance the frequency even further. Our lab has used the synchronization and release experimental design routinely and thus we tested the impact of cell cycle manipulation on

correction directed by ssODNs and TALENs. We used aphidicolin to synchronize cells at the G1-S border and then released the population for 4 hours. At that time, the 72NT-mer and the TALEN

constructs were introduced by electroporation. The conditions and reagent combinations described in Figure 3B were repeated on these synchronized and released cells. As seen in Figure 4a,

the patterns of gene editing activity are broadly consistent with the results obtained with unsynchronized cells. In fact, there appears to be a simple amplification of gene editing activity

when synchronized/released cells are used. Again the 1.35 μg/2 μg ssODN/TALEN levels are optimal and neither increasing nor decreasing the ssODN amount positively affects the reaction.

Thus, as with ssODN-directed correction, cells actively progressing through S phase provide a more amenable target for gene editing. Considering the steric hindrance that complex chromatin

structures would present to both ssODNs and TALENs, metabolic processes that help unwind chromosomal architecture are likely to enhance target-site accessibility. The same levels of

unprotected (unmodified) ssODN and TALEN (at 2 μg) are seen to be optimal in directing the gene editing reaction (see Supplemental Fig. S2 online). In 2008, Engstrom and Kmiec10, examined

gene editing in S phase in more detail. They found that the release time prior to electroporation can have an effect on the level of gene editing activity. The level maximizes at

approximately 4 hours after release. We repeated that experiment using ssODNs and TALENs at the optimal levels (1.35 μg/2 μg) respectively. These reaction components were added at 0–5 hours

after release from the synchronization block; a steady increase in gene editing activity is seen up until 4–5 hours post release (Fig. 4B). These results are consistent with data from

Engstrom and Kmiec10,32, perhaps indicating that the ssODN/TALEN combinatorial approach is influenced by some of the same factors that have been found to impact ssODN-directed DNA targeting.

Again, at 4–6 hours the cell population appears to be in mid S phase, the previously identified time point for maximal gene editing activity. Recently, we reported that the level of ssODN

required to direct measurable gene editing activity induces a Reduced Proliferation Phenotype (RPP). The number of ssODN ends introduced into the cell activate the DNA damage response

pathway, specifically cell cycle checkpoint proteins Chk1 and Chk24,5. Both DNA replication and cell division are stopped in the corrected cells, i.e., those cells that have received enough

ssODN to undergo gene editing. This phenomenon is manifested by a gradual reduction in correction frequency over time [see17,18,19]. Since TALENs enable the level of ssODN to be reduced 10

fold, we expanded the time course of editing between 48 hours and 144 hours and measured activity to see if the initial level is generally maintained. Figure 5A displays the results–no

reduction in correction efficiency is observed up through 144 hours in either cells that have been synchronized and released (4 hour point) or cells that are unsynchronized when targeted.

The impact of the level of synchronization on ssODN/TALEN-directed gene editing is evident once again. These results stand in sharp contrast to previously published work on extended

incubation times when gene editing is directed by ssODNs alone17. Gene editing activity directed by single-stranded ODNs alone is also presented and displays almost undetectable levels. At

1.35 μg, ssODNs do not catalyze gene editing, emphasizing the importance of the TALEN in the reaction mixture. Similar controls are seen in Figure 2 as well while testing unsynchronized

cells revealed absolutely no gene conversion (data not shown, but see 17, 18). Images of the dividing and corrected cells (at various reaction times) are presented in Figure 5B, reflecting

the FACS data shown in Figure 5A. Finally, we wanted to confirm that at least some of the corrected, eGFP+ cells were undergoing DNA replication and cell division. Previously, we utilized a

Click-iT assay, using EdU to identify cells bearing active replication forks. The cells were targeted then allowed to recover for 48 hours, at which time EdU was added. FACS was carried out

18 hours later measuring gene editing (generation of eGFP+ cells) on the x axis and on the y axis, EdU incorporation (evidence of DNA replication activity). Thus, four quadrants representing

differing combinations, are created: Q1, replication positive and non-corrected; Q2, replication positive and corrected; Q3, replication negative and non-corrected; Q4, replication negative

and corrected. The six panels A–F in Figure 6 illustrate the results. Panels A and B serve as controls with A exhibiting the capacity of HCT116 cells to express eGFP from a standard plasmid

expression construct and be detected by FACS (74.3%) and B, demonstrating efficient uptake of EdU by HCT116-19 cells (90.69%) during the 18 hours of incubation time. Panel C displays the

low level of correction directly by 13.5 μg of 72NT alone as seen previously in Figure 2. Only 0.1% of the corrected cells score positive for active replication. In contrast and using one

tenth the level of ssODN plus TALEN, panel D reveals 0.59% of cells corrected and in replicative form. Panels C and D represent experiments carried out with unsynchronized cells. Finally,

panel E represents gene editing activity directed by 13.5 μg of 72NT in synchronized and released cells. While the total correction level is approximately 2.3%, only 0.15% (<7% of

corrected cells) harbor active replication forks. In contrast, using one tenth the amount of 72NT (plus TALEN), a full 1.7% of the corrected cells (total 3%) display DNA replication

activity. Taken together, these data demonstrate that gene editing with ssODNs alone result in the majority of corrected cells being negative for DNA replication (RPP). In contrast, the

majority of cells, corrected by very modest amounts of ssODN and TALENs are capable of maintaining their capacity to replicate. Thus, the use of TALENs in combination with ssODNs, reduces

the level of targeting molecule needed for the reaction, elevates the frequency and, as a result, the majority of cells avoid RPP. DISCUSSION Gene editing directed by ssODNs, takes place in

at least three definable phases (1, 2). The first, initiation, involves the alignment of the ssODN in homologous register with the target site. Next, the step of correction comprises the

actual nucleotide exchange and last, recovery is the phase in which the cell resumes its normal metabolic activities. The mechanism of action involves the incorporation of the ssODN into a

growing replication fork2,3,13, which, in all likelihood, disrupts the chromatin structure, reduces steric hindrance and permits ssODN access to the target site. Yet the amount of ssODN

required to direct gene editing is quite high leading to the cellular phenomenon called the Reduced Proliferation Phenotype (RPP) within which the corrected cells fail to replicate their DNA

and do not divide18. This phenomenon is particularly apparent in the results presented in Figure 6. If one compares quadrants 1 and 2, panels C and D respectively, the dramatic reduction in

replication activity as a function of the addition of 13.5 μg of ssODN to facilitate editing, can be readily observed. Here only 39.9% of the cells reveal active replication whereas in the

presence of one tenth the level of ssODN, 79.9% are replication positive (panel D). The DNA damage response pathway is activated by these high numbers of single stranded DNA ends in the

reaction and, as a result, cell cycle progression is slowed dramatically. Aarts et al.3 have suggested the gradual loss of eGFP+ cells is a result of semi-conservative replication in which

the ssODN was incorporated into the transcribed strand. While we see RPP engaged whether a T or NT ssODN is used (or incorporated) this insightful explanation of mechanism can be tested

experimentally. A major challenge in advancing gene editing toward clinical implementation is still to improve target accessibility, elevating frequency of correction. In this paper, we

demonstrate that TALENs can act (with ssODNs) to carry out gene editing. This combinatorial approach increases the frequency of the reaction dramatically and cells bearing that altered base

proliferate normally. TALENs appear to coordinate this response in several ways. First, they can be designed to create a ds break within the target gene near the mutant nucleotide, here TAG

in the mutant eGFP gene. Double strand DNA breakage has been shown previously to raise the frequency of gene repair many fold6,7 and thus, by the very nature of their enzymatic activity,

TALENs stimulate the reaction. Second, since TALENs can cleave chromosomal DNA, the disruption of the physical barrier to target accessibility enables the alignment of the ssODN at the

target site with a higher degree of efficiency. This reaction is reminiscent of the destabilization effects on chromatin conferred by DNA replication and HDAC inhibitors. Pre-treatment of

targeted cells with Na-Butyrate or TSA has been shown to enhance gene editing frequencies33. And third, TALENs act to reduce the amount of ssODNs needed to direct the reaction and, as such,

activation of the DNA damage response is averted. Thus, a more compatible environment for the re-establishment of DNA replication and ultimately cell division is created. A number of

investigators have been developing the combinatorial approach of TALEN/ssODNs for genome editing in engineered embryonic stem cells and zebrafish. Wefers _et al._ have used microinjection to

deliver TALENs and ssODNs into mouse ES cells creating and correcting chocolate missense mutations in RAB3834. Ding _et al._ generated 15 mutant alleles in somatic and human pluripotent

stem cells, the latter being effectively differentiated into a variety of metabolic cell types35. These workers carried out a comprehensive study demonstrating target specificity and the

capacity to generate isogenic cell lines for modeling human diseases _in vitro_. Bedell _et al._ showed germline transmission of a _mloxP_ site and a “custom-designed” _EcoRV_ site, created

by TALEN/ssODN action, in zebrafish22. Briggs _et al_ demonstrated important parameters about TALEN positioning on the target site while measuring gene editing in an eGFP reporter model

system; albeit with optimizing reaction conditions36. This type of evidence aligns with our current data and the notion of the universal potential for the combinatorial approach. Our data

suggest that both modified and unmodified ssODNs can be used with TALENs for gene editing, although modified ssODNs still produce the highest levels of corrected cells23. In this work, a

single TALEN (L848-19/R898-19) was designed to cut 5′ relative to the targeted codon and while this improves the reaction significantly, other TALENs may produce even higher levels of

correction. We are currently optimizing the position of TALEN cleavage as it relates to improved gene editing activity. Our current studies reveal that gene editing is enabled in both

unsynchronized and synchronized released cells if both TALEN arms are present, the ssODN has complimentary sequence to the target site and an optimized ratio of ssODN/TALEN is utilized. Gene

editing activity appears to be dose dependent when ssODNs and TALENs are used together; increasing the amounts of TALEN elevates the correction up to a point (Figs. 3B and 4A). But, there

is an optimal level of TALEN since higher doses do not continue the upward trend. These observations may suggest that the ssODN entry into the duplex must be coordinated with TALEN cleavage

and too much ds breakage is counterproductive; the corrected sequence may be cut and rendered non-functional. The enhancement of gene editing frequency in cells that have been synchronized

and released provides us with some insight into the mechanism of action of this combinatorial approach. As we proposed before1, ssODNs that incorporate into a growing replication fork act as

a quasi-“Okazaki fragment” priming the elongation of the newly replicated strand14. Subsequent rounds of replication result in the evolution of gene edited cells; this still could be a

general mechanism of gene editing, promoted by TALENs and ssODNs (see Figure 3B, 24/48 hour time points). But, the data presented in Figure 6 (and Fig. 5A) may suggest an alternative route

as well. The process of correction could involve an ssODN mediated repair, bridging the cleavage point (created by the TALEN action) with dual correction of both strands. The activity of the

TALEN may also provide an entry point for the ssODN to more easily navigate the structural hindrance of chromatin and to identify its complimentary binding sites in the DNA. For most

applications such as gene knock-out, Non-Homologous-End-Joining (NHEJ) is the prevalent form of DNA re-joining. Knock-outs likely arise from the resection of DNA that accompanies the NHEJ

process. But, in the case of gene editing, we seek a more precise reaction outcome, in terms of DNA integrity. Since we need to preserve reading frame, it is likely that ssODN/TALEN-directed

gene repair may follow the homologous recombination pathway more often, although one may not exclude NHEJ. In fact, recent data suggest NHEJ and HR may not be mutually exclusive when ssODNs

are present [see 37 and references therein]. A number of recent observations are pertinent to this view. First, gene editing is highly active in S/G2 phases and much less active in G1 or

G05,9,10,38. Second, (as stated above) ds breakage enhances gene editing6,7, TALENs provide a tool to achieve ds breakage at a unique location. Third, evidence exists for the incorporation

of the ssODN into the duplex as a part of the gene editing reaction14,36. Thus, we suggest that once the ssODN enters the duplex at the break site facilitated by TALEN action, it serves as a

patch or bridge enabling the repair reaction, catalyzed by homologous recombination to take place. This model, while early in development, is consistent with our observations surrounding

the mechanism of gene editing. Here, as proposed by Liu _et al_, in an elegant study, the ssODNs may actually compete for ends that…”would otherwise enter(ed) the NHEJ pathway”37. In

addition, Morozov and Wawrousek (2008) found that inhibiting the activity of proteins involved in NHEJ actually increased the frequency of gene editing39. These observations are consistent

with the notion that gene editing ssODNs proceeds through the process of HR when ds breaks proceed and enable ssODN annealing. Thus, we suggest that the fundamental role of the TALEN is to

disrupt chromatin structure and define an entry site near the target base for the ssODN to initiate the annealing process. A number of simple predictions can be made to test this hypothesis

including changing the cleavage site relative to the target base (or codon), a design modification that should impact gene editing frequencies. Yang et al.40 defined an optimal series of cut

sites in the CCR5 gene of a stem cell genome which align with our own observations (Rivera-Torres et al. in preparation) and suggest that the highest frequency of gene editing is enabled

when the cleavage takes place within 25–30 base pairs relative to the target base. If the mechanism of TALEN/ssODN-directed gene editing can be elucidated even partially, we should be able

to design a combinatorial approach to impact monogenic diseases in a more rational way. Experiments aimed at exploring these facets of gene editing are now underway in our laboratory.

METHODS CELL LINE AND CULTURE CONDITIONS HCT116 cells were acquired from ATCC (American Type Cell Culture, Manassas, VA). HCT116-19 was created by integrating a pEGFP-N3 vector (Clontech,

Palo Alto, CA) containing a mutated eGFP gene. The mutated eGFP gene has a nonsense mutation at position +67 resulting in a nonfunctional eGFP protein. For these experiments, HCT116 (-19)

cells were cultured in McCoy's 5A Modified medium (Thermo Scientific, Pittsburgh, PA) supplemented with 10% fetal bovine serum, 2 mM L-Glutamine and 1% Penicillin/Streptomycin. Cells

were maintained at 37°C and 5% CO2. Custom designed oligonucleotides, 72NT, 72T and 72NT-U were synthesized from IDT (Integrated DNA Technologies, Coralville, IA). TALEN DESIGN AND

CONSTRUCTION TALENs of 19 RVDs each were designed to flank the target site of the integrated mutant eGFP gene to bind to the following sequences: L848-19 5′GGCCCACCCTCGTGACCAC and R898-19 5′

AGCGGCTGAAGCACTGCAC. TALEN Construction was done via the Golden Gate Assembly method originally developed by Cermak et al.20 and purchased through Addgene (Addgene, Cambridge, MA). The

final step of the assembly protocol was modified to include the mammalian expression vector pc-GoldyTALEN, which has optimized for expression and cutting efficiency in mammalian systems22.

Following construction, colony PCR and DNA sequencing by Genewiz Incorporated (South Plainfield, NJ) was performed to confirm correct TALEN constructs. TRANSFECTION OF HCT116-19 CELLS AND

EXPERIMENTAL APPROACH For experiments utilizing synchronized cells, HCT116-19 cells were seeded at 3.0 × 106 cells in a 100 mm dish and synchronized with 6 μM aphidicolin for 24 hours prior

to targeting. Cells were released for 4 hours (or indicated time) prior to trypsinization and transfection by washing with PBS (−/−) and adding complete growth media. Synchronized and

unsynchronized HCT116-19 cells were transfected at a concentration of 5 × 105 cells/100 ul in 4 mm gap cuvette (BioExpress, Kaysville, UT). Single-stranded oligonucleotides and/or TALEN

plasmid constructs were electroporated (250 V, LV, 13 ms pulse length, 2 pulses, 1 s interval) using a Bio-Rad Gene Pulser XCell™ Electroporation System (Bio-Rad Laboratories, Hercules, CA).

Cells were then recovered in 6-well plates with complete growth media at 37°C for the indicated time prior to analysis. ANALYSIS OF GENE EDITED CELLS Fluorescence (eGFP) was measured by a

Guava EasyCyte 5 HT Flow Cytometer (Millipore, Temecula, CA). Cells were harvested by trypsinization, washed once with 1× PBS (−/−) and resuspended in buffer (0.5% BSA, 2 mM EDTA, 2 μg/mL

Propidium Iodide (PI) in PBS −/−). Propidium iodide was used to measure cell viability as such, viable cells stain negative for PI (uptake). Correction efficiency was calculated as the

percentage of the total live eGFP positive cells over the total live cells in each sample. Error bars are produced from three sets of data points generated over three separate experiments

using basic calculations of Standard Error. Sequence confirmation of ssODN/TALEN edited cells was carried out by fluorescence-activated cell sorting of eGFP+ cells via the BD FACSAria II

sorter - 488 nm (100 mw) (BD Biosciences, San Jose, CA). 1.35 ug 72NT and 2 ug TALEN transfected cells were sorted at 24,48,72 and 240 hours post electroporation. Immediately, DNA was

isolated from each sample was using the Blood and Tissue DNeasy kit (Qiagen, Hilden, Germany). The targeted site was amplified via PCR using forward primer, 5′CTGGACGGCGACGTAAACGGC and

reverse primer, 5′ ACCATGTGATCGCGCTTCTCG. PCR cleanup was performed using the QIAquick® PCR purification kit (Qiagen, Hilden, Germany) and the purified samples were sent for sequencing to

Genewiz Incorporated (South Plainfield, NJ). HCT116-19 CLICK-IT EDU CELL PROLIFERATION ASSAY Gene editing reactions were carried out on HCT116-19 cells as described above. At 48-hours post

transfection, EdU was added at a concentration of 10 μM to label actively replicating DNA in cells. EdU incubation was carried out for 18 hours (>one cell cycle) to ensure all cells had

time to proceed through S-phase. Following EdU incubation, cells were washed 2× with PBS (−/−), harvested by trypsinization and processed using the Click-iT EdU Alexa Fluor 647 Flow

Cytometry Assay Kit (Life Technologies, Carlsbad, CA). Briefly, cells were fixed for 15 minutes at room temperature with Click-iT fixative. After fixation, cells were washed with buffer and

permeabilized for 15 minutes using saponin-based permeabilization wash reagent followed by incubation with the Click-iT reaction cocktail containing the Alexa Fluor 647 azide for 30 minutes.

Anti-eGFP Alexa Fluor 488 antibody was then applied for 60 minutes to identify eGFP expressed in edited cells since the natural fluorescence of eGFP is quenched by the Cu2+ contained in the

Click-iT reaction cocktail. After incubation, the cells were resuspend in wash buffer and analyzed by flow cytometry using the BD FACSAria II sorter (BD Biosciences, San Jose, CA). EdU

uptake was analyzed by the 633 excitation laser with a 670/30 emission filter (y-axis), while FITC (GFP expression) was attained through the 488 laser with a 530/30 emission filter (x-axis).

REFERENCES * Parekh-Olmedo, H. & Kmiec, E. B. Progress and prospects: targeted gene alteration (TGA). Gene Ther. 14, 1675–1680 (2007). Article  CAS  Google Scholar  * Engstrom, J. U.,

Suzuki, T. & Kmiec, E. B. Regulation of targeted gene repair by intrinsic cellular processes. BioEssays. 31, 159–168 (2009). Article  CAS  Google Scholar  * Aarts, M. & te Riele, H.

Progress and prospects: oligonucleotide-directed gene modification in mouse embryonic stem cells: a route to therapeutic application. Gene Ther. 18, 213–219 (2011). Article  CAS  Google

Scholar  * Ferrara, L. & Kmiec, E. B. Targeted gene repair activates chk1 and chk2 and stalls replication in corrected cells. DNA repair (Amst). 5, 422–431 (2006). Article  CAS  Google

Scholar  * Ferrara, L., Engstrom, J. U., Schwartz, T., Parekh-Olmedo, H. & Kmiec, E. B. Recovery of cell cycle delay following targeted gene repair by oligonucleotides. DNA Repair

(Amst). 6, 1529–1535 (2007). Article  CAS  Google Scholar  * Ferrara, L., Parekh-Olmedo, H. & Kmiec, E. B. DNA damage increases the frequency of gene repair in mammalian cells.

Experimental Cell Res. 300, 170–179 (2004). Article  CAS  Google Scholar  * Ferrara, L. & Kmiec, E. B. Camptothecin enhances the frequency of oligonucleotide-directed gene repair in

mammalian cells by inducing DNA damage and activating homologous recombination. Nucleic Acids Res. 32, 5239–5248 (2004). Article  CAS  Google Scholar  * Radecke, F. et al. Targeted

chromosomal gene modification in human cells by single-stranded oligodeoxynucleotides in the presence of a DNA double-strand break. Mol Ther. 14, 298–808 (2006). Article  Google Scholar  *

Olsen, P. A., Randol, M. & Krauss, S. Implications of cell cycle progression on functional sequence correction by short single-stranded DNA oligonucleotides. Gene Ther. 12, 546–551

(2005). Article  CAS  Google Scholar  * Engstrom, J. & Kmiec, E. B. DNA Replication, Cell Cycle Progression and the Targeted Gene Repair Reaction. Cell Cycle. 28, 1402–1414 (2008).

Article  Google Scholar  * Brachman, E. & Kmiec, E. B. Gene repair in mammalian cells is stimulated by the elongation of S phase and transient stalling of replication forks. DNA Repair

(Amst). 4, 445–457 (2005). Article  CAS  Google Scholar  * Huen, M. S. et al. The involvement of replication in single-stranded oligonucleotide-mediated gene repair. Nucleic Acids Res. 34,

6183–6194 (2006). Article  CAS  Google Scholar  * Olsen, P. A., Randol, M., Luna, L., Brown, T. & Kraus, S. Genomic sequence correction by single-stranded DNA oligonucleotides: role of

DNA synthesis and chemical modifications of the oligonucleotide ends. J Gene Med. 7, 1534–1544 (2005). Article  CAS  Google Scholar  * Radecke, S., Radecke, F., Peter, I. & Schwarz, K.

Physical incorporation of a single-stranded oligodeoxynucleotides during targeted repair of a human chromosomal locus. J Gene Med. 8, 217–228 (2006). Article  CAS  Google Scholar  * Radecke,

F., Radecke, S. & Schwarz, K. Unmodified oligodeoxynucleotides require single-strandedness to induce targeted repair of a chromosomal EGFP gene. J Gene Med. 6, 1257–1271 (2004). Article

  CAS  Google Scholar  * Papaioannou, I., Disterer, P. & Owens, J. S. Use of internally nuclease protected single-strand DNA oligonucleotides and silencing of the mismatch repair

protein, MSH2, enhances the replication of corrected cells following gene editing. J Gene Med. 11, 267–274 (2009). Article  CAS  Google Scholar  * Bonner, M., Strouse, B., Applegate, M.,

Livingston, P. & Kmiec, E. B. DNA damage response pathway and replication fork stress during oligonucleotide directed gene editing. Mol Ther. 1, e18 (2012). Google Scholar  * Borjigin,

M. et al. Proliferation of genetically modified human cells on electrospun nanofiber scaffolds. Mol Ther. 1, 10.1038 (2012). Google Scholar  * Livingston, P. et al. Oligonucleotide delivery

by Nucleofection does not rescue the Reduced Proliferation Phenotype in gene-edited cells. Nucl Acids Ther. 22, 405–413 (2012). Article  CAS  Google Scholar  * Cermak, T. et al. Efficient

design and assembly of custom TALEN and other TAL effector-based constructs for DNA targeting. Nucleic Acids Res. 39(12), e82 (2011). Article  CAS  Google Scholar  * Doyle, E. L. et al. TAL

Effector-Nucleotide Targeter (TALE-NT) 2.0: tools for TAL effector design and target prediction. Nucleic Acids Res. 40, 117–122 (2012). Article  Google Scholar  * Bedell, V. M. et al. In

vivo genome editing using a high-efficiency TALEN system. Nature. 491(7422), 114–8 (2012). Article  ADS  CAS  Google Scholar  * Bonner, M. & Kmiec, E. B. DNA breakage associated with

targeted gene alteration directed by DNA oligonucleotides. Mutat Res. 669(1–2), 85–94 (2009). Article  CAS  Google Scholar  * Mak, A. N.-S., Bradley, P., Cernadas, R. A., Bogdanove, A. J.

& Stoddard, B. L. The crystal structure of TAL effector PthXo1 bound to its DNA target. Science. 335, 716–719 (2012). Article  ADS  CAS  Google Scholar  * Deng, D. et al. Structural

basis for sequence-specific recognition of DNA by TAL effectors. Science. 335, 720–723 (2012). Article  ADS  CAS  Google Scholar  * Andersen, M. S., Sorensen, C. B., Bolund, L. & Jensen,

T. G. Mechanisms underlying targeted gene correction using chimeric RNA/DNA and single-stranded DNA oligonucleotides. J Mol Med. 80, 770–781 (2002). Article  CAS  Google Scholar  *

Brachman, E. E. & Kmiec, E. B. The biased evolution of targeted gene repair. Curr Opin Mol Ther. 3, 171–176 (2002). Google Scholar  * Liu, L. et al. Strand bias in targeted gene repair

is influenced by transcriptional activity. Mol Cell Biol. 22, 3852–3863 (2002). Article  CAS  Google Scholar  * Igoucheva, O., Alexeev, V. & Yoon, K. Targeted gene correction by small

single-stranded oligonucleotides in mammalian cells. Gene Ther. 5, 391–399 (2001). Article  Google Scholar  * Liu, L., Parekh-Olmedo, H. & Kmiec, E. B. Development and regulation of gene

repair. Nat Rev Genet. 4, 679–689 (2003). Article  CAS  Google Scholar  * Wu, X. S. et al. Increased efficiency of oligonucleotide-mediated gene repair through slowing replication fork

progression. Proc Natl Acad Sci USA. 102, 2508–2513 (2005). Article  ADS  CAS  Google Scholar  * Engstrom, J. U. & Kmiec, E. B. Manipulation of cell cycle progression can counteract the

apparent loss of correction frequency following oligonucleotide-directed gene repair. BMC Mol Biol. 8, 9 (2007). Article  Google Scholar  * Parekh-Olmedo, H., Engstrom, J. & Kmiec, E. B.

The effect of hydroxyurea and trichostatin A on targeted nucleotide exchange in yeast and mammalian cells. New York Academy of Science. 1002, 43–56 (2003). Article  ADS  CAS  Google Scholar

  * Wefers, B. et al. Direct microinjection of mouse disease models by embryo microinjection of TALENs and ODNs. Pro Natl Acad Sci. 10, 1073 (2013). Google Scholar  * Ding, Q. et al. A TALEN

Genome-Editing System for Generating Human Stem Cell-Based Disease Models. Cell Stem Cell. 12, 1–14 (2013). Article  Google Scholar  * Briggs, A. W. et al. Iterative capped assembly: rapid

and scalable synthesis of repeat-module DNA such as TAL effectors from individual monomers. Nucl. Acids Res. 40, 5 e117 (2012). Article  Google Scholar  * Liu, J., Majumdar, A., Liu, J.,

Thompson, L. H. & Seidman, M. M. Sequence conversion of single stranded oligonucleotide donors via non-homologous end joining in mammalian cells. J. Biol. Chem. 285(30), 23198–23207

(2010). Article  Google Scholar  * Majumdar, A. et al. Cell cycle modulation of gene targeting by a triple helix-forming oligonucleotide. J. Biol. Chem. 278, 11072–11077 (2003). Article  CAS

  Google Scholar  * Morozov, V. & Wawrousek, E. F. Single-strand DNA-mediated targeted mutagenesis of genomic DNA in early mouse embryos is stimulated by Rad51/54 and by Ku70/86

inhibition. Gene Ther. 15, 468–472 (2003). Article  Google Scholar  * Yang, L. et al. Optimization of scarless human stem cell genome editing. Nucleic Acids Res, 10, 1–13 (2013). Google

Scholar  Download references ACKNOWLEDGEMENTS We are grateful to members of the Kmiec Laboratory for fruitful discussions and to Ms. Sarah Greene for preparation and editing of the

manuscript. We would also like to thank Brenda Rabeno from the Center for Translational Cancer Research at the Helen F. Graham Cancer Center for her support of the flow cytometry work in

this manuscript. This work was supported by NIH grant, 5R01CA89325-12 to E.B.K. and by the Delaware State INBRE award; Genome Customization Core. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS

* Department of Chemistry, Delaware State University, 1200 N. DuPont Highway Dover, DE 19901 Bryan Strouse, Pawel Bialk, Rohina A. Niamat, Natalia Rivera-Torres & Eric B. Kmiec Authors *

Bryan Strouse View author publications You can also search for this author inPubMed Google Scholar * Pawel Bialk View author publications You can also search for this author inPubMed Google

Scholar * Rohina A. Niamat View author publications You can also search for this author inPubMed Google Scholar * Natalia Rivera-Torres View author publications You can also search for this

author inPubMed Google Scholar * Eric B. Kmiec View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS B.S. and P.B. designed, constructed and

supplied the TALENs; B.S., P.B., R.N. and N.R.T. carried out the gene editing reactions; B.S., P.B. and E.B.K. designed experimental flow: E.B.K. did the primary writing of the manuscript.

ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing financial interests. ELECTRONIC SUPPLEMENTARY MATERIAL SUPPLEMENTARY INFORMATION Supplemental Figure S1 and S2 RIGHTS

AND PERMISSIONS This work is licensed under a Creative Commons Attribution 3.0 Unported License. To view a copy of this license, visit http://creativecommons.org/licenses/by/3.0/ Reprints

and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Strouse, B., Bialk, P., Niamat, R. _et al._ Combinatorial gene editing in mammalian cells using ssODNs and TALENs. _Sci Rep_ 4, 3791

(2014). https://doi.org/10.1038/srep03791 Download citation * Received: 15 October 2013 * Accepted: 24 December 2013 * Published: 21 January 2014 * DOI: https://doi.org/10.1038/srep03791

SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to

clipboard Provided by the Springer Nature SharedIt content-sharing initiative
